Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH5210R LFMDL 1G DIP QUAD PORTS N/A |
3,484 | 5.06 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142" L x 1.043" W (29.00mm x 26.50mm) | 0.512" (13.00mm) | 0°C ~ 85°C | - | - |
|
|
T1105NLTXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT |
2,187 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TX1295NLTXFRMR 4PORT 1:1.26CT 1.2MH SMD |
3,482 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:1.26CT Transmitter, 1:1.26CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG59-S010NXRLISO MOD 10BASE-T QUAD 1C:1C 40P |
1,853 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG59-S020NXRLISO MOD 10BASE-T QUAD 1C:1C 40P |
1,817 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-S020NXRLISO MOD 10BASE-T QUAD 1C:2C/1:1 |
2,529 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-S020NXRLISO MOD 10BASE-T QUAD 1C:1.41C 4 |
2,193 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-S010NXRLISO MOD 10BASE-T QUAD 1C:1.41C 4 |
2,381 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG59-1006NXRLISO MOD 10BASE-T QUAD 1C:1C 40P |
4,324 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-2006NXRLISO MOD 10BASE-T QUAD 1C:2C/1:1 |
1,479 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-S010NXRLISO MOD 10BASE-T QUAD 1C:2C/1:1 |
1,422 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-1406NXRLISO MOD 10BASE-T QUAD 1C:1.41C 4 |
1,674 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG10G-S12NZ5LFISO MOD 10G POE 0.35A 24P SMD |
3,103 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.722" L x 0.487" W (18.34mm x 12.37mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
|
|
S10951PULSE XFMR 1CT:1CT 3.78MH 8.44MH |
1,493 | 5.10 |
|
Datasheet |
- | Bulk | Active | - | 3.78mH, 8.44mH | - | 1CT:1CT | Through Hole | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.580" (14.73mm) | - | - | - |
|
|
TGSP-S225NZRLTRISO MOD T1 DUAL 1C:2.4C/1C:1C |
1,157 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG93-1505NZRLTRISO MOD T1 DUAL 1C:2.42C X-TEMP |
4,307 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|

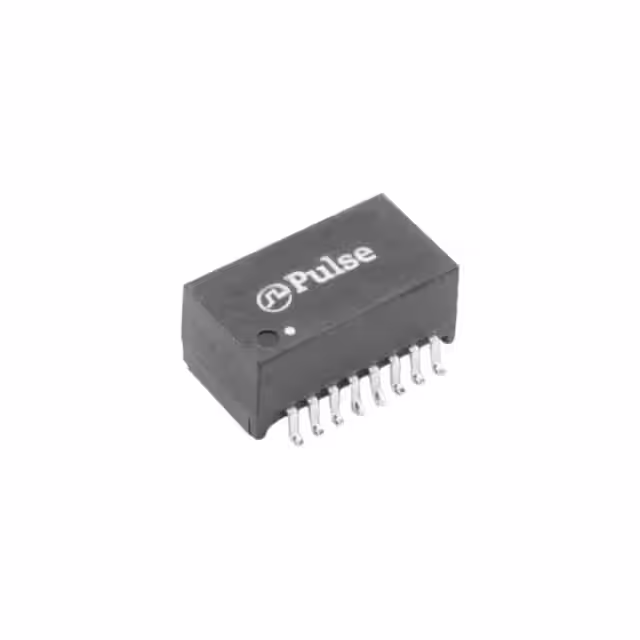

HM1193NLXFMR MDL 100BASE-T SMT AEC-Q200 |
2,806 | 5.71 |
|
Datasheet |
- | Tube | Active | LAN 100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 125°C | - | - |
|
|
TG5G-E11NYNLFISO MOD 5G POE 0.35A MINI X-TEMP |
1,064 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 2.5/5G Base-T | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.300" W (14.22mm x 7.62mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
PFBR45-ST13150STRANSFORMER PLC 0.45W 1.0MH EP13 |
3,400 | 5.66 |
|
Datasheet |
PFBR45 | Tape & Reel (TR) | Active | General Purpose | 1.0mH | - | 2:1 | Surface Mount | 0.551" L x 0.547" W (14.00mm x 13.90mm) | 0.531" (13.50mm) | -40°C ~ 125°C | - | - |
|
|
TG89-S020NXRLTRISO MOD 10BASE-T QUAD 1C:2C/1:1 |
4,807 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
