Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

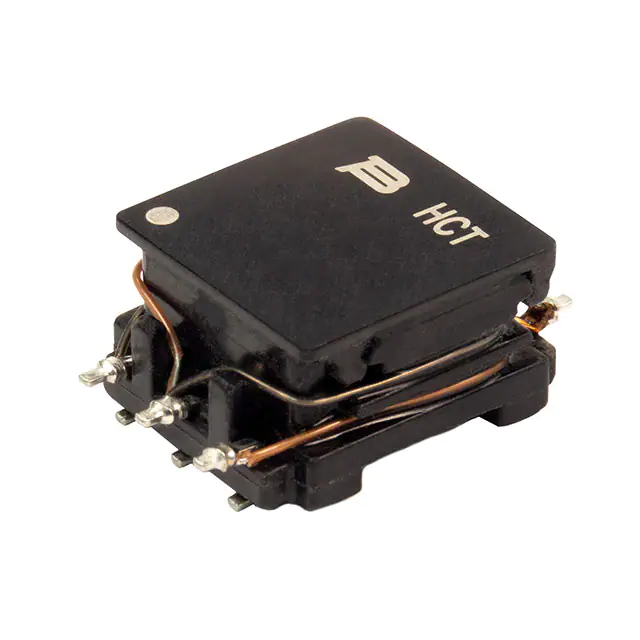

HCTSM80304BAL-E1XFRMR POWER 3:4 300UH SMD |
1,437 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | - | 300µH | 11.0VµS | 3:4 | Surface Mount | 0.598" L x 0.425" W (15.20mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
TG10G-HP6NZ5LFISO MOD 10G POE 0.6A 24P SMD |
1,191 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.722" L x 0.487" W (18.34mm x 12.37mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
|
|
H5143NLPULSE XFMR 1CT:1CT 350UH |
2,235 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
|
TX3036TPULSE XFMR 1:1 100UH |
2,601 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 100µH | - | 1:1 | Surface Mount | 0.537" L x 0.390" W (13.64mm x 9.91mm) | 0.226" (5.74mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-RP33NV6LFISO MOD 1G DUAL POE 0.35A 48P SM |
1,301 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
MGPWL-00270-PPULSE XFMR 1:2 400UH THRU HOLE |
1,700 | 5.72 |
|
Datasheet |
- | Tube | Active | - | 400µH | - | 1:2 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.300" (7.62mm) | - | - | - |
|
TLA-6T404XFRMR FOR BCM5208,5203 CS 40SOP |
3,600 | 5.17 |
|
Datasheet |
TLA | Tray | Active | LAN | 350µH | - | 1CT:1CT, 1:1 | Surface Mount | 1.020" L x 0.480" W (25.90mm x 12.20mm) | 0.228" (5.80mm) | 0°C ~ 70°C | - | - |
|
|
TLA-6T406XFRMR LAN 1CT:1CT 350UH 40SOP |
3,900 | 5.17 |
|
Datasheet |
TLA | Tray | Active | LAN | 350µH | - | 1CT:1CT | Surface Mount | 1.020" L x 0.480" W (25.90mm x 12.20mm) | 0.228" (5.80mm) | 0°C ~ 70°C | - | - |
|
|
TG5G-HPE6NZ5LFISO MOD 5G POE 0.6A X-TEMP 24P S |
3,699 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-S205NV6LFTRISO MOD 1G DUAL 48P SMD T/R |
1,795 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TGR23-3755V12LFTRISO MOD T1 1C:2.42C REINF 3.75KV |
4,878 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Interface | 1.5mH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TG111-S201NWLFTRISO MOD 1G DUAL 50P SMD T/R |
2,008 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | - | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
760301104XFRMR GATE DRIVE 2:1:1 SMD |
2,406 | 6.63 |
|
Datasheet |
WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 330µH | 28.6VµS | 2:1:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
|
HCTSM80102AAL-E1XFRMR POWER 1:2 250UH SMD |
1,004 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | - | 250µH | 11.0VµS | 1:2 | Surface Mount | 0.598" L x 0.425" W (15.20mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
SM91078L-ETRANS LAN 100B-TX 1 PORT |
4,805 | 0.00 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 100 Base-T | - | - | - | - | - | - | - | - | - |
|
|
TG1G-S220NWLFISO MOD 1G DUAL 50P SMD |
4,013 | 0.00 |
|
- |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | - | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
MGBBT-00245-PMGBBT-00245, XFMR DEP5 SMD LL |
4,650 | 5.36 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
H5009NLTTRANSFORMER MODULE GIGABIT 1PORT |
2,213 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.537" L x 0.600" W (13.64mm x 15.24mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
H5009FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,116 | 7.43 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
|
TG5G-E11NYNLFTRISO MOD 5G POE 0.35A MINI X-TEMP |
4,941 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | - | - | 1CT:1CT | Surface Mount | 0.560" L x 0.300" W (14.22mm x 7.62mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
