Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG1G-RP33NV6LFTRISO MOD 1G DUAL POE 0.35A 48P SM |
3,359 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-TX | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TG5G-HP10NZ5LFISO MOD 5G POE 1A 24P SMD |
4,971 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
|

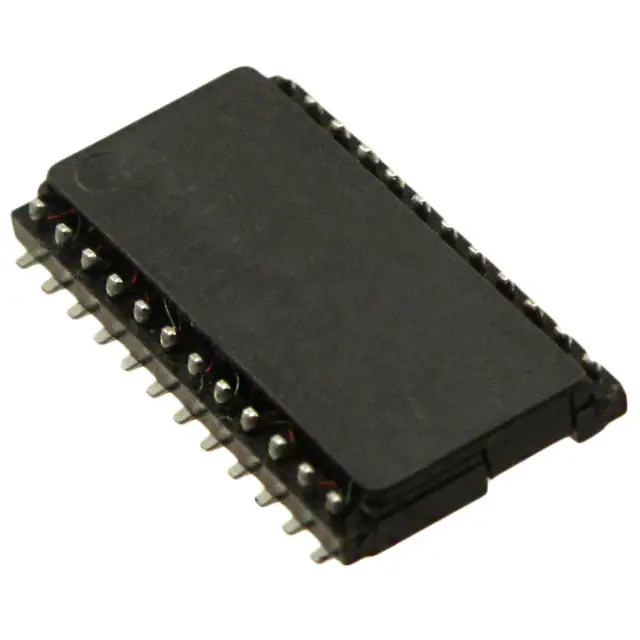

TLA-7T201LF-TTRANSFORMER LAN 10/100/1000 T |
1,778 | 0.00 |
|
Datasheet |
TLA | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.630" L x 0.335" W (16.00mm x 8.50mm) | 0.087" (2.20mm) | 0°C ~ 70°C | - | - |
|
HM1188FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,977 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 105°C | - | - |
|
|
GST5009G LFMDL 1G SINGLE PORT N/A |
2,553 | 5.47 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TG1G-S205NV6RLISO MOD 1G DUAL 48P SMD |
4,832 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S220NWLFTRISO MOD 1G DUAL 50P SMD T/R |
3,503 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | - | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
TG10G-HP6NZ5LFTRISO MOD 10G POE 0.6A 24P SMD T/R |
2,018 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.722" L x 0.487" W (18.34mm x 12.37mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
|
|
TG5G-HPE6NZ5LFTRISO MOD 5G POE 0.6A X-TEMP 24P S |
2,585 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
|
T1076NLTXFRMR 1:1.15CT/1CT:2CT 1.2/1.2MH |
1,868 | 3.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1:1.15CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
TG2G-HPE10NZ5LFISO MOD 2.5G POE 1A X-TEMP 24P S |
4,585 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 2.5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
H5007TPULSE XFMR 1CT:1 TX 1CT:1CT RX |
4,325 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.217" (5.51mm) | 0°C ~ 70°C | - | - |
|
|
T1231TPULSE XFMR 1:2.4 TX 1:1 RX |
2,868 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
PE-65839NLXFRMR 1:1/1.26 1.50MH T/H |
4,365 | 5.54 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.5mH | - | 1:1/1.26 | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
|
TG111-S212NWLFISO MOD 1G DUAL POE 0.35A 50P SM |
4,224 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | - | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
TG1G-S205NV6RLTRISO MOD 1G DUAL 48P SMD T/R |
3,025 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TG110-S035NXRLISO MOD 10/100 DUAL 40P SMD |
1,455 | 0.00 |
|
- |
- | Tube | Not For New Designs | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.230" (5.84mm) | - | - | - |
|
|
TGR110-Q350V12LFISO MOD 10/100 REINF 4.5KV 12P S |
1,198 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TX1262NLXFRMR 4PORT 1:2 1.2MH SMD |
4,626 | 0.00 |
|
Datasheet |
- | Tube | Discontinued at Digi-Key | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG5G-HP10NZ5LFTRISO MOD 5G POE 1A 24P SMD T/R |
2,536 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
