Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

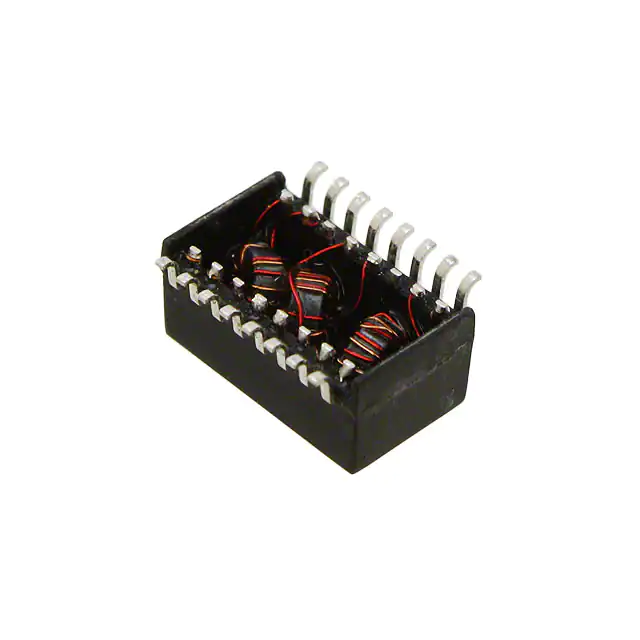

23Z91SMNL-TXFRMR AUI ETHERNET LAN 16SOIC |
3,026 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
PE-68836NLTXFRMR 1:1/1.26 / 1:1/1.26 SMD |
4,541 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.5mH, 1.5mH | - | 1:1/1.26, 1:1/1.26 | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
PE-68861NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
4,626 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
T1007NLTXFRMR 1:1.15CT 1.2MH SMD |
4,510 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Quad) | 1.2mH | - | 1:1.15CT | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
B4064NLTXFRMR FOR METALINK VDSL CHIPSET |
3,673 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | VDSL | 1.134mH | - | 1:3.6 Transmitter, 2:3.6 Receiver | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
BX2577LNLTXFRMR ADSL FOR GLOBESPAN CPE CHP |
3,834 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | ADSL | 701µH | - | 1:4 Transmitter, 1:2 Receiver | Surface Mount | 0.537" L x 0.622" W (13.65mm x 15.80mm) | 0.492" (12.50mm) | -40°C ~ 85°C | - | - |
|
|
TX3052NLXFRMR 6PORT 1:2 40UH SMD |
3,152 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T3/E3 (Twelve) | 40µH | - | 1:2 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
|
TX3051NLXFRMR 6PORT 1:1 60UH SMD |
3,259 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Twelve) | 60µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.290" (7.36mm) | -40°C ~ 85°C | - | - |
|
|
B2064NLXFRMR FOR ALCATEL ADSL CHIPSET |
1,837 | 0.00 |
|
- |
- | Tray | Obsolete | ADSL | 480µH | - | 1:1 | Surface Mount | 0.530" L x 0.516" W (13.46mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
T1001NLTXFRMR 1:1.36/1 1.2MH SMD |
2,411 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Quad) | 1.2mH | - | 1:1.36/1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
T3012NLXFRMR T3/DS3/E3/STS-1 1:2CT SMD |
1,546 | 6.36 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
H1305NLXFRMR MODULE 2PORT 1:1 10/100 |
3,495 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.37mm) | 0°C ~ 70°C | - | - |
|
|
H0055NLXFRMR MODULE 1PORT 1:1 10/100 |
3,838 | 0.00 |
|
Datasheet |
Star Magnetics™ | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 200µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.465" L x 0.340" W (11.81mm x 8.63mm) | 0.085" (2.16mm) | 0°C ~ 70°C | - | - |
|
|
T3023NLTRANSFORMER 1:1 40UH SMD |
3,707 | 0.00 |
|
Datasheet |
- | Tube | Active | T3/E3 (Dual) | 40µH, 40µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
T1006NLTXFRMR 1:2CT 1.2MH SMD |
2,021 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Quad) | 1.2mH | - | 1:2CT | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
B4021NLXFRMR FOR BROADCOM/TI CHIPST SMD |
1,982 | 0.00 |
|
- |
- | Tube | Obsolete | VDSL | 190µH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
TX1323NLMODULE 1CT:2CT 1.2MH SMD |
2,850 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|

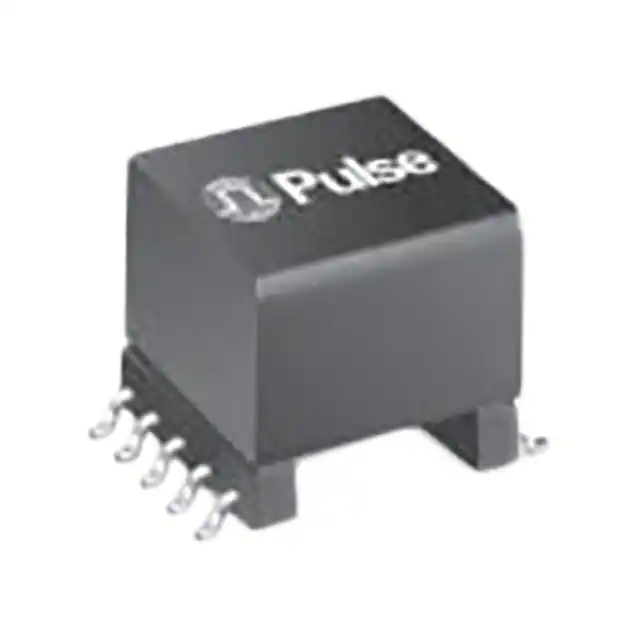

BX1194WNLTXFRMR SHDSL FOR INFINEON CHIPSET |
3,306 | 5.52 |
|
- |
- | Tape & Reel (TR) | Obsolete | SHDSL | 3mH | - | 4.5:1 | Surface Mount | 0.530" L x 0.555" W (13.46mm x 14.10mm) | 0.485" (12.32mm) | -40°C ~ 85°C | - | - |
|
|
H1141NLTXFRMR MODUL AUTO MDI/MDIX 10/100 |
2,978 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.495" L x 0.475" W (12.57mm x 12.07mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PA2008NLTPULSE XFMR 2:1:1 1.43MH |
3,971 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.43mH | 52VµS | 2:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
