Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

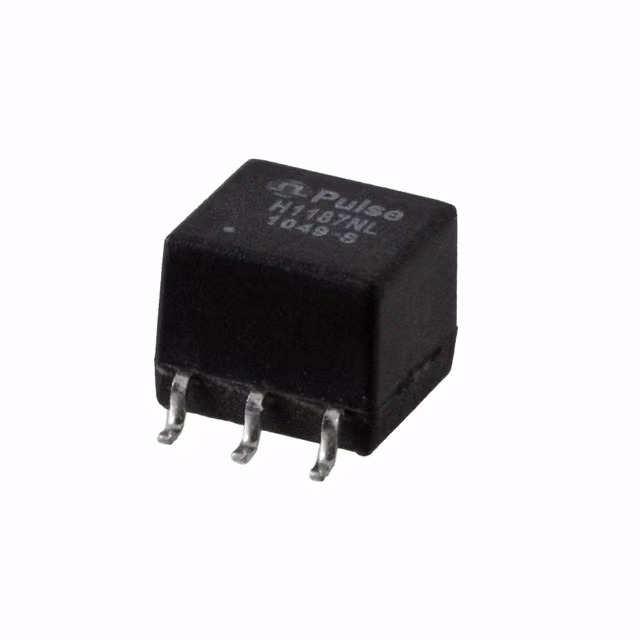

H1187NLTXFRMR MAGNT MOD 1PORT POE 10/100 |
1,924 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
E2457NLTXFRMR ISOL 10BASE-T 1:1.41 SMD |
4,707 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 140µH, 140µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | - | - | - |
|
TX1262NLTXFRMR 4PORT 1:2 1.2MH SMD |
4,762 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
T1065NLTXFRMR 4PORT 1:2CT 1.2MH SMD |
4,689 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TX1266NLTXFRMR 4PORT 1:2 1.2MH SMD |
4,159 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
T3011NLXFRMR T3/DS3/E3/STS-1 1:1 SMD |
1,729 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
T1021NLXFRMR 2CT:1/1.26 / 2CT:1/1.26 |
3,168 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.5mH, 1.5mH | - | 2CT:1/1.26, 2CT:1/1.26 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-68025QNLMODULE INTERFACE 10BASE-T SMD |
1,652 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
H1199NLXFRMR MAGNETIC 1PORT 1:1 10/100 |
1,759 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

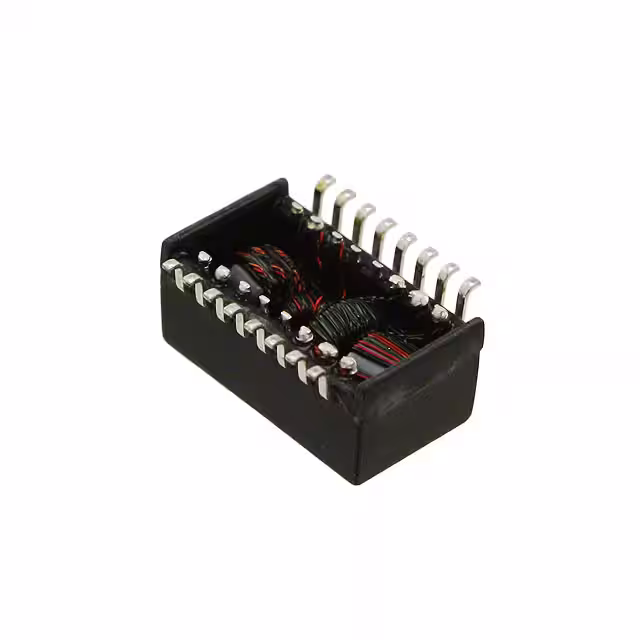

H1121NLXFRMR MAGNT 1PORT 1:1.414 10/100 |
2,837 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.414 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
T1023NLXFRMR 1CT:1.41CT/1CT:1.41CT SMD |
3,911 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1.41CT, 1CT:1.41CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TX9027NLXFRMR 4PORT 1:2 1.2MH SMD |
2,042 | 0.00 |
|
- |
- | Tube | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
TX9023NLXFRMR 4PORT 1:2 1.2MH SMD |
1,479 | 0.00 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
|
TX1467NLXFRMR 1CT:1:1/1CT:1:1 SMD |
4,270 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:1, 1CT:1:1 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

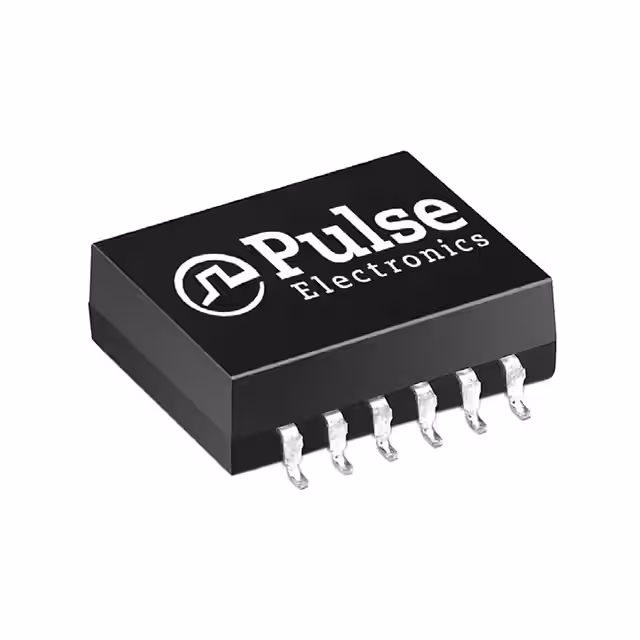

H1126NLXFRMR MODULE 1PORT 1:2 10/100 |
3,914 | 6.44 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1CT:2CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.202" (5.13mm) | 0°C ~ 70°C | - | - |
|
|
H1141NLXFRMR MODUL AUTO MDI/MDIX 10/100 |
1,760 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.495" L x 0.475" W (12.57mm x 12.07mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TX1474NLXFRMR OCTAL 1:2.42 1.2MH SMD |
4,059 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Octal) | 1.2mH | - | 1:2.42 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
T1006NLXFRMR 1:2CT 1.2MH SMD |
2,015 | 0.00 |
|
- |
- | Tube | Obsolete | T3/E3 (Quad) | 1.2mH | - | 1:2CT | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
T1001NLXFRMR 1:1.36/1 1.2MH SMD |
4,897 | 0.00 |
|
- |
- | Tube | Active | T3/E3 (Quad) | 1.2mH | - | 1:1.36/1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
T1343NLTXFRMR OCTAL 1:1.266 1.5MH SMD |
1,441 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.5mH | - | 1:1.266 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
