Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7018NLMODULE 10GBASE-T 1.5KVRMS SMD |
3,347 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
T3021NLTRANSFORMER 1500VRMS DUAL SMD |
1,943 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T3/E3 (Dual) | 40µH | - | 2CT:1 Transmitter, 2CT:1 Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
TX1680NLTRANSFORMER 1500VRMS 1CT:2 1:2CT |
2,673 | 0.00 |
|
Datasheet |
- | Tray | Active | T1/E1 (16) | 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.458" (11.63mm) | -40°C ~ 85°C | - | - |
|
|
TX1681NLTRANSFORMER 1500VRMS 1CT:1 |
2,537 | 0.00 |
|
Datasheet |
- | Tray | Active | T1/E1 (16) | 1.2mH | - | 1:CT Transmitter, 1CT:1 Receiver | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.458" (11.63mm) | -40°C ~ 85°C | - | - |
|
|
TX9031NLTRANSFORMER 1500VRMS 1CT:2.4 SMD |
3,668 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1CT:2.4 Transmitter, 1:1CT Receiver | Surface Mount | 1.255" L x 0.712" W (31.88mm x 18.08mm) | 0.315" (8.00mm) | - | - | - |
|

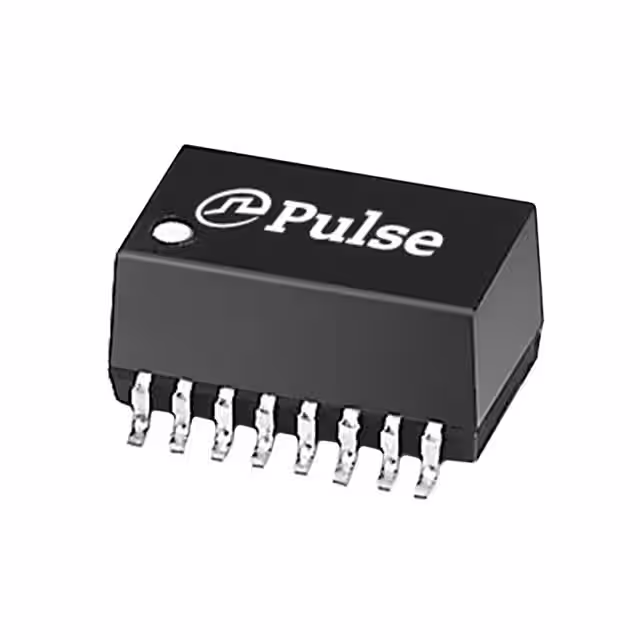

ST7032QNLTPULSE XFMR 1:1 TX 1:1 RX 67UH |
1,730 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 67µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
ST7033QNLTPULSE XFMR 1:1 TX 1:1 RX 90UH |
4,644 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 90µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
TX1281TPULSE XFMR 1CT:1 2MH |
1,030 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 2mH | - | 1CT:1 | Surface Mount | 0.220" L x 0.230" W (5.59mm x 5.84mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|
H1164TPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,219 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
HX1148TPULSE XFMR 1CT:1 TX 1CT:1CT RX |
3,004 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
HX1236TPULSE XFMR 1:1 TX 1:1 RX |
3,364 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|
|
PE-65798TPULSE XFMR 1:2.5 1:2.5 TX/R 22MH |
2,808 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 22mH | - | 1:2.5 Transmitter, 1:2.5 Receiver | Surface Mount | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 0.390" (9.91mm) | 0°C ~ 70°C | - | - |
|
|
PE-68026TPULSE XFMR 1:1 |
2,951 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
PE-68828TPULSE XFMR 1CT:1CT TX 1CT:2CT RX |
1,329 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 1.2mH, 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
PE-69012TPULSE XFMR 1:1 TX 1:1 RX |
4,792 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
TX1341TPULSE XFMR 1:2 1.2MH |
2,976 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
|
T7015TPULSE XFMR 1CT:2CT TX/RX 20MH |
3,502 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 20mH | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
T3001TPULSE XFMR 1:1 100UH |
3,582 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
T3002TPULSE XFMR 1:2CT 40UH |
2,405 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 40µH | - | 1:2CT | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
23Z81SMNLPULSE XFMR 1:1:1 85UH |
4,281 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 85µH | 2.5VµS | 1:1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
