Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1263NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,309 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.380" W (12.70mm x 9.65mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

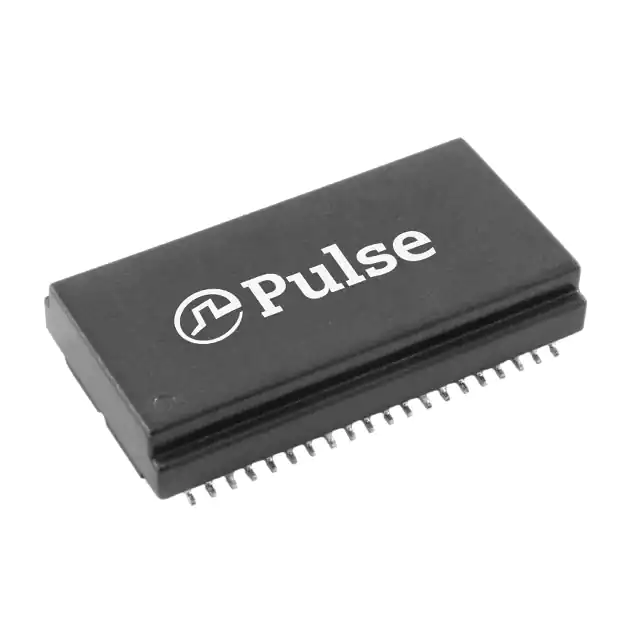

HM1234FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,852 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|
HM6098FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,333 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
|
HX1291NLMOD TRANSFORMER SMD |
3,110 | 0.00 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
PT61018AAPELLAN 10/100 BASE T XFORMER AECQ + |
2,553 | 0.00 |
|
Datasheet |
PT | Tape & Reel (TR) | Discontinued at Digi-Key | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.232" (5.90mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
PM-DB2762ISOLATION TRANSFORMER SMD |
2,434 | 49.69 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | 0.320" (8.13mm) | -55°C ~ 130°C | - | - |
|
PH9384.011NLXFMR GATE-DR 1CT:1T SMT NPB |
3,510 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
|
PH9384.021NLXFMR GATE-DR 2CT:1CT SM NPB |
1,250 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
|
PH9384.034NLXFMR GATE-DR 3CT:4CT SM NPB |
2,719 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
|
PH9384.083NLXFMR GATE-DR 8CT:3CT SM NPB |
4,847 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|
|
PH9384.089NLXFMR GATE-DR 8CT:9CT SM NPB |
3,080 | 0.00 |
|
Datasheet |
- | Tube | Active | - | - | - | - | Surface Mount | - | 0.299" (7.60mm) | - | - | - |
|

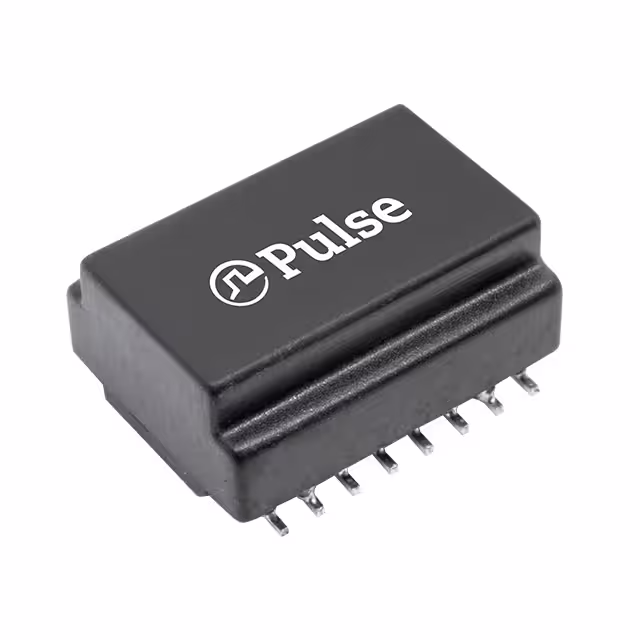

HM1190NLMDL,SIN,100D,1:1,SMT |
3,859 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 125°C | - | - |
|
|
HM1190NLTMDL,SIN,100D,1:1,SMT |
1,055 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 125°C | - | - |
|
|
1000B-5016FMIL-AERO |
4,699 | 0.00 |
|
Datasheet |
- | Tube | Discontinued at Digi-Key | LAN 10/100/1000 Base-T | - | - | 1:1 | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.173" (4.39mm) | - | - | - |
|
|
1000B-5016FNLMDL SIN 1GD 1:1 SM TU NPB |
3,329 | 0.00 |
|
Datasheet |
- | Tube | Discontinued at Digi-Key | LAN 10/100/1000 Base-T | - | - | 1:1 | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.173" (4.39mm) | - | - | - |
|
|
1000B-5016FNLTMDL SIN 1GD 1:1 SM TR NPB |
1,548 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | LAN 10/100/1000 Base-T | - | - | 1:1 | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.173" (4.39mm) | - | - | - |
|
|
1000B-5016FTMIL-AERO |
4,754 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | LAN 10/100/1000 Base-T | - | - | 1:1 | Surface Mount | 0.600" L x 0.300" W (15.24mm x 7.62mm) | 0.173" (4.39mm) | - | - | - |
|
|
H7229FNLTTRANSFORMER MODULE 10GBASE-T |
2,125 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.545" L x 0.591" W (13.84mm x 15.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
H1664NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,367 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
HM1237NLTMDL, DUAL, XFMR-CMC, 1:1, 3.2KV, |
1,458 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 650µH | - | 1:1 | Surface Mount | 0.455" L x 0.375" W (11.56mm x 9.53mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
