Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

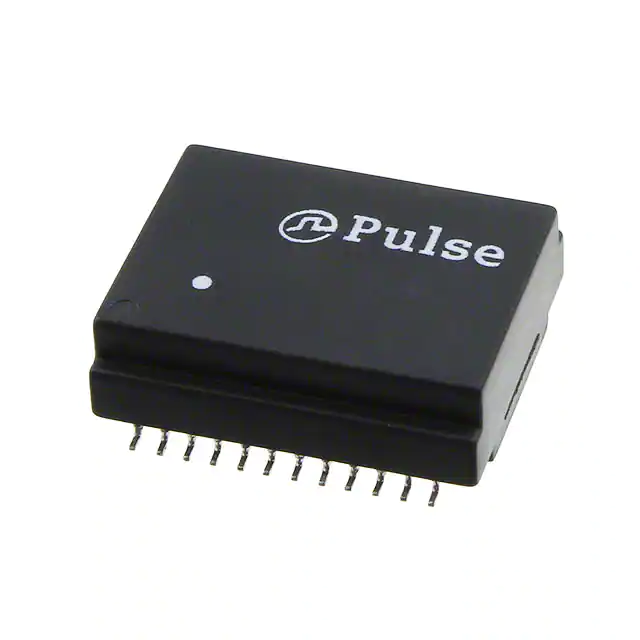

HX6096FNLPULSE XFMR 1CT:1CT TX/RX |
1,591 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
ST7011FNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
3,386 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
ST7032FNLPULSE XFMR 1:1 TX 1:1 RX 67UH |
3,158 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10G Base-T | 67µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
ST7032FNLTPULSE XFMR 1:1 TX 1:1 RX 67UH |
4,630 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 67µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
0560-6100-A2-FPULSE TRANSFORMER 1:1 10MH/10MH |
4,676 | 0.00 |
|
Datasheet |
- | Bulk | Active | ADSL | 10mH, 10mH | - | 1:1 | Through Hole | 0.550" L x 0.525" W (13.97mm x 13.34mm) | 0.500" (12.70mm) | - | - | - |
|
|
S553-5999-08-FPULSE XFMR 1:1 TX/1:1 RX 110UH |
4,493 | 0.00 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 110µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | - | - | - |
|
|
S553-5999-F5-FPULSE XFMR 1CT:2.5CT/1CT:1CT |
3,437 | 0.00 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 230µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
S553-6500-89-FPULSE TRANSFORMER 1:1CT 1.6MH |
2,706 | 0.00 |
|
Datasheet |
- | Bulk | Active | T1/E1 (Single) | 1.6mH | - | 1:1CT | Surface Mount | 0.240" L x 0.265" W (6.10mm x 6.73mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
|
S553-6500-A5-FPULSE XFMR 1CT:2.4/2/1CT:1/0.79 |
2,220 | 0.00 |
|
- |
- | Bulk | Active | T1/E1 (Dual) | 1.8mH | - | 1CT:2.4/2, 1CT:1/0.79 | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
S553-6500-B9-FPULSE XFMR 1:2TX/1:1RX 1.5/1.8MH |
1,984 | 0.00 |
|
Datasheet |
- | Bulk | Active | T1/E1 (Octal) | 1.5mH, 1.8mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.476" W (27.94mm x 12.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
|
S553-6500-C8-FPULSE XFMR 1:2TX/1:1RX 1.5/1.8MH |
2,260 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Octal) | 1.5mH, 1.8mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.045" L x 0.300" W (26.54mm x 7.62mm) | 0.290" (7.37mm) | -40°C ~ 85°C | - | - |
|
|
S558-5500-02-FPULSE XFMR 1 CT:1CT TX/RX 350UH |
4,350 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.542" L x 0.480" W (13.77mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
S558-5500-13-FPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,968 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.300" L x 0.285" W (7.62mm x 7.24mm) | 0.226" (5.73mm) | 0°C ~ 70°C | - | - |
|
|
S559-6204-22-FPULSE XFMR |
3,791 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
S560-6100-A1-FMODULE XFRMR |
4,052 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | 0.390" L x 0.310" W (9.91mm x 7.87mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
|
S560-6600-HW-FMODULE XFRMR |
3,888 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | 0.390" L x 0.394" W (9.91mm x 10.00mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
S560-6600-JA-FMODULE XFRMR |
2,284 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | 0.390" L x 0.394" W (9.91mm x 10.00mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
H5019EFNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
2,757 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
PA2261NLTRANSFORMER |
1,933 | 0.00 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
T9030NLPULSE XFMR 1.2MH |
4,393 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | T1/E1 (Octal) | 1.2mH | - | - | Surface Mount | 1.255" L x 0.712" W (31.88mm x 18.08mm) | 0.305" (7.75mm) | -40°C ~ 85°C | - | - |
