Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J14215PULSE XFMR 2:1 100UH |
3,616 | 0.00 |
|
Datasheet |
CEP | Tape & Reel (TR) | Active | VDSL | 100µH | - | 2:1 | Surface Mount | 0.315" L x 0.319" W (8.00mm x 8.10mm) | 0.374" (9.50mm) | - | - | - |
|
|
H7037NL10GBASE-T DISCRETE TERANETIC/PLX |
1,838 | 0.00 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | - | - | 1:1 | - | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|

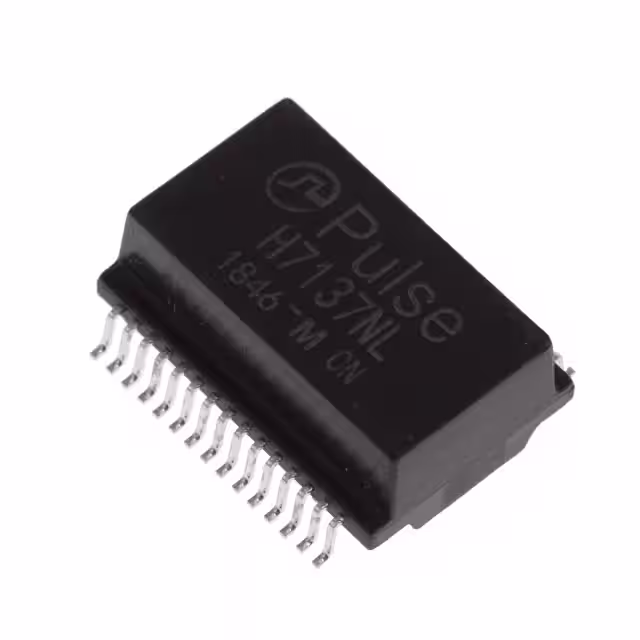

H7137NL10GBASE-T DISCRETE 5CH |
1,344 | 10.81 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | - | - | 1:1 | - | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
HX1323NLPULSE XFMR 1:1 350UH |
4,204 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | - | 350µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
|
PE-68056NLPULSE XFMR 1:1 |
3,989 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | - | - | 1:1 | Surface Mount | 0.920" L x 0.385" W (23.37mm x 9.78mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
SM51589ELPULSE XFMR 1CT:1CT 350UH |
2,334 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.694" L x 0.480" W (17.62mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
23Z91SMFNLXFRMR AUI ETHERNET LAN 16SOIC |
2,703 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

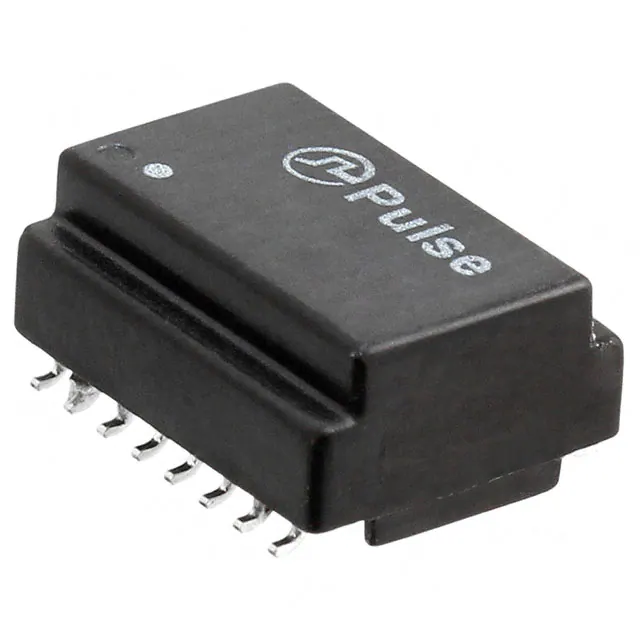

H2260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,514 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
H5012FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,460 | 13.12 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
|
H5019FNLPULSE XFMR 1CT:1 TX 1CT:1 RX |
2,760 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
23Z356SMFNLPULSE XFMR 1CT:1.414CT 1CT:1CT |
1,419 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 68µH, 160µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.344" W (11.56mm x 8.74mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
23Z91SMFNLTXFRMR AUI ETHERNET LAN 16SOIC |
1,817 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 100µH | 2.4VµS | 1:1 | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

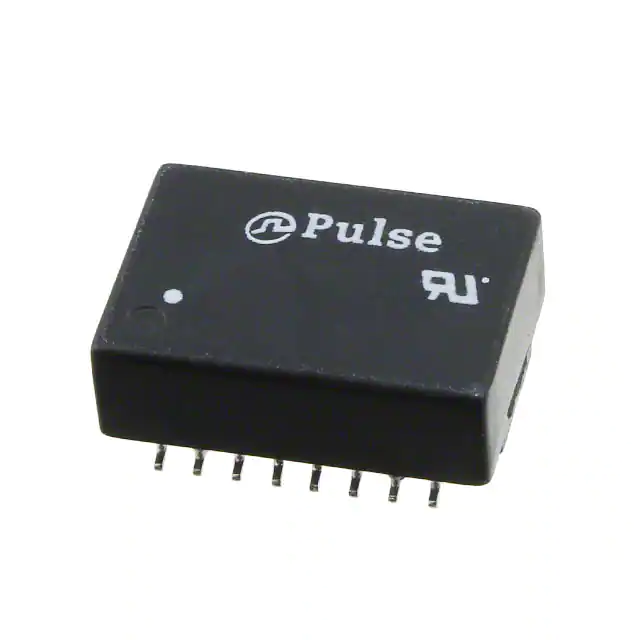

E2023FNLTXFRMR LAN ISOL 10BASET 1:2.5 SMD |
3,827 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|
|
E2454FNLXFRMR ISOL 10BASE-T 1:2 SMD |
4,686 | 0.00 |
|
- |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 50µH, 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
E2458FNLXFRMR ISOL 10BASE-T 1:1.41 SMD |
2,949 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
|
E2458FNLTXFRMR ISOL 10BASE-T 1:1.41 SMD |
3,689 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 160µH, 160µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
H0013FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,596 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.488" L x 0.365" W (12.40mm x 9.27mm) | 0.073" (1.85mm) | 0°C ~ 70°C | - | - |
|
|
H2260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,915 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HX1259FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,787 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
HX1305FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,190 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.518" L x 0.703" W (13.16mm x 17.86mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
