Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGBBT-00296-PXFMR EP13 SMD, ROHS MGBBT-00114 |
1,405 | 3.33 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
MGBBT-00283-PXFMR RM5 TH, ROHS C3085T |
4,691 | 2.68 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
76600/1CPULSE XFMR 1:1 1.92MH |
2,242 | 3.48 |
|
Datasheet |
766 | Tube | Obsolete | General Purpose | 1.92mH | 17.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
76600/3CPULSE XFMR 1:1 219UH |
4,135 | 0.00 |
|
Datasheet |
766 | Tube | Obsolete | General Purpose | 219µH | 5.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
76600/4CPULSE XFMR 1:1 50UH |
4,949 | 0.00 |
|
Datasheet |
766 | Tube | Obsolete | General Purpose | 50µH | 4VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
76601/20CPULSE XFMR 1:1 20.1UH |
3,343 | 0.00 |
|
Datasheet |
766 | Tube | Obsolete | General Purpose | 20.1µH | 2.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
76601/23CPULSE XFMR 1:1 700UH |
4,869 | 0.00 |
|
Datasheet |
766 | Tube | Obsolete | General Purpose | 700µH | 10.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
76615/1HVCPULSE XFMR 1CT:1CT 3.2MH |
1,315 | 0.00 |
|
Datasheet |
766 | Tube | Obsolete | General Purpose | 3.2mH | 45VµS | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
76616/3CPULSE XFMR 2CT:1CT 4.35MH |
2,967 | 0.00 |
|
Datasheet |
766 | Tube | Obsolete | General Purpose | 4.35mH | 23VµS | 2CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

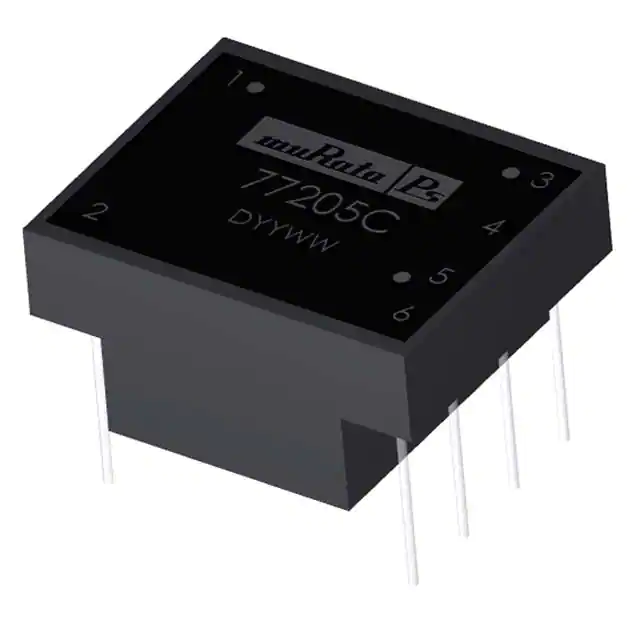

77201CPULSE XFMR 1:1 1MH |
1,892 | 9.66 |
|
Datasheet |
- | Tube | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | 120VµS | 1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77203CPULSE XFMR 2:1:1 1MH |
3,561 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SCR and Triac Trigger (Encapsulated) | 1mH | 120VµS | 2:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77205SCPULSE XFMR 1:1:1 4MH |
3,129 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SCR and Triac Trigger (Encapsulated) | 4mH | 240VµS | 1:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77206CPULSE XFMR 2:1:1 4MH |
3,962 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SCR and Triac Trigger (Encapsulated) | 4mH | 240VµS | 2:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77207CPULSE XFMR 1:1 16.3MH |
1,422 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | SCR and Triac Trigger (Encapsulated) | 16.3mH | 482VµS | 1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|

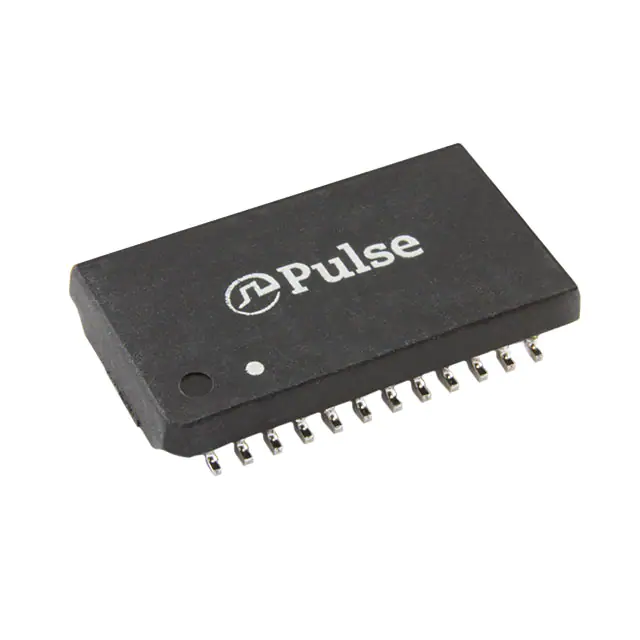

HM5149NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,225 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 360µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.410" W (17.78mm x 10.41mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|

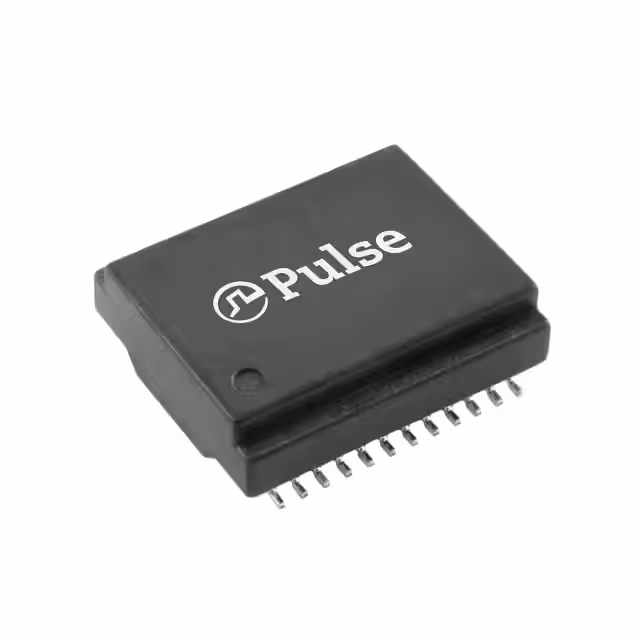

HM5004EFNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,860 | 0.00 |
|
- |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.600" W (17.53mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 105°C | - | - |
|

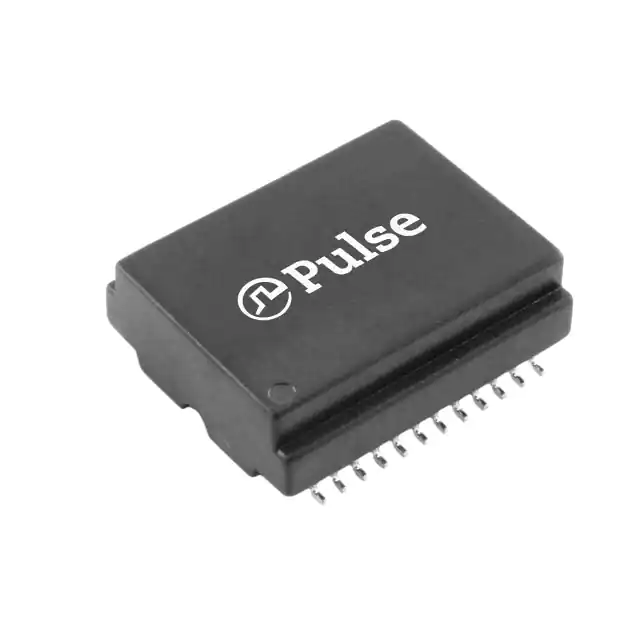

HM6098FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,624 | 12.07 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
ALAN-101LAN XFRMR 10/100 1PORT EXT-TEMP |
1,542 | 0.00 |
|
Datasheet |
- | Tube | Discontinued at Digi-Key | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.217" (5.51mm) | -40°C ~ 85°C | - | - |
|

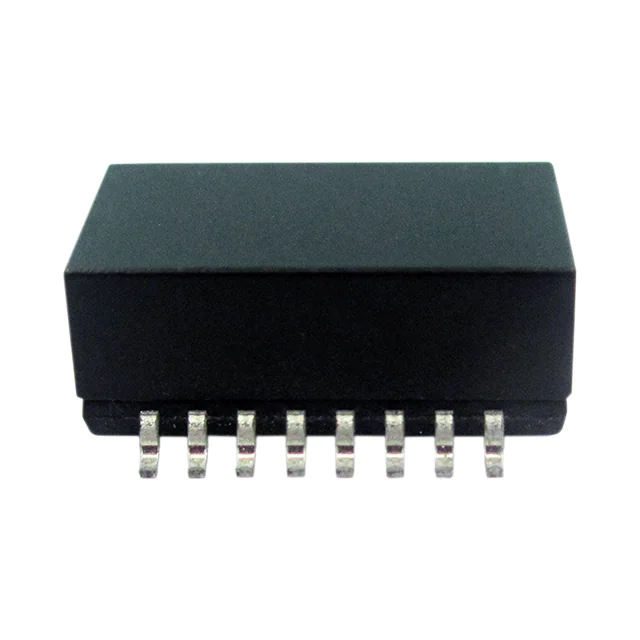

ALAN-134PULSE XFMR 1CT:1CT 350UH |
1,838 | 5.52 |
|
Datasheet |
ALAN-134 | Strip | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.272" W (12.70mm x 6.90mm) | 0.213" (5.40mm) | -40°C ~ 85°C | - | - |
|

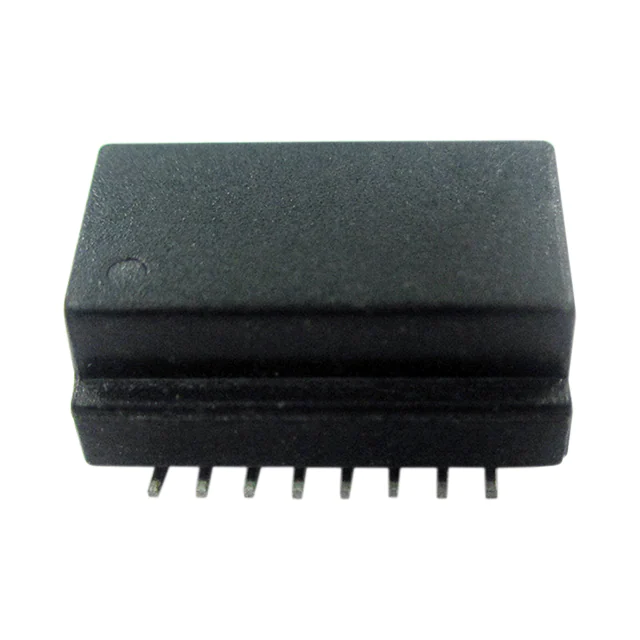

ALAN-2204-TPULSE XFMR 1CT:1CT 350UH |
3,564 | 0.00 |
|
Datasheet |
ALAN-2204 | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.346" W (12.70mm x 8.80mm) | 0.234" (5.95mm) | -40°C ~ 85°C | - | - |
