Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9030NLTPULSE XFMR 1.2MH |
3,168 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Octal) | 1.2mH | - | - | Surface Mount | 1.255" L x 0.712" W (31.88mm x 18.08mm) | 0.305" (7.75mm) | -40°C ~ 85°C | - | - |
|
H1190FNLPULSE XFMR 1CT:1CT 400UH |
1,662 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 400µH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.340" W (7.62mm x 8.64mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
H1164FNLTPULSE XFMR 1CT:1CT TX/RX 350UH |
1,807 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
HM1188FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,047 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 105°C | - | - |
|
|
HX1224NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,815 | 0.00 |
|
- |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.537" L x 0.570" W (13.64mm x 14.48mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

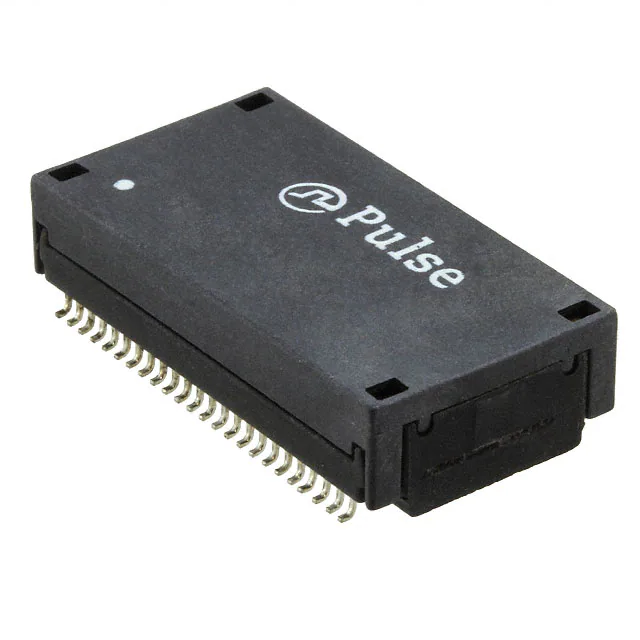

HX5012FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,935 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|

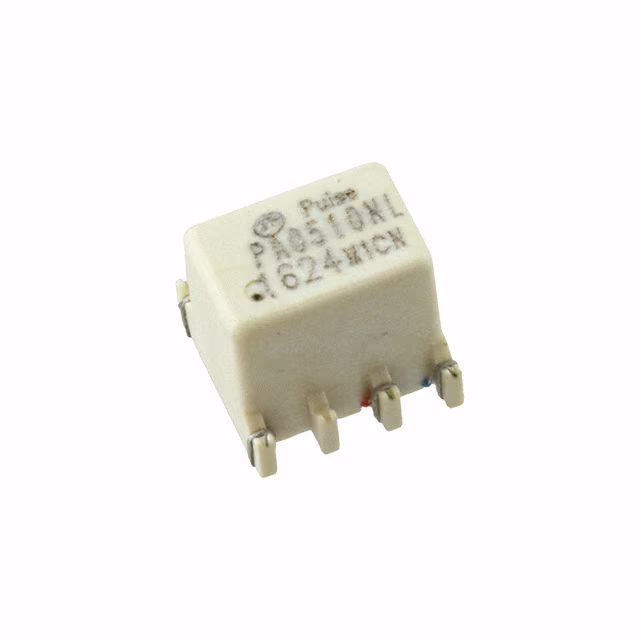

PA0510NLTPULSE XFMR 2.5:1:1 1.2MH |
2,231 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.2mH | 27.2VµS | 2.5:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA1366NLPULSE XFMR 10UH |
4,350 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 10µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
|
PA2041NLPULSE XFMR IND CM 10 MH 0.2A 1:1 |
2,057 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | - | - | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | - | - | - |
|
|
PA2070NLPULSE XFMR 164UH |
4,236 | 0.00 |
|
Datasheet |
- | Tray | Active | - | 164µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PA2454NLPULSE XFMR 24UH |
2,007 | 2.19 |
|
Datasheet |
- | Tray | Obsolete | - | 24µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 130°C | - | - |
|
|
PH0400NLPULSE XFMR 2.5:1 1.75UH 2.5UH |
4,331 | 0.00 |
|
Datasheet |
- | Tube | Obsolete | - | 1.75µH, 2.5µH | - | 2.5:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | - | - | - |
|
TLA-8T102WLF-TTRANSFORMER LAN 10/100/1000 T |
2,633 | 0.00 |
|
Datasheet |
TLA | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 100µH | - | 1CT:1CT, 1CT:1.5CT | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | -40°C ~ 95°C | - | - |
|
|
TLA-8T104WLF-TPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,171 | 0.00 |
|
- |
TLA-8T | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.457" L x 0.256" W (11.60mm x 6.50mm) | 0.232" (5.90mm) | -40°C ~ 85°C | - | - |
|
BX4285LNLPULSE XFMR 1.4:1 16MH |
2,958 | 2.09 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | VDSL | 16mH | - | 1.4:1 | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.388" (9.86mm) | -40°C ~ 85°C | - | - |
|

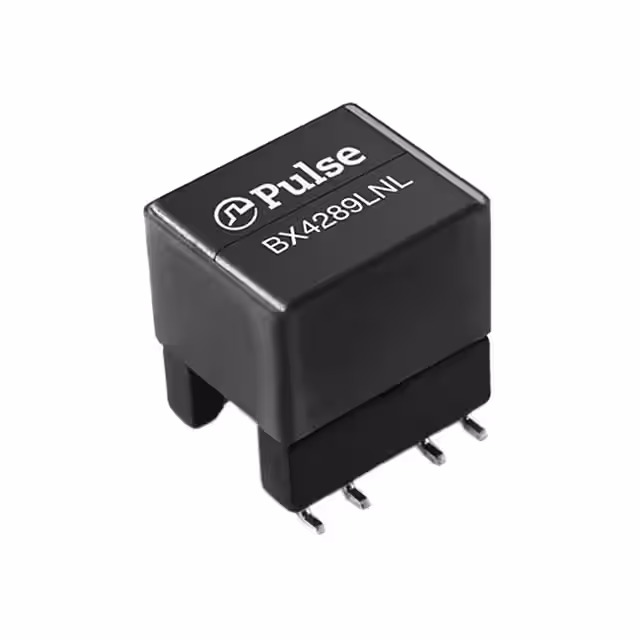

BX4289LNLPULSE XFMR 1.4:1 100UH |
4,276 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | VDSL | 100µH | - | 1.4:1 | Surface Mount | 0.386" L x 0.354" W (9.80mm x 9.00mm) | 0.425" (10.80mm) | -40°C ~ 85°C | - | - |
|

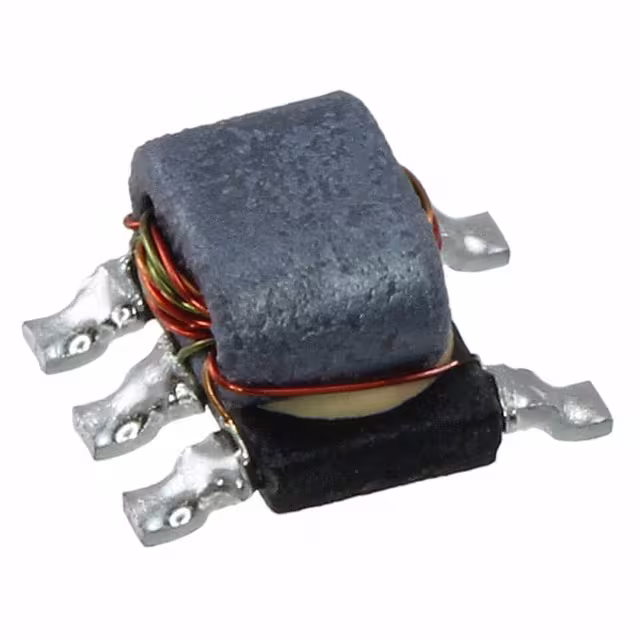

C2567NLPULSE XFMR 1:1.7CT |
3,509 | 0.00 |
|
- |
- | Tray | Obsolete | - | - | - | 1:1.7CT | Surface Mount | 0.169" L x 0.106" W (4.30mm x 2.70mm) | 0.118" (3.00mm) | 0°C ~ 70°C | - | - |
|
C2580NLPULSE XFMR 1:1 |
3,715 | 0.00 |
|
- |
- | Tray | Obsolete | - | - | - | 1:1 | Surface Mount | 0.169" L x 0.106" W (4.30mm x 2.70mm) | 0.118" (3.00mm) | 0°C ~ 70°C | - | - |
.00xNL-Series.jpg)
|
PA3855.003NLPULSE XFMR 41UH |
3,052 | 3.87 |
|
Datasheet |
- | Tray | Active | - | 41µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
|
MGPWT-00407-PEP13 XFRMR SMD JL 10 PIN |
3,112 | 1.88 |
|
- |
* | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
