Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

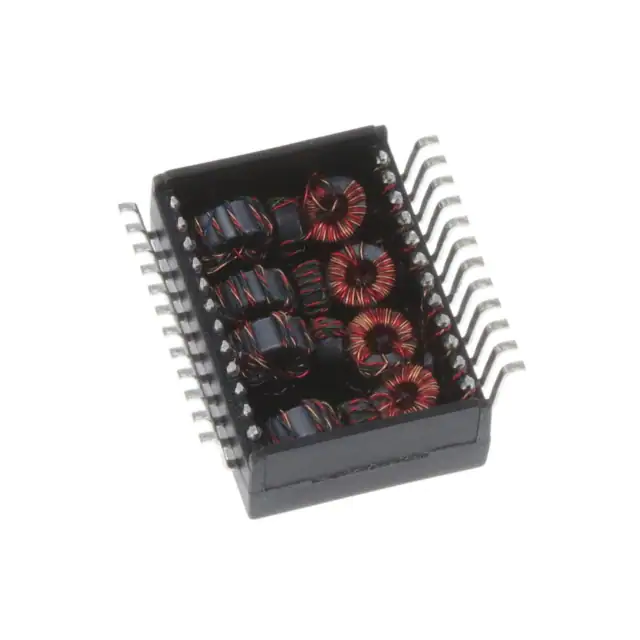

H5062NLTXFRMR MODULE GIGABIT 1PORT 1:1 |
600 | 7.89 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
S37211PULSE XFMR 1:1 225UH |
13,079 | 5.81 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 225µH | - | 1:1 | Surface Mount | 0.400" L x 0.440" W (10.16mm x 11.18mm) | 0.305" (7.75mm) | - | - | - |
|

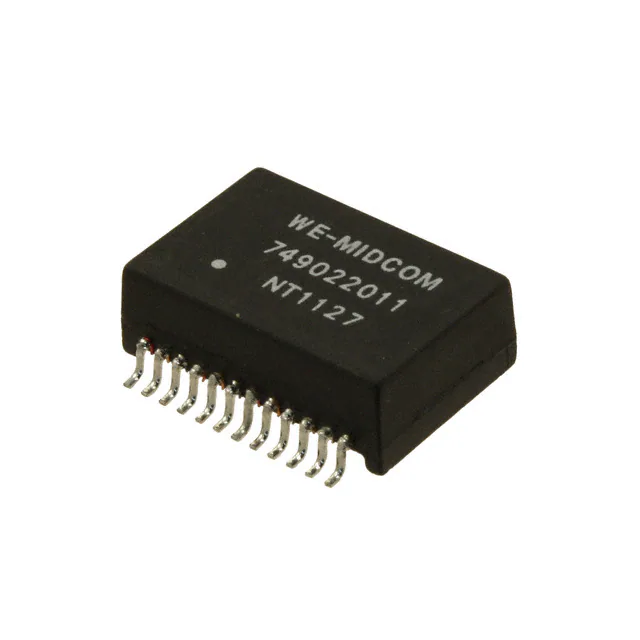

749022011TRANSFORMER LAN 10/100/1000 POE |
1,545 | 6.46 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.720" L x 0.480" W (18.30mm x 12.20mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|

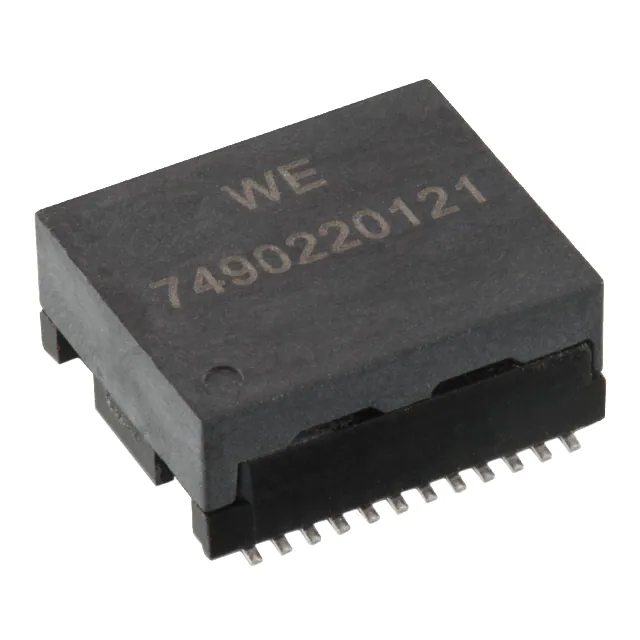

7490220121PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
829 | 6.47 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.283" (7.20mm) | -40°C ~ 85°C | - | - |
|

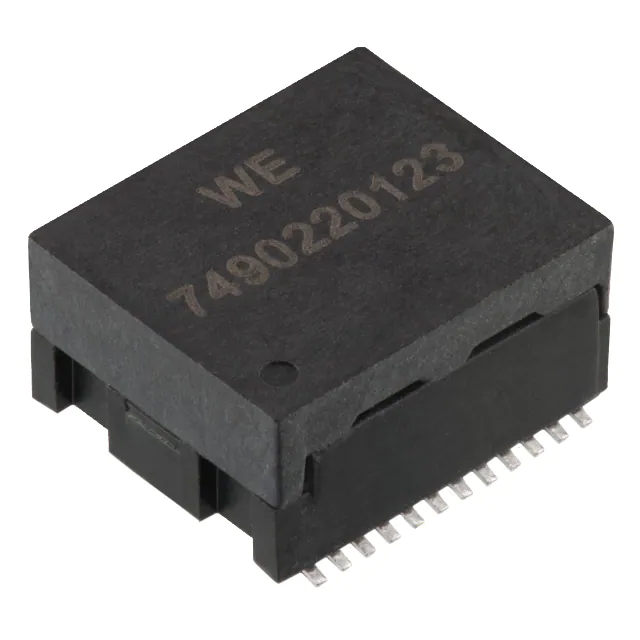

7490220123PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
633 | 6.47 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
HX1188FNLMODULE XFRMR SGL ETHR LAN 16SOIC |
9,453 | 5.78 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | -40°C ~ 85°C | - | - |
|

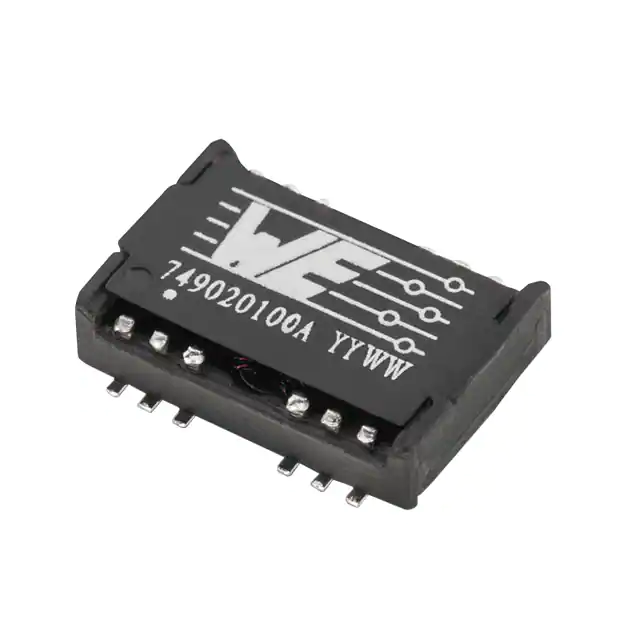

749020100AWE-LAN 10/100/1000 BASE-T SMD |
758 | 6.56 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.339" W (12.70mm x 8.60mm) | 0.128" (3.25mm) | -40°C ~ 105°C | - | - |
|
S558-5999-AT-FXFRMR MOD LAN GIGABIT EXTEMP 24P |
275 | 5.81 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
S558-5999-P3-FMODULE XFRMR LAN GIGABIT 24P SMD |
1,520 | 6.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
749020011ATRANSFORMER LAN 10/100/1000 SMD |
1,327 | 6.92 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.256" (6.50mm) | -40°C ~ 85°C | - | - |
|

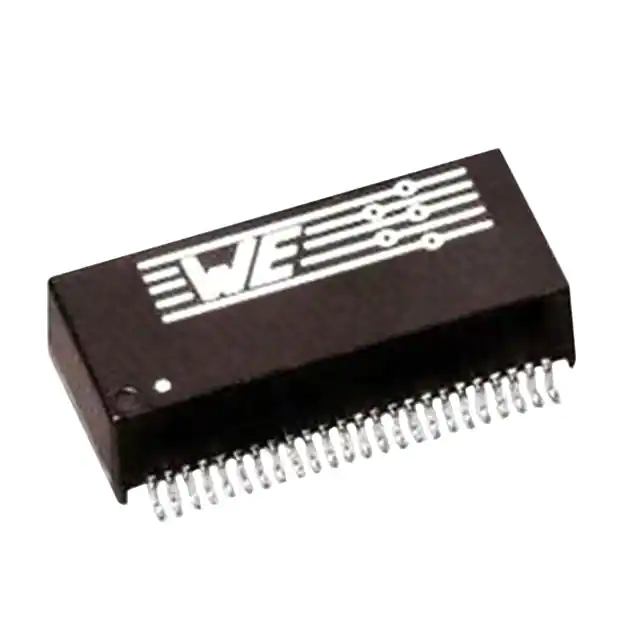

749020010ATRANSFORMER LAN 10/100/1000 SMD |
414 | 6.92 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|

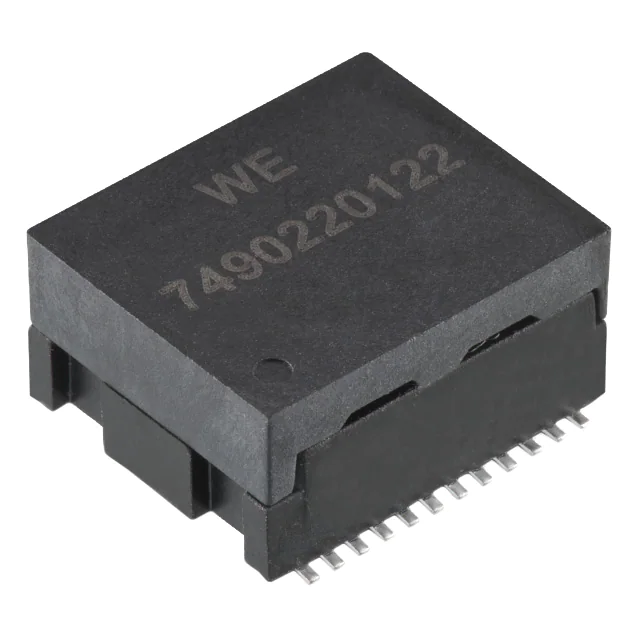

7490220122PULSE XFMR 1CT:1CT TX 1CT:1CT RX |
147 | 6.98 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|

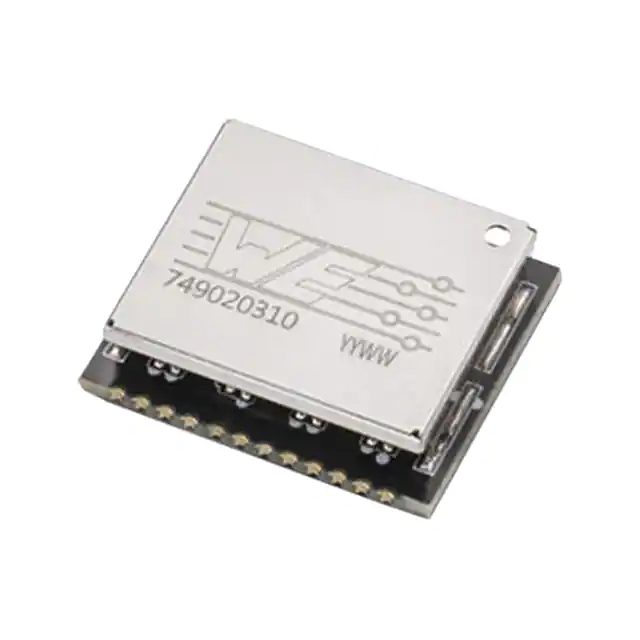

749020310WE-LAN AQ 10/100/1000 BASE-T SMD |
668 | 7.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.690" L x 0.575" W (17.53mm x 14.60mm) | 0.177" (4.50mm) | -40°C ~ 105°C | - | - |
|

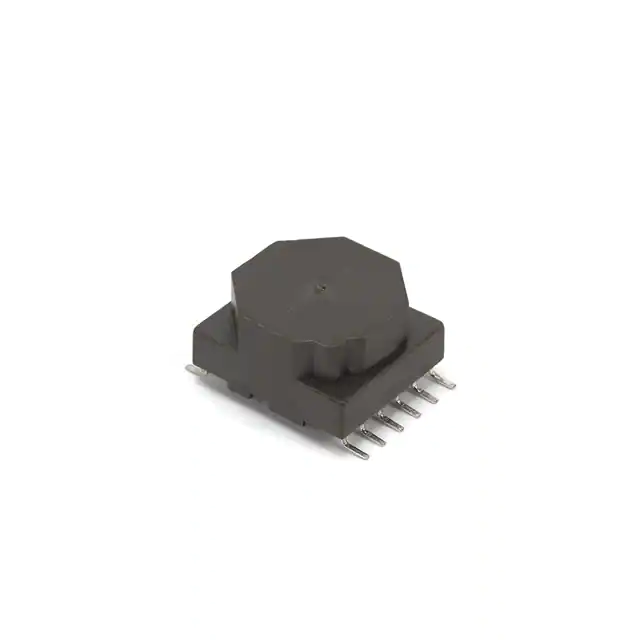

T60403F5046X007GATE DRIVE TRANSFORMER SMD 1:1:1 |
3,515 | 6.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1.4mH | 85VµS | 1:1:1 | Through Hole | 0.791" L x 0.591" W (20.10mm x 15.00mm) | 0.413" (10.50mm) | -40°C ~ 100°C | - | - |
|
HM0068ANLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
22,168 | 8.97 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | -40°C ~ 105°C | - | - |
|
HM2100NLTXFMR CMC MODULE AECQ BATT MNGT |
1,511 | 6.46 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579" L x 0.459" W (14.70mm x 11.65mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|

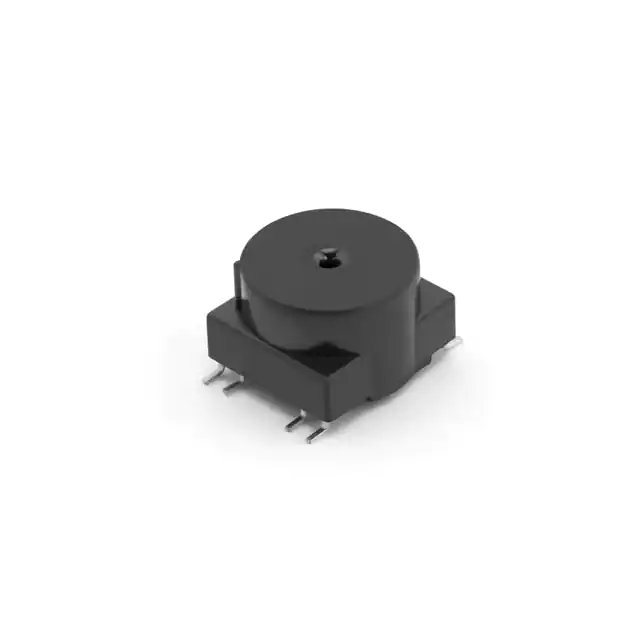

T60403F5046X100GATE DRIVE TRANSFORMER SMD 1:1.2 |
3,308 | 6.54 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1.4mH | 80VµS | 1:1.2:1.2 | Through Hole | 0.791" L x 0.630" W (20.10mm x 16.00mm) | 0.472" (12.00mm) | -40°C ~ 85°C | - | - |
|

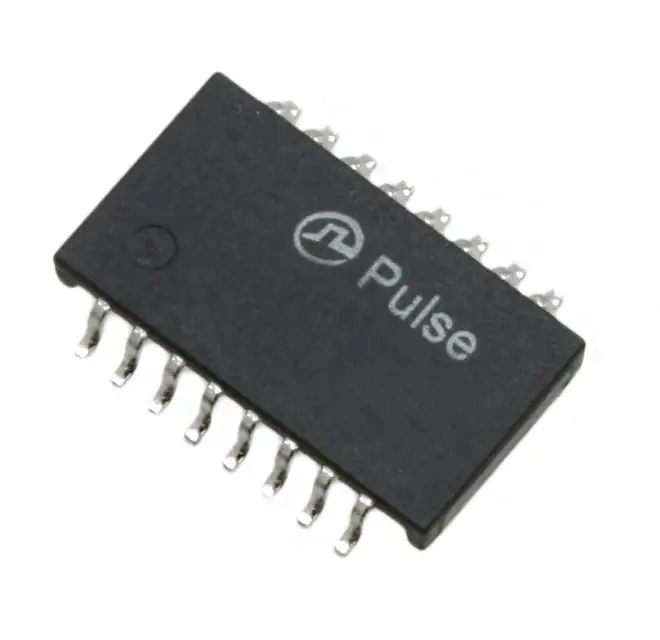

H0013NLTMODULE MAGNETIC LAN 1:1 10/100 |
1,190 | 6.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|
TM1102NLLAN XFMR 10/100 BASE-T SINGLE |
2,588 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.506" L x 0.272" W (12.85mm x 6.90mm) | 0.226" (5.75mm) | 0°C ~ 70°C | - | - |
|
HX2019NLMODULE MAGNETICS POE SINGLE VOIP |
607 | 6.68 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
