Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM453230-121N7YCHIP LAN XFMR,1 /2.5/5/10G,4.7X3 |
1,870 | 1.62 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 1/2.5/5/10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|

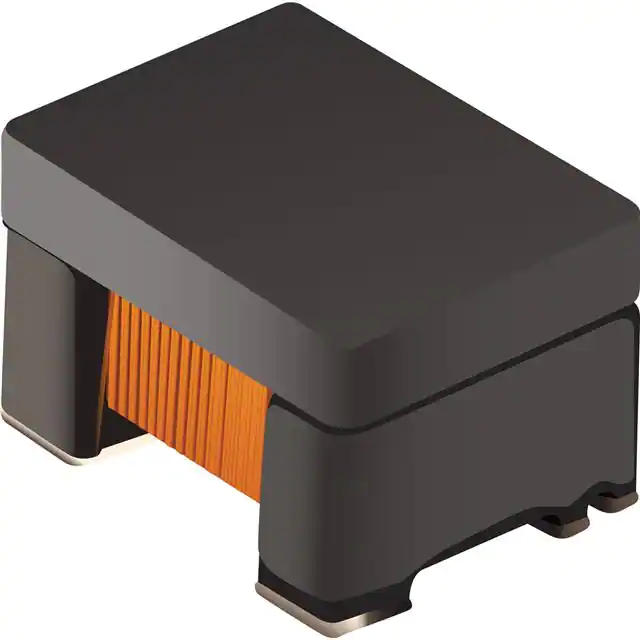

SM453230-121N7YPLAN XFMR,10GBE,POE+,IEEE |
1,409 | 1.77 |
|
Datasheet |
SM | Tape & Reel (TR) | Active | LAN 1/2.5/5/10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|
LAN2VSOS24351C2MOD TRANS LAN 1000B-T 1 PORT |
1,588 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.177" (4.50mm) | -40°C ~ 85°C | - | - |
|
|
TM41654ANLLAN XFMR 10/100 BASE-T POE++ |
677 | 0.00 |
|
Datasheet |
Exos | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.281" W (12.70mm x 7.15mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
TMU16P11WXFMR CMC MODULE AECQ BATT MNGT |
1,500 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | Battery Management | 300µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.502" L x 0.280" W (12.75mm x 7.10mm) | 0.087" (2.20mm) | -40°C ~ 85°C | - | - |
|
|
LAN2VSOD48351C2MOD TRANS LAN 1000B-T 2 PORT |
170 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.295" (7.50mm) | -40°C ~ 85°C | - | - |
|
|
LAN2VSOPS24351C2MOD TRANS LAN 1000B-T 1P POE |
152 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.244" (6.20mm) | -40°C ~ 85°C | - | - |
|
|
LAN1VSOPQ48351C1MOD TRANS LAN 100B-T 2P POE |
380 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.094" L x 0.480" W (27.80mm x 12.20mm) | 0.295" (7.50mm) | 0°C ~ 70°C | - | - |
|
|
LAN2VSAS24351C2MOD TRANS LAN 1000B-T 1 PORT |
996 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.650" L x 0.354" W (16.50mm x 9.00mm) | 0.108" (2.75mm) | -40°C ~ 85°C | - | - |
|
|
LAN1VSOQ40351C1MOD TRANS LAN 100B-T 4 PORT |
490 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.106" L x 0.476" W (28.10mm x 12.10mm) | 0.252" (6.40mm) | 0°C ~ 70°C | - | - |
|
|
PA2244.472NLTTRANSFORMER |
299 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
ICI70CGI-102ISOLATION INDUCTOR 1 MH |
2,643 | 0.00 |
|
Datasheet |
ICI70CGI-102 | Tape & Reel (TR) | Active | - | 1mH | - | 1:1 | Surface Mount | 0.280" L x 0.236" W (7.10mm x 6.00mm) | 0.189" (4.80mm) | -40°C ~ 125°C | - | - |
|
|
PGT6209NLTTRANSF MINIFLYBACK 3W |
2,344 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 33µH | - | - | Surface Mount | 0.217" L x 0.213" W (5.50mm x 5.40mm) | 0.122" (3.10mm) | -40°C ~ 125°C | - | - |
|
|
RL-9500-430GATE DRIVE XFMR 1:1:1 430UH TH |
600 | 0.00 |
|
Datasheet |
- | Tray | Active | Gate Drive | 430µH | 108VµS | 1:1:1 | Through Hole | 0.800" L x 0.450" W (20.32mm x 11.43mm) | 0.710" (18.03mm) | -40°C ~ 130°C | - | - |
|
|
LAN3VSOS24151C2MOD TRANS LAN 2.5GB-T 1 PORT |
1,650 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 150µH | - | 1CT:1CT | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.177" (4.50mm) | -40°C ~ 85°C | - | - |
|
PFX0890NLTPULSE XFMR 1.02MH |
1,840 | 1.21 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.02mH | - | - | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
|
TMU24C14ULAN XFMR 1G BASE-T POE ULTRA |
395 | 0.00 |
|
- |
Exos | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.693" L x 0.480" W (17.60mm x 12.20mm) | 0.236" (6.00mm) | -40°C ~ 85°C | - | - |
|
|
LAN4VSOPS24151C2MOD TRANS LAN 5GB-T 1P POE |
790 | 0.00 |
|
Datasheet |
LAN | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.535" L x 0.472" W (13.60mm x 12.00mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
TMU06C06XFMR CMC MODULE AECQ BATT MNGT |
647 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
|
TMU24C01LAN XFMR 2.5G BASE-T |
354 | 0.00 |
|
- |
Exos | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.693" L x 0.480" W (17.60mm x 12.20mm) | 0.236" (6.00mm) | 0°C ~ 70°C | - | - |
