Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WBC16-1TLCPULSE XFMR 1:16 5UH 80UH |
6,194 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:4 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|

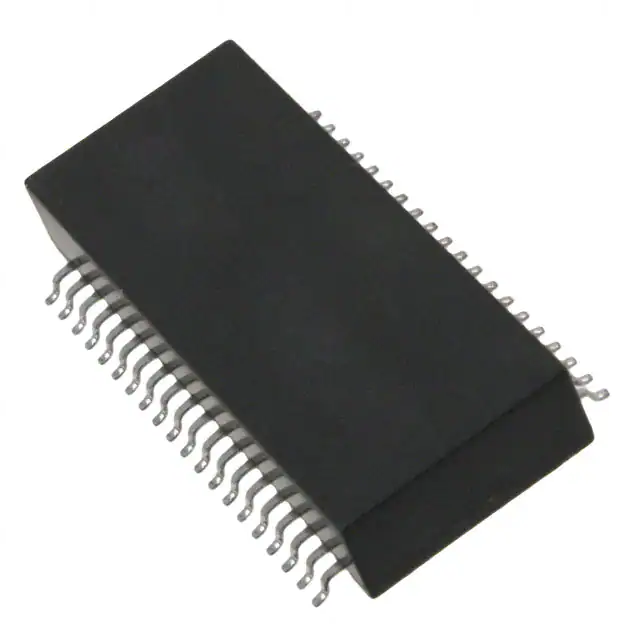

37543TRANSF OCTAL T1/E1 1:1/1.26 SMD |
1,013 | 4.18 |
|
- |
- | Tape & Reel (TR) | Discontinued at Digi-Key | T1/E1 (Octal) | 1.2mH | - | 1:1/1.26 Transmitter, 1:2CT Receiver | Surface Mount | 1.123" L x 0.488" W (28.52mm x 12.40mm) | 0.230" (5.84mm) | - | - | - |
|
|
37544TRANSF OCTAL T1/E1 1:2CT SMD |
907 | 4.18 |
|
- |
- | Tape & Reel (TR) | Discontinued at Digi-Key | T1/E1 (Octal) | 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.123" L x 0.488" W (28.52mm x 12.40mm) | 0.230" (5.84mm) | - | - | - |
|
|
37541TRANSF OCTAL T1/E1 1:2CT SMD |
441 | 4.18 |
|
- |
- | Tape & Reel (TR) | Discontinued at Digi-Key | T1/E1 (Octal) | 1.2mH | - | 1:2CT Transmitter, 1:1CT Receiver | Surface Mount | 1.123" L x 0.488" W (28.52mm x 12.40mm) | 0.230" (5.84mm) | - | - | - |
|
|
WBC3-1TLCPULSE XFMR 1:3 9UH 27UH |
1,428 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:3 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|
|
ALAN1100X1-2F30DTXFRMR LAN 10/100 1CT:1CT 350UH |
1,702 | 3.61 |
|
Datasheet |
ALAN1100X1 | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
PA1138NLXFMR PWR EP13 126.7 UH 10 NPB |
544 | 4.39 |
|
- |
PA1138NL | Tray | Active | Power over Ethernet (PoE) | 126.7µH | - | 1:0.292:0.208 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
G2405CGSINGLE LAN XFMR 1000 BASE-T |
400 | 4.44 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.709" L x 0.500" W (18.00mm x 12.70mm) | 0.244" (6.20mm) | 0°C ~ 70°C | - | - |
|

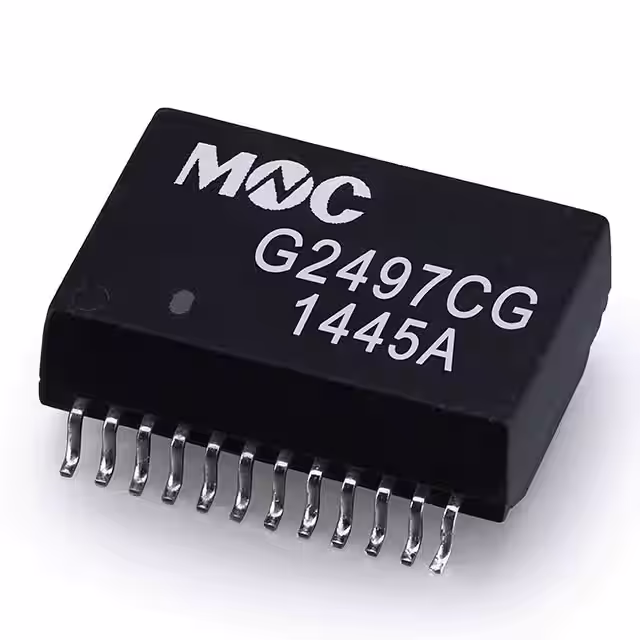

G2497CGSINGLE LAN XFMR 1000 BASE-T |
375 | 4.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.709" L x 0.500" W (18.00mm x 12.70mm) | 0.244" (6.20mm) | 0°C ~ 70°C | - | - |
|
|
WBC2-1TLCPULSE XFMR 1:2 10UH 20UH |
5,251 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:2 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
|
ALAN210001-3J41DTXFRMR LAN 1CT:1CT 350UH SMD |
4,603 | 4.25 |
|
Datasheet |
ALAN210001 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.724" L x 0.490" W (18.38mm x 12.44mm) | 0.254" (6.45mm) | -40°C ~ 85°C | - | - |
|

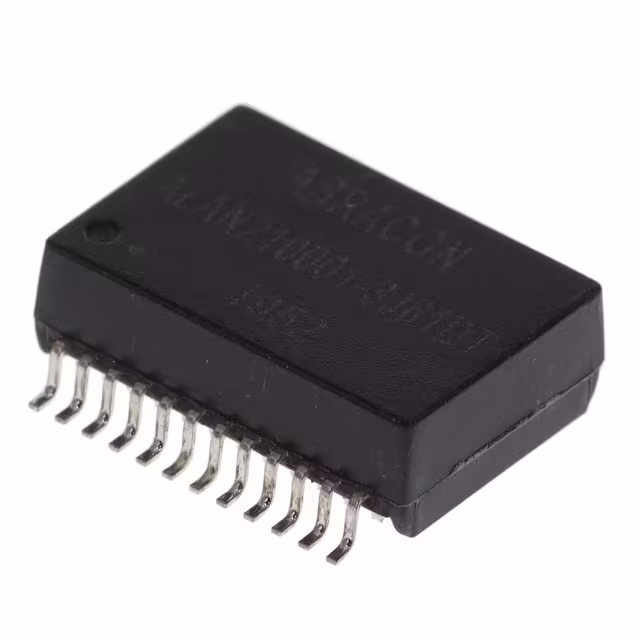

ALAN210001-3J61DTXFRMR LAN 1CT:1CT 350UH |
4,908 | 4.25 |
|
Datasheet |
ALAN210001 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.724" L x 0.490" W (18.38mm x 12.44mm) | 0.254" (6.45mm) | -40°C ~ 85°C | - | - |
|
T60403D4721X005GATE DRIVE TRANSFORMER PTH 2:1 2 |
1,556 | 2.35 |
|
Datasheet |
- | Box | Active | Gate Drive | 3.4mH | 250VµS | 2:1 | Through Hole | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.531" (13.50mm) | -25°C ~ 85°C | - | - |
|
|
PE-65457NLTPULSE XFMR 1:1 80UH |
723 | 5.02 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 80µH | - | 1:1 | Surface Mount | 0.260" L x 0.340" W (6.60mm x 8.64mm) | 0.098" (2.49mm) | 0°C ~ 70°C | - | - |
|

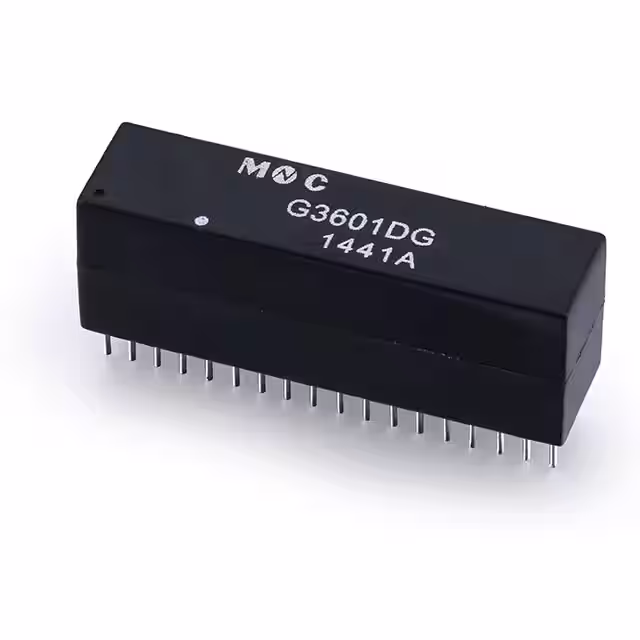

G3601DGQUAD LAN XFMR 1000 BASE-T |
760 | 4.78 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.307" L x 0.350" W (33.20mm x 8.90mm) | 0.472" (12.00mm) | 0°C ~ 70°C | - | - |
|

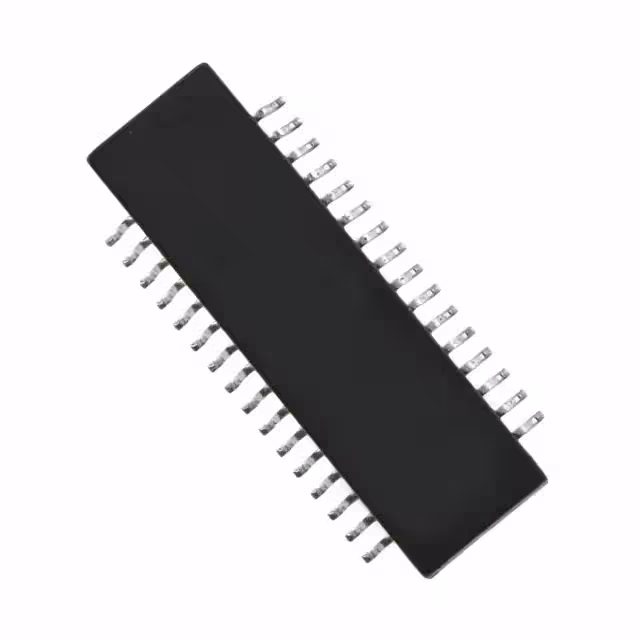

37536TRANSF QUAD T1/E1 1:1.36/1 SMD |
249 | 2.70 |
|
Datasheet |
- | Cut Tape (CT) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - |
|

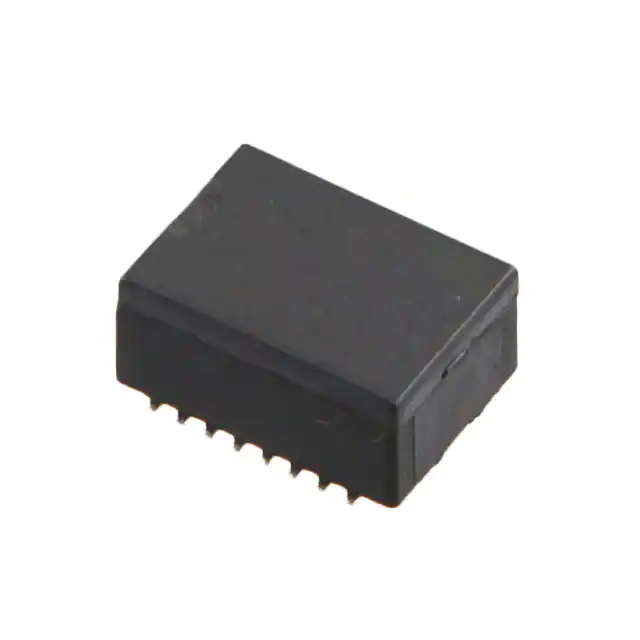

XFVOIP-05LAN XFMR 10/100 POE+ |
500 | 2.60 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.385" W (12.70mm x 9.78mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
XFATM9BLAN XFMR 10/100 |
10,000 | 2.60 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.510" L x 0.385" W (12.95mm x 9.78mm) | 0.245" (6.22mm) | -40°C ~ 125°C | - | - |
|

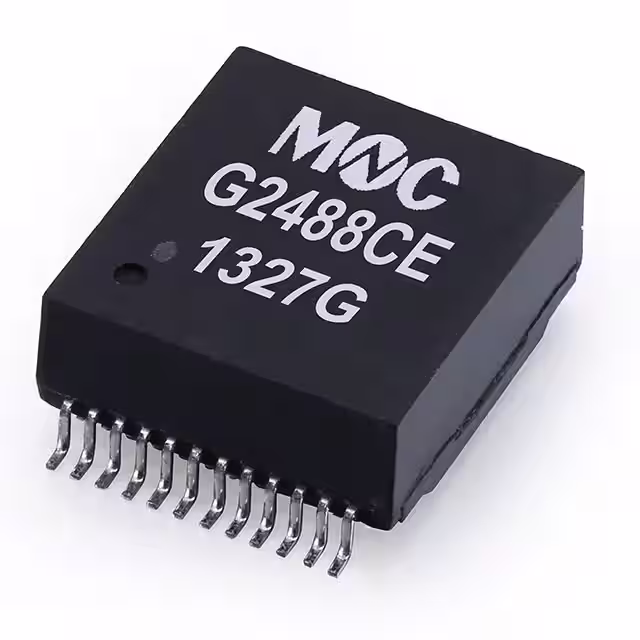

G2488CESINGLE LAN XFMR 1000 BASE-T |
395 | 5.04 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.622" L x 0.599" W (15.80mm x 14.20mm) | 0.264" (6.70mm) | -40°C ~ 85°C | - | - |
|
|
WBC8-1LCPULSE XFMR 1:8 22UH 176UH |
804 | 0.00 |
|
Datasheet |
WBC | Tape & Reel (TR) | Active | - | - | - | 1:8 | Surface Mount | 0.175" L x 0.165" W (4.45mm x 4.19mm) | 0.120" (3.04mm) | -40°C ~ 85°C | - | - |
