Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
379 | 5.49 |
|
Datasheet |
- | Bulk | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.608" W (28.19mm x 15.44mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

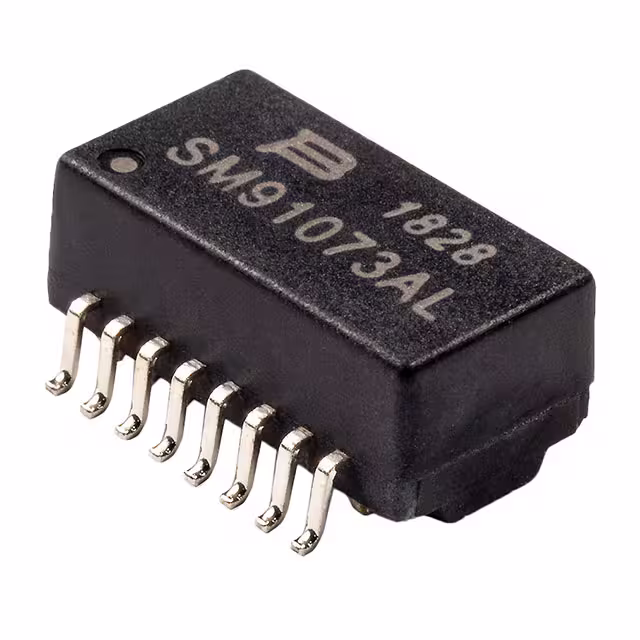

SM91073AL-EXFRMR PULSE 10 BASE-T |
3,000 | 3.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
PE-65848FNLPULSE XFMR 1CS:1CS TX/RX |
1,730 | 8.19 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS Transmitter, 1CS:1CS Receiver | Surface Mount | 0.475" L x 0.566" W (12.07mm x 14.37mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
BA60951CSTRANSF FLYBACK 25UH 2.5W ISO SMD |
531 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
TX1287TPULSE XFMR 1CT:2.42CT TX/RX |
600 | 5.71 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PE-64995NLXFRMR ISDN 1CT:2CT 22MH T/H |
4,928 | 5.27 |
|
Datasheet |
- | Bulk | Active | Isolation and Data Interface (Encapsulated) | 22mH | - | 1CT:2CT | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
XFBMC2103-2S-BXFMR BATT MGMT AEC-Q200 |
1,099 | 5.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Battery Management | - | - | 1CT:1CT | Surface Mount | 0.390" L x 0.330" W (9.90mm x 8.38mm) | 0.266" (6.75mm) | -40°C ~ 125°C | - | - |
|
HCTSM80308BAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
788 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 300µH | 11.0VµS | 3:8 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
HCTSM81017CAL-E1XFRMR POWER 10:17 350UH SMD |
473 | 1.73 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | - | 350µH | 11.0VµS | 10:17 | Surface Mount | 0.598" L x 0.425" W (15.20mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
HCTSM80101AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
146 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 1:1 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
HX2260FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
764 | 5.49 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
|
H1302FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
585 | 5.43 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
ZA9756-AEDTRANSFORMER |
1,403 | 5.73 |
|
Datasheet |
- | Strip | Active | Isolation and Data Interface (Encapsulated) | 215µH | 31VµS | 1:1 | Surface Mount | - | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
H1199FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
600 | 5.77 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
TX1315NLTTRANSFORMER 1CT:1CT 1.2MH SMD |
2,453 | 5.73 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
H1263NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
583 | 5.74 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.380" W (12.70mm x 9.65mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
H1199FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
335 | 5.77 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|

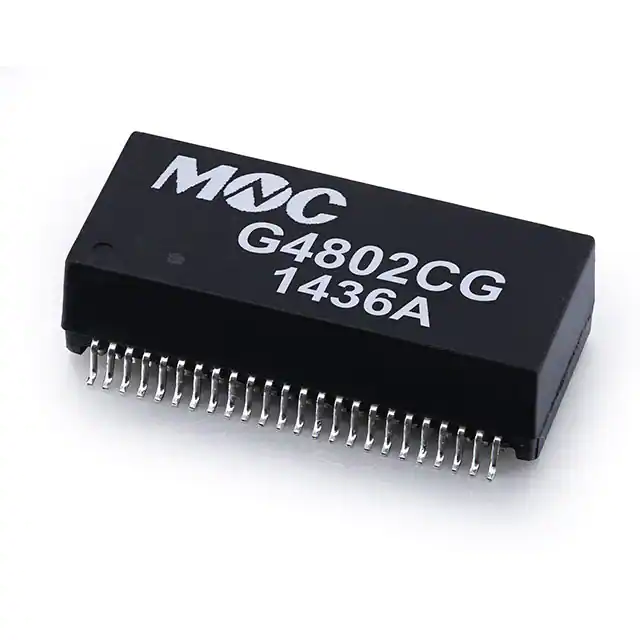

G4802CGDUAL LAN XFMR 1000 BASE-T |
900 | 6.12 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.114" L x 0.500" W (28.30mm x 12.70mm) | 0.295" (7.50mm) | 0°C ~ 70°C | - | - |
|

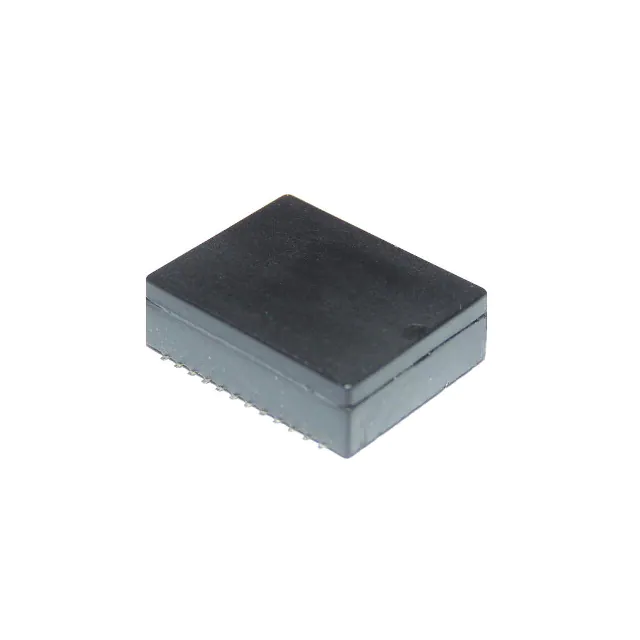

XFGIC100POLLAN XFMR 100/1000 POE+ |
1,239 | 3.50 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.240" (6.09mm) | -40°C ~ 85°C | - | - |
|
|
ZA9757-AEDTRANSFORMER |
740 | 6.29 |
|
Datasheet |
- | Strip | Active | Isolation and Data Interface (Encapsulated) | 225µH | 31VµS | 1:1 | Surface Mount | - | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
