Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-65967NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD |
1,247 | 6.87 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65967NLTRANSFORMER TELECOM SINGLE T3/E4 |
857 | 6.87 |
|
Datasheet |
- | Tube | Obsolete | T3/E3 (Single) | 40µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|
|
PE-65968NLTRANSFORMER TELECOM SINGLE T3/E4 |
192 | 6.87 |
|
Datasheet |
- | Tube | Active | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|

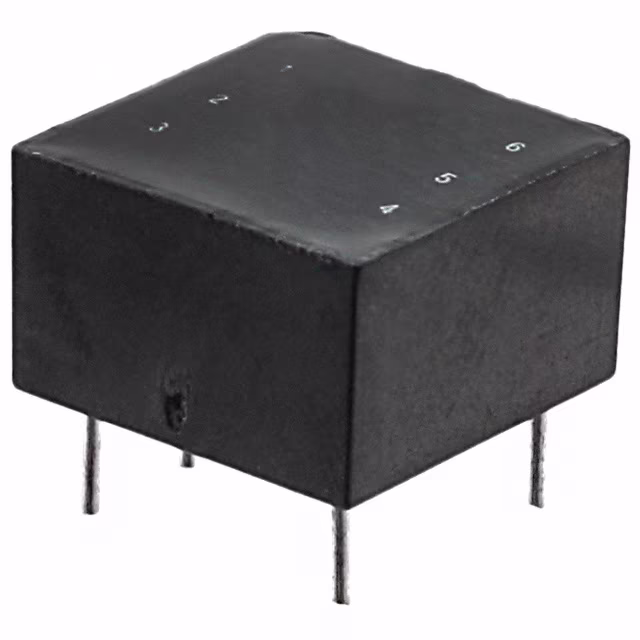

PE-65540NLXFRMR 64KBPS 1CT:1 10MH T/H |
4,478 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 10mH | - | 1CT:1 | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|

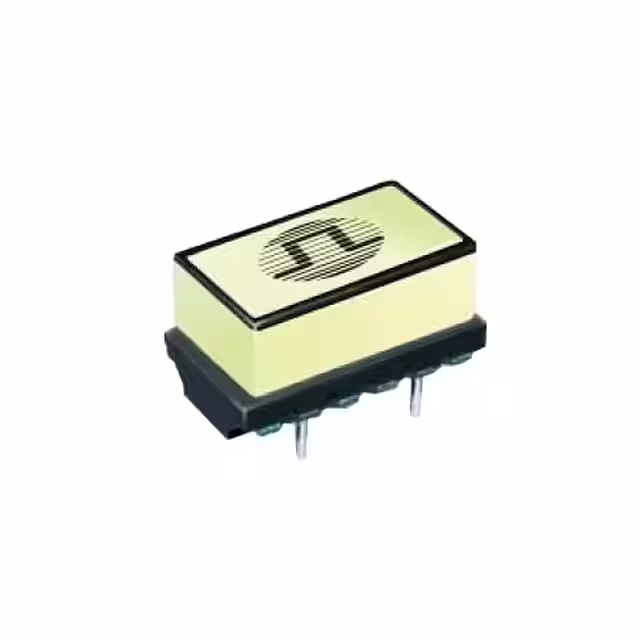

B8813NLPULSE XFMR ADSL/VDSL2 |
137 | 0.00 |
|
Datasheet |
SmartER Splitter™ | Tray | Obsolete | ADSL, VDSL | - | - | - | Through Hole | 0.551" L x 0.996" W (14.00mm x 25.30mm) | 0.551" (14.00mm) | - | - | - |
|
PLC-LW-002SMD Signal transformer for HPGP |
302 | 0.00 |
|
Datasheet |
- | Tray | Active | LAN | 9µH | - | 1:1:1 | Surface Mount | 0.335" L x 0.205" W (8.50mm x 5.20mm) | 0.256" (6.50mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|

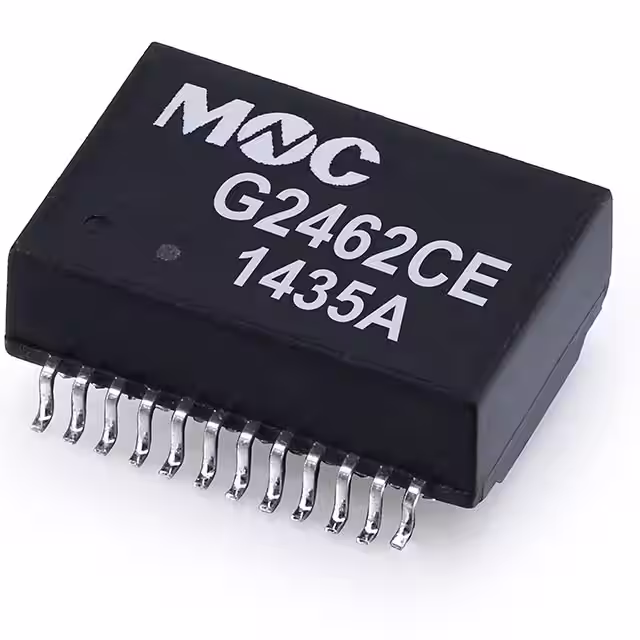

G2462CESINGLE LAN XFMR 1000 BASE-T |
390 | 7.06 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 0.733" L x 0.500" W (18.00mm x 12.70mm) | 0.266" (6.80mm) | -40°C ~ 85°C | - | - |
|
2337826-1DISCRETE ETHERNET MAGNETICS QUAD |
2,231 | 13.20 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.285" (7.24mm) | -40°C ~ 105°C | - | - |
|
H4001CGQUAD LAN XFMR 10/100 BASE-T |
400 | 7.24 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.126" L x 0.496" W (28.60mm x 12.60mm) | 0.252" (6.40mm) | 0°C ~ 70°C | - | - |
|
HMU2102NLTMDL, DUAL, XFMR-CMC, 1:1, 4.3KV, |
4,849 | 4544.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.461" W (14.81mm x 11.70mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
|
H5062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
268 | 7.89 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

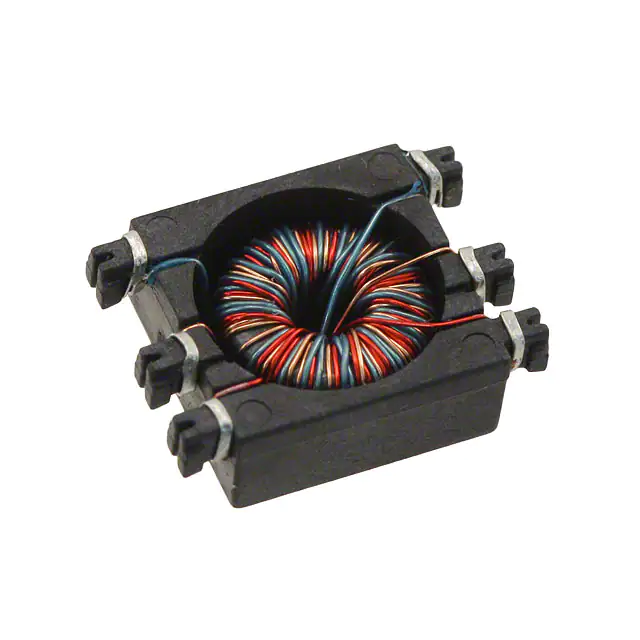

HM42-30001LFTRPULSE XFMR 1:1:1 980UH |
145 | 7.71 |
|
Datasheet |
HM42 | Cut Tape (CT) | Discontinued at Digi-Key | Gate Drive | 980µH | 30.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.161" (4.10mm) | -40°C ~ 125°C | - | - |
|
|
PE-65848FNLTPULSE XFMR 1CS:1CS TX/RX |
3,000 | 7.80 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS Transmitter, 1CS:1CS Receiver | Surface Mount | 0.475" L x 0.566" W (12.07mm x 14.37mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|

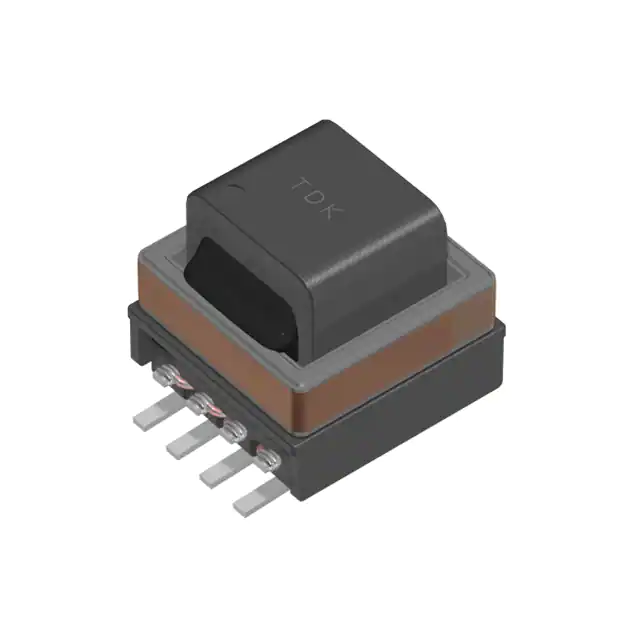

VGT10/9EE-204S2P4TRANSFORMERS FOR BMS |
392 | 7.88 |
|
Datasheet |
VGT | Tape & Reel (TR) | Active | - | 140µH | - | 1:1:1:1 | Surface Mount | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.417" (10.60mm) | -40°C ~ 130°C | - | - |
|
HX6062FNLTPULSE XFMR 1CT:1CT TX/RX |
2,336 | 9.33 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|

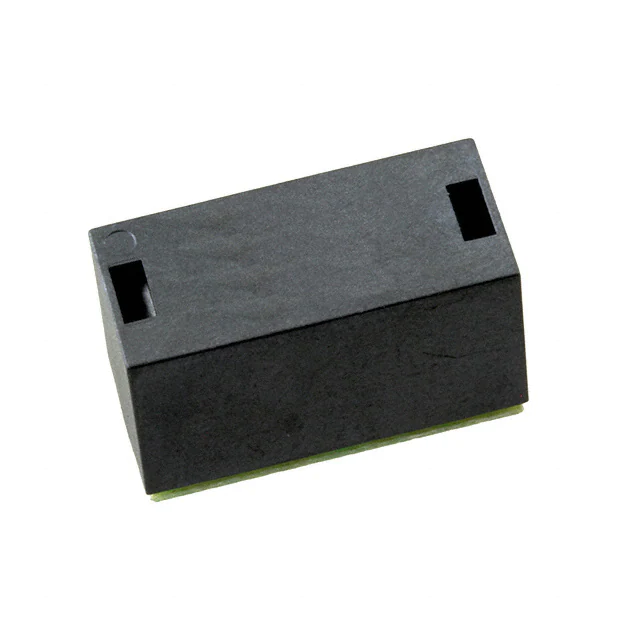

H5610NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
246 | 11.01 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | 0°C ~ 70°C | - | - |
|
|
H7018NLTMODULE 10GBASE-T 1.5KVRMS SMD |
508 | 9.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
ETH1-230LDPULSE XFMR 1:1 350UH |
8,875 | 0.00 |
|
Datasheet |
ETH1-230 | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.650" L x 0.620" W (16.51mm x 15.75mm) | 0.276" (7.00mm) | -40°C ~ 85°C | - | - |
|

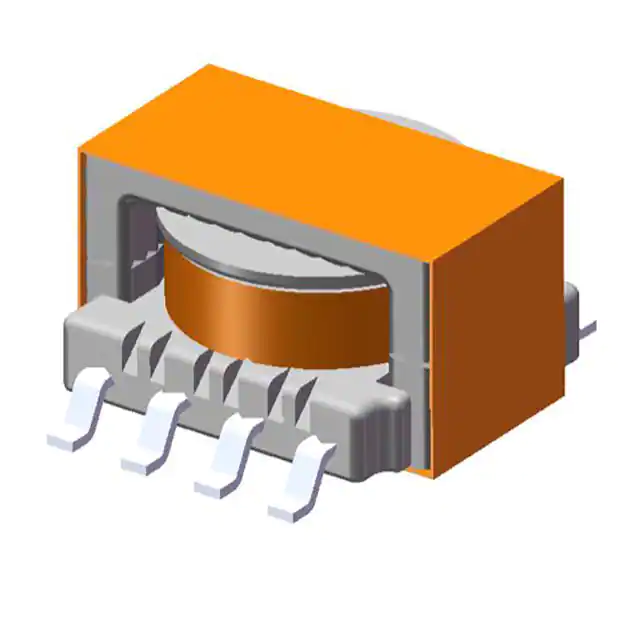

TTER09-0586S1POWER TRANSFORMER |
500 | 9.52 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 1.5µH | - | 4CT:1CT | Surface Mount | 0.672" L x 0.394" W (17.07mm x 10.00mm) | 0.244" (6.20mm) | -40°C ~ 125°C | - | - |
|

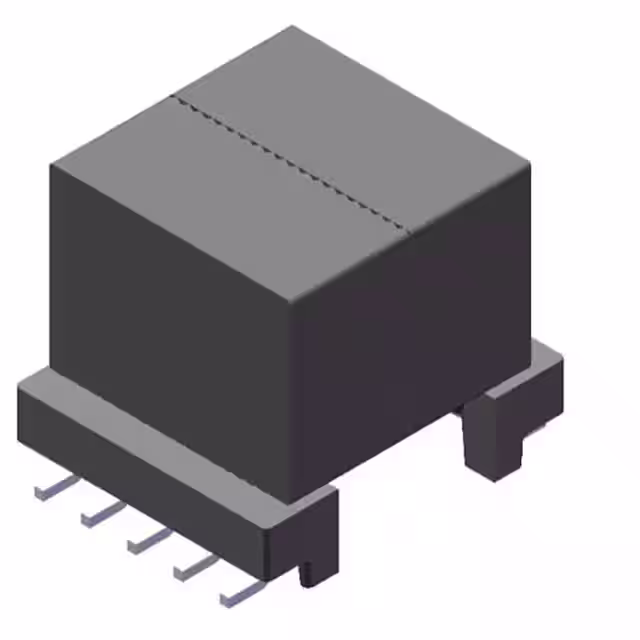

TOEP13-0155S1POE TRANSFORMER |
2,815 | 9.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 70µH | - | - | - | 0.669" L x 0.531" W (17.00mm x 13.50mm) | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
