Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX5014FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
1,895 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|

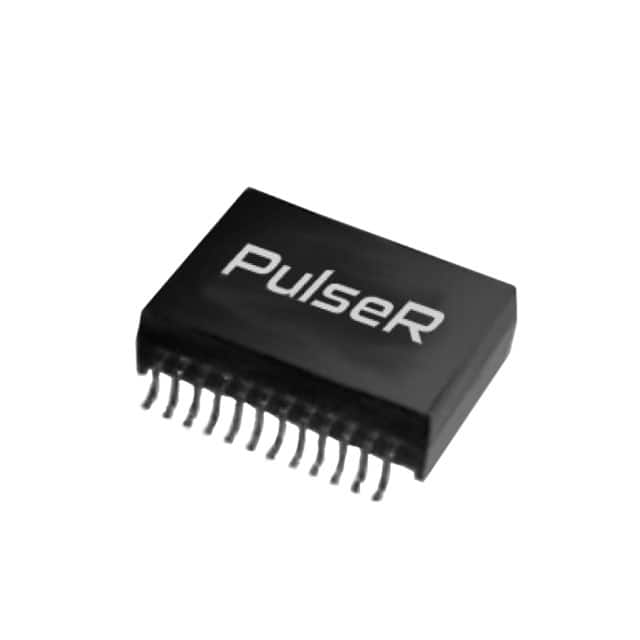

1000B-5006XFMR MODULE DUAL 1000B PBC |
1,627 | 22.80 |
|
Datasheet |
- | Bulk | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.518" L x 0.595" W (13.16mm x 15.11mm) | 0.251" (6.38mm) | -55°C ~ 125°C | - | - |
|
SMQ1553-7TRANSFORMER PULSE DUAL RATIO |
3,705 | 39.41 |
|
Datasheet |
- | Bulk | Active | Interface, MIL-STD-1553 | - | - | 1.4CT:1CT, 2CT:1CT | Surface Mount | 0.624" L x 0.624" W (15.86mm x 15.86mm) | 0.250" (6.35mm) | -55°C ~ 130°C | - | - |
|
PH9185.083NLTRANSFORMER 560UH 8:3 SMD |
1,450 | 0.00 |
|
Datasheet |
PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PA2009NLPULSE XFMR 2.5:1:1 1.49MH |
1,371 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 1.49mH | 47VµS | 2.5:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
|
TC1G00LAN XFMR CHIP 1:1 1G SMD |
1,505 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 1G Base-T | 240µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC2G00PLAN XFMR CHIP 1:1 2.5G POE 60W |
2,413 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power Over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC5G00PLAN XFMR CHIP 1:1 5G POE 60W |
2,551 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 5G Base-T, Power Over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC5G00LAN XFMR CHIP 1:1 5G SMD |
4,517 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 2.5G Base-T | 180µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC2G00LAN XFMR CHIP 1:1 2.5G SMD |
1,933 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 5G Base-T | 180µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC1G00PLAN XFMR CHIP 1:1 1G POE 60W |
3,114 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 1G Base-T, Power Over Ethernet (PoE) | 180µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC2G001PLAN XFMR CHIP 1:1 2.5G POE 90W |
4,770 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 2.5G Base-T, Power Over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.165" (4.19mm) | -40°C ~ 85°C | - | - |
|
|
TC5G001PLAN XFMR CHIP 1:1 5G POW 90W |
1,509 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 5G Base-T, Power Over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.165" (4.19mm) | -40°C ~ 85°C | - | - |
|
|
TC1G001PLAN XFMR CHIP 1:1 1G POE 90W |
4,235 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 1G Base-T, Power Over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.165" (4.19mm) | -40°C ~ 85°C | - | - |
|
|
TC10G00LAN XFMR CHIP 1:1 10G SMD |
3,649 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC10G00PLAN XFMR CHIP 1:1 10G POE 60W |
4,539 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T, Power Over Ethernet (PoE) | 120µH | - | 1CT:1CT | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.124" (3.15mm) | -40°C ~ 85°C | - | - |
|
|
TC10G001PLAN XFMR CHIP 1:1 10G POE 90W |
2,748 | 0.00 |
|
Datasheet |
PulseChip™ | Tape & Reel (TR) | Active | LAN 10G Base-T, Power Over Ethernet (PoE) | 100µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.165" (4.19mm) | -40°C ~ 85°C | - | - |
|
|
GMG116S1202RMAGNETIC 10/100, 16PIN FOR AUTOM |
3,123 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.504" L x 0.268" W (12.80mm x 6.80mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
78613/9JCPULSE XFMR 1CT:1 10MH |
4,081 | 1.50 |
|
Datasheet |
786J | Tube | Active | General Purpose | 10mH | 56VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
GMG116S1205RMAGNETIC 10/100, 16PIN FOR AUTOM |
2,372 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.268" W (12.80mm x 6.80mm) | 0.236" (6.00mm) | -40°C ~ 105°C | - | - |
