Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

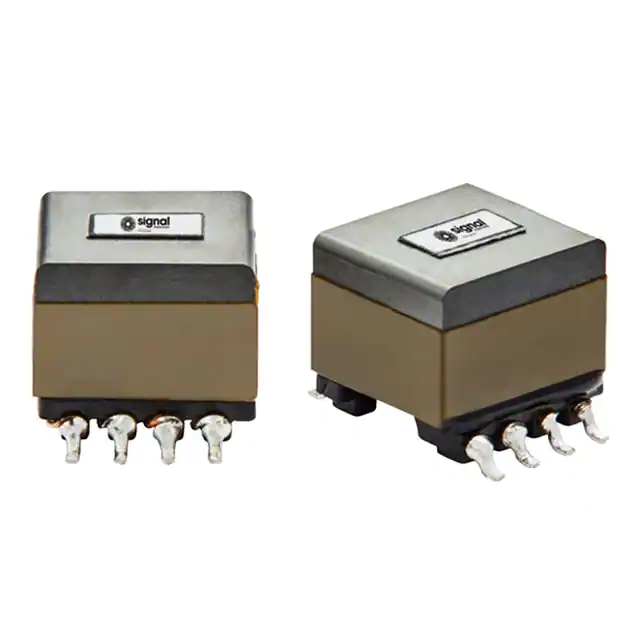

SPOE13-3308POE PWR OVER ETHERNET EP13 CORE |
3,520 | 4.35 |
|
Datasheet |
SPoE | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 127µH | - | 1:0.3 | Surface Mount | - | - | -40°C ~ 125°C | - | - |
|
ILR-10-0001IL5 PULSE TRANSFORMER THT 0.25A |
2,362 | 4.42 |
|
Datasheet |
ILR | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 500µH | 150VµS | 1:1:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
ITRF-0249-D101ITRF PULSE TRANSFORMER THT 0.1A |
4,248 | 4.47 |
|
Datasheet |
ITRF | Bulk | Active | Isolation and Data Interface (Encapsulated) | 1.2mH | - | 1:1:1 | Through Hole | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.512" (13.00mm) | -25°C ~ 100°C | - | - |
|
ISRF-0249-D101ISRF PULSE TRANSFORMER SMD 0.1A |
1,153 | 4.75 |
|
Datasheet |
IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.2mH | 250VµS | 1:1:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
|
H1081NLXFRMR MODUL 1PORT 1:1.141 10/100 |
1,134 | 7.72 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.141 Transmitter, 1:1 Receiver | Surface Mount | 1.000" L x 0.395" W (25.40mm x 10.03mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|

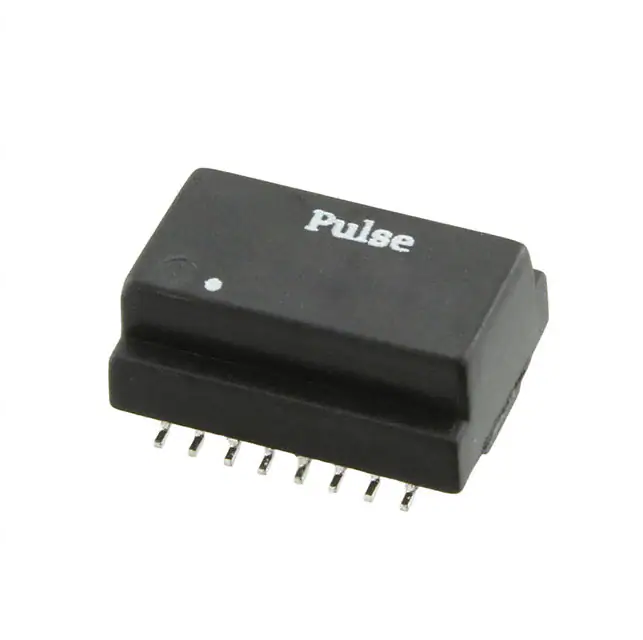

HX1217NLPULSE XFMR 1:1 TX 1:1 RX 350UH |
4,169 | 5.59 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
PE-68023NLXFRMR LAN ISOL 1CT:2CT 10B-T SMD |
4,024 | 5.45 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
B82806D0060A120P300870 EFD20 POE TRANSFORMER |
3,660 | 6.13 |
|
Datasheet |
B82806D | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.866" L x 1.181" W (22.00mm x 30.00mm) | - | -40°C ~ 125°C | - | - |
|
G506TRANSFORMER 2.0MH 2:1:1 PULSE |
1,230 | 11.27 |
|
Datasheet |
G5 | Tube | Active | Isolation and Data Interface (Encapsulated) | 2mH | 16VµS | 2:1:1 Ter | Through Hole | 0.350" L x 0.500" W (8.90mm x 12.70mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PA1836NLTPULSE XFMR 4.5UH |
2,112 | 6.82 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 4.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
H1086NLXFRMR MODULE 1PORT 1:1 10/100 |
1,662 | 6.89 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
HM1237NLXFMR CMC MODULE AECQ BATT MNGT |
2,769 | 7.22 |
|
Datasheet |
- | Tube | Active | - | 650µH | - | 1:1 | Surface Mount | 0.455" L x 0.375" W (11.56mm x 9.53mm) | 0.225" (5.72mm) | - | - | - |
|
T1212NLXFRMR 1CT:1CT/1CT:2CT 1.20MH SMD |
2,170 | 11.26 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
H5G1002NLPULSE XFMR 180UH |
4,388 | 11.35 |
|
Datasheet |
- | Tube | Active | - | 180µH | - | - | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.19mm) | 0.260" (6.60mm) | - | - | - |
|
H5015NLTRANSFORMER MODULE GIGABIT 1PORT |
2,159 | 9.50 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.697" L x 0.480" W (17.70mm x 12.20mm) | 0.185" (4.70mm) | 0°C ~ 70°C | - | - |
|
|
PE-68828NLXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH |
4,439 | 9.84 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HD8004FNLTTRANSFORMER HDBASE-T 34W |
3,285 | 9.99 |
|
Datasheet |
- | Tape & Reel (TR) | Active | HDBase-T | 180µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
TX1267NLTXFRMR 4PORT 1:2 1.2MH SMD |
4,950 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.275" (6.99mm) | -40°C ~ 85°C | - | - |
|
MGDT100125PLANAR GATE-DRIVE XFMR, 1 : 1.25 |
2,801 | 12.51 |
|
Datasheet |
- | Tray | Active | Gate Drive | 240µH | - | 1:1.25:1.25 | Through Hole | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
|
|
MGDT100125LFPLANAR GATE-DRIVE XFMR, 1 : 1.25 |
4,387 | 12.51 |
|
Datasheet |
- | Tray | Active | Gate Drive | 240µH | - | 1:1.25:1.25 | Through Hole | 0.810" L x 0.725" W (20.57mm x 18.42mm) | 0.450" (11.43mm) | -55°C ~ 125°C | - | - |
