Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

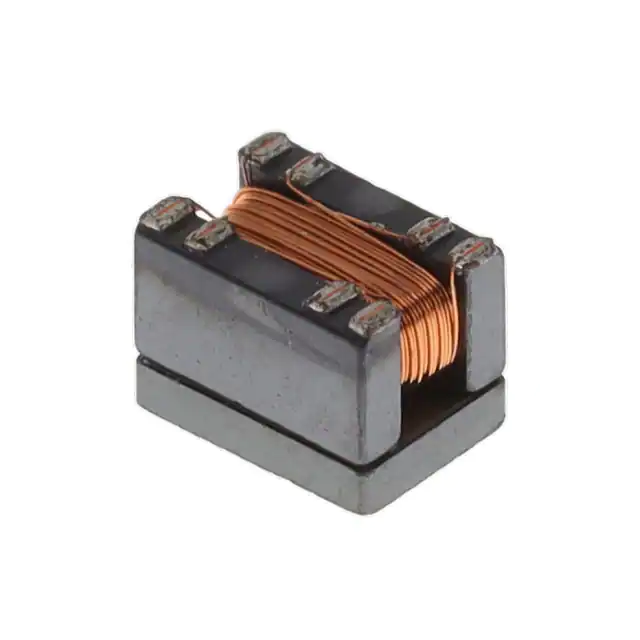

ALANC10001-CDB3ETLAN SGL XFMR 8PIN |
1,992 | 0.43 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 200µH | - | 1CT:1CT | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) | 0°C ~ 70°C | - | - |
|
ALANC10001-EEB3DTLAN XFMR 10/100/1000BASE-T |
1,157 | 0.00 |
|
Datasheet |
ALANC10001 | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 150µH | - | 1CT:1CT | Surface Mount | 0.181" L x 0.134" W (4.60mm x 3.40mm) | 0.138" (3.50mm) | -40°C ~ 85°C | - | - |
|

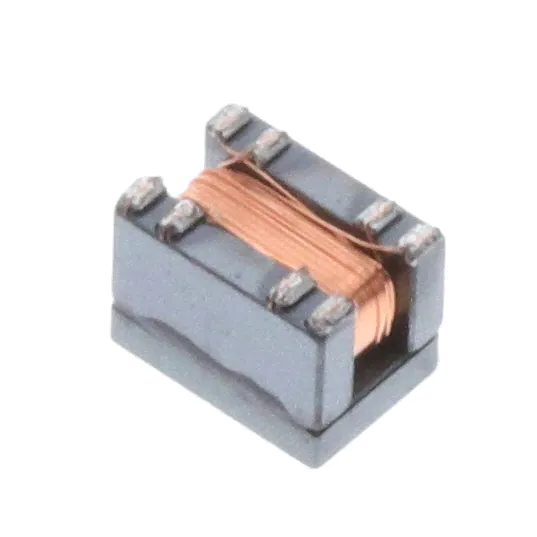

ALANC10001-CDB3DTLAN SGL XFMR 8PIN |
2,809 | 1.41 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 200µH | - | 1CT:1CT | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.138" (3.50mm) | -40°C ~ 85°C | - | - |
|
|
TXF 453229NF-381380UH LAN PULSE TRANSFORMER 1CT |
1,575 | 0.00 |
|
Datasheet |
TXF 4532 | Active | LAN | 380µH | - | 1:1 | Surface Mount | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - | |
|
|
0553-0013-HC-FPULSE TRANSFORMER 1CT:2CT 1.2MH |
2,450 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | T1/E1 (Single) | 1.2mH | - | 1CT:2CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
ESMIT-4154IC |
2,523 | 0.00 |
|
- |
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|

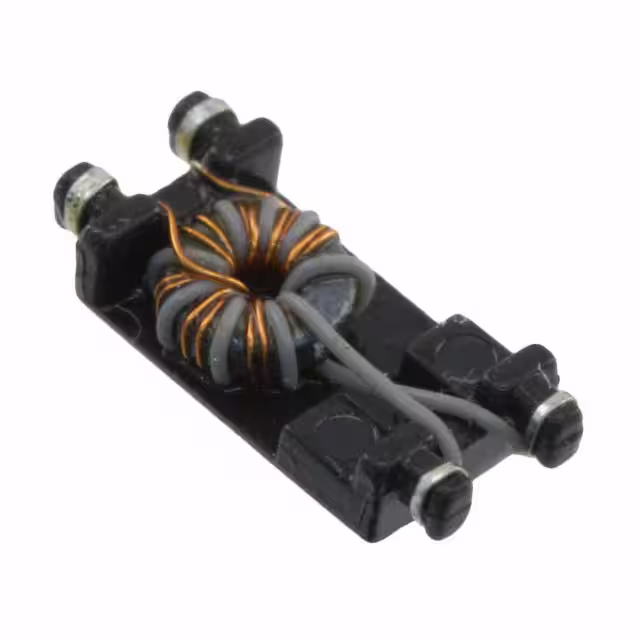

750110007TRANS ANALOG MODE SMART DAA SMD |
4,264 | 0.88 |
|
Datasheet |
WE-AMT, MID-DAA | Tape & Reel (TR) | Active | - | 30µH | - | 1.67:1 | Surface Mount | 0.173" L x 0.360" W (4.39mm x 9.14mm) | 0.078" (1.98mm) | - | - | - |
|
|
S553-0716-00-FPULSE XFMR 1:1 TX/1:1 RX 140UH |
4,755 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | 140µH | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.800" L x 0.285" W (20.32mm x 7.24mm) | 0.230" (5.84mm) | - | - | - |
|
|
S553-0756-AE-FPULSE TRANSFORMER 1:1 75UH |
1,980 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | 75µH | 1.4VµS | 1:1 | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.215" (5.46mm) | - | - | - |
|
|
S553-1006-AE-FPULSE TRANSFORMER 1:1 100UH |
2,638 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | 100µH | 1.5VµS | 1:1 | Surface Mount | 0.485" L x 0.285" W (12.32mm x 7.24mm) | 0.215" (5.46mm) | - | - | - |
|
|
S553-1084-11-FPULSE XFMR 2CT:1CT TX/1CT:1CT RX |
2,250 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | 80mH, 80mH | - | 2CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
C10114ADSL CPE XFRMR |
2,338 | 0.00 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
S554-6500-25-FPULSE XFMR 1:1 40UH 60UH 80UH |
3,940 | 0.88 |
|
- |
- | Bulk | Active | - | 40µH, 60µH, 80µH | - | 1:1 | Surface Mount | 0.300" L x 0.285" W (7.62mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
ALANS100X1-2F00ETLAN SGL 100B XFMR&CMC 16PIN |
3,688 | 1.26 |
|
Datasheet |
ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | 0°C ~ 70°C | - | - |
|
|
ALANS100X1-2F10DTLAN SGL 100B XFMR&CMC 16PIN |
1,620 | 1.17 |
|
Datasheet |
ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|
|
S553-5999-37-FPULSE XFMR 1CT:1.41CT/1CT:1CT |
4,035 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | 200µH | - | 1CT:1.41CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
|
S553-5999-F3-FPULSE XFMR 1CT:2CT TX/1CT:1CT RX |
2,315 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | 28µH, 110µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
S553-5999-F2-FPULSE XFMR 1CT:2CT TX/1CT:1CT RX |
2,473 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN 10G Base-T | 28µH, 110µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
|
0553-0013-DC-FPULSE TRANSFORMER 1CT:1CT 1.0MH |
4,421 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | LAN | 1.0mH | 11.0VµS | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | - | - | - |
|
|
PA4375NLCMC GEAR WOUND COIL |
1,686 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - |
