Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GMG116S1603RMAGNETIC 10/100, 16PIN FOR AUTOM |
1,491 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.10mm) | 0.089" (2.27mm) | -40°C ~ 105°C | - | - |
|
|
GMG116S1204RMAGNETIC 10/100, 16PIN FOR AUTOM |
3,339 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 100µH | - | 1:1 Transmitter, 1.5:1 Receiver | Surface Mount | 0.504" L x 0.268" W (12.80mm x 6.80mm) | 0.236" (6.00mm) | -40°C ~ 95°C | - | - |
|
|
GMG224S1508RMAGNETIC 1G, 24PIN FOR AUTOMOTIV |
3,225 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.713" L x 0.480" W (18.10mm x 12.20mm) | 0.246" (6.25mm) | -40°C ~ 105°C | - | - |
|
|
GMG224S1307RMAGNETIC 1G, 24PIN FOR AUTOMOTIV |
1,105 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 1000 Base-T | 300µH | - | 1CT:1CT | Surface Mount | 0.654" L x 0.354" W (16.60mm x 9.00mm) | 0.098" (2.50mm) | -40°C ~ 125°C | - | - |
|
|
ITNA-0239-D202ITNA PULSE TRANSFORMER THT 0.17A |
2,854 | 2.60 |
|
Datasheet |
IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 2.2mH | 400VµS | 1:1 | Through Hole | 0.878" L x 0.894" W (22.30mm x 22.70mm) | 0.535" (13.60mm) | -25°C ~ 100°C | - | - |
|
|
ITNF-0135-D101ITNF PULSE TRANSFORMER THT 0.1A |
1,955 | 2.89 |
|
Datasheet |
ITNF | Bulk | Active | Isolation and Data Interface (Encapsulated) | 1.1mH | - | 1:1:1 | Through Hole | 0.512" L x 0.598" W (13.00mm x 15.20mm) | 0.417" (10.60mm) | -25°C ~ 100°C | - | - |
|
|
GMG324S1406RMAGNETIC 10G, 24PIN FOR AUTOMOTI |
4,211 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 150µH | - | 1CT:1CT | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|

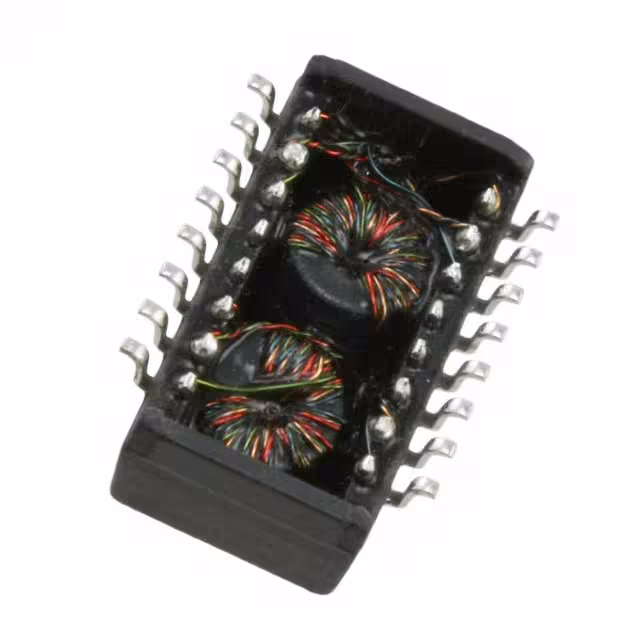

H1197NLXFRMR MAGNT MOD 1PORT POE 10/100 |
3,263 | 3.16 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.265" W (12.70mm x 6.73mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
HM2102NLXFMR CMC MODULE AECQ BATT MNGT |
2,192 | 0.00 |
|
Datasheet |
- | Tube | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.580" W (14.81mm x 14.73mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
|
|
TG110-AE050N5LFTRISO MOD 10/100 AEC X-TEMP |
1,326 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.250" (6.35mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
S558-5999-AR-FXFRMR MOD LAN GIGABIT EXTEMP 24P |
3,057 | 2.83 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
1025CPULSE XFMR 2:1:1 24MH |
3,810 | 4.74 |
|
Datasheet |
1000 | Tube | Active | General Purpose | 24mH | 570VµS | 2:1:1 | Through Hole | 0.593" L x 0.593" W (15.06mm x 15.06mm) | 0.640" (16.25mm) | 0°C ~ 70°C | - | - |
|
|
1016CPULSE XFMR 1:1 3MH |
1,536 | 4.74 |
|
Datasheet |
1000 | Tube | Active | General Purpose | 3mH | 200VµS | 1:1 | Through Hole | 0.593" L x 0.593" W (15.06mm x 15.06mm) | 0.640" (16.25mm) | 0°C ~ 70°C | - | - |
|
77204CPULSE XFMR 1:1 4MH |
2,857 | 6.73 |
|
Datasheet |
- | Tube | Active | SCR and Triac Trigger (Encapsulated) | 4mH | 240VµS | 1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
HX1339NLTMDL SIN 100D 1:1 SMT TR |
2,305 | 5.23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.598" L x 0.500" W (15.20mm x 12.70mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
|
749082010WE-LAN 2.5G/5G BASE-T SMT TRANSF |
1,356 | 0.00 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
|
TMYB93BNLLAN TRANSFORMER, 1G BASE-T, 40 P |
2,864 | 0.00 |
|
Datasheet |
Exos1G | Tape & Reel (TR) | Active | LAN 1G Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT | Surface Mount | 1.125" L x 0.492" W (28.58mm x 12.50mm) | 0.230" (5.85mm) | -40°C ~ 85°C | - | - |
|
|
ALT4532V-201-T001TRANSFORMER LAN |
1,253 | 0.00 |
|
Datasheet |
ALT | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 200µH | - | 1CT:1CT | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|
|
SM91808AL-ETRANSF PLANAR BMS 1000VDC |
4,672 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Battery Management | 450µH | - | 1:1 | Surface Mount | 0.685" L x 0.335" W (17.40mm x 8.50mm) | 0.150" (3.80mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
|
AOZ7000ACDC STR CORELESS PULSE TRANSFOR |
2,601 | 0.29 |
|
- |
- | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | 50nH | - | 3:10 | Surface Mount | 0.374" L x 0.217" W (9.50mm x 5.50mm) | 0.078" (1.98mm) | - | - | - |
