RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

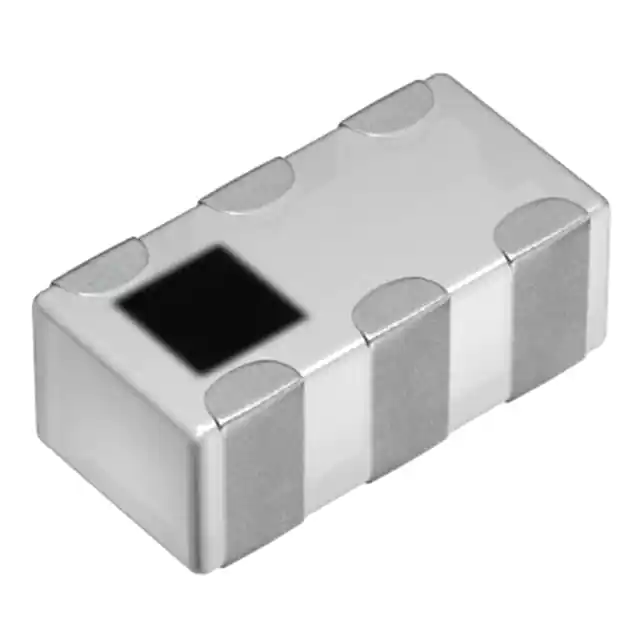

DPX165950DT-8060C1RF DIPLEXER 0603 6 PC PAD |
5,673 | 0.33 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX2012LKGGR0920LANT LB & JB HB DIPLEXER |
4,000 | 0.00 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 960MHz / 1.427GHz ~ 2.69GHz | 25.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
|
DPX2012LKUCRWH46LANT LTE & N77 5GHZ DIPLEXER |
4,000 | 0.00 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.496GHz ~ 2.69GHz / 5.15GHz ~ 5.925GHz | 17.00dB / 20.00dB | 22.00dB / 27.00dB | 12.0dB / 12.0dB | - | - | Surface Mount |
|

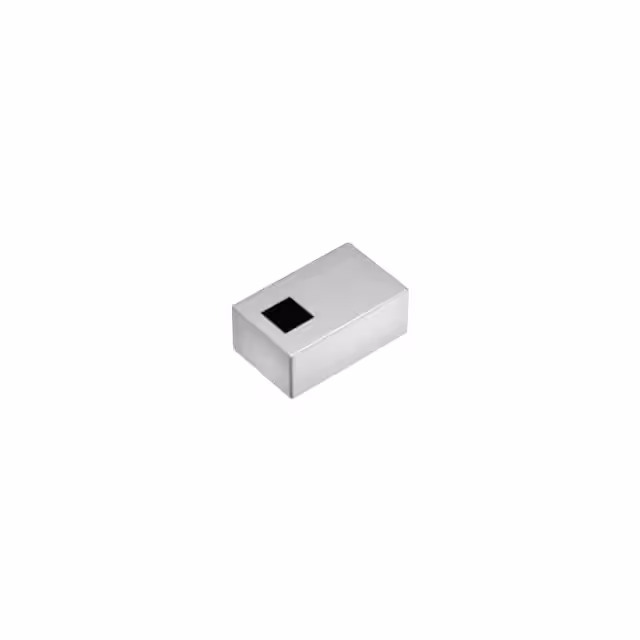

TPX205950MT-7036A1MULTILAYER HIGH PASS FILTER FOR |
1,930 | 0.44 |
|
Datasheet |
TPX | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Triplexer | 1.559GHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz | 28.00dB / 32.00dB | 30.00dB / 44.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

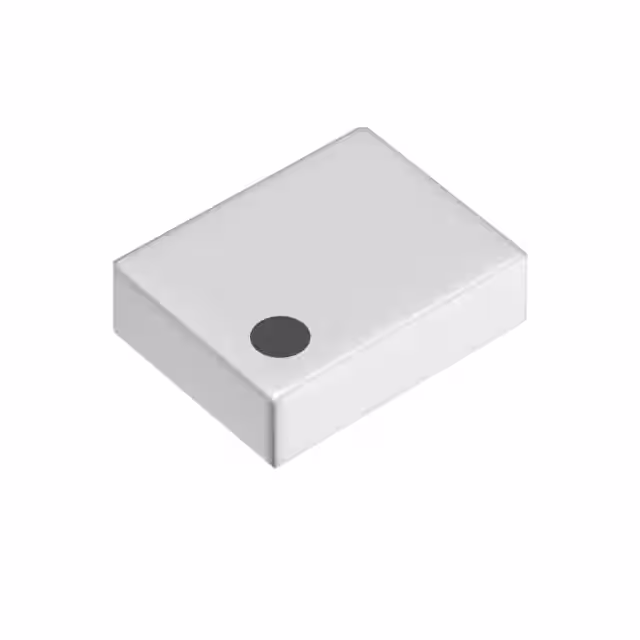

TPX322690MT-7017C1MULTILAYER TPX FOR UMTS/LTE/5G |
3,964 | 0.46 |
|
Datasheet |
TPX | 1210 (3225 Metric), 13 PC Pad | Tape & Reel (TR) | Active | Triplexer | 698MHz ~ 960MHz / 2.3GHz ~ 2.69GHz | 43.10dB / - | 1.10dB / 57.90dB | 18.0dB / 8.0dB | - | - | Surface Mount |
|

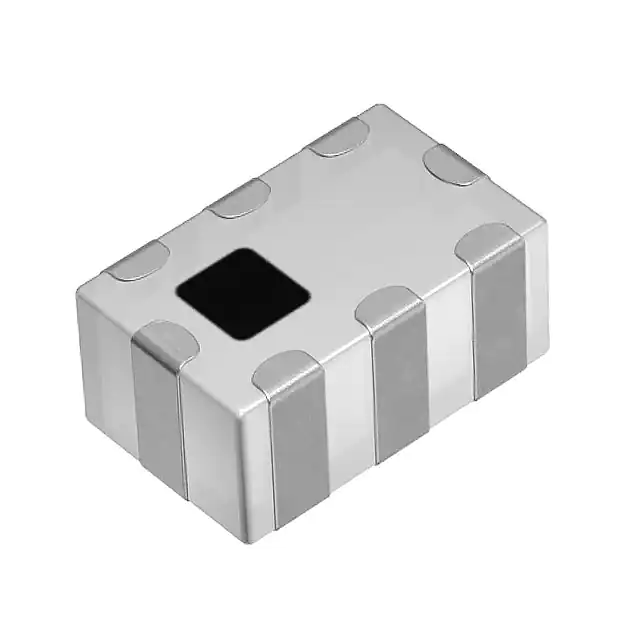

TPX205950MT-7010A1RF TRIPLEXER 2.45/5.425GHZ 0805 |
1,545 | 0.44 |
|
Datasheet |
TPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Triplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 13.00dB / 23.00dB | 5.00dB / 32.00dB | - | - | - | Surface Mount |
|
|
SLFD15-5R950G-14TMULTILAYER DIPLEXER, 2400~2500/5 |
10,000 | 0.00 |
|
Datasheet |
SLFD | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
SLFD15-5R950G-13TMULTILAYER DIPLEXER, 2400~2500/5 |
10,000 | 0.00 |
|
Datasheet |
SLFD | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
SLFD15-5R950G-04TMULTILAYER DIPLEXER, 2400~2500/5 |
10,000 | 0.00 |
|
Datasheet |
SLFD | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.4GHz / 5.15GHz ~ 5.95GHz | - / 35.00dB | - / 25.00dB | - | - | - | Surface Mount |
|
|
SLFD15-5R950G-03TMULTILAYER DIPLEXER, 2400~2500/5 |
10,000 | 0.00 |
|
Datasheet |
SLFD | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.4GHz / 5.15GHz ~ 7.125GHz | - / 18.00dB | - / 24.00dB | - | - | - | Surface Mount |
|
TPX253600MT-7019B2MULTILAYER TRIPLEXER FOR 698 - 9 |
2,000 | 0.49 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 698MHz ~ 960MHz / 2.5GHz ~ 3.6GHz | 35.00dB / 51.30dB | 18.00dB / 21.70dB | 14.0dB / 14.0dB | - | - | Surface Mount |
|
TPX255850MT-7025A1MULTILAYER TRIPLEXER FOR 1447 - |
1,926 | 0.49 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 1.447GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 30.00dB / 33.60dB | 20.00dB / 23.80dB | 10.03dB / 8.01dB | - | - | Surface Mount |
|

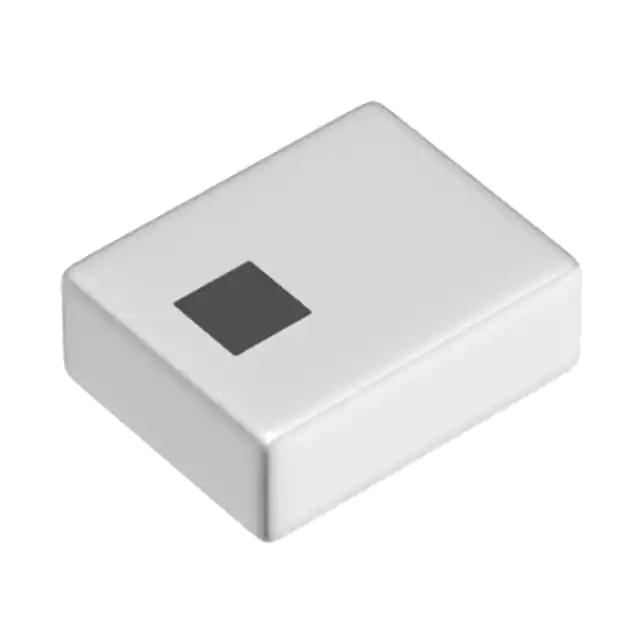

TPX252690MT-7029A1MULTILAYER TRIPLEXER FOR 698 - 9 |
1,445 | 0.49 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 698MHz ~ 960MHz / 2.496GHz ~ 5.85GHz | 20.00dB / 43.00dB | 30.00dB / 39.00dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|

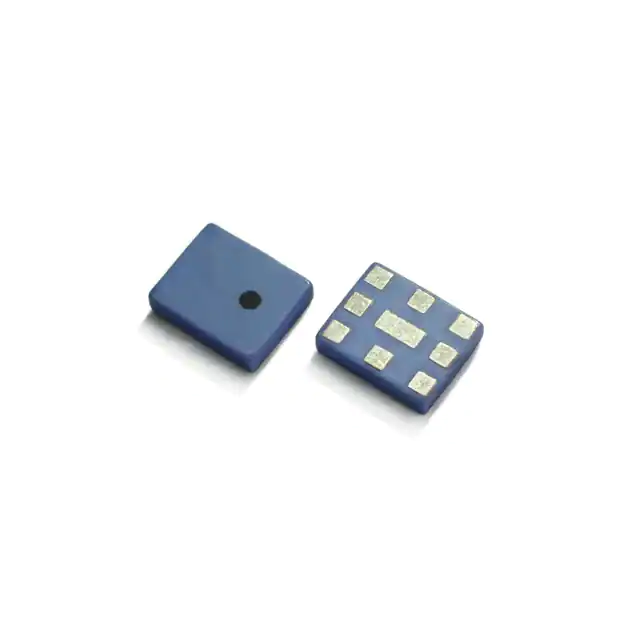

RFTIP2506T10A8Q1CTRIPLEXER 500-960/1427-2690/3300 |
1,275 | 0.68 |
|
Datasheet |
RFTIP | 9-SMD, No Lead | Tape & Reel (TR) | Active | Triplexer | 500MHz ~ 960MHz / 3.3GHz ~ 5.925GHz | 30.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-S08TMULTILAYER DIPLEXER, 2400~2500/4 |
4,000 | 0.00 |
|
Datasheet |
SLFD | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-S03TMULTILAYER DIPLEXER, 2400~2500/4 |
4,000 | 0.00 |
|
Datasheet |
SLFD | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
SLFD18-5R950G-S04TMULTILAYER DIPLEXER, 2400~2500/4 |
3,970 | 0.00 |
|
Datasheet |
SLFD | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
 PKG.jpg)
|
DPX162170DT-8022B1RF DIPLEXER 832MHZ/1.94GHZ 0603 |
2,060 | 0.78 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 704MHz ~ 960MHz / 1.71GHz ~ 2.17GHz | 15.00dB / 21.00dB | 20.00dB / 26.00dB | - | - | - | Surface Mount |
|

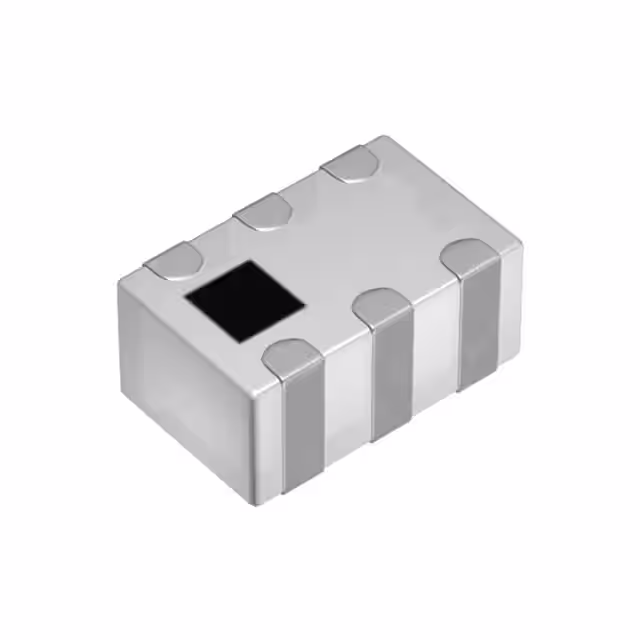

DPX205850DT-9043B1BRMULTILAYER DIPLEXER FOR 2400 - 2 |
1,477 | 0.57 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 23.00dB / 39.10dB | 20.00dB / 31.20dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

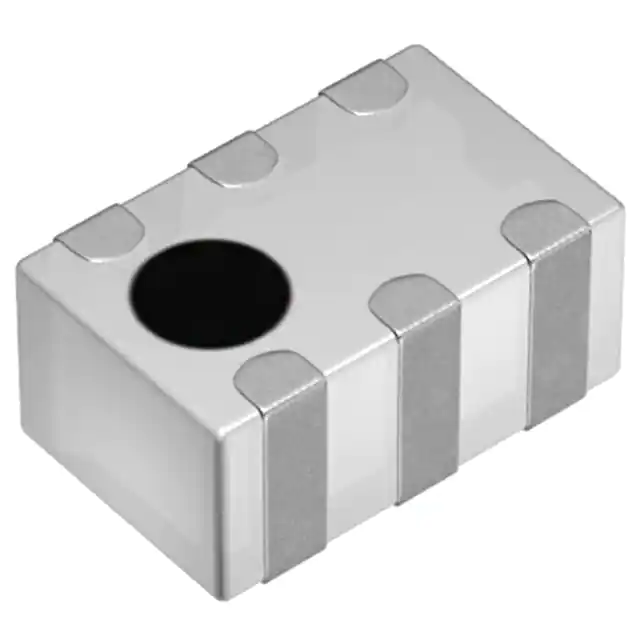

DPX205850DT-4155A1RF DIPLEXER 1345MZ/4.125GHZ 0805 |
12,734 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 700MHz ~ 1.99GHz / 2.4GHz ~ 5.85GHz | - | 15.00dB / 21.00dB | 9.54dB / 9.54dB | - | - | Surface Mount |
