Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

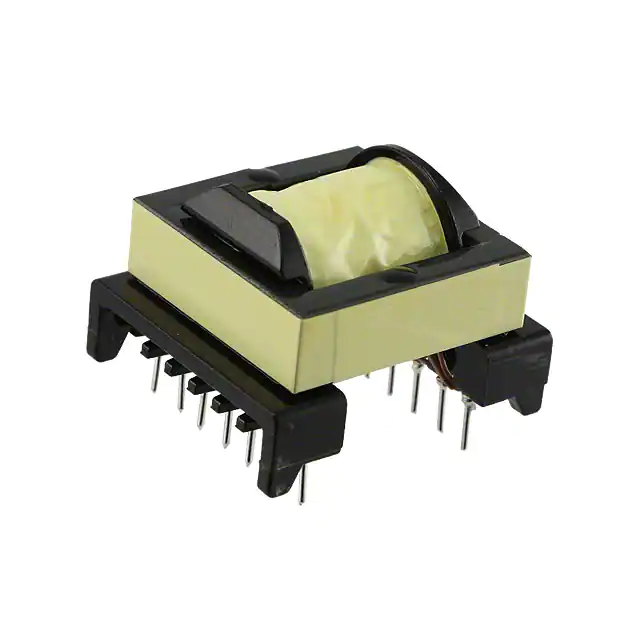

750811330XFMR FLYBACK AC/DC CONV 300UH TH |
3,565 | 21.78 |
|
Datasheet |
WE-FB, MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | LT3799 | Linear Technology | 120 ~ 375V | - | 4500Vrms | 300µH @ 10kHz | 200kHz | - | - | - | Through Hole | 1.559" L x 1.700" W (39.60mm x 43.18mm) | 1.205" (30.61mm) | 1.559" L x 1.700" W (39.60mm x 43.18mm) | - |
|
750342585XFMR FLYBACK AC/DC CONV 2.5MH TH |
4,005 | 0.00 |
|
Datasheet |
MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 400 ~ 690V | 16V @ 1A | 3800Vrms | 2.5mH @ 50kHz | 68kHz | -40°C ~ 125°C | - | - | Through Hole | 0.960" L x 1.400" W (24.38mm x 35.56mm) | 1.740" (44.20mm) | 0.960" L x 1.400" W (24.38mm x 35.56mm) | - |
.00xNL-Series.jpg)
|
PA3856.003NLXFMR FWD P-P DC/DC CONV SMD |
4,041 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

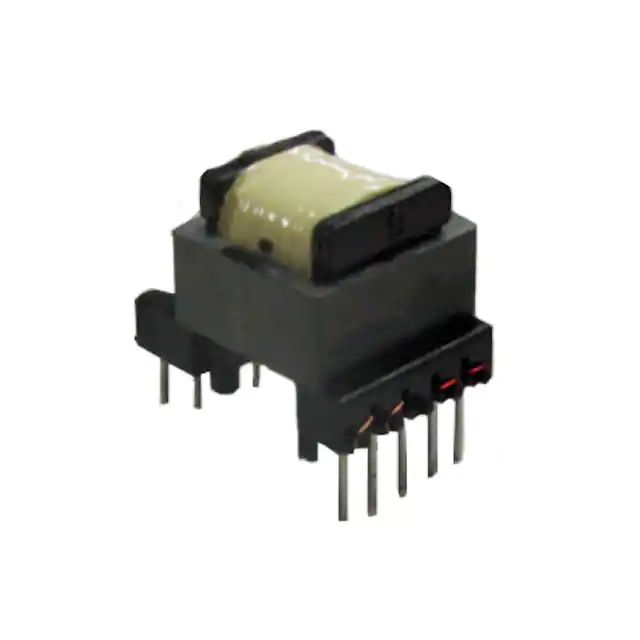

PA2718NLXFMR FLYBACK CONFIG DC/DC TH |
4,229 | 2.30 |
|
Datasheet |
- | Tray | Active | Configurable (For DC/DC) | Flyback Converters | - | - | 85 ~ 256V | - | 3000Vrms | - | 132kHz | -40°C ~ 130°C | - | - | Through Hole | 0.531" L x 0.768" W (13.50mm x 19.50mm) | 0.591" (15.00mm) | 0.531" L x 0.768" W (13.50mm x 19.50mm) | - |
|
750342178XFMR FLYBACK DC/DC CONV 50UH SMD |
1,949 | 4.76 |
|
Datasheet |
MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | FlyBuck™ | Texas Instruments | 17 ~ 32V | - | 1500Vrms | 50µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.280" (7.11mm) | 0.610" L x 0.670" W (15.49mm x 17.02mm) | - |
|

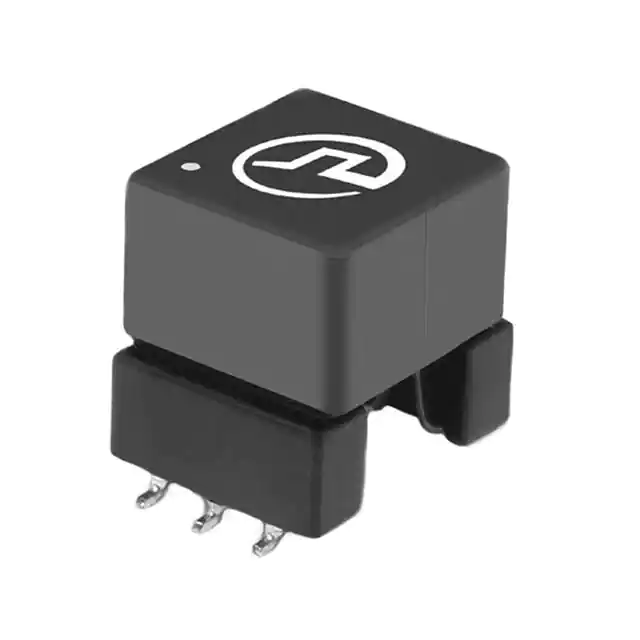

PM9595NLTXFMR FLYBACK DC/DC CONV 13UH SMD |
1,713 | 4.98 |
|
Datasheet |
PM9595.XXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 12V | - | 4300VDC | 13µH | 350kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.539" (13.70mm) | 0.512" L x 0.394" W (13.01mm x 10.00mm) | Wirewound |
|

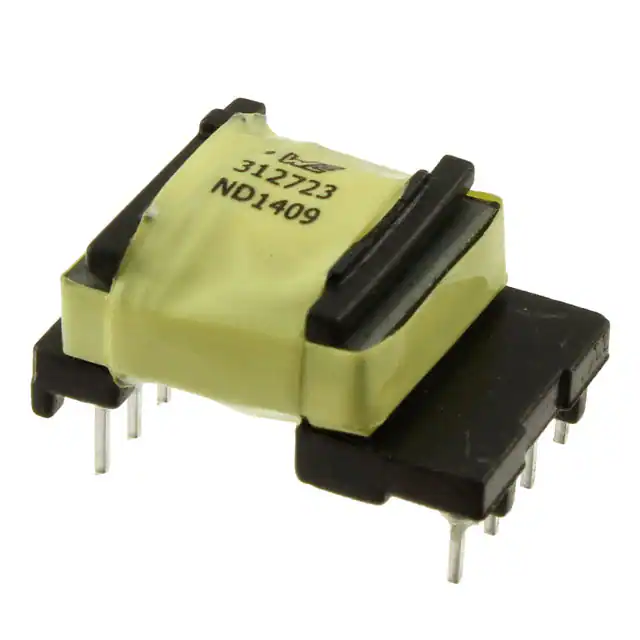

750312723XFMR FLYBACK DC/DC CONV 925UH TH |
3,195 | 5.18 |
|
Datasheet |
WE-FB, MID-OLTI | Tray | Active | For DC/DC Converters | Flyback Converters | UCC287xx, UCC289xx | Texas Instruments | 85 ~ 265V | 20V | 4500Vrms | 925µH @ 10kHz | 130kHz | -40°C ~ 125°C | - | - | Through Hole | 0.560" L x 0.805" W (14.22mm x 20.45mm) | 0.415" (10.54mm) | 0.560" L x 0.805" W (14.22mm x 20.45mm) | - |
|
PA5112.002NLTXFMR FLYBACK DC/DC CONV 160UH SM |
1,179 | 5.38 |
|
Datasheet |
PA5112.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 160µH @ 140kHz | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|

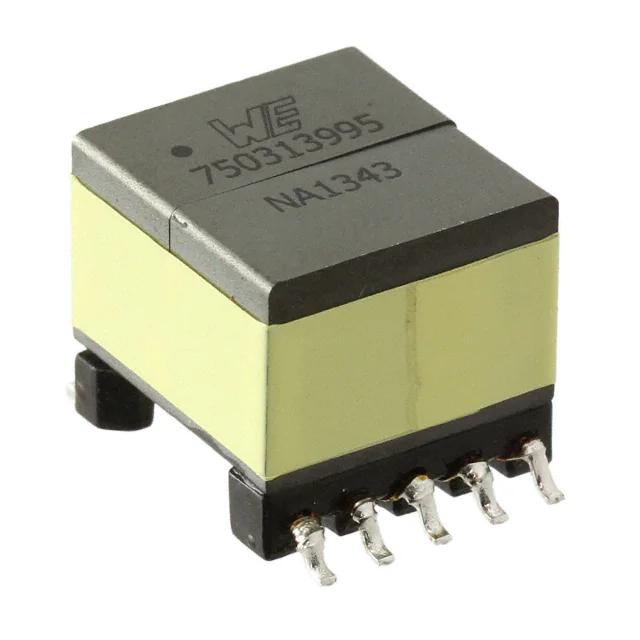

750313995XFMR FLYBACK DC/DC CONV 50UH SMD |
1,350 | 5.62 |
|
Datasheet |
WE-FB, MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | FlyBuck™ | Texas Instruments | 15 ~ 40V | - | 1500Vrms | 50µH @ 10kHz | 300 ~ 600kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
749196211XFMR FLEXIBLE CONFIG DC/DC SMD |
2,706 | 6.25 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | - | - |
|
750343804XFMR SMD |
3,666 | 6.35 |
|
Datasheet |
WE-FW, MID-HB | Tape & Reel (TR) | Active | - | - | - | - | 15V | - | 3000VAC | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.485" (12.32mm) | - | - |
|
750871010XFMR FLYBACK AC/DC CONV 3.3MH TH |
2,078 | 7.26 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | VIPER17L | STMicroelectronics | 120 ~ 385V | 12V @ 10mA | 4000Vrms | 3.3mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.787" L x 0.975" W (20.00mm x 24.00mm) | - |
|
749118215XFMR LED DR AC/DC CONV 900UH TH |
2,357 | 8.51 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.795" L x 0.965" W (20.20mm x 24.50mm) | 0.650" (16.50mm) | 0.795" L x 0.965" W (20.20mm x 24.50mm) | - |
|
750317893XFMR FLYBACK DC/DC CONV 18UH SMD |
3,069 | 8.62 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | - | - | 4000Vrms | 18µH @ 100kHz | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | 0.445" L x 0.431" W (11.30mm x 10.95mm) | - |
|
750811630XFMR FLYBCK AC/DC CONV 1.04MH TH |
4,223 | 11.68 |
|
Datasheet |
WE-UNIT, MID-OLPI | Tray | Active | For AC/DC Converters | Flyback Converters | TOP258 | Power Integrations | 120 ~ 375V | - | 4000Vrms | 1.04mH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 1.220" L x 1.220" W (31.00mm x 31.00mm) | 0.989" (25.12mm) | 1.220" L x 1.220" W (31.00mm x 31.00mm) | - |
|

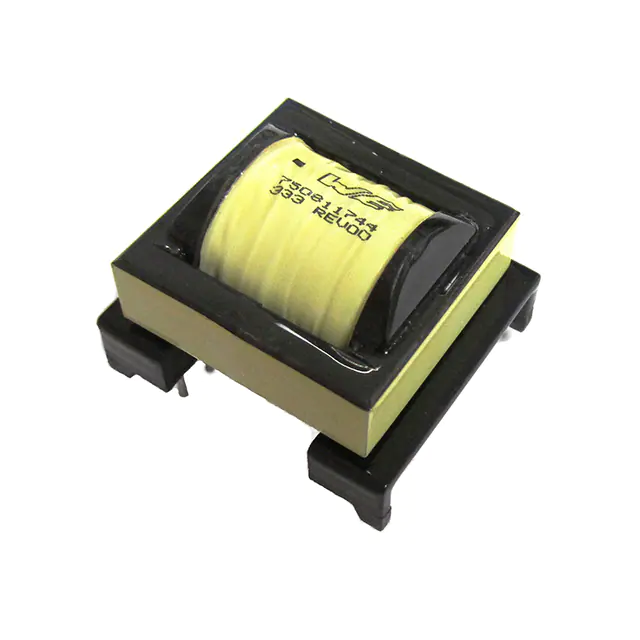

750811744XFMR FLYBACK DC/DC CONV 450UH TH |
3,760 | 9.17 |
|
Datasheet |
MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | 90 ~ 375V | 14V @ 50mA | 4000Vrms | 450µH @ 10kHz | 80kHz | -40°C ~ 125°C | - | - | Through Hole | 1.559" L x 1.700" W (39.60mm x 43.18mm) | 1.200" (30.48mm) | - | - |
|
750871110XFMR FLYBACK AC/DC CONV 1.6MH TH |
2,122 | 6.53 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | VIPER28 | STMicroelectronics | 120 ~ 385V | 10V @ 10mA | 4000Vrms | 1.6mH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | 0.827" L x 0.984" W (21.00mm x 25.00mm) | 0.635" (16.13mm) | 0.827" L x 0.984" W (21.00mm x 25.00mm) | - |
|

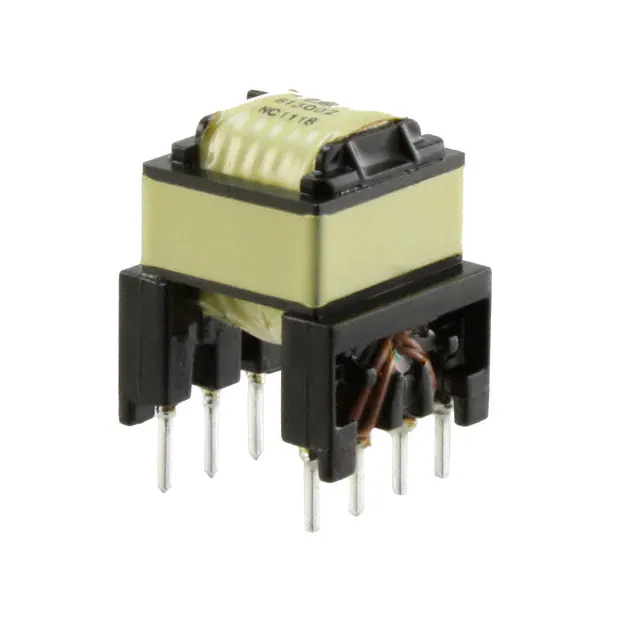

750813002XFMR FLYBACK AC/DC CONV 2MH TH |
2,666 | 10.65 |
|
Datasheet |
WE-FB, MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | LT3799 | Linear Technology | 90 ~ 265V | - | 4500Vrms | 2mH @ 10kHz | 1MHz | -40°C ~ 125°C | - | - | Through Hole | 0.591" L x 0.620" W (15.00mm x 15.75mm) | 0.732" (18.59mm) | 0.591" L x 0.620" W (15.00mm x 15.75mm) | - |
|

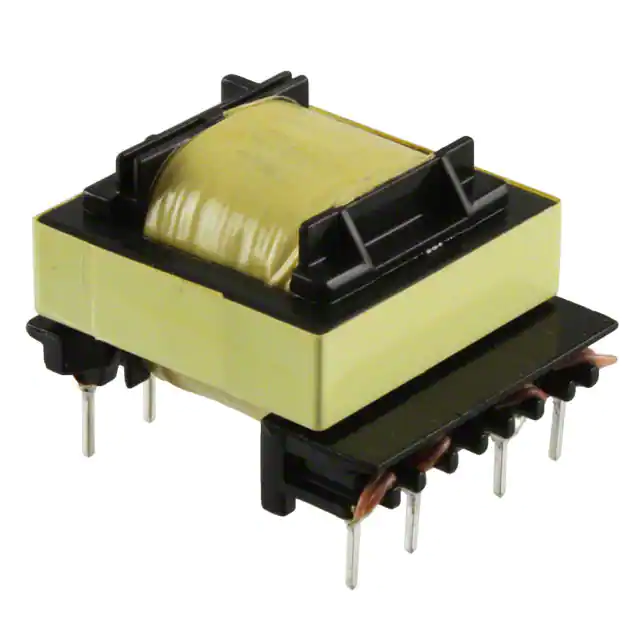

750871111XFMR FLYBACK AC/DC CONV 1.7MH TH |
4,457 | 7.26 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | VIPER27L | STMicroelectronics | 120 ~ 385V | 12V @ 10mA | 4000Vrms | 1.7mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 0.827" L x 0.984" W (21.00mm x 25.00mm) | 0.635" (16.13mm) | 0.827" L x 0.984" W (21.00mm x 25.00mm) | - |
|
750310988XFMR FLYBACK DC/DC CONV 14UH SMD |
4,261 | 13.48 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 12V | - | 1500Vrms | 14µH @ 200kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
