Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZA9674-BEDXFMR FLYBACK DC/DC CONV 9UH SMD |
874 | 10.11 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25184 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 9µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
|
|
ZA9672-BEDXFMR FLYBACK DC/DC CONV 7UH SMD |
826 | 10.11 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25184 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 7µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
|
|
ZA9673-BEDXFMR FLYBACK DC/DC CONV 7UH SMD |
742 | 10.11 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25184 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 7µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
|
|
ZA9670-BEDXFMR FLYBACK DC/DC CONV 9UH SMD |
722 | 10.11 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25184 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 9µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
|

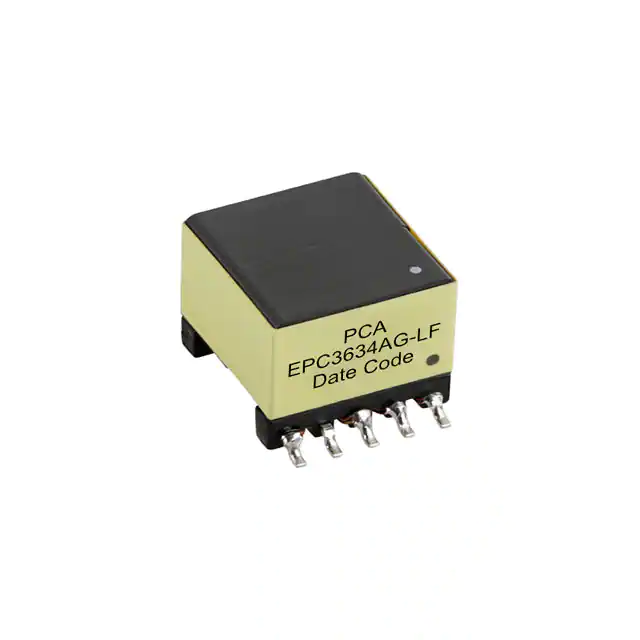

EPC3634AG-LFPOE FLYBACK XFM 12V, 36W |
105 | 0.00 |
|
Datasheet |
EPC-EP13 | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT4295 | Analog Devices | 42 ~ 57V | 12V | 1500Vrms | 26µH @ 100KHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.485" (12.32mm) | 0.550" L x 0.695" W (13.97mm x 17.65mm) | - |
|
PNY-24004XFMR FLYBACK AC/DC CONV 4MH TH |
9,843 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | Flyback Converters | TNY255 | Power Integrations | 85 ~ 265V | - | 3000V | 4mH @ 100kHz | - | - | - | - | Through Hole | 0.717" L x 0.650" W (18.20mm x 16.50mm) | 0.886" (22.50mm) | - | - |
|

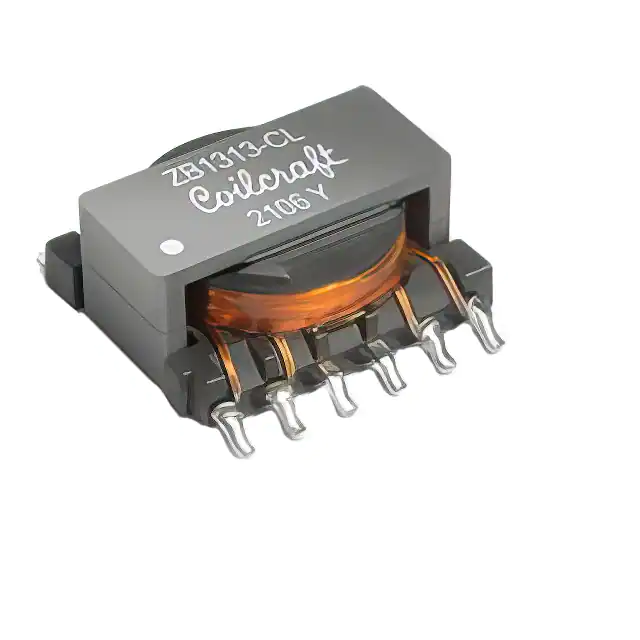

ZB1313-CLDXFMR FLYBCK DC/DC CONV 10.5UH SM |
1,167 | 8.28 |
|
Datasheet |
ZB1313-CL | Strip | Active | For DC/DC Converters | Flyback Converters | MAX17690 | Maxim Integrated | 18 ~ 38V | - | 1500Vrms | 10.5µH @ 150kHz | 163kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.291" (7.40mm) | 0.661" L x 0.642" W (16.80mm x 16.30mm) | Wirewound |
|

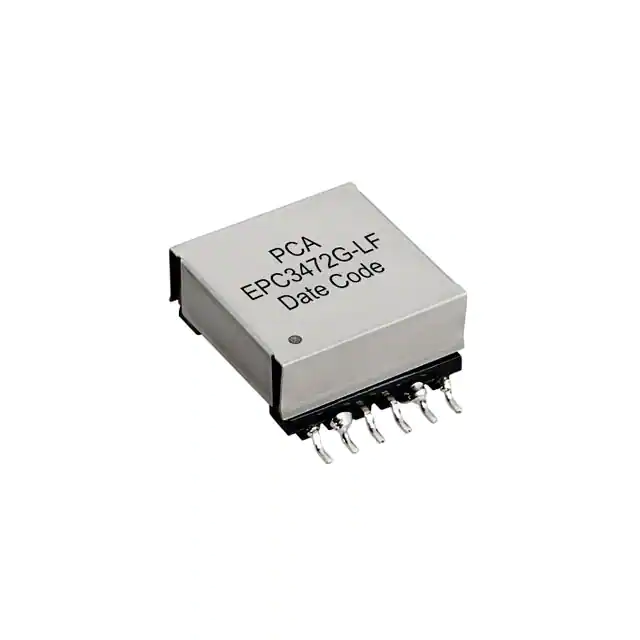

EPC3472G-LFXFMR FLYBACK DC/DC CONV 9UH SMD |
417 | 0.00 |
|
Datasheet |
EPC-EFD20 | Tray | Active | For DC/DC Converters | Flyback Converters | LTC4278 | Analog Devices | 9 ~ 57V | 5V | 1500Vrms | 9µH @ 100KHz | 250kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.453" (11.51mm) | 0.866" L x 1.140" W (22.00mm x 28.96mm) | - |
|
ZB1052-AEDXFMR FLYBACK DC/DC CONV 14UH SMD |
672 | 9.70 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25183, LM25183-Q1 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 14µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
|
|
ZB1050-AEDXFMR FLYBCK DC/DC CONV 12.5UH SM |
672 | 9.70 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25183, LM25183-Q1 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 12.5µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
|
|
ZB1051-AEDXFMR FLYBACK DC/DC CONV 14UH SMD |
672 | 9.70 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Flyback Converters | LM25183, LM25183-Q1 | Texas Instruments | 4 ~ 42V | - | 1500Vrms | 14µH @ 300kHz | 300kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.394" (10.00mm) | 0.520" L x 0.430" W (13.21mm x 10.92mm) | - |
|
PH0802CNLXFMR DC/DC CONV SMD |
360 | 10.67 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
POL-12012XFMR LED DR AC/DC CONV 620UH TH |
115 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TOP202YAI | Power Integrations | - | - | 3000V | 620µH @ 100kHz | - | - | - | - | Through Hole | 0.906" L x 0.709" W (23.00mm x 18.00mm) | 0.984" (25.00mm) | - | - |
|
EPC3577G-LFXFMR FWD CON DC/DC CON 180UH SM |
314 | 0.00 |
|
Datasheet |
EFC-EFD20 | Tape & Reel (TR) | Active | For DC/DC Converters | Forward Converters | LT4276A, LT4295 | Analog Devices | 33 ~ 57V | 12V | 1500Vrms | 180µH @ 100KHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.453" (11.51mm) | 0.830" L x 1.140" W (21.08mm x 28.86mm) | - |
|
ZB1175-AEDXFMR ISOL BUCK DC/DC CON 18UH SM |
620 | 11.69 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Isolated Buck Converters | - | STMicroelectronics | - | - | 3300Vrms | 18µH @ 500kHz | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.600" L x 0.531" W (15.24mm x 13.50mm) | - |
|

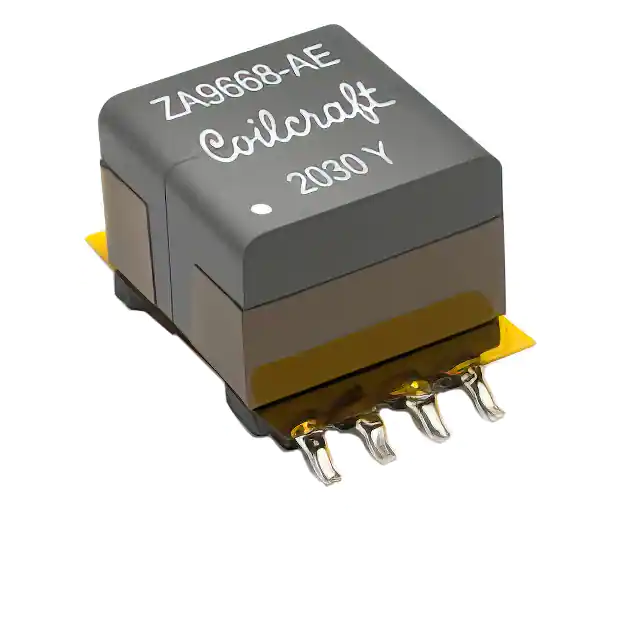

ZA9668-AEDXFMR ISOL BUCK DC/DC CON 18UH SM |
587 | 11.69 |
|
Datasheet |
- | Strip | Active | For DC/DC Converters | Isolated Buck Converters | A6986I, L6986I | STMicroelectronics | - | - | 3300Vrms | 18µH @ 500kHz | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.600" L x 0.531" W (15.24mm x 13.50mm) | - |
|
|
POL-INN039XFMR FLYBACK AC/DC CONV |
869 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VPH5-0053TR-RXFMR 7.63UH SMD |
3,378 | 8.27 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|

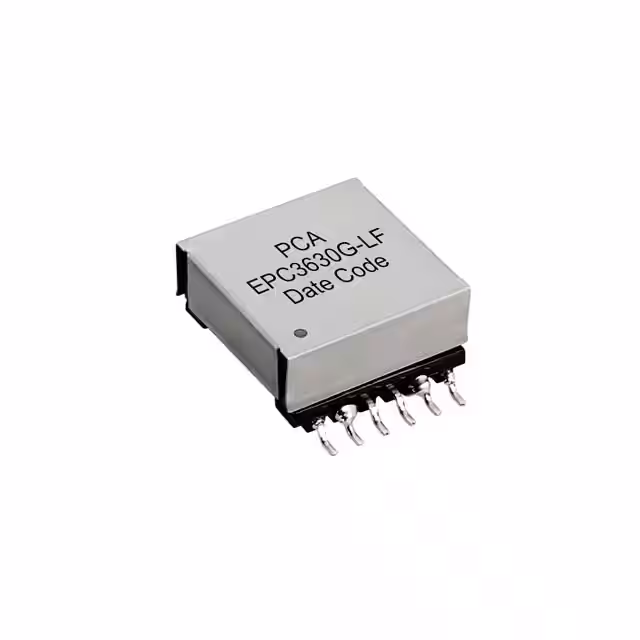

EPC3630G-LFXFMR FLYBACK DC/DC CONV 15UH SMD |
139 | 12.67 |
|
Datasheet |
EPC-EFD25 | Tray | Active | For DC/DC Converters | Flyback Converters | LT4295 | Analog Devices | 40 ~ 57V | 24V | 1500Vrms | 15µH @ 100KHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.540" (13.72mm) | 1.036" L x 1.250" W (26.31mm x 31.75mm) | - |
|
|
POL-30030XFMR LED DR AC/DC CONV 750UH TH |
5,523 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TOP227Y | Power Integrations | - | - | 3750V | 750µH @ 100kHz | - | - | - | - | Through Hole | 1.350" L x 1.260" W (34.30mm x 32.00mm) | 1.417" (36.00mm) | - | - |
