Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

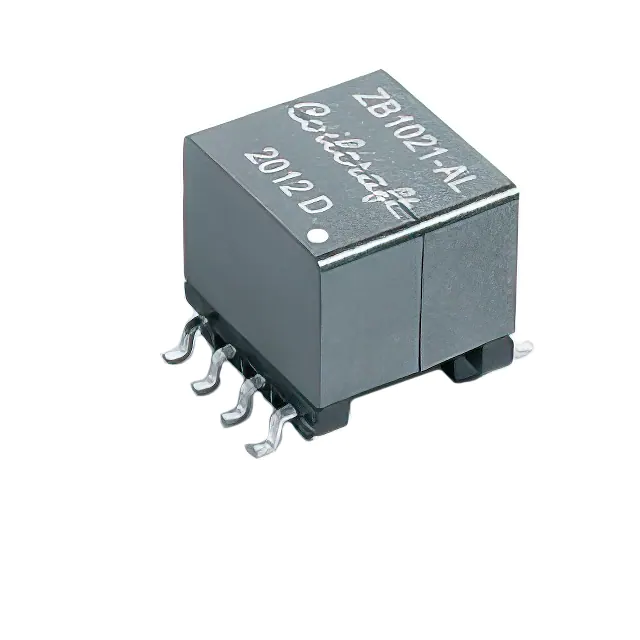

ZB1021-ALDXFMR 22UH SMD |
498 | 6.31 |
|
Datasheet |
- | Strip | Active | - | - | - | - | 17 ~ 36V | - | 1500Vrms | 22µH @ 150kHz | 150kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.500" L x 0.413" W (12.70mm x 10.50mm) | 0.433" (11.00mm) | 0.600" L x 0.500" W (15.24mm x 12.70mm) | - |
|
POL-45012XFMR LED DR AC/DC CONV 950UH TH |
526 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TOP204YAI | Power Integrations | - | - | 3000V | 950µH @ 100kHz | - | - | - | - | Through Hole | 1.122" L x 1.004" W (28.50mm x 25.50mm) | 0.953" (24.20mm) | - | - |
|
|
POL-INN042XFMR FLYBACK AC/DC CONV 460UH |
347 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | 460µH @ 100kHz | - | - | - | - | - | - | - | - | - |
|
|
POL-INN044XFMR FLYBACK AC/DC CONV |
150 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | Flyback Converters | - | - | 90 ~ 265V | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
POL-28022XFMR LED DR AC/DC CONV 548UH TH |
167 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TOP204Y | Power Integrations | - | - | 3000V | 548µH @ 100kHz | - | - | - | - | Through Hole | 1.240" L x 1.043" W (31.50mm x 26.50mm) | 1.299" (33.00mm) | - | - |
|
|
POL-INN047XFMR FLYBACK AC/DC CONV 469UH |
494 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | 469µH @ 100kHz | - | - | - | - | - | - | - | - | - |
|
750311604XFMR FLYBACK DC/DC CONV 8UH SMD |
2,012 | 11.00 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 20 ~ 48V | - | 1500Vrms | 8µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.150" W (23.11mm x 29.08mm) | - |
|
VP4-0075-RXFMR 6.1UH SMD |
3,912 | 9.83 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
|
750315213XFMR FWD P-P DC/DC CONV 563UH SM |
2,238 | 0.00 |
|
Datasheet |
WE-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Maxim Integrated | 8 ~ 36V | - | 3125Vrms | 563µH @ 10kHz | 150 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | - | Laminated Core |
|
750315828XFMR FLYBACK DC/DC CONV 150UH SM |
2,932 | 2.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 36 ~ 72V | - | 1875Vrms | 150µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|

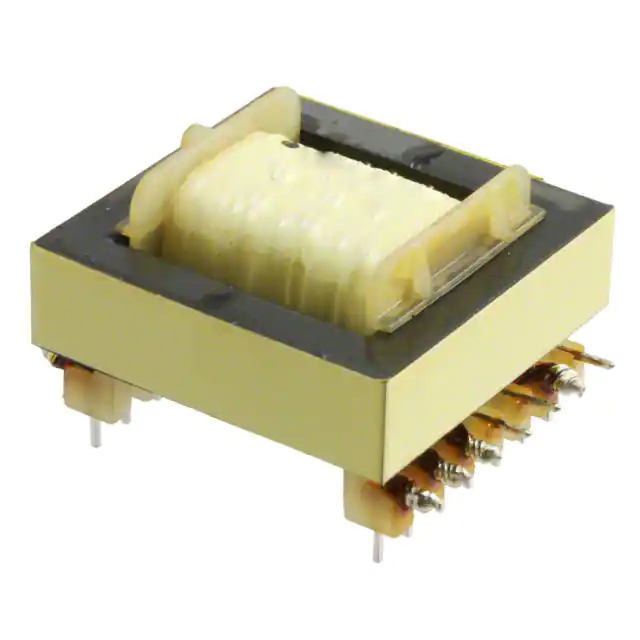

750310349XFMR CAP CHAR DC/DC CONV 5UH SMD |
1,044 | 12.10 |
|
Datasheet |
WE-FB | Tray | Active | For DC/DC Converters | Capacitor Charger | LT3751 | Linear Technology | 18 ~ 30V | - | 1000Vrms | 5µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.910" (23.11mm) | 1.437" L x 1.653" W (36.50mm x 42.00mm) | - |
|

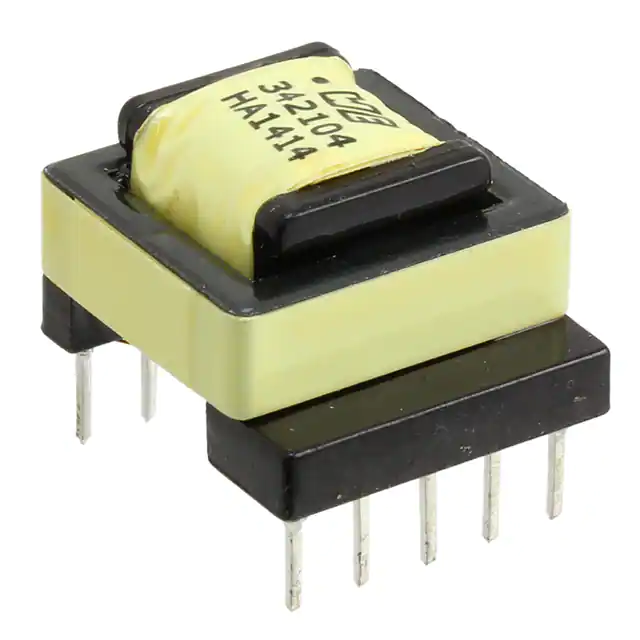

750342104XFMR FLYBACK AC/DC CONV 1.3MH TH |
1,952 | 5.25 |
|
Datasheet |
WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | UCC287xx, UCC289xx | Texas Instruments | 85 ~ 264V | 12V @ 60mA | 3750Vrms | 1.3mH @ 50kHz | 80kHz | -40°C ~ 125°C | - | - | Through Hole | 0.689" L x 0.740" W (17.50mm x 18.80mm) | 0.524" (13.31mm) | 0.665" L x 0.740" W (16.90mm x 18.80mm) | - |
|
750370024XFMR FLYBACK AC/DC CONV 1.6MH TH |
4,502 | 5.24 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | VIPER17H | STMicroelectronics | 85 ~ 424V | 16V @ 50mA | 4000Vrms | 1.6mH @ 10kHz | 115kHz | -40°C ~ 125°C | - | - | Through Hole | 0.540" L x 0.805" W (13.72mm x 20.45mm) | 0.430" (10.92mm) | 0.540" L x 0.805" W (13.72mm x 20.45mm) | - |
|
750318131XFMR FLYBACK DC/DC CONV 7UH SMD |
3,485 | 8.62 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 18V | - | 4000Vrms | 7µH @ 100kHz | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | 0.445" L x 0.431" W (11.30mm x 10.95mm) | - |
|
750311889XFMR FLYBACK DC/DC CONV 37UH SMD |
2,328 | 9.35 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 28V | - | 500Vrms | 37µH @ 100kHz, 928µH @ 100kHz | 100 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|
|
750311590XFMR FLYBACK DC/DC CONV 8UH SMD |
1,021 | 12.38 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 20 ~ 48V | 10V | 1500Vrms | 8µH @ 150kHz | 150kHz | -40°C ~ 85°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|
|
7508112341XFMR FLYBACK AC/DC CONV 380UH TH |
4,684 | 0.00 |
|
Datasheet |
MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 120 ~ 375V | 12V @ 10mA | 4500Vrms | 380µH @ 10kHz | 60 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.299" L x 1.035" W (33.00mm x 26.30mm) | 0.581" (14.76mm) | - | Laminated Core |
|
|
750317464XFMR FLYBACK DC/DC CONV 440UH TH |
3,630 | 0.00 |
|
Datasheet |
MID-OLLT | Tray | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 80 ~ 600V | 12V @ 20mA | 3000V | 440µH @ 1kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.240" L x 1.240" W (31.50mm x 31.50mm) | 0.807" (20.50mm) | - | Laminated Core |
|

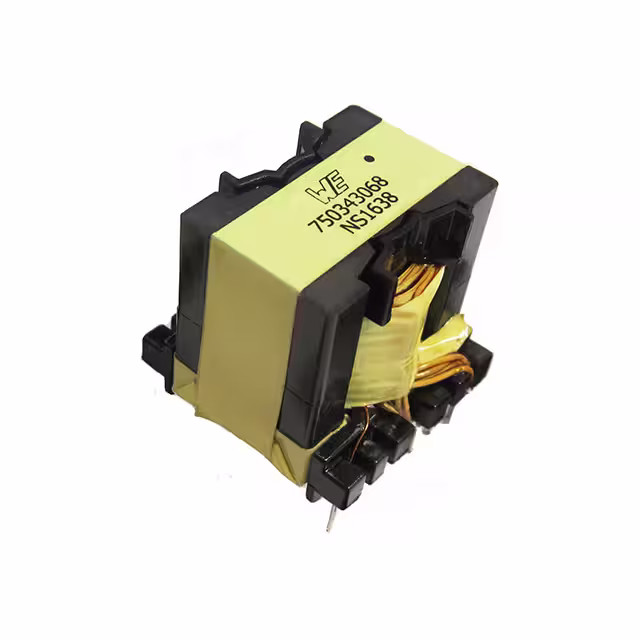

750343068XFMR FLYBACK AC/DC CONV TH |
2,672 | 12.33 |
|
Datasheet |
MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | - | - | 3750Vrms | - | 65kHz | -40°C ~ 125°C | - | - | Through Hole | - | 1.154" (29.30mm) | - | - |
|
VPH5-0053-RXFMR 7.63UH SMD |
4,789 | 11.03 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
