Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO2230SEO-D04V016XFMR FLYBACK AC/DC CONV TH |
2,635 | 7.02 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.417" (36.00mm) | - | - |
|
750342779XFMR FLYBACK DC/DC CONV 50UH SMD |
4,159 | 5.76 |
|
Datasheet |
MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 17 ~ 36V | 7V @ 100mA | 1875Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.374" W (9.78mm x 9.50mm) | - |
|
7508112514XFMR FLYBACK DC/DC CONV 460UH TH |
2,705 | 9.17 |
|
Datasheet |
MID-OLEFD | Tray | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 460µH @ 10kHz | 68 ~ 110kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.551" (14.00mm) | - | - |
|
PG1895NLTXFMR FLYBACK 48UH SMD |
2,709 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 12 ~ 36V | 23V @ 30mA | 2420V | 48µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.004" L x 1.063" W (25.50mm x 27.00mm) | 0.472" (12.00mm) | 1.157" L x 1.004" W (29.40mm x 25.50mm) | Wirewound |
|
7491195501XFMR POE DC/DC CONV 21UH SMD |
2,331 | 7.39 |
|
Datasheet |
WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 9 ~ 57V | 10V | 1500Vrms | 21µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|

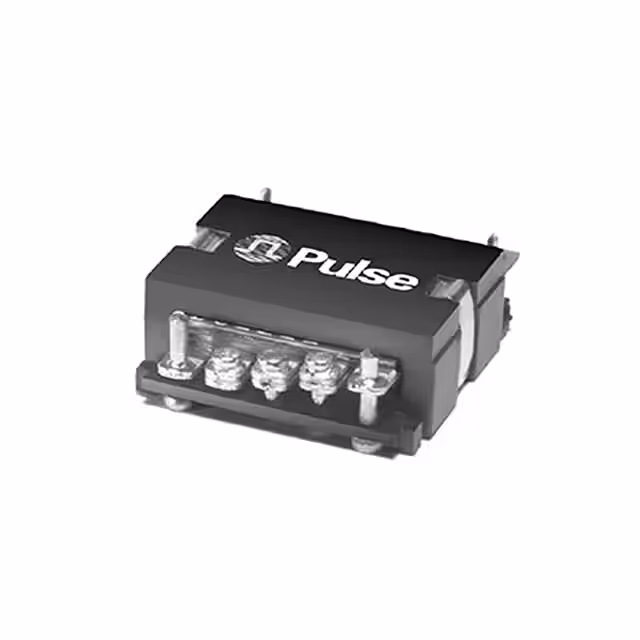

PA0808NLXFMR DC/DC CONV SMD |
1,524 | 0.00 |
|
Datasheet |
PA08XXNL | Tray | Active | For DC/DC Converters | - | - | - | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.920" W (21.60mm x 23.37mm) | 0.348" (8.85mm) | 0.850" L x 0.920" W (21.60mm x 23.37mm) | Planar |
|

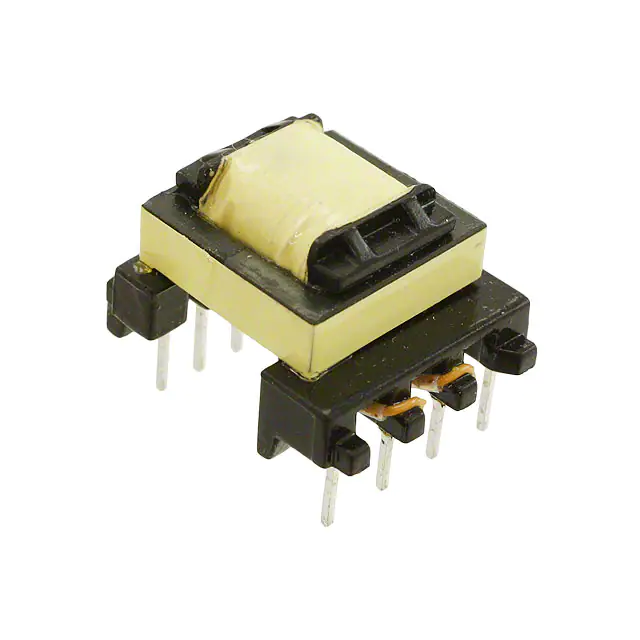

7491182124XFMR LED DR AC/DC CONV 900UH TH |
1,590 | 8.51 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.795" L x 0.965" W (20.20mm x 24.50mm) | 0.650" (16.50mm) | 0.795" L x 0.965" W (20.20mm x 24.50mm) | - |
|
PH0810CNLXFMR DC/DC CONV SMD |
2,568 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
749196541XFMR FLEX CONFIG DC/DC 7.6UH SMD |
2,017 | 9.68 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 7.6µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|

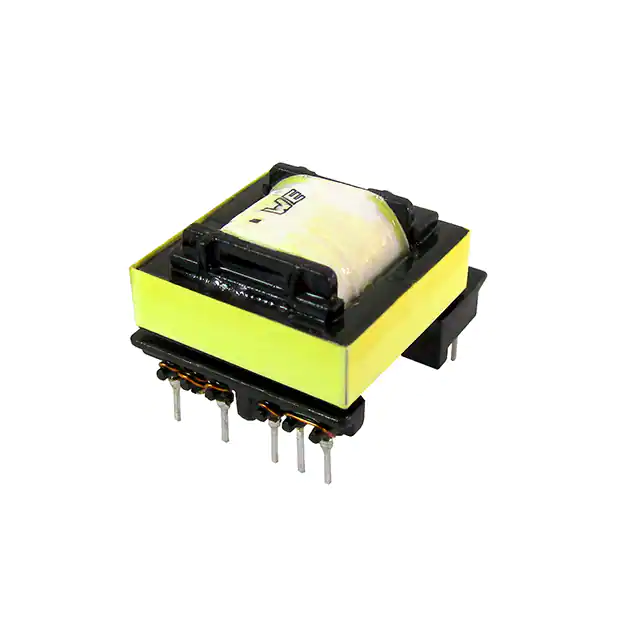

750343109XFMR FLYBACK AC/DC CONV 490UH TH |
3,717 | 7.56 |
|
Datasheet |
WE-FB, MID-OLDIA | Tray | Active | For AC/DC Converters | Flyback Converters | - | Dialog Semiconductor | 90 ~ 264V | 14V | 3000Vrms | 490µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 1.024" W (22.20mm x 26.00mm) | 0.635" (16.13mm) | 0.874" L x 1.024" W (22.20mm x 26.00mm) | - |
|

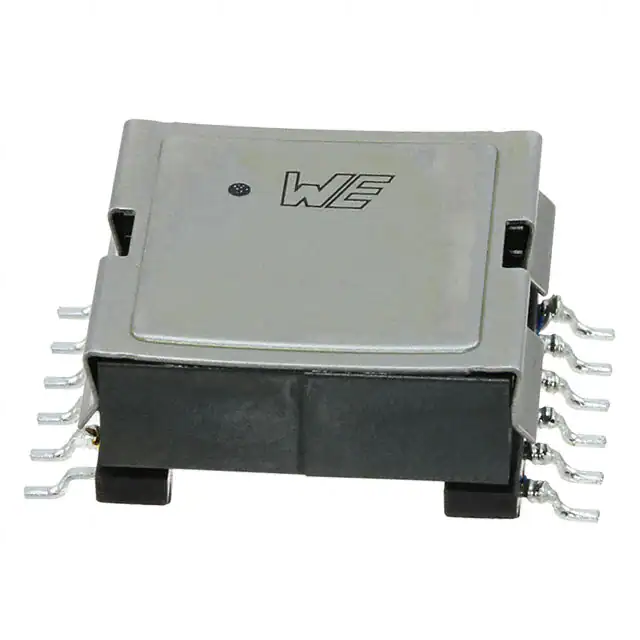

750315039XFMR ISOL BUCK DC/DC CON 40UH SM |
1,812 | 10.09 |
|
Datasheet |
MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | - | - | 1500Vrms | 40µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.955" (24.26mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
.jpg)
|
PE-68414NLXFMR FLYBACK DC/DC CONV SMD |
2,717 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
|
760871333XFMR 250UH SMD |
3,062 | 12.38 |
|
Datasheet |
WE-SLIM | Tray | Active | - | - | - | - | - | - | 4000Vrms | 250µH @ 50kHz | 130kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" (12.00mm) | 1.157" L x 1.870" W (29.40mm x 47.50mm) | - |
|
MTPL-2516-S24VXFMR PLANAR TH |
4,822 | 17.17 |
|
Datasheet |
MTPL-2516 | Tray | Active | - | - | - | - | - | - | - | - | - | -55°C ~ 130°C | - | - | Through Hole | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 0.650" (16.51mm) | - | Planar |
|

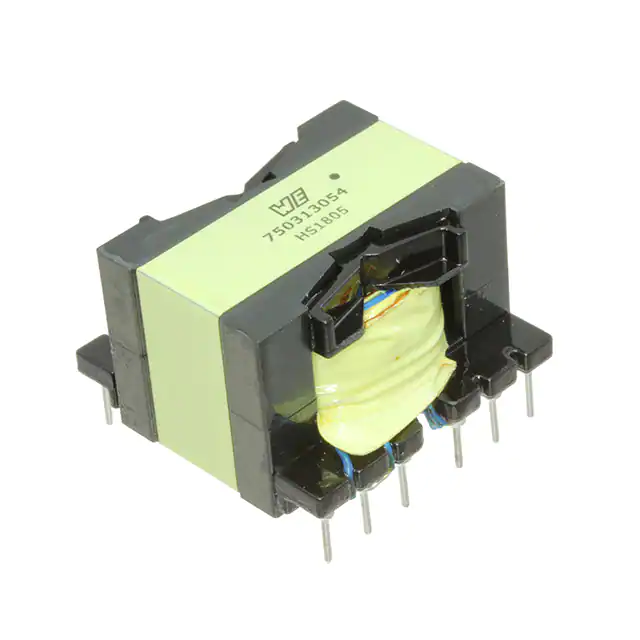

750313054XFMR FLYBACK DC/DC CONV 500UH TH |
2,314 | 14.87 |
|
Datasheet |
MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | - | 4000Vrms | 500µH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.950" (24.13mm) | - | - |
|
VPH5-0067-RXFMR 9.65UH SMD |
2,282 | 10.60 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
VPH4-0140-RXFMR 23.7UH SMD |
2,341 | 11.53 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|

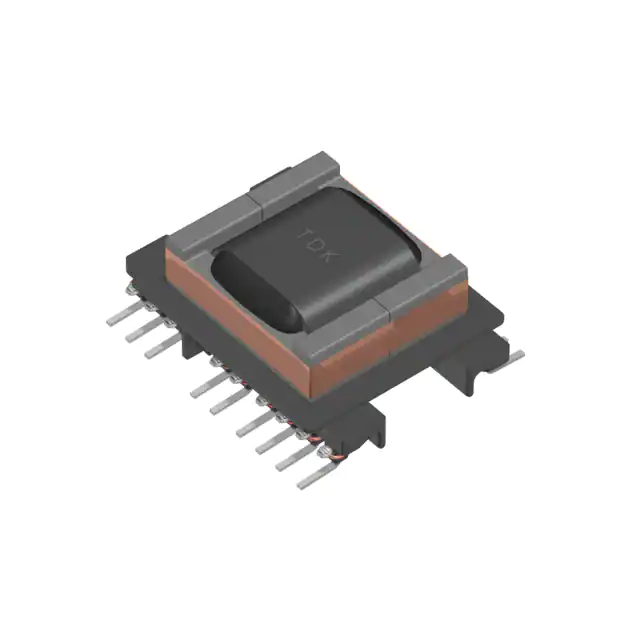

VGT22EPC-200S6A12XFMR FLYBACK AC/DC CONV 2.5UH SM |
1,414 | 14.69 |
|
Datasheet |
VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 2.5µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 1.299" L x 0.976" W (33.00mm x 24.80mm) | 0.539" (13.70mm) | 1.299" L x 1.055" W (33.00mm x 26.80mm) | Wirewound |
|
|
VPH4-0060-RXFMR 10.1UH SMD |
2,836 | 9.46 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
PA0907NLXFMR SMD |
1,760 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
