Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

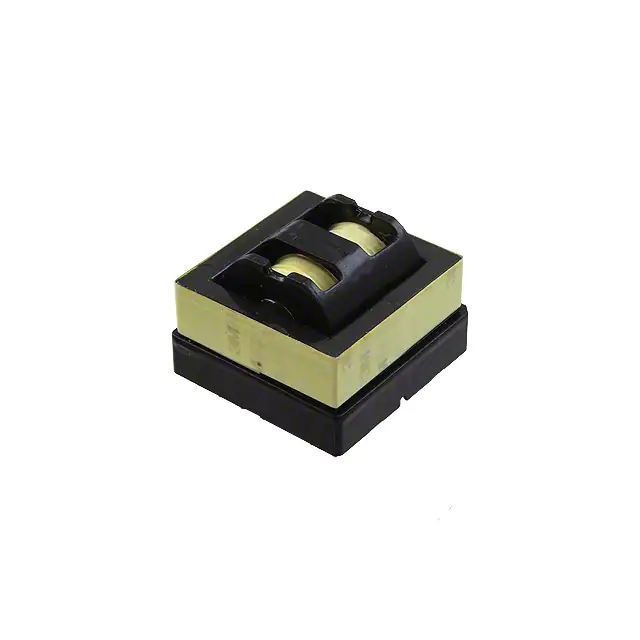

760895631XFMR RES CONV AC/DC 500UH TH |
2,753 | 18.84 |
|
Datasheet |
WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 500µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.692" L x 1.732" W (43.00mm x 44.00mm) | 1.181" (30.00mm) | 1.692" L x 1.732" W (43.00mm x 44.00mm) | - |
|
MTPL-2516-S15VXFMR PLANAR TH |
1,101 | 17.17 |
|
Datasheet |
MTPL-2516 | Tray | Active | - | - | - | - | - | - | - | - | - | -55°C ~ 130°C | - | - | Through Hole | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 0.650" (16.51mm) | - | Planar |
|
POEB4FW1V156W1X12XFMR POE 100UH SMD |
1,454 | 0.00 |
|
Datasheet |
POEB4FW | Tape & Reel (TR) | Active | - | Power Over Ethernet (PoE) | - | - | 40 ~ 60V | 12V | 1500Vrms | 100µH | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.420" L x 1.300" W (36.07mm x 33.02mm) | 0.551" (14.00mm) | - | - |
|
|
750316022XFMR FLYBACK AC/DC CONV 3.3MH SM |
2,104 | 0.00 |
|
Datasheet |
MID-OLLT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | On Semiconductor | 140 ~ 380V | 20V @ 20mA | 1500Vrms | 3.3mH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.699" L x 0.530" W (17.75mm x 13.46mm) | - |
|
750341657XFMR LED DR AC/DC CONV 720UH TH |
4,315 | 4.27 |
|
Datasheet |
WE-FB, MID-OLTI | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | UCC28710 | - | - | - | - | 720µH @ 10kHz | - | - | - | - | Through Hole | 0.615" L x 0.555" W (15.62mm x 14.10mm) | 0.399" (10.13mm) | 0.615" L x 0.555" W (15.62mm x 14.10mm) | - |
|
|
POEB3FW1V50W1X5XFMR POE 162UH SMD |
100 | 0.00 |
|
Datasheet |
POEB3FW | Tape & Reel (TR) | Active | - | Power Over Ethernet (PoE) | - | - | - | 12V | 1500Vrms | 162µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.583" (14.80mm) | - | - |
|
750343107XFMR FLYBACK AC/DC CONV 750UH TH |
2,437 | 4.32 |
|
Datasheet |
WE-FB, MID-OLDIA | Tray | Active | For AC/DC Converters | Flyback Converters | - | Dialog Semiconductor | 120 ~ 375V | 9V @ 100mA | - | 750µH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.748" (19.00mm) | 0.917" L x 1.075" W (23.30mm x 27.30mm) | - |
|

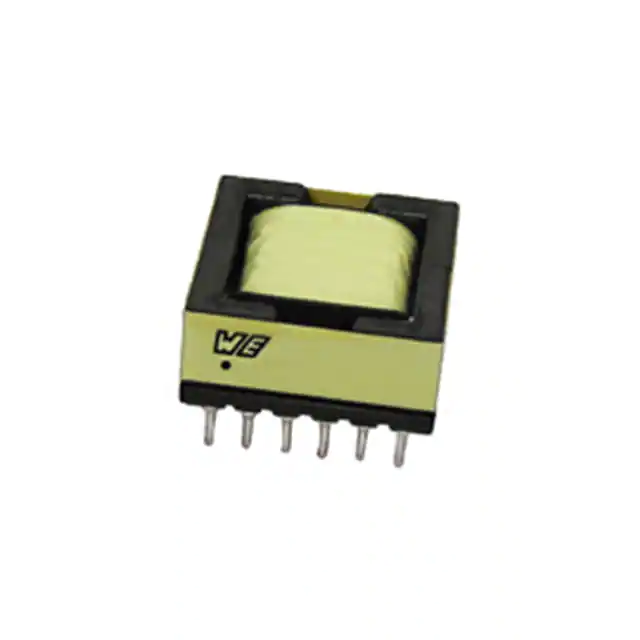

750318302XFMR FLYBACK DC/DC CONV 450UH SM |
4,639 | 7.17 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | - | Analog Devices, Inc | 120 ~ 375V | - | 3000Vrms | 450µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.299" L x 1.035" W (33.00mm x 26.30mm) | 0.563" (14.30mm) | 1.299" L x 1.035" W (33.00mm x 26.30mm) | - |
|
|
750316413XFMR FLYBACK AC/DC CONV 1.5MH TH |
2,227 | 0.00 |
|
Datasheet |
MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | - | STMicroelectronics | 120 ~ 375V | 13V | 1500Vrms | 1.5mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | 0.728" L x 0.650" W (18.50mm x 16.50mm) | 0.740" (18.80mm) | - | Laminated Core |
|
|
750817020XFMR FLYBACK 4MH SMD |
2,832 | 0.00 |
|
Datasheet |
WE-FB, MID-OLLT | Tray | Active | - | Flyback Converters | - | On Semiconductor | - | 12V @ 100mA | - | 4mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | - | - | Planar |
|
750310042XFMR POE DC/DC CONV TH |
2,230 | 5.48 |
|
Datasheet |
WE-PoE, MID-POE | Tray | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 30 ~ 57V | 12V | 1875Vrms | - | 250kHz | - | - | - | Through Hole | - | 0.425" (10.80mm) | - | - |
|
|
750811647XFMR FLYBACK AC/DC CONV 250UH TH |
1,746 | 0.00 |
|
Datasheet |
MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 120 ~ 375V | - | 3500Vrms | 250µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 1.024" L x 0.874" W (26.00mm x 22.20mm) | 0.630" (16.00mm) | - | Laminated Core |
|
750318114XFMR FLYBACK DC/DC CONV 6UH SMD |
1,382 | 8.62 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 18V | - | 4000Vrms | 6µH @ 100kHz | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | 0.445" L x 0.431" W (11.30mm x 10.95mm) | - |
|

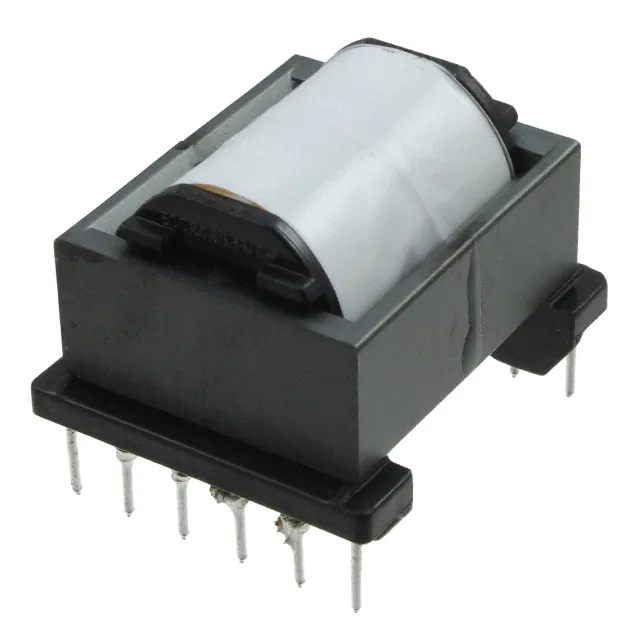

ECO2430SEO-D03H016XFMR FLYBACK AC/DC CONV 680UH TH |
3,190 | 6.68 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | 187 ~ 264V | 5V @ 1A, 24V @ 2A | 3000Vrms | 680µH @ 10kHz | 67kHz | -30°C ~ 120°C | - | - | Through Hole | 1.181" L x 1.417" W (30.00mm x 36.00mm) | 0.984" (25.00mm) | 1.181" L x 1.417" W (30.00mm x 36.00mm) | - |
|

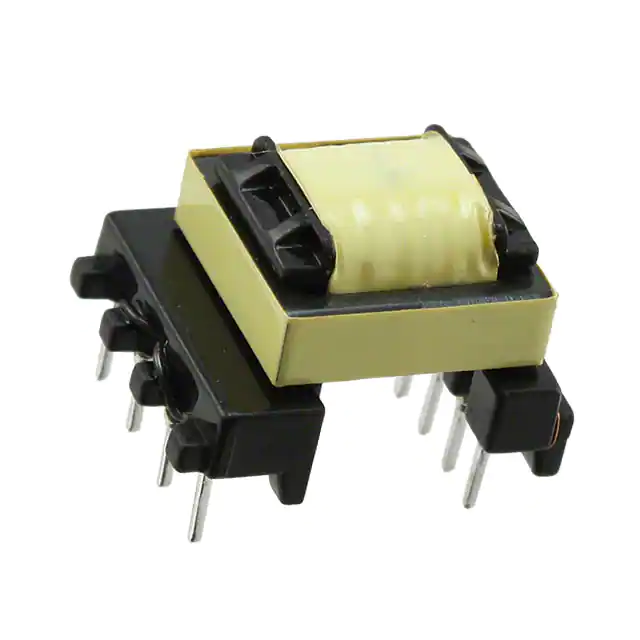

750811048XFMR FLYBACK DC/DC CONV 1.5MH TH |
1,475 | 7.15 |
|
Datasheet |
WE-FB | Tray | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 120 ~ 375V | 15V | 4500Vrms | 1.5mH @ 10kHz | 300kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.800" L x 0.960" W (20.32mm x 24.38mm) | - |
|
|
7508112339XFMR FLYBACK AC/DC CONV 220UH TH |
2,361 | 0.00 |
|
Datasheet |
MID-OLTI | Tray | Active | For AC/DC Converters | Flyback Converters | - | Texas Instruments | 120 ~ 375V | - | - | 220µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.984" L x 0.874" W (25.00mm x 22.20mm) | 0.650" (16.50mm) | - | Laminated Core |
|
|
7508111324XFMR FLYBCK AC/DC CONV 2.75MH TH |
3,214 | 0.00 |
|
Datasheet |
MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | - | On Semiconductor | 140 ~ 380V | 12V @ 10mA | 4000V | 2.75mH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Through Hole | 0.876" L x 0.567" W (22.88mm x 14.40mm) | 0.915" (23.24mm) | - | Laminated Core |
|
750871035XFMR LED DR AC/DC CONV 2MH TH |
1,416 | 5.04 |
|
Datasheet |
WE-UNIT, MID-OLNXP | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | TEA1522T | NXP Semiconductors | 115 ~ 390V | 15V @ 30mA | 4000Vrms | 2mH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.591" L x 0.620" W (15.00mm x 15.75mm) | 0.732" (18.59mm) | 0.591" L x 0.620" W (15.00mm x 15.75mm) | - |
|
750370026XFMR FLYBACK AC/DC CONV 3.9MH TH |
1,155 | 7.06 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | VIPER15L | STMicroelectronics | 120 ~ 385V | 12V @ 100mA | 4000Vrms | 3.9mH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.615" (15.62mm) | 0.795" L x 0.953" W (20.20mm x 24.20mm) | - |
|
760874040XFMR FLYBACK AC/DC CONV TH |
3,770 | 6.05 |
|
Datasheet |
WE-UNIT, MID-OLNXP | Tray | Active | For AC/DC Converters | Flyback Converters | - | NXP Semiconductors | - | 20V @ 10mA | 6000Vrms | - | 100kHz | -40°C ~ 125°C | - | - | Through Hole | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.500" (12.70mm) | - | - |
