Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

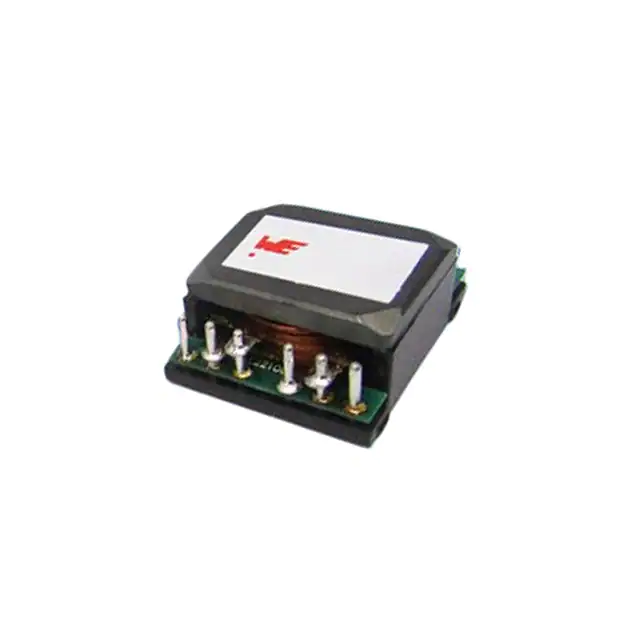

750343164XFMR POE AC/DC CONV 153UH SMD |
2,637 | 11.43 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For AC/DC Converters | Power Over Ethernet (PoE) | - | Texas Instruments | 40 ~ 57V | 12V | - | 153µH @ 10kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.830" L x 0.920" W (21.08mm x 23.37mm) | 0.413" (10.50mm) | 0.621" L x 0.800" W (15.77mm x 20.32mm) | - |
|
750318962XFMR POE DC/DC CONV 70UH SMD |
2,307 | 8.77 |
|
Datasheet |
MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 70µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.969" L x 0.858" W (24.60mm x 21.80mm) | 0.450" (11.43mm) | 1.167" L x 0.858" W (29.65mm x 21.80mm) | - |
|

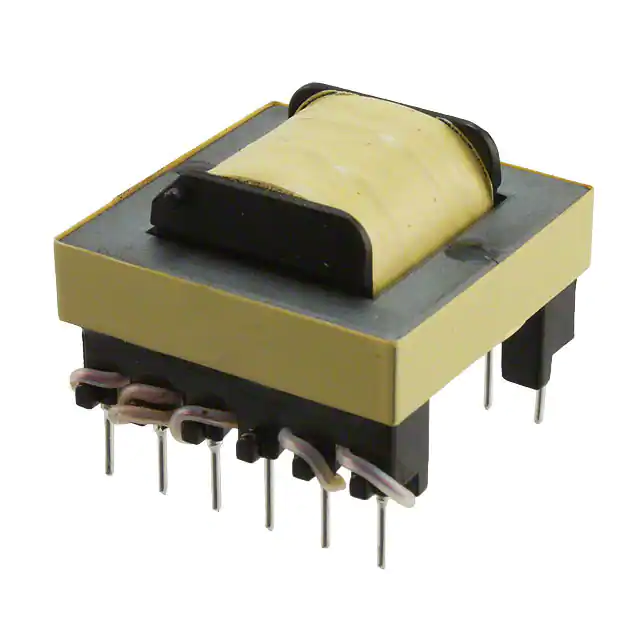

750845240XFMR FLYBACK AC/DC CONV 2.6MH TH |
3,926 | 13.31 |
|
Datasheet |
WE UNIT, MID-OLIFX | Tray | Active | For AC/DC Converters | Flyback Converters | BCR450, TDA4863 | Infineon Technologies | 280 ~ 380V | 15V @ 20mA | 3600Vrms | 2.6mH @ 10kHz | 47kHz | -40°C ~ 125°C | - | - | Through Hole | 1.240" L x 1.386" W (31.50mm x 35.20mm) | 0.950" (24.13mm) | 1.240" L x 1.386" W (31.50mm x 35.20mm) | - |
|
749196518XFMR FLEX DC/DC CONV 22.3UH SMD |
4,544 | 11.59 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 22.3µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.846" W (21.01mm x 21.49mm) | 0.472" (11.99mm) | 1.161" L x 0.846" W (29.49mm x 21.49mm) | - |
|

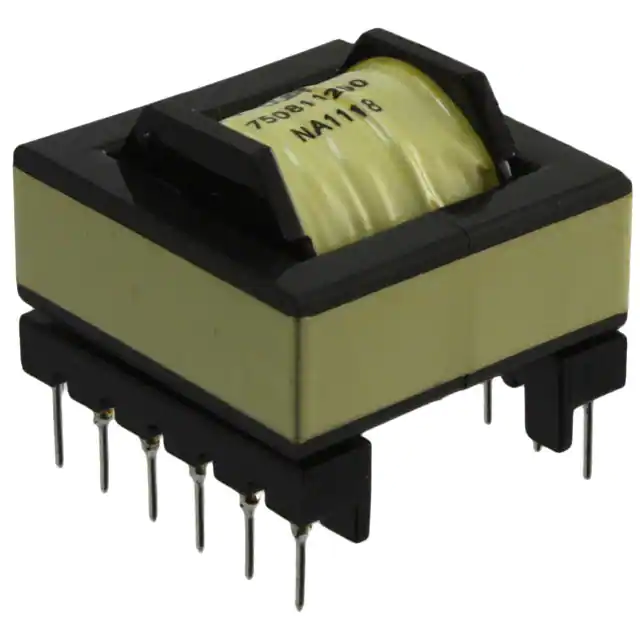

750811290XFMR FLYBACK AC/DC CONV 461UH TH |
1,088 | 16.94 |
|
Datasheet |
WE-FB, MID-OLLT | Tray | Active | For AC/DC Converters | Flyback Converters | LT3799 | Linear Technology | 85 ~ 265V | - | 4500Vrms | 461µH @ 10kHz | 150kHz | -40°C ~ 125°C | - | - | Through Hole | 1.220" L x 1.220" W (31.00mm x 31.00mm) | 0.989" (25.12mm) | 1.220" L x 1.220" W (31.00mm x 31.00mm) | - |
|
VP4-0060-RXFMR 4.9UH SMD |
4,338 | 10.63 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
|
VP4-0860-RXFMR 87UH SMD |
1,368 | 10.63 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
750319032XFMR POE DC/DC CONV 22UH SMD |
1,335 | 11.20 |
|
Datasheet |
MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 22µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.102" L x 1.064" W (28.00mm x 27.03mm) | 0.550" (13.97mm) | 1.278" L x 1.064" W (32.45mm x 27.03mm) | - |
|
|
VPH4-0860-RXFMR 159.65UH SMD |
3,419 | 11.32 |
|
Datasheet |
VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|

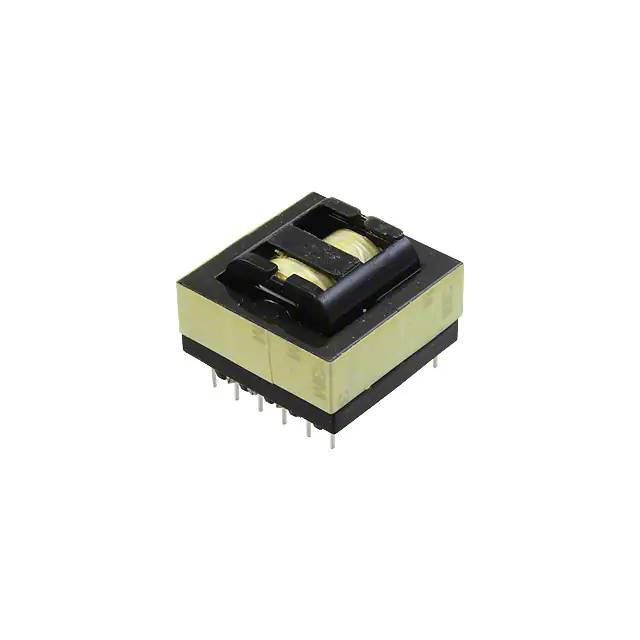

760895441XFMR RES CONV AC/DC 600UH TH |
1,249 | 17.54 |
|
Datasheet |
WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 600µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.417" L x 1.417" W (36.00mm x 36.00mm) | 1.024" (26.00mm) | 1.417" L x 1.417" W (36.00mm x 36.00mm) | - |
|
760895431XFMR RES CONV AC/DC 600UH TH |
4,354 | 17.54 |
|
Datasheet |
WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 600µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.417" L x 1.417" W (36.00mm x 36.00mm) | 1.024" (26.00mm) | 1.417" L x 1.417" W (36.00mm x 36.00mm) | - |
|
PA0909NLXFMR SMD |
3,646 | 18.29 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|

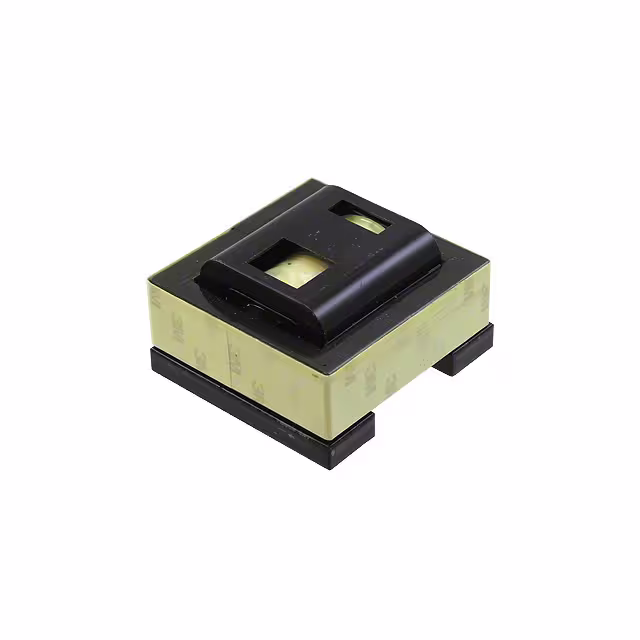

760895741XFMR RES CONV AC/DC 400UH TH |
1,810 | 22.74 |
|
Datasheet |
WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 400µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.811" L x 1.890" W (46.00mm x 48.00mm) | 1.083" (27.50mm) | 1.811" L x 1.890" W (46.00mm x 48.00mm) | - |
|
760895731XFMR RES CONV AC/DC 475UH TH |
4,086 | 22.74 |
|
Datasheet |
WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 475µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.811" L x 1.890" W (46.00mm x 48.00mm) | 1.083" (27.50mm) | 1.811" L x 1.890" W (46.00mm x 48.00mm) | - |
|
760895751XFMR RES CONV AC/DC 400UH TH |
2,823 | 22.74 |
|
Datasheet |
WE-LLCR | Tray | Active | For AC/DC Converters | Resonant Converters | - | - | 360 ~ 400V | - | 4000Vrms | 400µH @ 100kHz | 70 ~ 120kHz | -40°C ~ 125°C | - | - | Through Hole | 1.811" L x 1.890" W (46.00mm x 48.00mm) | 1.083" (27.50mm) | 1.811" L x 1.890" W (46.00mm x 48.00mm) | - |
|

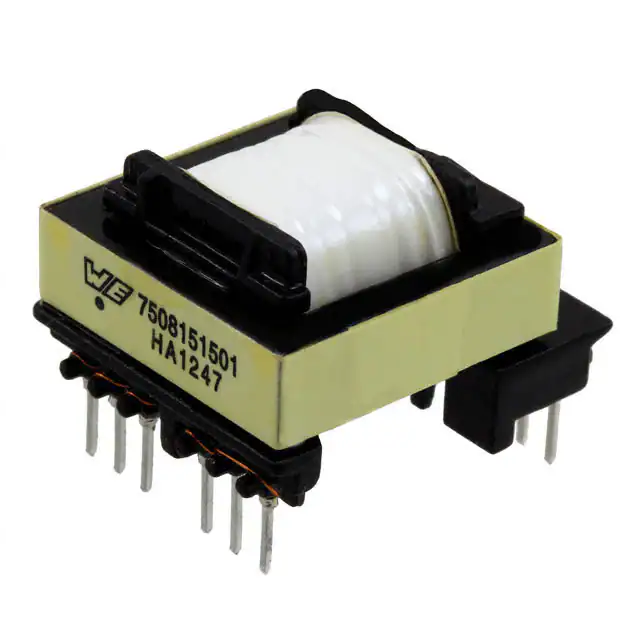

7508151501XFMR FLYBCK DC/DC CONV 1.78MH TH |
3,629 | 4.61 |
|
Datasheet |
WE-UNIT, MID-OLTI | Tray | Active | For DC/DC Converters | Flyback Converters | UCC287xx, UCC289xx | Texas Instruments | 255 ~ 275V | 14V @ 20mA | 4500Vrms | 1.78mH @ 70kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|
PA5099.004NLTXFMR FLYBACK DC/DC CONV SMD |
100 | 2.63 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
B82802A0012A215XFMR FLYBACK DC/DC CONV 100UH SM |
2,499 | 4.93 |
|
Datasheet |
B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 100µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.681" W (16.50mm x 17.30mm) | 0.341" (8.65mm) | 0.650" L x 0.902" W (16.50mm x 22.90mm) | - |
|
ECO2023SEO-D02V015XFMR FLYBACK AC/DC CONV TH |
4,644 | 7.02 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.181" (30.00mm) | - | - |
|
|
ECO2020SEO-D14V014XFMR FLYBACK AC/DC CONV TH |
4,894 | 7.02 |
|
Datasheet |
ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.063" (27.00mm) | - | - |
