Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6022BGHEATSINK TO-220 STAGGERED FIN |
17,836 | 0.80 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.210" (30.73mm) | 0.875" (22.22mm) | - | 0.250" (6.35mm) | 2.0W @ 40°C | 6.00°C/W @ 400 LFM | 16.70°C/W | Aluminum | Black Anodized |
|

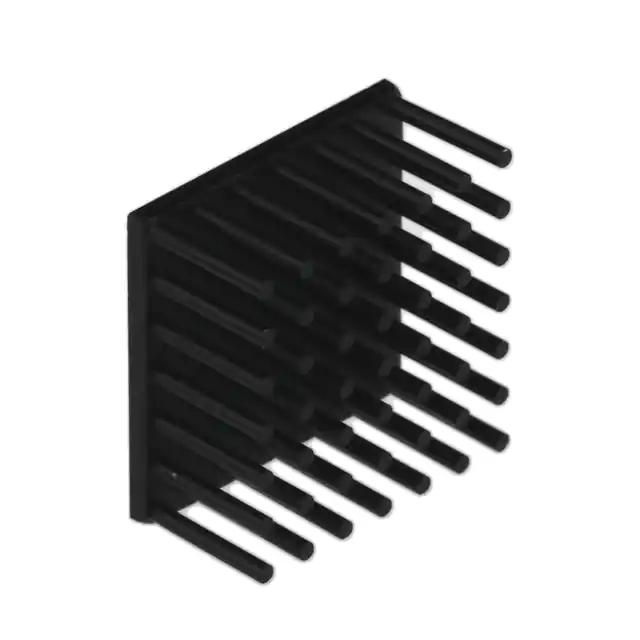

V2031BHEATSINK CPU FORGED |
1,202 | 2.22 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.492" (12.50mm) | - | - | 5.30°C/W | Aluminum Alloy | Black Anodized |
|
DA-T268-301E-TRHEATSINK FOR TO-268 |
1,311 | 2.67 |
|
Datasheet |
D | Tape & Reel (TR) | Active | Top Mount | TO-268 (D³Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.580" (40.13mm) | - | 0.460" (11.68mm) | 7.0W @ 35°C | 4.00°C/W @ 700 LFM | - | Aluminum | Black Anodized |
|

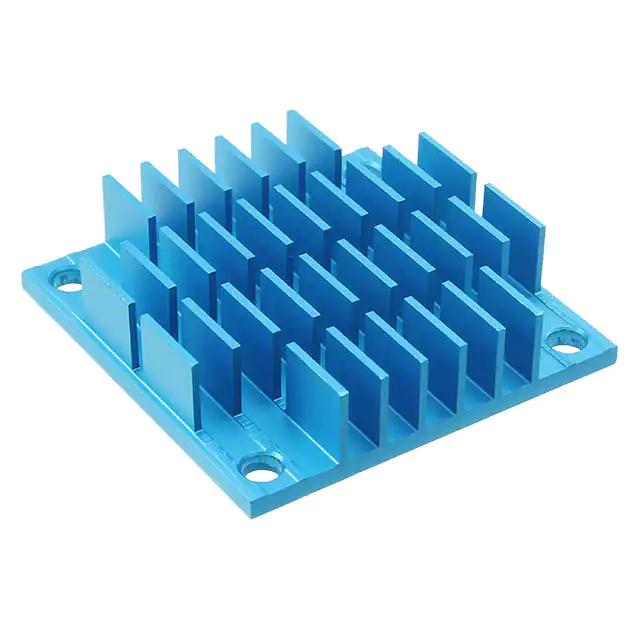

ATS-CPX040040010-113-C2-R0HEATSINK 40X40X10MM XCUT CP |
2,550 | 3.47 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

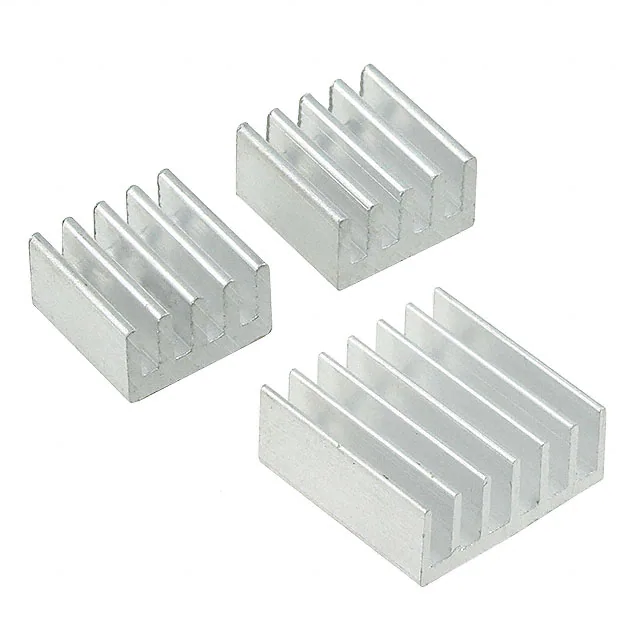

110990048HEAT SINK KIT FOR RASPBERRY PI |
373 | 2.90 |
|
- |
- | Bulk | Active | Top Mount Kit | Raspberry Pi | Adhesive | Square, Fins | - | - | - | - | - | - | - | Aluminum | - |
|
374324B60023GBGA HEAT SINK |
2,752 | 3.48 |
|
Datasheet |
37432 | Bulk | Active | Board Level | BGA, FPGA | Solder Anchor | Square, Pin Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.394" (10.00mm) | 1.5W @ 50°C | 6.00°C/W @ 500 LFM | 30.60°C/W | Aluminum | Black Anodized |
|

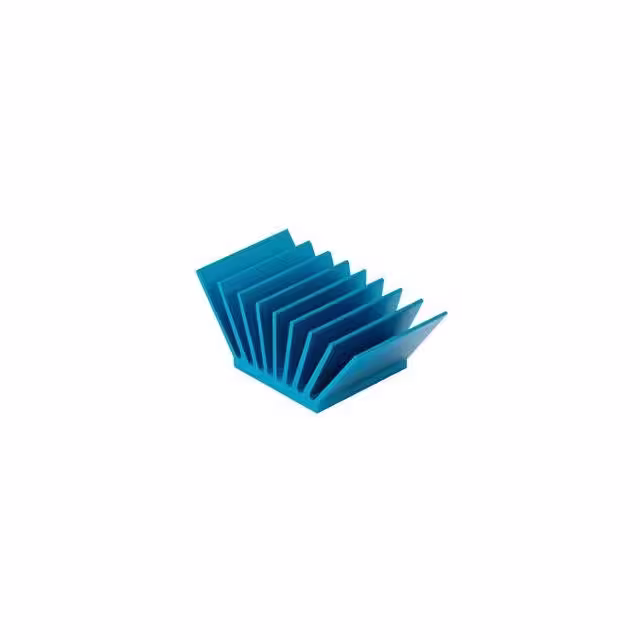

HSE02-173213PHEAT SINK, EXTRUSION, 17 X 31.9 |
1,769 | 2.86 |
|
Datasheet |
HSE | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.492" (12.50mm) | 3.5W @ 75°C | 6.70°C/W @ 200 LFM | 21.44°C/W | Aluminum Alloy | Blue Anodized |
|
ATS-CPX025025010-137-C1-R0HEATSINK 25X25X10MM L-TAB CP |
563 | 2.76 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
527-45ABHEATSINK DC/DC HALF BRICK VERT |
1,670 | 2.20 |
|
Datasheet |
527 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.91mm) | 2.400" (60.96mm) | - | 0.950" (24.13mm) | 7.0W @ 60°C | 2.30°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
110991329HEAT SINK KIT FOR RASPBERRY PI 4 |
483 | 2.99 |
|
Datasheet |
- | Bulk | Active | Top Mount Kit | Raspberry Pi 4B | Adhesive | - | - | - | - | - | - | - | - | Aluminum, Copper | - |
|

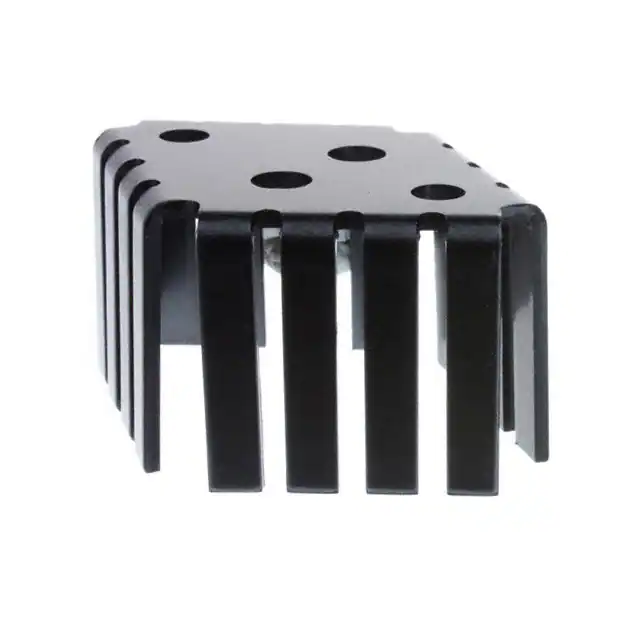

501503B00000GHEATSINK TO-3 1.00" BLK |
996 | 3.60 |
|
Datasheet |
- | Bag | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.880" (47.75mm) | 1.400" (35.56mm) | - | 1.000" (25.40mm) | 5.0W @ 40°C | 2.00°C/W @ 500 LFM | 8.40°C/W | Aluminum | Black Anodized |
|
ATS-CPX025025015-166-C1-R0HEATSINK 25X25X15MM R-TAB CP |
5,577 | 2.86 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.590" (15.00mm) | - | 12.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

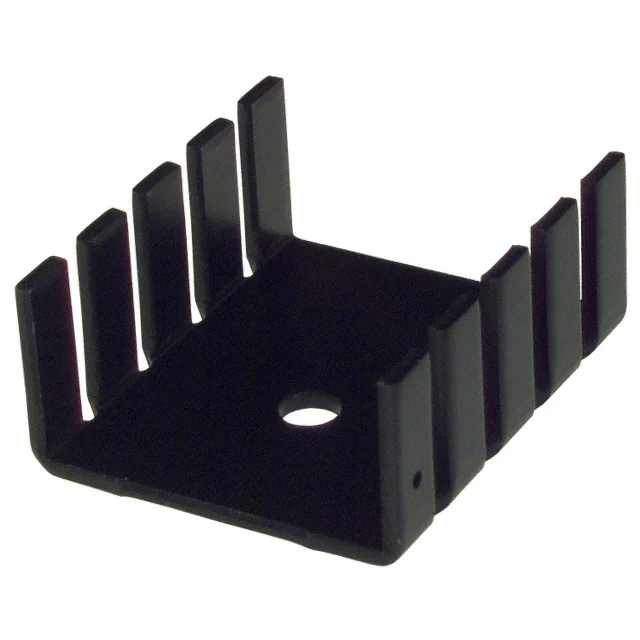

530614B00000GHEATSINK TO-220 4.5W H=.5" BLK |
2,630 | 0.95 |
|
Datasheet |
- | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 80°C | 6.00°C/W @ 600 LFM | 16.70°C/W | Aluminum | Black Anodized |
|

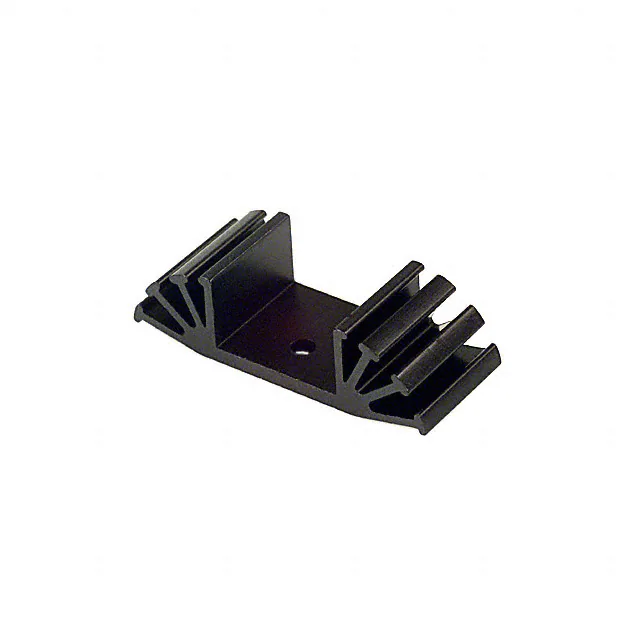

7-345-1PP-BAHEATSINK PWR HORZ BLACK TO-220 |
900 | 2.79 |
|
Datasheet |
7 | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 2.000" (50.80mm) | - | 0.553" (14.05mm) | 6.0W @ 50°C | - | 9.00°C/W | Aluminum | Black Anodized |
|

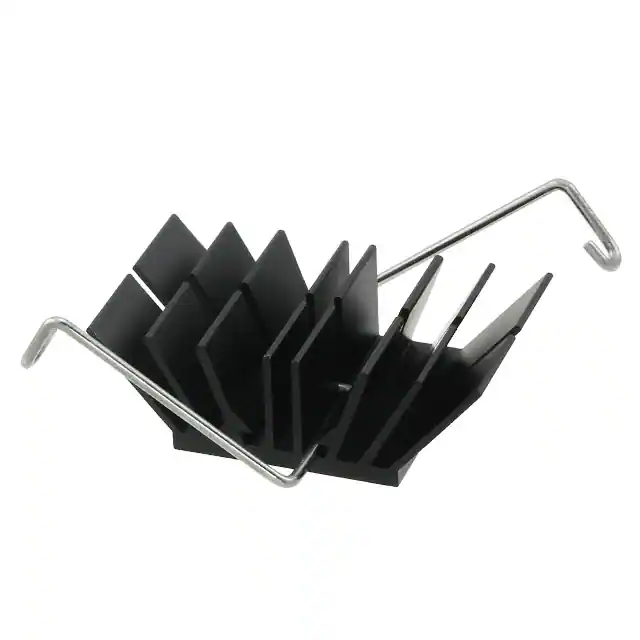

WAVE-23-125ANCHOR HEATSINK 23X23X12.5MM |
2,545 | 3.68 |
|
Datasheet |
Wave 2x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.492" (12.50mm) | - | 6.76°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
|
ATS010010010-SF-1IHEATSINK 10X10X10MM |
166 | 0.00 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.394" (10.00mm) | - | 31.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

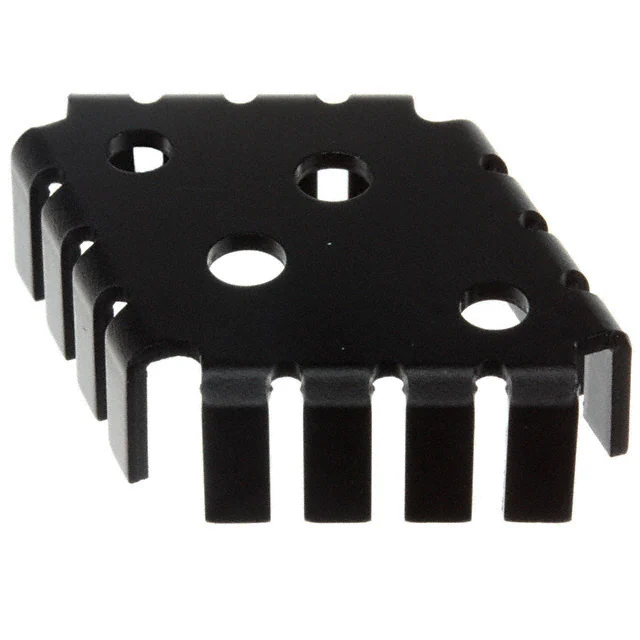

501303B00000GHEAT SINK TO-3 .500" COMPACT |
346 | 4.40 |
|
Datasheet |
- | Bag | Active | Board Level | TO-3 | Bolt On | Rhombus | 1.880" (47.75mm) | 1.400" (35.56mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 4.00°C/W @ 300 LFM | 12.00°C/W | Aluminum | Black Anodized |
|

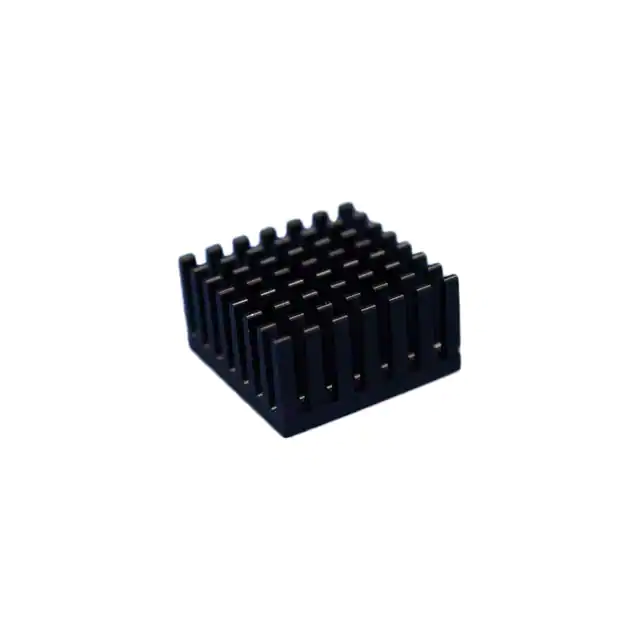

TGH-0220-04ALUMINIUM HEAT SINK 22X22MM |
898 | 2.86 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 0.866" (22.00mm) | 0.866" (22.00mm) | - | 0.461" (11.70mm) | - | - | - | Aluminum | Black Anodized |
|

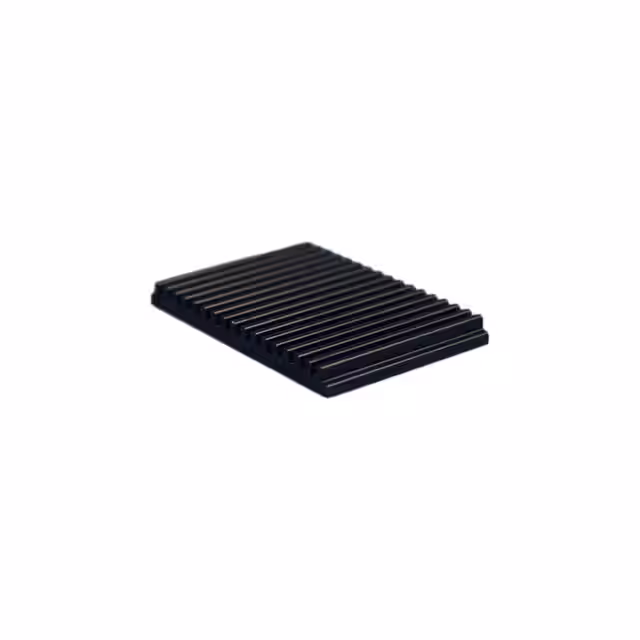

TGH-0510-01ALUMINIUM HEAT SINK 51X35MM |
589 | 2.86 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 1.378" (35.00mm) | 2.008" (51.00mm) | - | 0.197" (5.00mm) | - | - | - | Aluminum | Black Anodized |
|

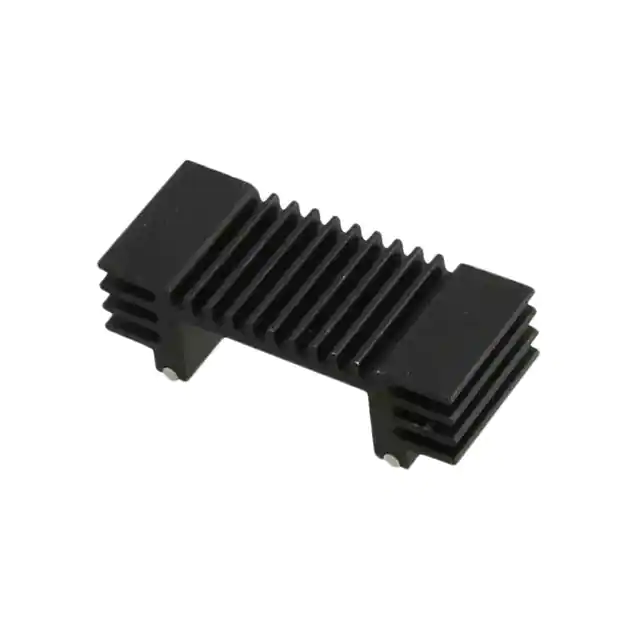

219-263B-TRTO-263 HEAT SINK ANODZD REEL |
1,250 | 2.97 |
|
Datasheet |
219 | Tape & Reel (TR) | Active | Top Mount | TO-263 (D²Pak) | Solderable Feet | Rectangular, Fins | 0.500" (12.70mm) | 1.386" (35.25mm) | - | 0.460" (11.68mm) | 2.0W @ 30°C | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
