Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6043BGHEATSINK TO-220 LOCKING TAB CLIP |
5,497 | 1.96 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Clip | Rectangular | 0.800" (20.32mm) | 0.268" (6.81mm) | - | 1.000" (25.40mm) | 1.5W @ 40°C | 4.00°C/W @ 500 LFM | 23.00°C/W | Aluminum | Black Anodized |
|

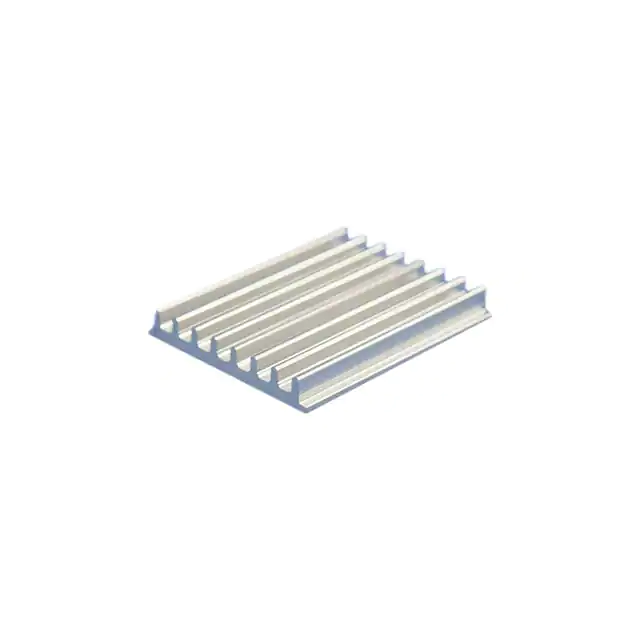

TGH-0210-01ALUMINIUM HEAT SINK 25X21MM |
901 | 2.00 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 0.984" (25.00mm) | 0.827" (21.00mm) | - | 0.138" (3.50mm) | - | - | - | Aluminum | - |
|

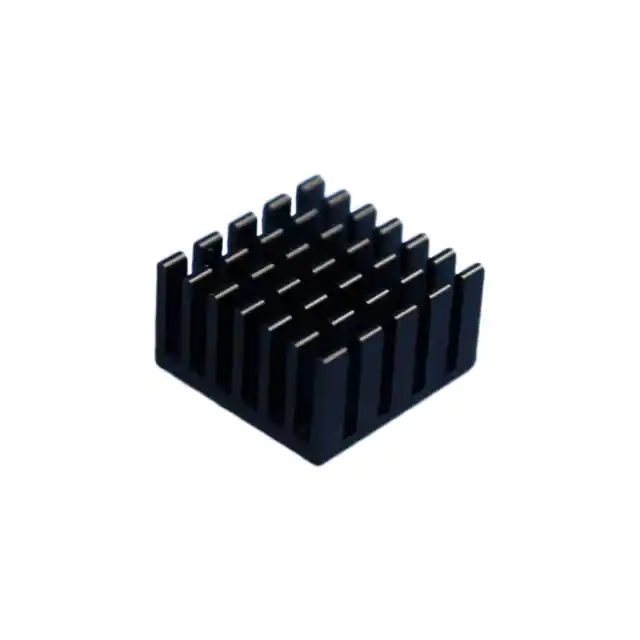

TGH-0170-01ALUMINIUM HEAT SINK 17X17MM |
855 | 2.00 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.374" (9.50mm) | - | - | - | Aluminum | Black Anodized |
|

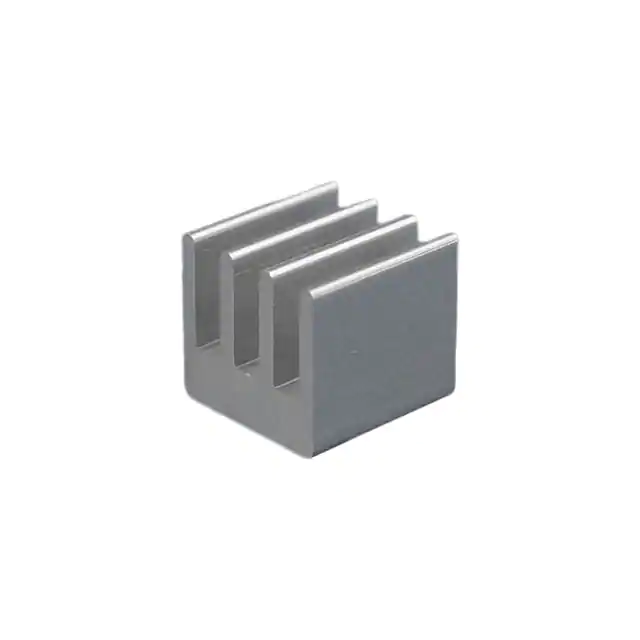

TGH-0100-01ALUMINIUM HEAT SINK 10X10MM |
669 | 2.00 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.374" (9.50mm) | - | - | - | Aluminum | Clean Anodized |
|

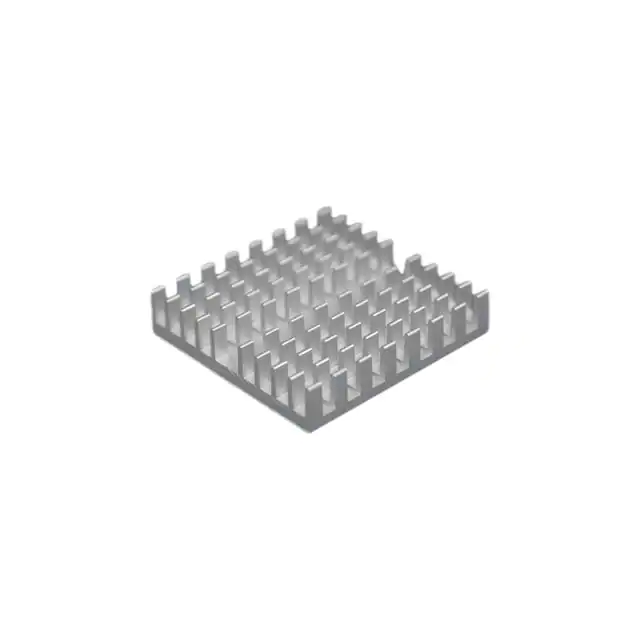

TGH-0300-01ALUMINIUM HEAT SINK 30X30MM |
151 | 2.00 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.260" (6.60mm) | - | - | - | Aluminum | - |
|

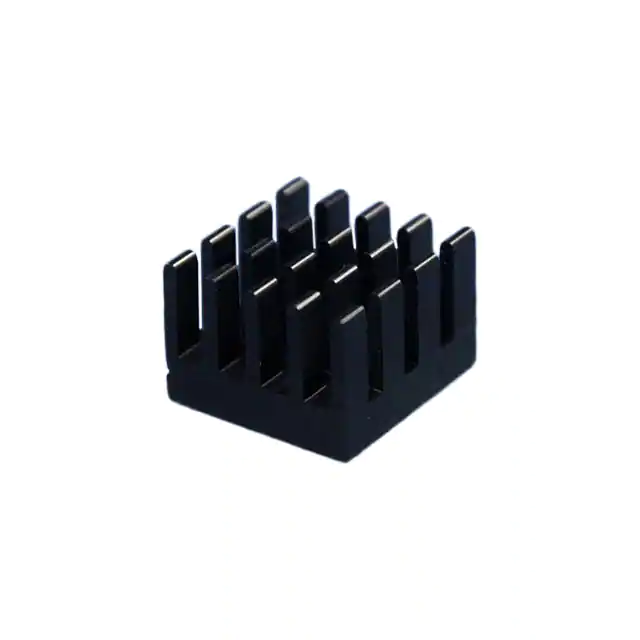

TGH-0130-02ALUMINIUM HEAT SINK 13X13MM |
112 | 2.00 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 0.512" (13.00mm) | 0.512" (13.00mm) | - | 0.354" (9.00mm) | - | - | - | Aluminum | Black Anodized |
|

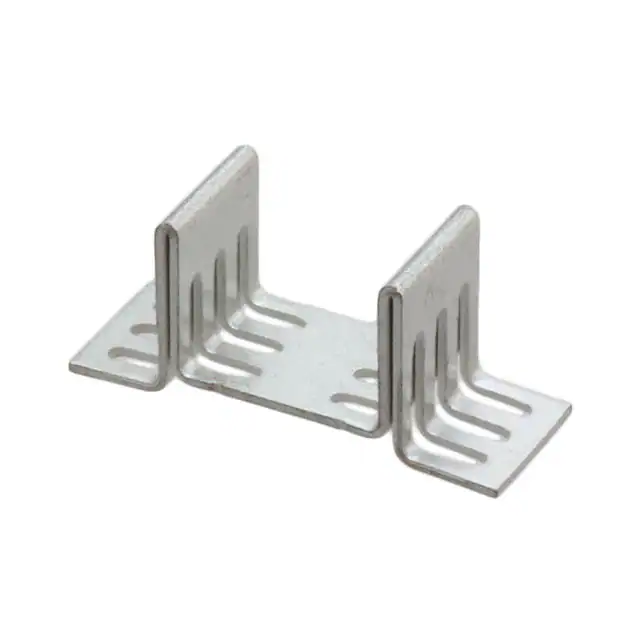

573100D00000GTOP MOUNT HEATSINK .4" D-PAK |
446 | 1.97 |
|
Datasheet |
5731 | Bulk | Active | Top Mount | TO-252 (DPak) | SMD Pad | Rectangular, Fins | 0.315" (8.00mm) | 0.900" (22.86mm) | - | 0.400" (10.16mm) | 0.8W @ 30°C | 12.50°C/W @ 600 LFM | 15.00°C/W | Aluminum | Tin |
|

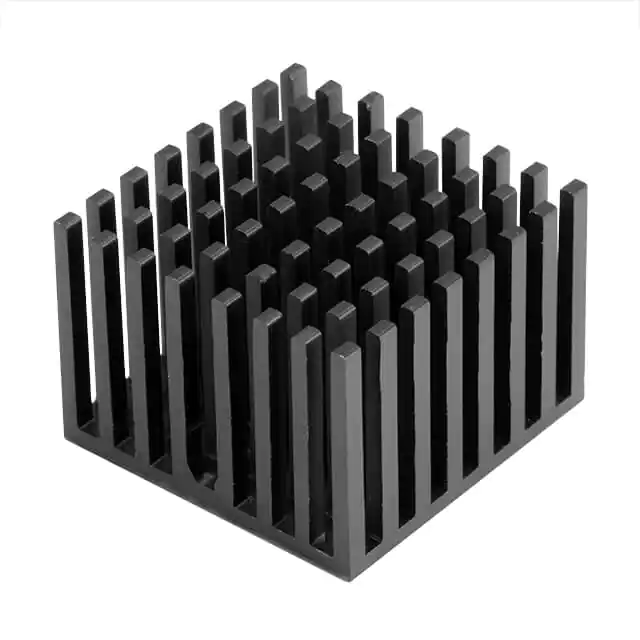

HSB20-353525HEAT SINK, BGA, 35 X 35 X 25 MM |
1,206 | 1.98 |
|
Datasheet |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | 11.3W @ 75°C | 2.70°C/W @ 200 LFM | 6.65°C/W | Aluminum Alloy | Black Anodized |
|

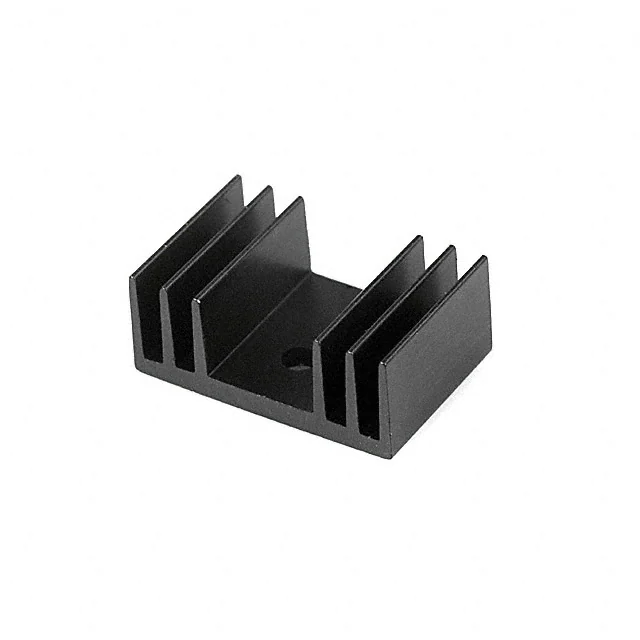

7-340-1PP-BAHEATSINK PWR VERT BLACK TO-220 |
1,151 | 3.04 |
|
Datasheet |
7 | Box | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 1.150" (29.21mm) | - | 0.460" (11.68mm) | 3.0W @ 40°C | - | 15.00°C/W | Aluminum | Black Anodized |
|

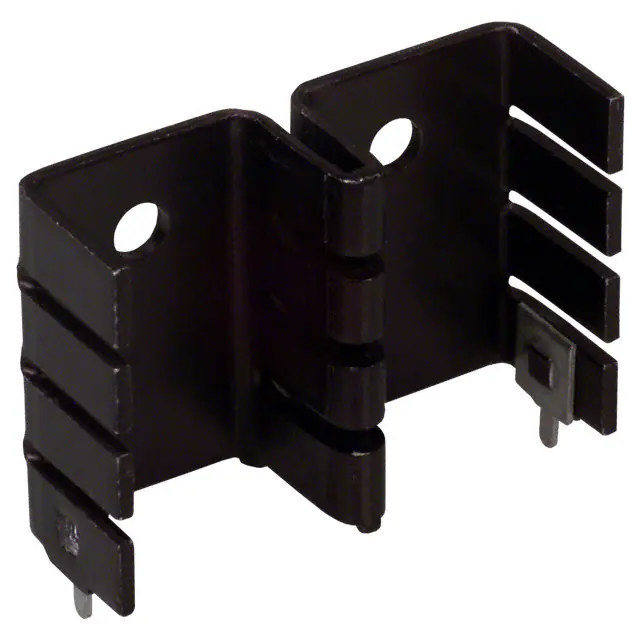

578622B03200GHEATSINK TO-220 DUAL MNT W/TABS |
5,059 | 2.19 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 (Dual) | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.480" (37.59mm) | - | 0.500" (12.70mm) | 2.0W @ 30°C | 3.00°C/W @ 700 LFM | 13.20°C/W | Aluminum | Black Anodized |
|

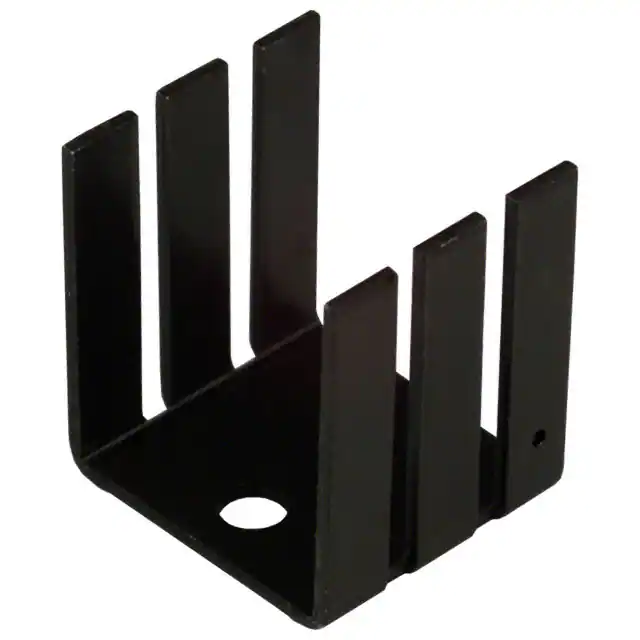

504102B00000GHEATSINK TO-220 PWR CLR .700" |
6,682 | 0.41 |
|
Datasheet |
- | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.701" (17.80mm) | 0.779" (19.80mm) | - | 0.850" (21.60mm) | 2.0W @ 40°C | 6.00°C/W @ 300 LFM | 15.60°C/W | Aluminum | Black Anodized |
|

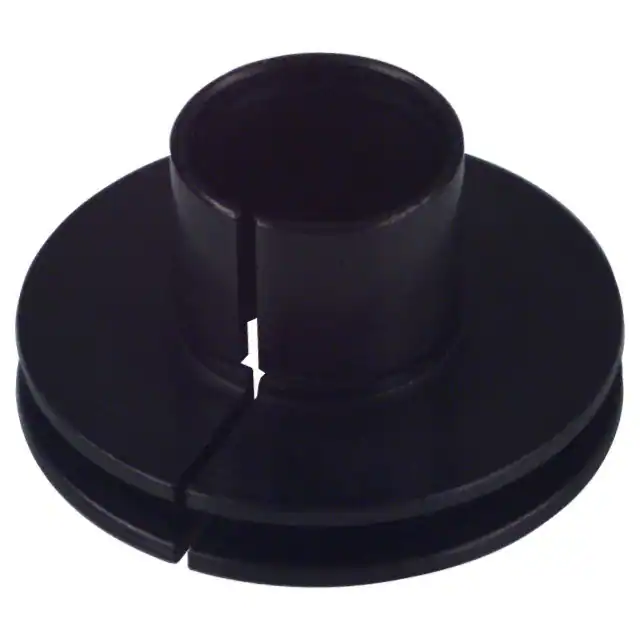

322505B00000GHEATSINK TO-5 .4" BLK |
6,443 | 2.62 |
|
Datasheet |
- | Bag | Active | Top Mount | TO-5 | Press Fit | Cylindrical | - | - | 0.315" (8.00mm) ID, 0.750" (19.05mm) OD | 0.400" (10.16mm) | 0.5W @ 30°C | 15.00°C/W @ 400 LFM | 56.00°C/W | Aluminum | Black Anodized |
|
658-45ABT3HEATSINK CPU 28MM SQ BLK W/TAPE |
25,698 | 2.51 |
|
Datasheet |
658 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.450" (11.43mm) | 3.0W @ 50°C | 6.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

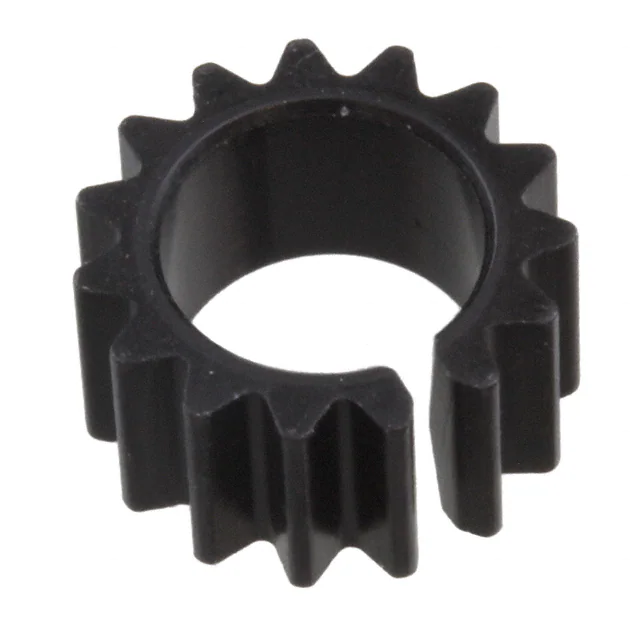

325705B00000GTO-5 PUSH-ON HEATSINK 6.35MM |
959 | 1.44 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-5 | Press Fit | Cylindrical | - | - | 0.318" (8.07mm) ID, 0.500" (12.70mm) OD | 0.250" (6.35mm) | 1.0W @ 60°C | 35.00°C/W @ 200 LFM | 60.00°C/W | Aluminum | Black Anodized |
|

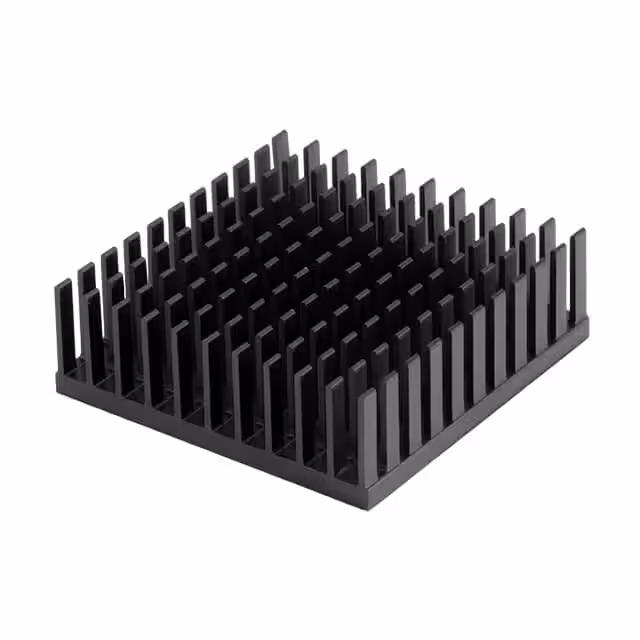

HSB21-454515HEAT SINK, BGA, 45 X 45 X 15 MM |
788 | 2.03 |
|
Datasheet |
HSB | Box | Active | Top Mount | BGA | Adhesive (Not Included) | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.591" (15.00mm) | 9.9W @ 75°C | 2.80°C/W @ 200 LFM | 7.56°C/W | Aluminum Alloy | Black Anodized |
|

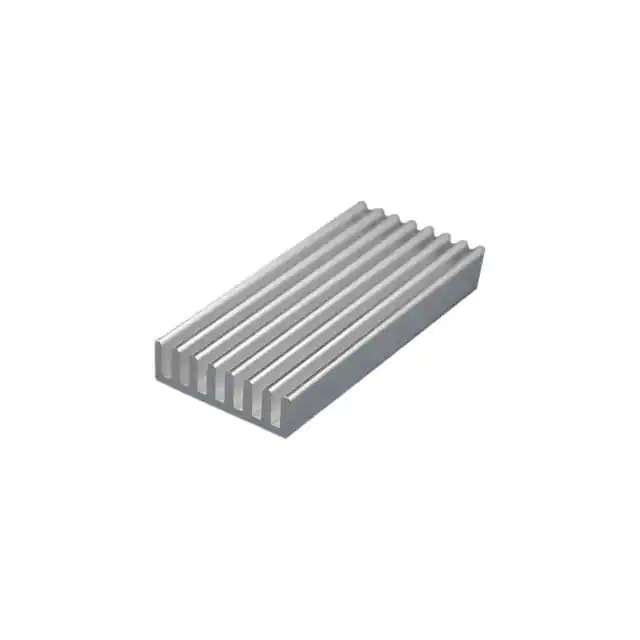

TGH-0200-06ALUMINIUM HEAT SINK 44X20MM |
870 | 2.09 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 1.732" (44.00mm) | 0.787" (20.00mm) | - | 0.236" (6.00mm) | - | - | - | Aluminum | Clean Anodized |
|
TGH-0280-02ALUMINIUM HEAT SINK 28X28MM |
733 | 2.09 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.177" (4.50mm) | - | - | - | Aluminum | Black Anodized |
|

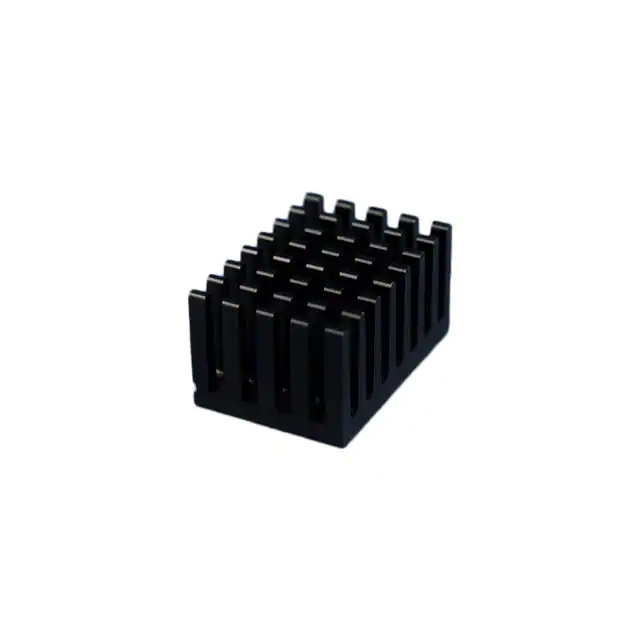

TGH-0220-02ALUMINIUM HEAT SINK 22X15MM |
511 | 2.09 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Pin Fins | 0.590" (15.00mm) | 0.866" (22.00mm) | - | 0.461" (11.70mm) | - | - | - | Aluminum | Black Anodized |
|

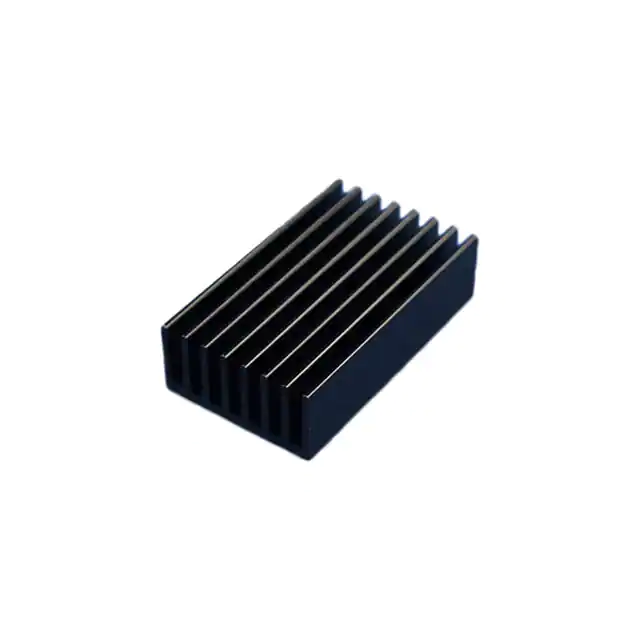

TGH-0200-05ALUMINIUM HEAT SINK 33X20MM |
236 | 2.09 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Rectangular, Fins | 1.299" (33.00mm) | 0.787" (20.00mm) | - | 0.374" (9.50mm) | - | - | - | Aluminum | Black Anodized |
|

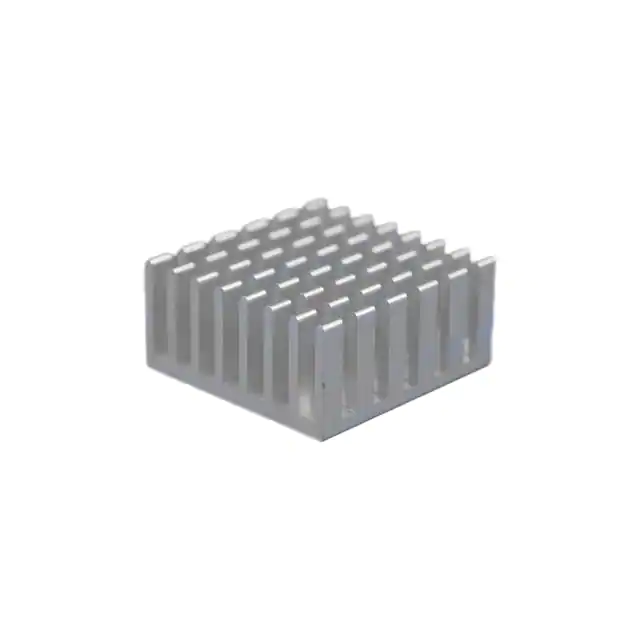

TGH-0200-03ALUMINIUM HEAT SINK 20X20MM |
164 | 2.09 |
|
Datasheet |
TGH | Bulk | Active | Top Mount | - | - | Square, Pin Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.374" (9.50mm) | - | - | - | Aluminum | - |
