Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ED-CM4COOLER-SHEATSINK Raspberry Pi CM4 |
363 | 4.22 |
|
Datasheet |
ED-CM4COOLER | Box | Active | Top Mount | Assorted | Bolt On | Rectangular | 2.165" (55.00mm) | 1.575" (40.00mm) | - | 0.531" (13.50mm) | - | - | - | Aluminum | Silver Anodized |
|
ATS-CPX040040030-185-C1-R0HEATSINK 40X40X30MM R-TAB CP |
175 | 4.15 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
UNI-H21052-23P/2.6BU A2AL HEAT SINK 21X21X23MM WITH PIN |
212 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.787" (20.00mm) | - | 4.9°C/W @ 200 LFM | 10.27°C/W | Aluminum Alloy | Black Anodized |
|
|
UNI-H23051-21W/2.6BUAL HEAT SINK 19X19X21MM WITH ELL |
141 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.709" (18.00mm) | - | 3.69°C/W @ 200 LFM | 11.73°C/W | Aluminum Alloy | Black Anodized |
|
TGH-0280-08ALUMINIUM HEAT SINK 28X28MM |
196 | 4.38 |
|
Datasheet |
TGH | Bulk | Obsolete | Top Mount | - | - | Square, Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.866" (22.00mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-P2-141-C2-R0HEATSINK 30X30X10MM L-TAB T766 |
279 | 6.24 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
UNI-H23052-15P/2.6BUAL HEAT SINK 23X23X15MM WITH PIN |
117 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.472" (12.00mm) | - | 5.39°C/W @ 200 LFM | 11.41°C/W | Aluminum Alloy | Black Anodized |
|
|
UNI-H21052-32P/2.6BUAL HEAT SINK 21X21X32MM WITH PIN |
110 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 1.142" (29.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
CS946505BM50X50X5MM, T412 |
368 | 4.56 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.197" (5.00mm) | - | 3.92°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

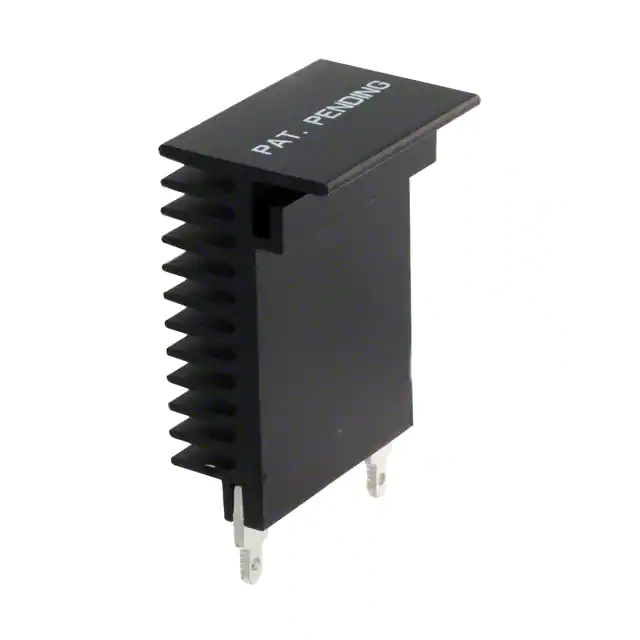

OMNI-UNI-18-25HEATSINK 18X25MM TO-247 TO-264 |
2,459 | 4.45 |
|
Datasheet |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 0.984" (25.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|
693-25HEATSINK TO220 W/CLIP 25MM |
231 | 4.53 |
|
Datasheet |
693 | Box | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
|
UNI-H27052-21P/2.6BUAL HEAT SINK 27X27X21MM WITH PIN |
579 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.709" (18.00mm) | - | 3.82°C/W @ 200 LFM | 9.56°C/W | Aluminum Alloy | Black Anodized |
|
|
UNI-H27051-15W/2.6YAL HEAT SINK 27X27X15MM WITH ELL |
500 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.472" (12.00mm) | - | 3.89°C/W @ 200 LFM | 12.29°C/W | Aluminum Alloy | Black Anodized |
|
|
UNI-H27052-12P/2.6BUAL HEAT SINK 27X27X12MM WITH PIN |
160 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.354" (9.00mm) | - | 4.84°C/W @ 200 LFM | 11.38°C/W | Aluminum Alloy | Black Anodized |
|
ATS-P1-180-C2-R0HEATSINK 35X35X35MM R-TAB T766 |
298 | 6.58 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
SK 434 75 SAExtruded Heatsink |
1,000 | 0.00 |
|
- |
SK 434 | Bulk | Active | Board Level, Extrusion | - | - | Rectangular | 2.953" (75.00mm) | 1.969" (50.00mm) | - | 1.575" (40.00mm) | 32.65W @ 80°C | 0.76°C/W | 2.45°C/W | Aluminum | Black Anodized |
|

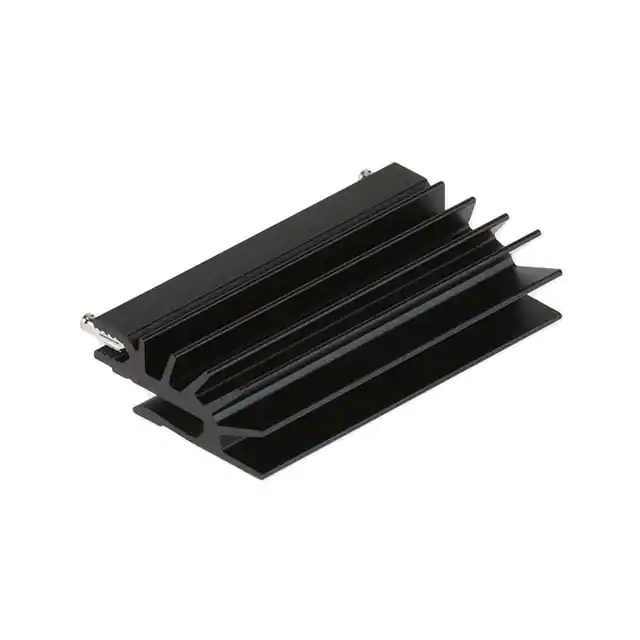

692-50HEATSINK TO126 W/CLIP 50MM |
184 | 4.76 |
|
Datasheet |
692 | Box | Active | Board Level, Vertical | TO-126 | Clip and PC Pin | Rectangular, Fins | 1.969" (50.00mm) | 0.430" (10.92mm) | - | 1.100" (27.94mm) | - | - | - | Aluminum | Black Anodized |
|

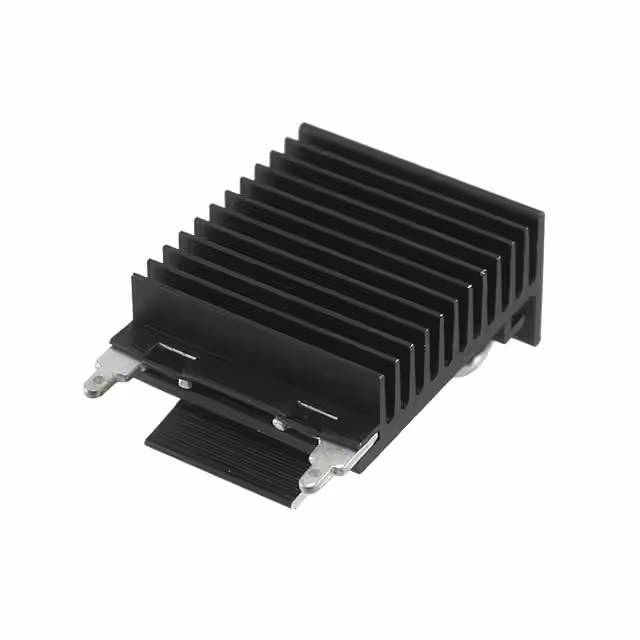

C264-030-1AEHEATSINK AND CLIP FOR TO-264 |
105 | 4.51 |
|
Datasheet |
C | Box | Obsolete | Board Level, Vertical | TO-264 | Clip and PC Pin | Rectangular, Fins | 1.181" (30.00mm) | 1.500" (38.10mm) | - | 0.710" (18.03mm) | - | - | - | Aluminum | Black Anodized |
|
|
MBH10002-14P/CU/2CU HEAT SINK 10X10X14MM WITH PIN |
328 | 0.00 |
|
- |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Pin Fins | 0.394" (10.00mm) | 0.394" (10.00mm) | - | 0.472" (12.00mm) | - | - | - | Copper | - |
|
|
UNI-H27051-25W/2.6YAL HEAT SINK 27X27X25MM WITH ELL |
180 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.866" (22.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
