Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
901-19-1-28-2-B-0HEAT SINK ELLIP FIN 19X19MM CLIP |
192 | 5.32 |
|
Datasheet |
901 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 1.087" (27.60mm) | - | 4.91°C/W @ 200 LFM | 10.30°C/W | Aluminum | Black Anodized |
|
|
B-375-120-62GHEAT SINK |
4,942 | 7.81 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

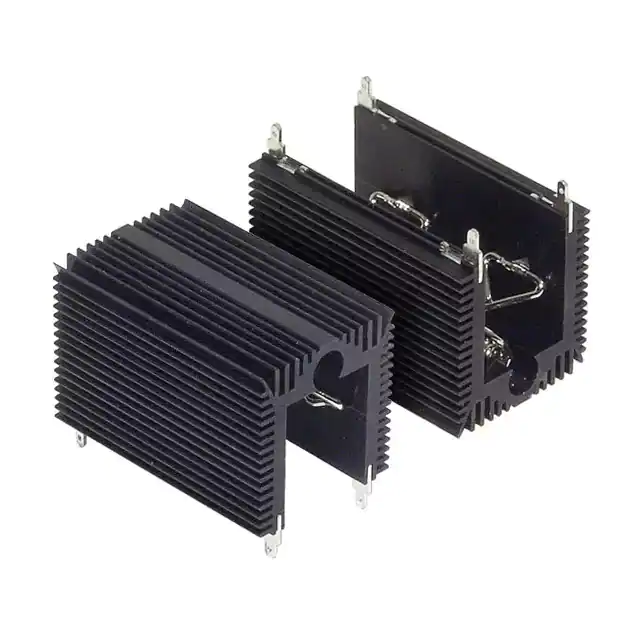

MTN-264-55HEATSINK TO-247/TO-264 W/CLIP |
1,460 | 11.11 |
|
Datasheet |
Mountain | Box | Active | Top Mount | TO-247, TO-264 | Clip | Rectangular, Fins | 1.060" (26.92mm) | 1.740" (44.20mm) | - | 1.555" (39.50mm) | - | - | - | Aluminum | Black Anodized |
|

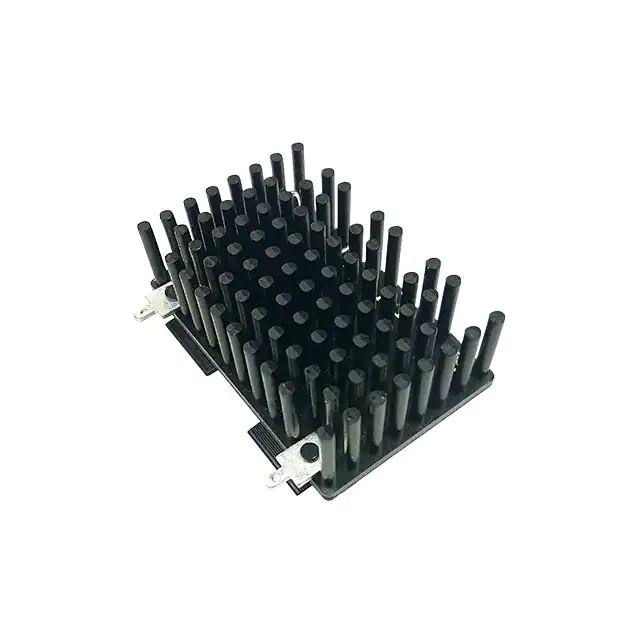

PA-T22-38EDUAL PIN FIN HEATSINK 2 CLIPS |
971 | 7.94 |
|
Datasheet |
P | Box | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | 2 Clips and PC Pin | Rectangular, Pin Fins | 2.170" (55.12mm) | 1.240" (31.50mm) | - | 1.520" (38.61mm) | - | - | 3.13°C/W | Aluminum | Black Anodized |
|

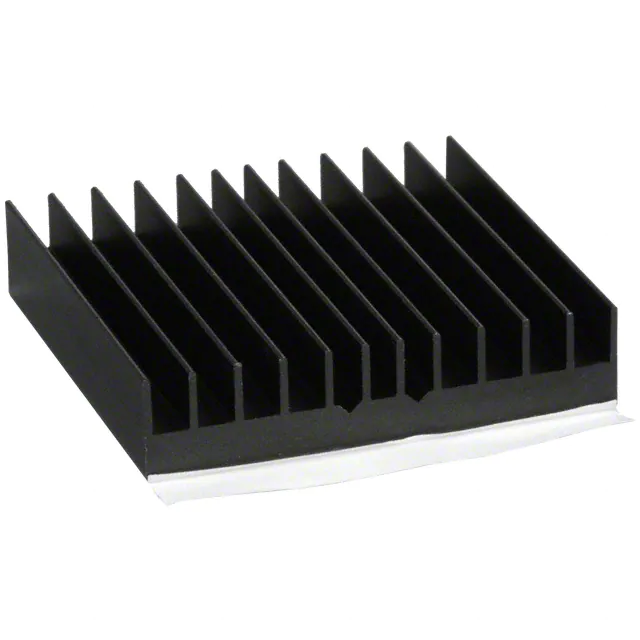

ATS-54425D-C1-R0HEAT SINK 42.5 X 42.5 X 9.5MM |
120 | 7.96 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.374" (9.50mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

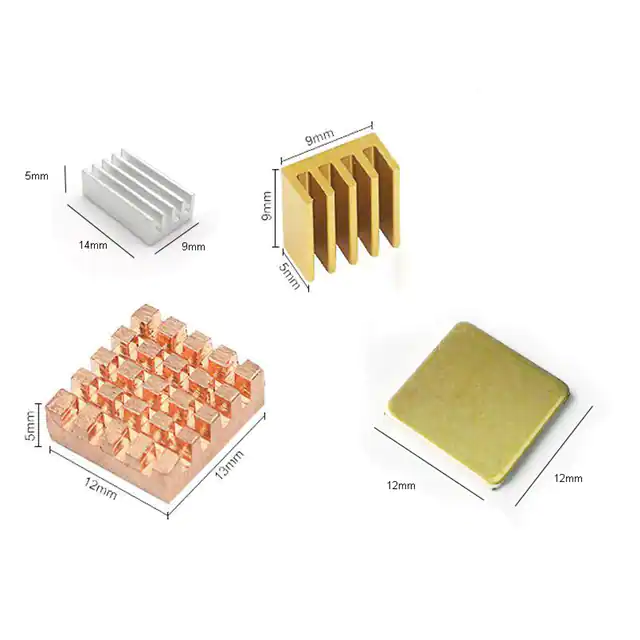

RAS-HS-CHEATSINK RASPBERRY PI ALUM/COP |
1,492 | 8.25 |
|
Datasheet |
- | Retail Package | Active | Top Mount Kit | Raspberry Pi 2B, 3B, 3B+, 4B, B+ | Thermal Tape, Adhesive (Included) | Rectangular, Fins; Square, Fins | - | - | - | - | - | - | - | Aluminum, Copper | - |
|

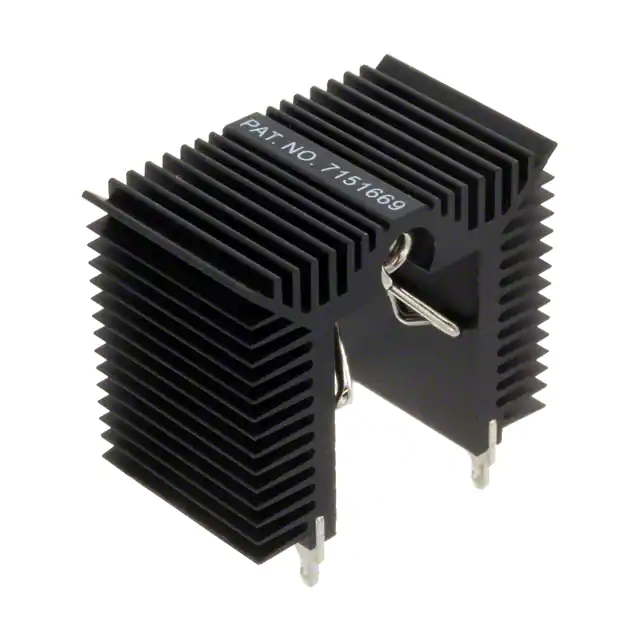

MTN-264-27HEATSINK TO-247/TO-264 W/CLIP |
3,978 | 8.15 |
|
Datasheet |
Mountain | Box | Active | Top Mount | TO-247, TO-264 | Clip | Rectangular, Fins | 1.060" (26.92mm) | 1.740" (44.20mm) | - | 1.555" (39.50mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-12A-32-C1-R0HEATSINK 57.9X36.83X11.43MM |
283 | 8.43 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 21.45°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

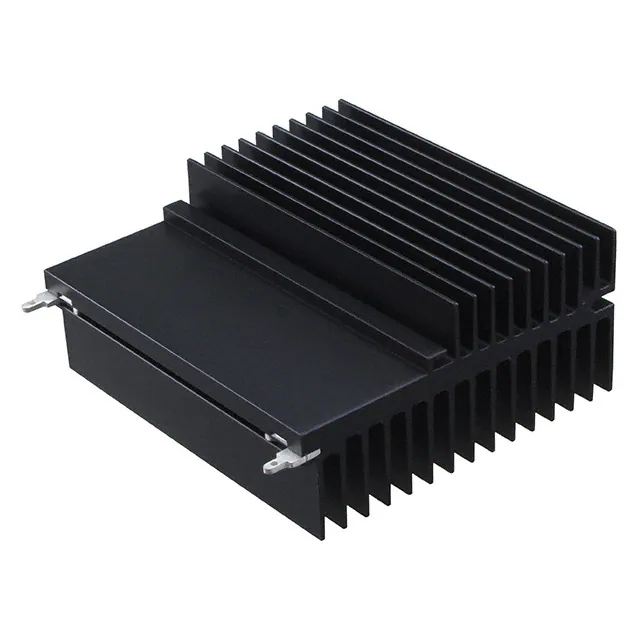

OMNI-UNI-34-75HEATSINK TO-247 TO-264 TO-220 |
672 | 8.28 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 1.339" (34.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|

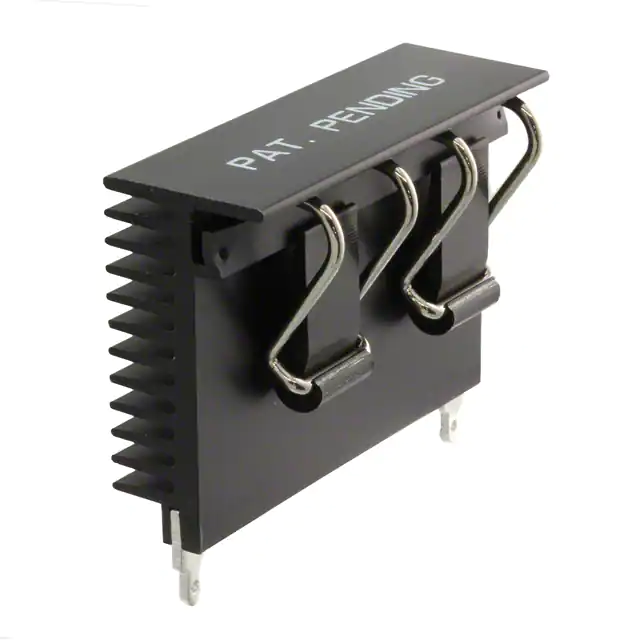

OMNI-220-18-50-2CHEATSINK 18X50MM 2-CLIP TO-220 |
978 | 9.12 |
|
Datasheet |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-220 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|
|
321127B00000GHEATSINK |
400 | 6.37 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
OMNI-UNI-40-75-DHEATSINK TO-247 TO-264 TO-220 |
884 | 9.25 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 1.575" (40.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|

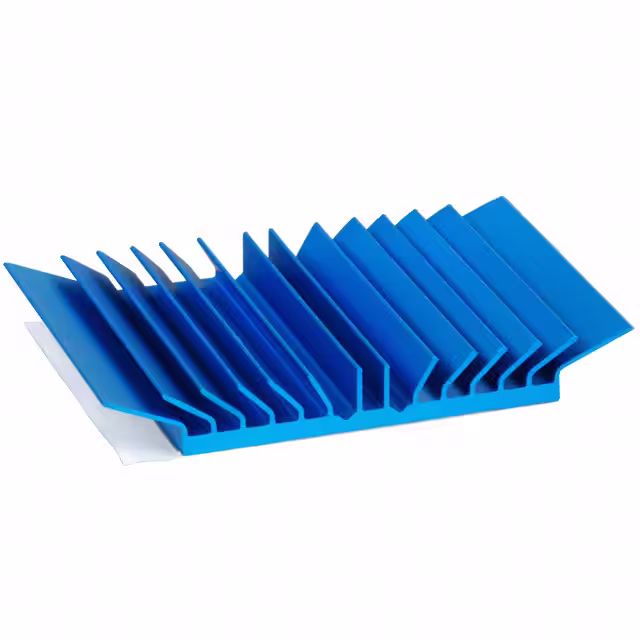

ATS-52425B-C1-R0HEAT SINK 42.5 X 42.5 X 7.5MM |
208 | 9.31 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.295" (7.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

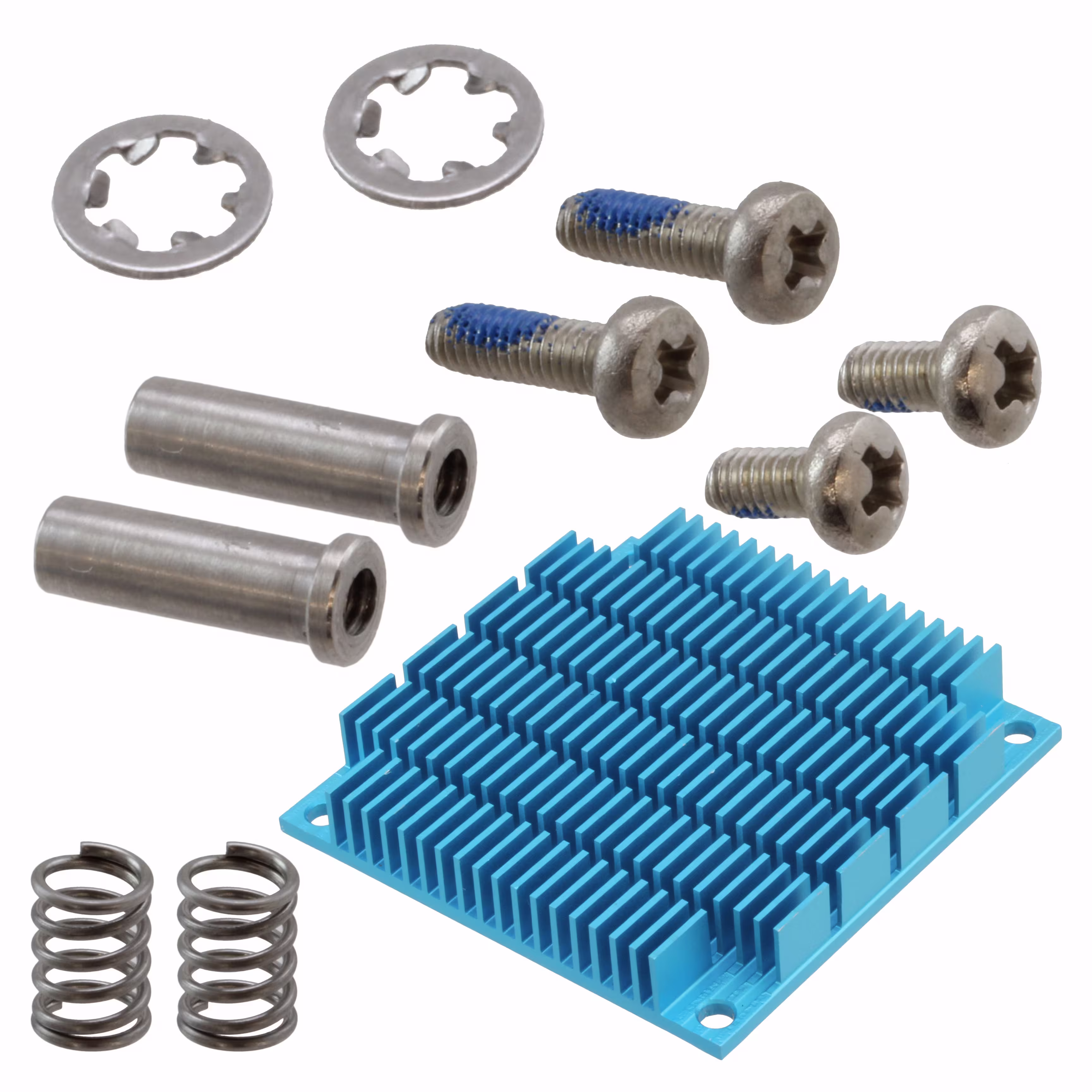

ATS-H1-129-C2-R0HEATSINK 60X60X10MM XCUT T766 |
294 | 11.51 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 8.65°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06F-37-C2-R0HEATSINK 36.83X57.6X17.78MM T766 |
279 | 9.62 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.700" (17.78mm) | - | 9.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

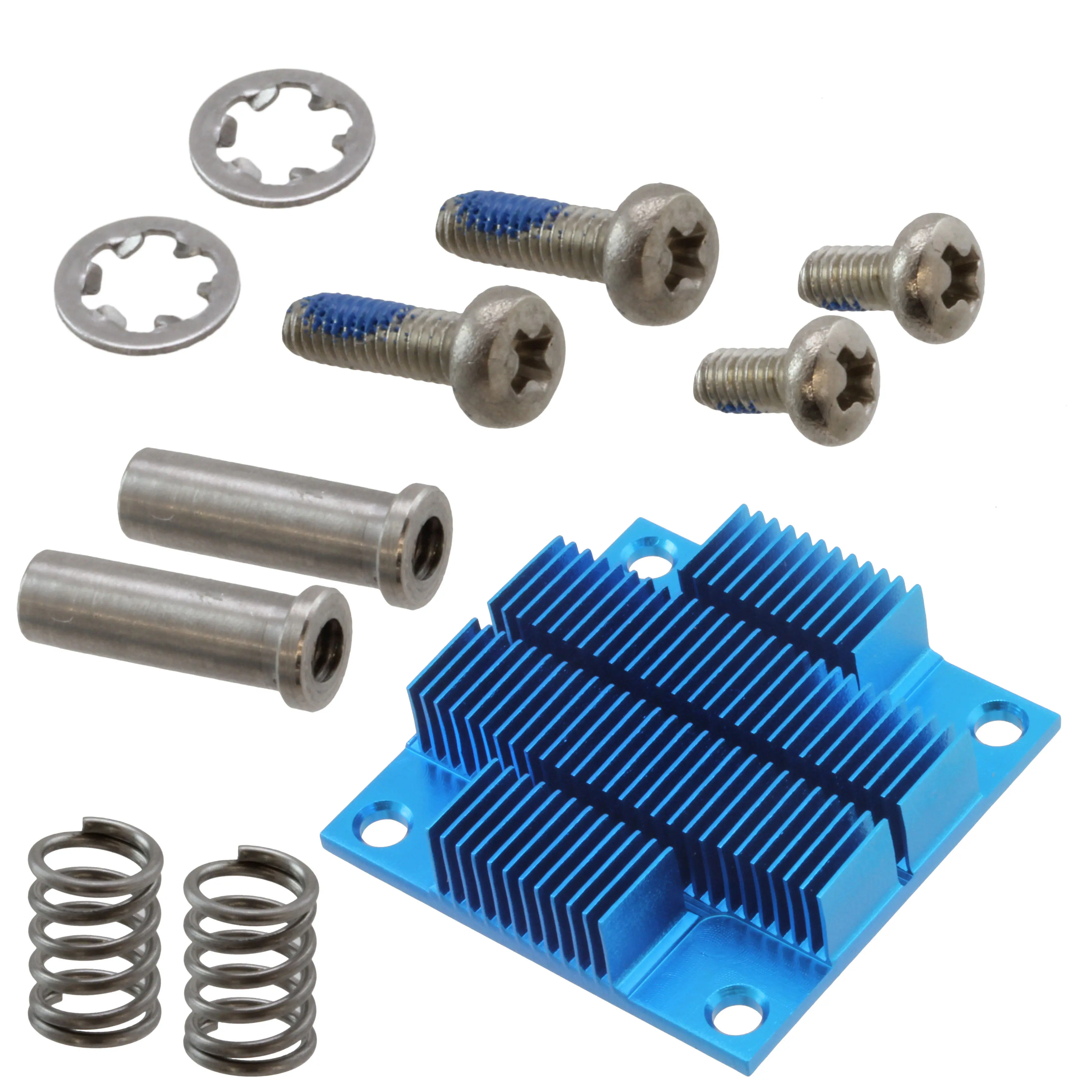

ATS-H1-175-C2-R0HEATSINK 35X35X10MM R-TAB T766 |
298 | 9.75 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 13.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

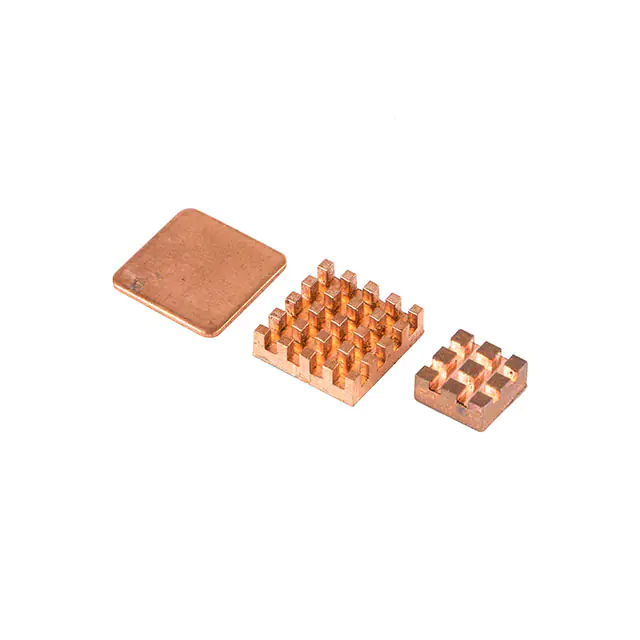

RPIHS-03RASPBERRY PI COPPER HEAT SINK |
384 | 9.95 |
|
Datasheet |
- | Retail Package | Active | Heat Spreader Kit, Top Mount | Raspberry Pi | Thermal Tape, Adhesive (Included) | Square, Fins; Square | - | - | - | - | - | - | - | Copper | - |
|

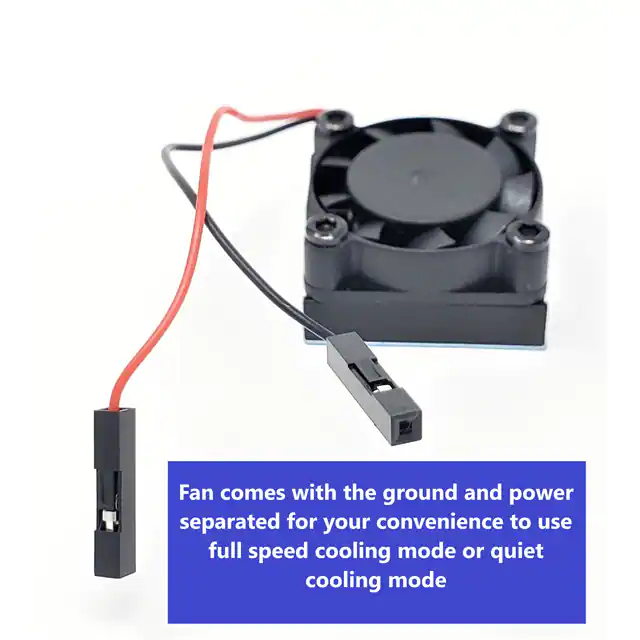

RAS-FANHS10COOLING FAN/HS - RASPBERRY PI |
952 | 10.25 |
|
Datasheet |
- | Retail Package | Active | Top Mount | Raspberry Pi 2B, 3B, 3B+, 4B, B+ | Thermal Tape, Adhesive (Included) | Rectangular | 1.969" (50.00mm) | 1.181" (30.00mm) | - | 0.295" (7.50mm) | - | - | - | Aluminum, Plastic | - |
|

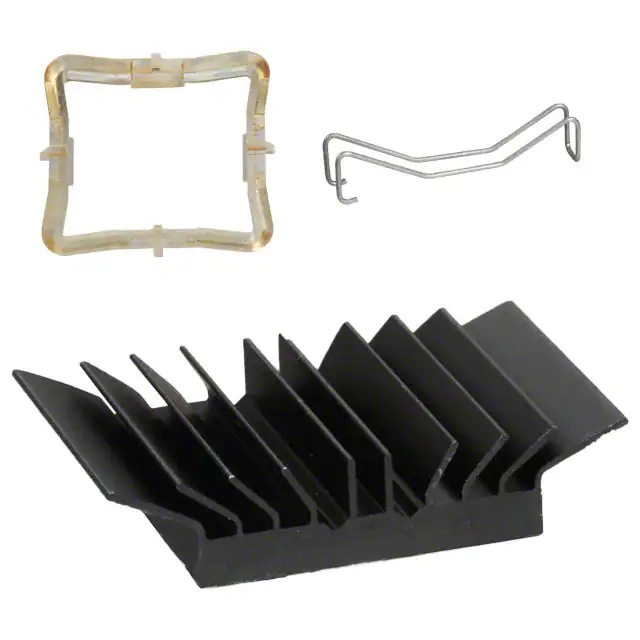

ATS-51290D-C1-R0HEAT SINK 29MM X 29MM X 9.5MM |
126 | 13.34 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.374" (9.50mm) | - | 7.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-09F-40-C2-R0HEATSINK 57.9X60.96X11.43MM T766 |
300 | 10.48 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.450" (11.43mm) | - | 14.56°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
