Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

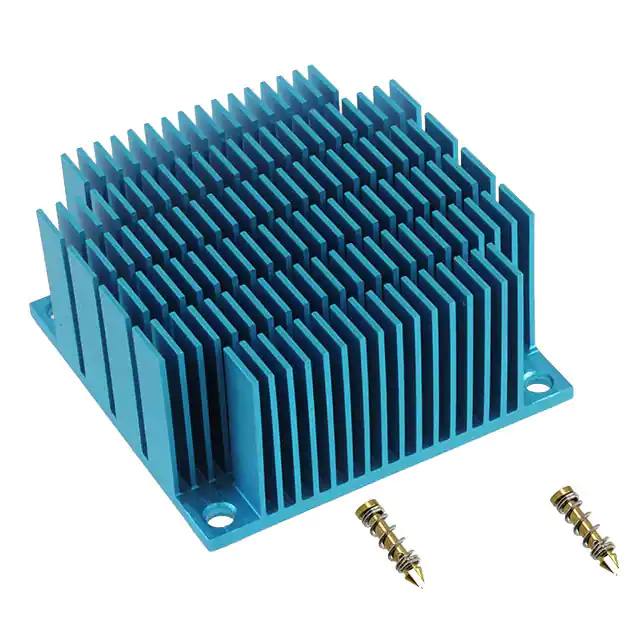

ATS-21D-20-C2-R0HEATSINK 54X54X25MM XCUT T766 |
111 | 7.87 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.984" (25.00mm) | - | 7.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
UNI-H40051-33W/2.6YAL HEAT SINK 40X40X33MM WITH ELL |
108 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 1.55°C/W @ 200 LFM | 6.87°C/W | Aluminum Alloy | Black Anodized |
|
CS8674510B145X45X10MM, INTERACE MATERIAL |
286 | 5.89 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|

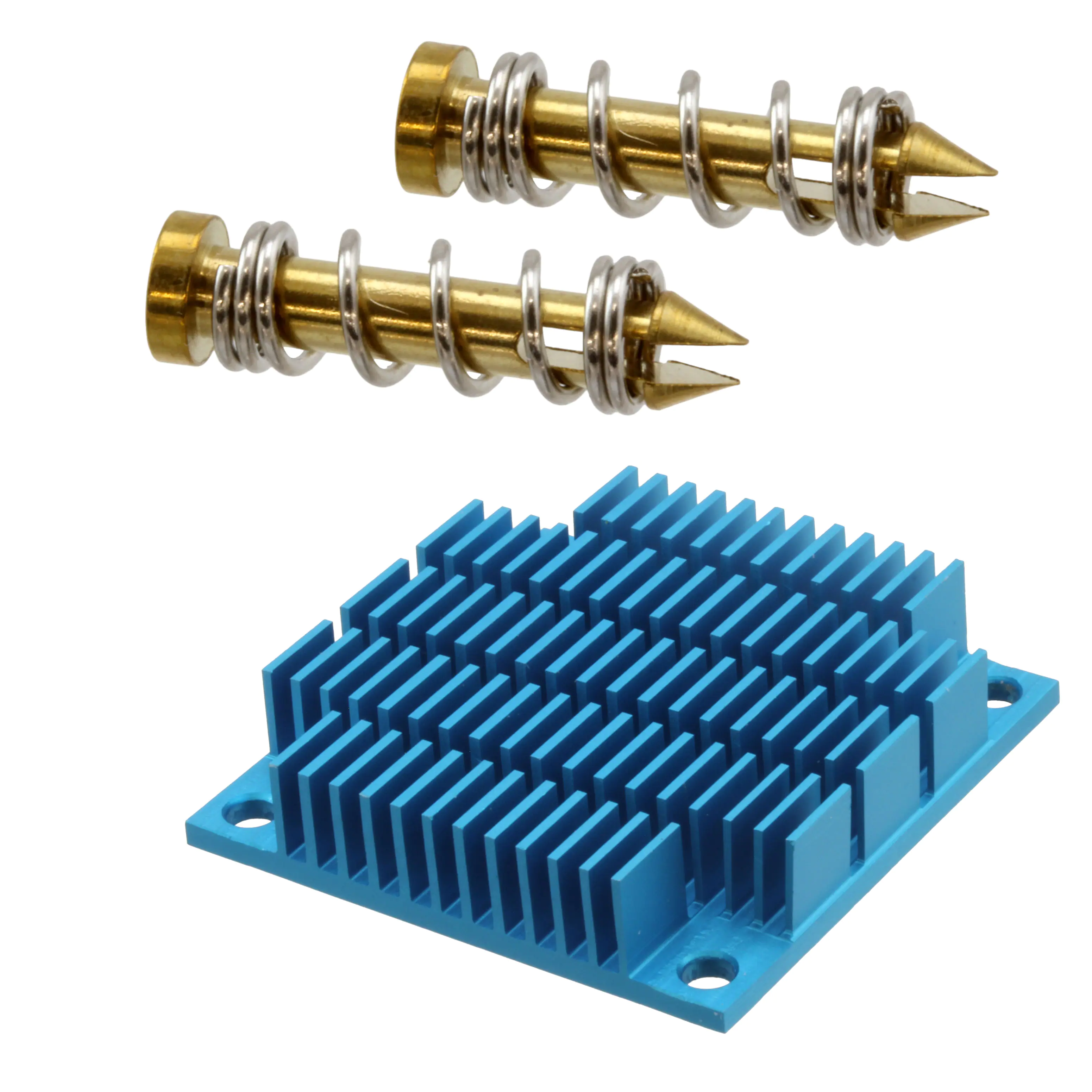

ATS-12B-06-C2-R0HEATSINK 45X45X10MM XCUT T766 |
300 | 6.00 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

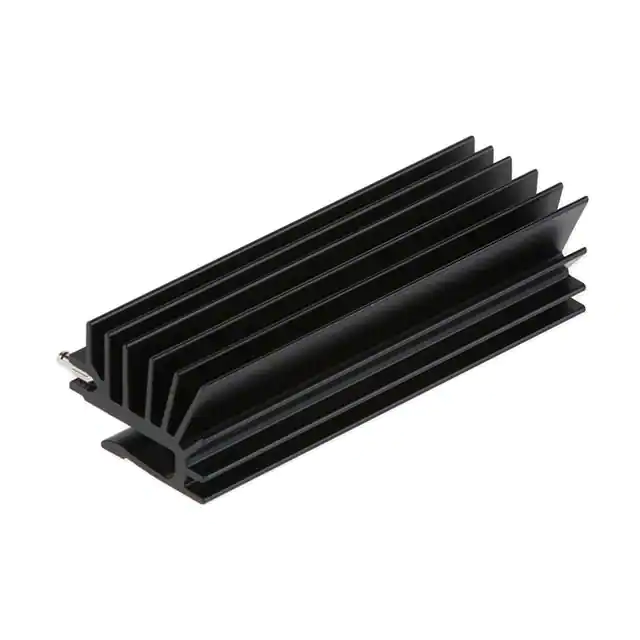

693-75HEATSINK TO220 W/CLIP 75MM |
235 | 6.02 |
|
Datasheet |
693 | Box | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|

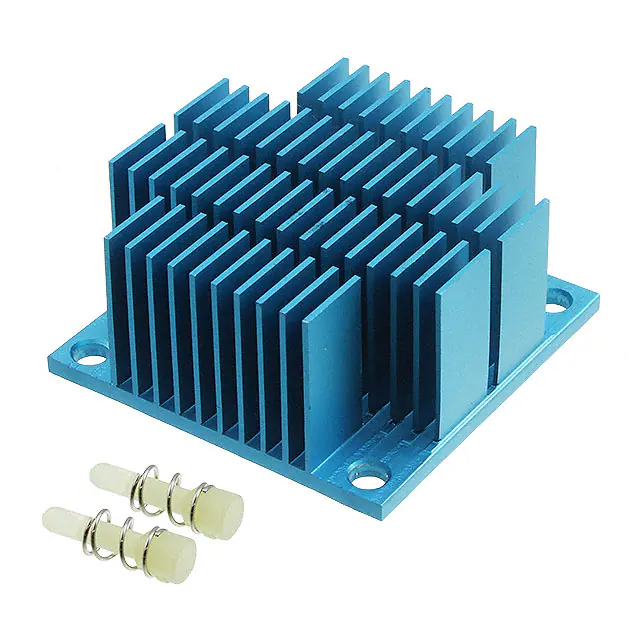

ATS-P1-177-C2-R0HEATSINK 35X35X20MM R-TAB T766 |
119 | 6.09 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 6.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

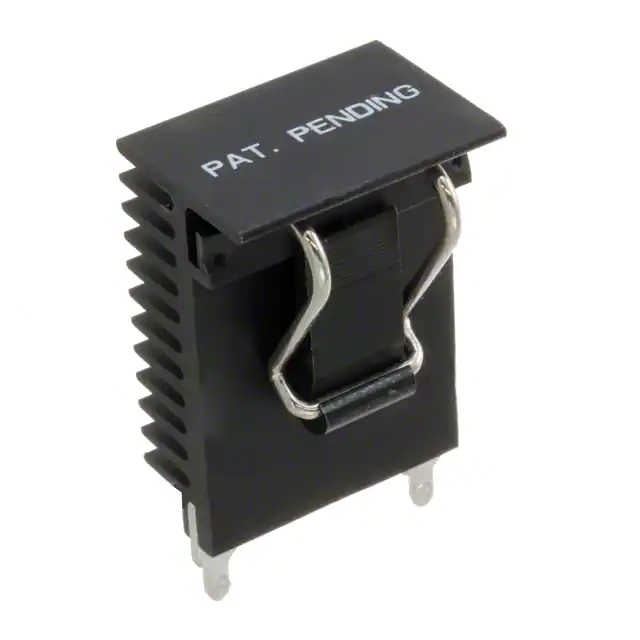

OMNI-220-18-25-1CHEATSINK 18X25MM 1-CLIP TO-220 |
2,245 | 5.96 |
|
Datasheet |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-220 | Clip, Solder Foot | Rectangular, Fins | 0.984" (25.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|
|
MBA37.5002-28P/CU/3.2YCU HEAT SINK 37.5X37.5X28MM WITH |
117 | 0.00 |
|
- |
MBA | Tray | Active | Top Mount | BGA | Clip | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.984" (25.00mm) | - | - | - | Copper | - |
|

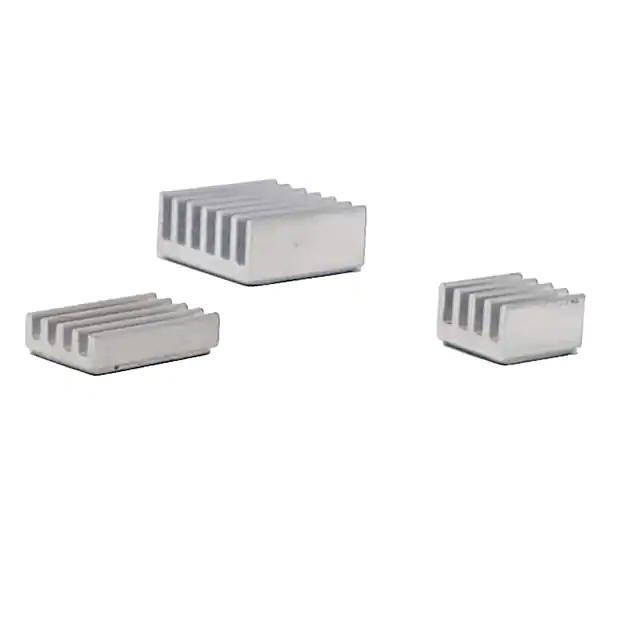

RAS-HS-AHEATSINK FOR RASPBERRY PI ALUM |
1,242 | 6.25 |
|
Datasheet |
- | Retail Package | Active | Top Mount Kit | Raspberry Pi 2B, 3B, 3B+, 4B, B+ | Thermal Tape, Adhesive (Included) | Rectangular, Fins; Square, Fins | - | - | - | - | - | - | - | Aluminum | - |
|

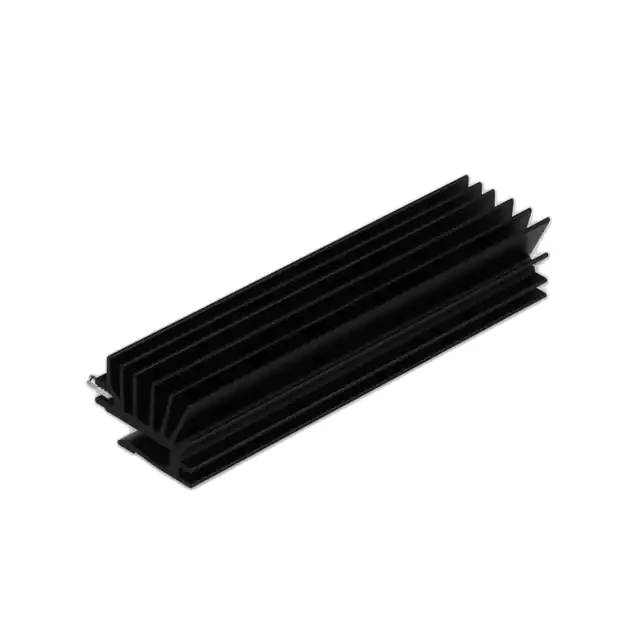

693-100HEATSINK TO220 W/CLIP 100MM |
150 | 6.09 |
|
Datasheet |
693 | Box | Active | Board Level, Vertical | TO-220 | Clip and PC Pin | Rectangular, Fins | 3.937" (100.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-07E-07-C2-R0HEATSINK 45X45X12.7MM XCUT T766 |
297 | 6.13 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | 17.00°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

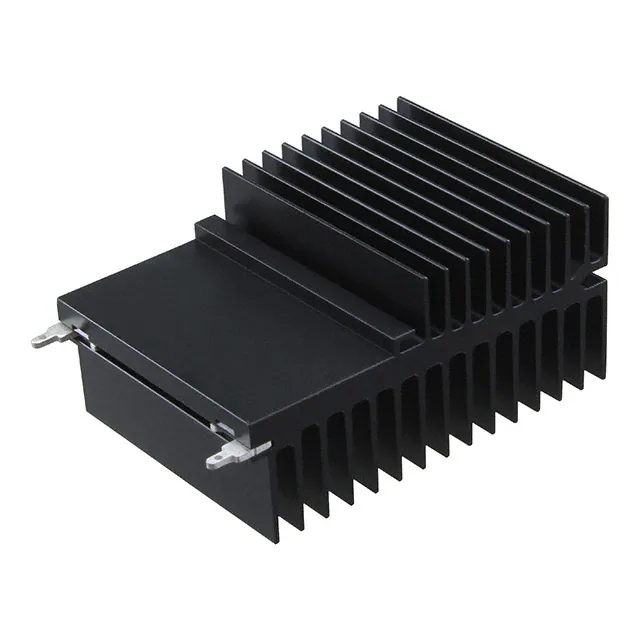

OMNI-UNI-34-50HEATSINK TO-247 TO-264 TO-220 |
1,948 | 6.32 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 1.339" (34.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|

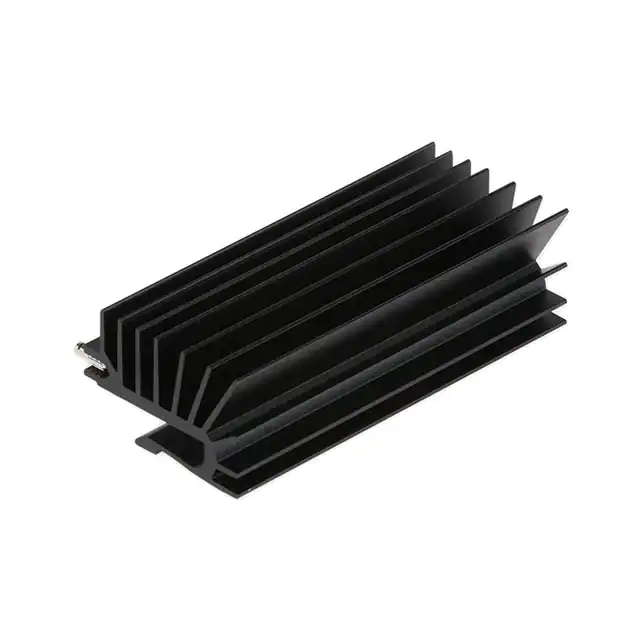

694-75HEATSINK TO247 W/CLIP 75MM |
135 | 6.33 |
|
Datasheet |
694 | Box | Active | Board Level, Vertical | TO-247 | Clip and PC Pin | Rectangular, Fins | 2.953" (75.00mm) | 0.870" (22.10mm) | - | 1.380" (35.05mm) | - | - | - | Aluminum | Black Anodized |
|
780153U04600G78015 4.6 |
1,739 | 0.00 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical, Extrusion | - | Clip and PC Pin | Rectangular, Pin Fins | - | - | - | 1.969" (50.00mm) | - | - | - | Aluminum Alloy | - |
|
|
MBA42.5002-15P/CU/2.6YCU HEAT SINK 42.5X42.5X15MM WITH |
121 | 0.00 |
|
Datasheet |
MBA | Tray | Active | Top Mount | BGA | Clip | Square, Pin Fins | 1.673" (42.50mm) | 1.673" (42.50mm) | - | 0.472" (12.00mm) | - | - | - | Copper | - |
|

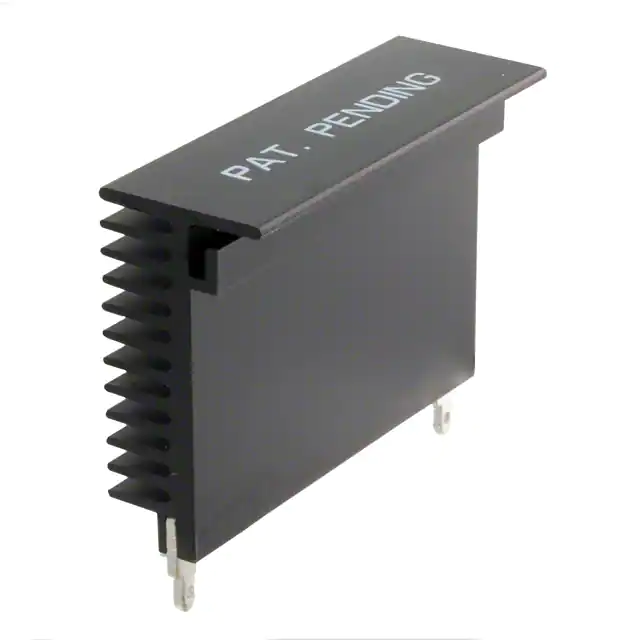

OMNI-UNI-18-50HEATSINK 18X50MM TO-247 TO-264 |
1,991 | 6.91 |
|
Datasheet |
OmniKlip™ | Tray | Active | Board Level, Vertical | TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 1.969" (50.00mm) | 0.710" (18.03mm) | - | 1.500" (38.10mm) | - | - | - | Aluminum | Black Anodized |
|
|
ATS-55290R-C0-R0HEATSINK 29X29X19.5MM W/OUT TIM |
2,484 | 6.82 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.768" (19.50mm) | - | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
OMNI-UNI-30-75-DHEATSINK TO-247 TO-264 TO-220 |
494 | 6.97 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 2.953" (75.00mm) | 1.181" (30.00mm) | - | 2.362" (60.00mm) | - | - | - | Aluminum | Black Anodized |
|
960-31-23-F-AB-0HEATSINK 31X23MM FRONT PUSH PIN |
374 | 7.18 |
|
Datasheet |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.905" (23.00mm) | - | 2.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-14G-127-C2-R0HEATSINK 54X54X20MM XCUT T766 |
299 | 7.18 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.790" (20.00mm) | - | 3.84°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
