DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

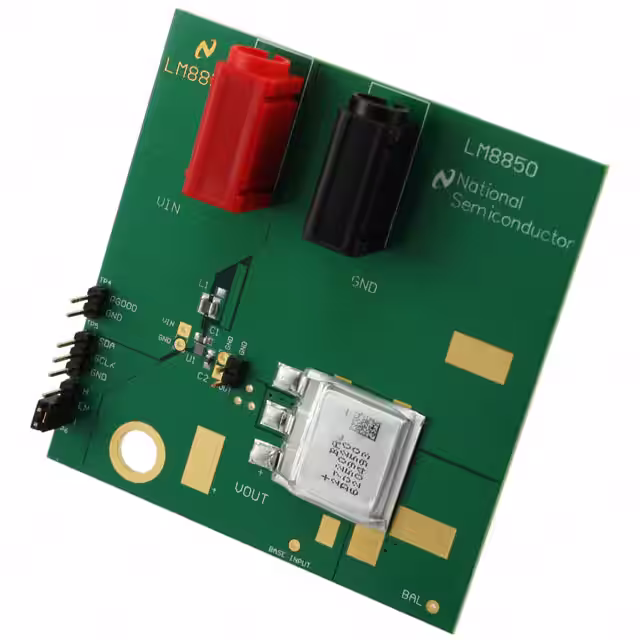

LM8850UREV/NOPBEVAL BOARD FOR LM8850 |
2,106 | 101.93 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Isolated Output | - | 3.6V ~ 5.7V | 1A | 2.3V ~ 5.5V | Boost | 2.5MHz | Board(s) | LM8850 |
|

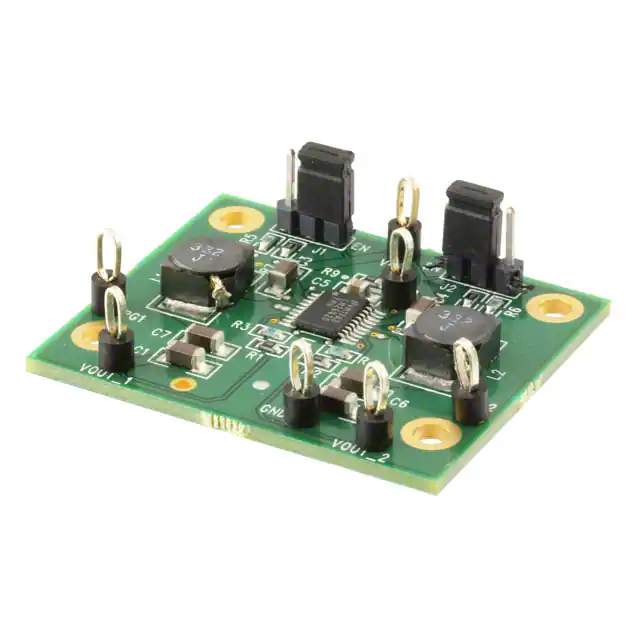

LM26420YMHEVAL/NOPBEVAL BOARD FOR LM26420 |
3,308 | 101.93 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 2A, 2A | 3V ~ 5.5V | Buck | 550kHz | Board(s) | LM26420 |
|
APEK8651KLP-01-MH-DKEVAL BOARD FOR A8651 |
1,387 | 112.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 2A, 2A | 2.5V ~ 5.5V | Buck | - | Board(s) | A8651 |
|

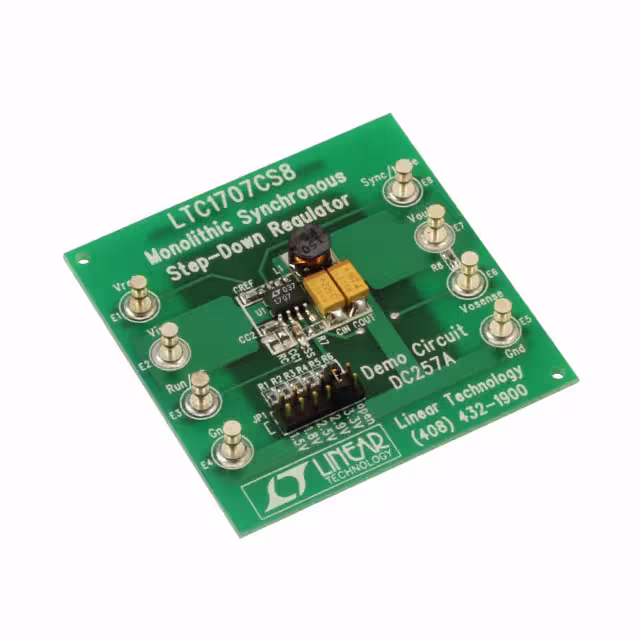

DC257AEVAL BOARD FOR LTC1707 |
1,166 | 115.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V, 1.8V, 2.5V, 2.9V or 3.3V | 600mA | 2.85V ~ 8.5V | Buck | 350kHz | Board(s) | LTC1707 |
|

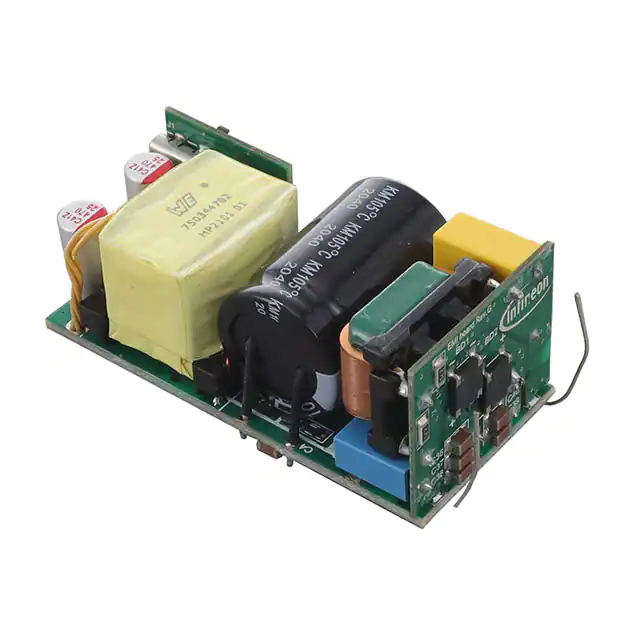

REFXDPS2108165W1TOBO1EVAL BOARD FOR XDPS21081 |
2,905 | 120.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 65 W | 5V, 9V, 12V, 15V, 20V | 3.25A, 3A | 90 ~ 265VAC | Flyback | 140kHz | Board(s) | XDPS21081 |
|
STR-FAN65004C-GEVBEVAL BOARD FOR FAN65004C |
3,302 | 130.68 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.57V ~ 5.25V | 6A | 4.5V ~ 65V | Buck | - | Board(s) | FAN65004C |
|
|
MAX16923EVKIT#EVAL BOARD FOR MAX16923 |
2,030 | 131.18 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX16923 |
|

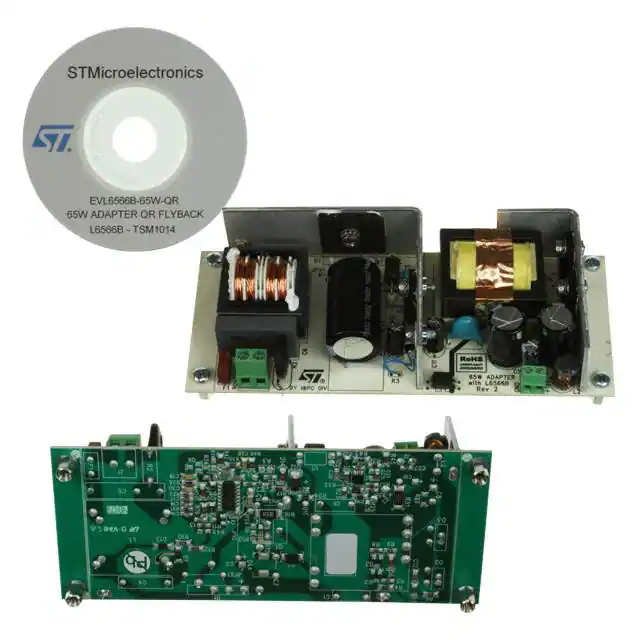

EVL6566B-65W-QREVAL BOARD FOR L6566B |
3,723 | 139.76 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19V | 3.42A | 90 ~ 264 VAC | Flyback | 165kHz | Board(s) | L6566B |
|

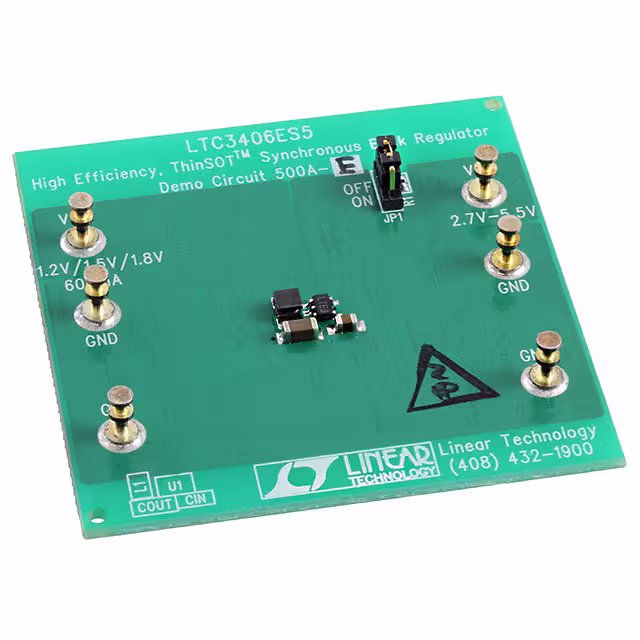

DC500A-EEVAL BOARD FOR LTC3406B1.5 |
4,435 | 110.35 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3406B-1.5 |
|

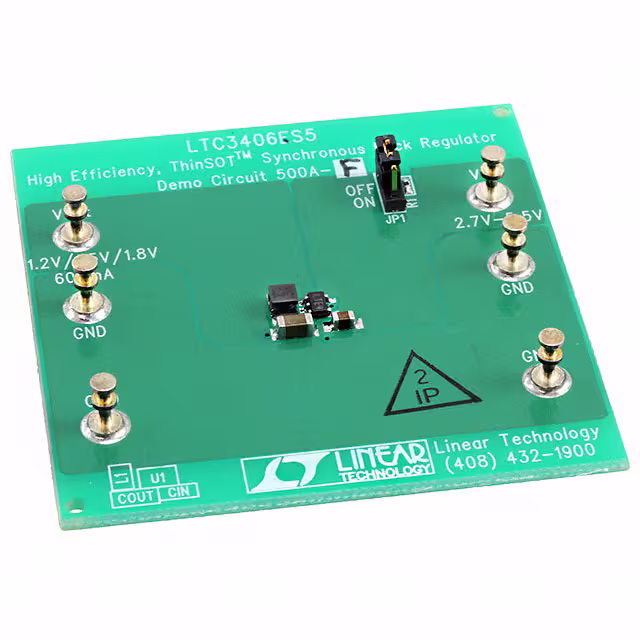

DC500A-FEVAL BOARD FOR LTC3406B1.8 |
3,087 | 110.35 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3406B-1.8 |
|
ISL9444EVAL1ZEVAL BOARD FOR ISL9444 |
1,128 | 122.50 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.05V, 1.8V, 3.3V | 6A, 6A, 6A | 6V ~ 20V | Buck | 600kHz | Board(s) | ISL9444 |
|

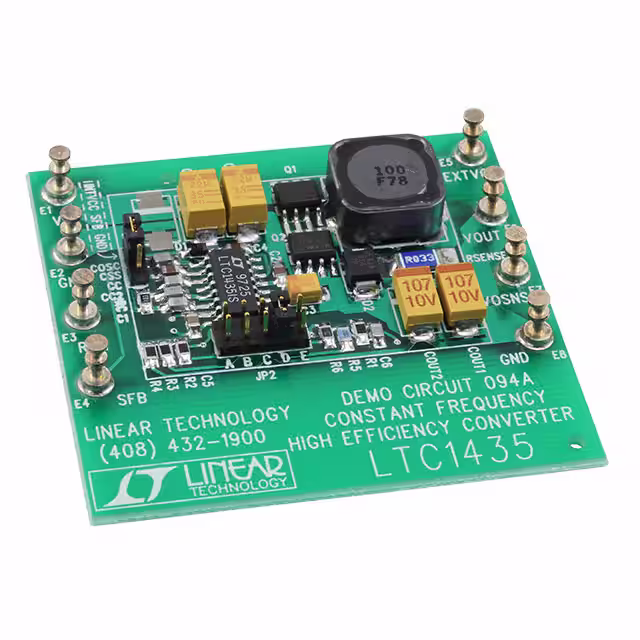

DC094AEVAL BOARD FOR LTC1435 |
4,323 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V, 2.9V, 3.3V or 5V | 3A | 4.5V ~ 28V | Buck | 170kHz | Board(s) | LTC1435 |
|
|
TPS61289EVM-113EVAL BOARD FOR TPS61289 |
4,879 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | 15A | 0.5V ~ 5V, 10V ~ 20V | Buck-Boost | 250kHz | Board(s) | TPS61289 |
|

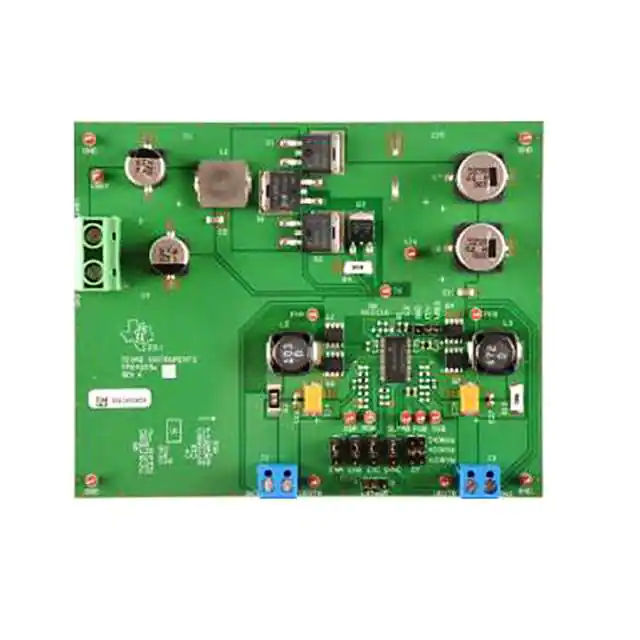

TPS43336EVMEVAL BOARD FOR TPS43336 |
1,422 | 118.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | - | 700mA, 700mA | 4V ~ 40V | Boost, Buck | 150kHz ~ 600kHz | Board(s) | TPS43336 |
|

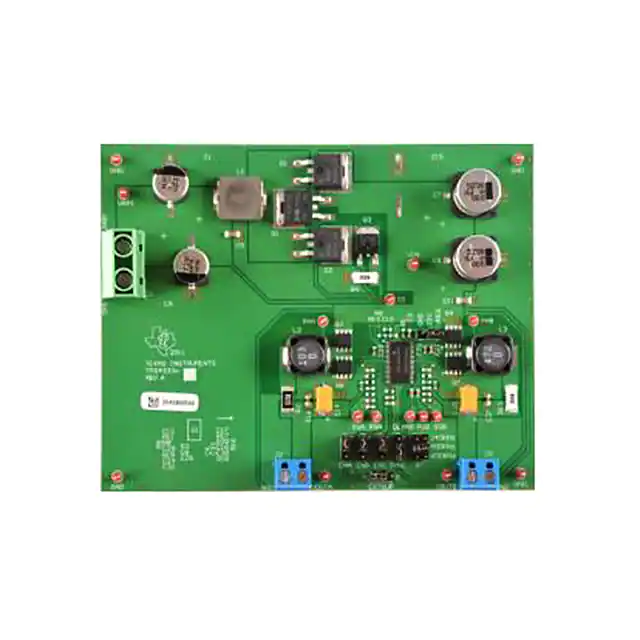

TPS43335EVMEVAL BOARD FOR TPS43335 |
1,777 | 118.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | - | 700mA, 700mA | 4V ~ 40V | Boost, Buck | 150kHz ~ 600kHz | Board(s) | TPS43335 |
|

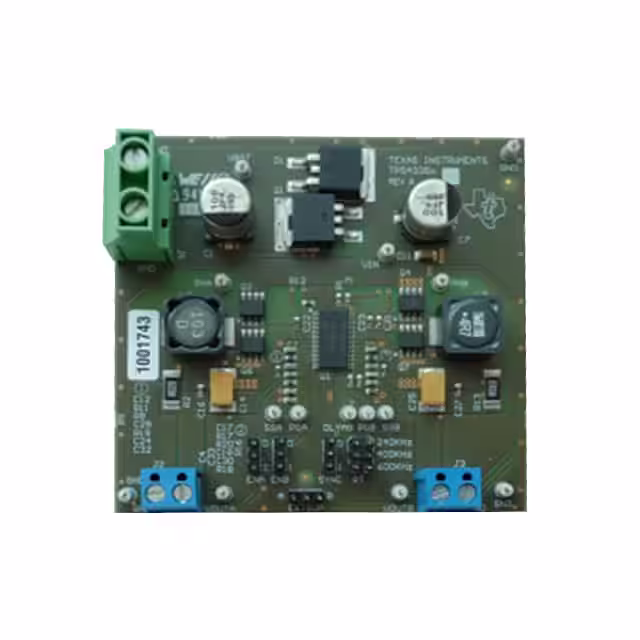

TPS43350EVMEVAL BOARD FOR TPS43350 |
3,719 | 118.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 4A | 4V ~ 40V | Buck | 240kHz, 400kHz, 600kHz | Board(s) | TPS43350 |
|

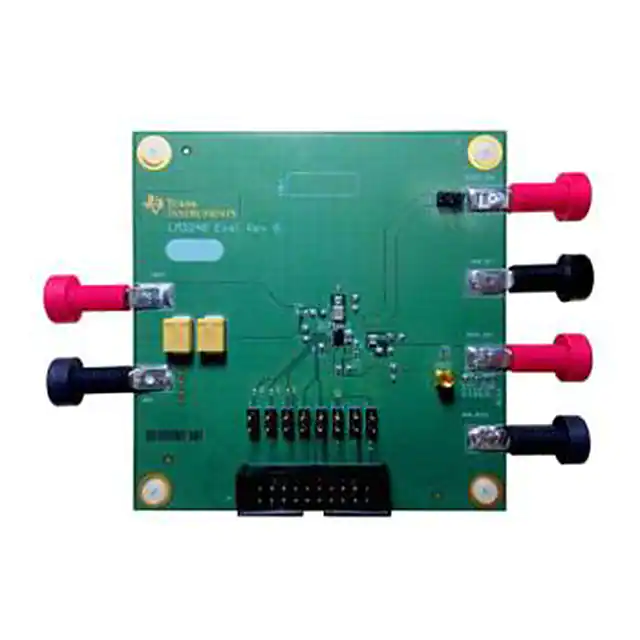

LM3248EVMEVAL BOARD FOR LM3248 |
3,279 | 118.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.4V ~ 4V | 2.5A | 2.7V ~ 5.5V | Boost, Buck | 2.7MHz | Board(s) | LM3248 |
|

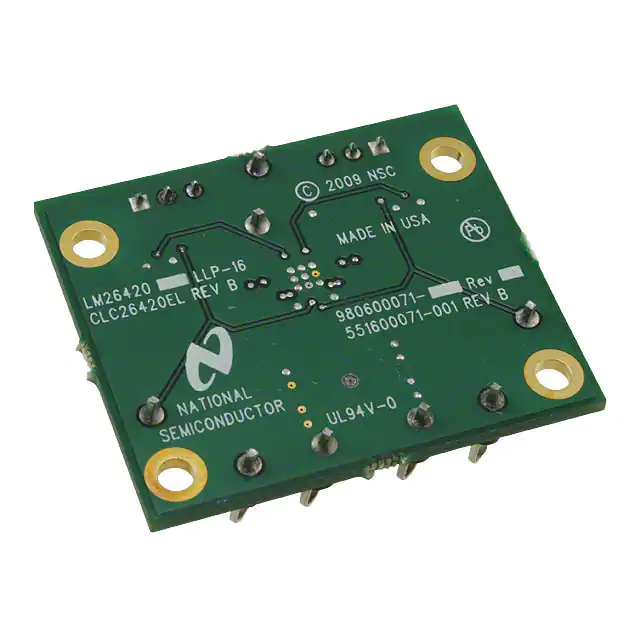

LM26420YSQEVAL/NOPBEVAL BOARD FOR LM26420 |
3,380 | 115.83 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 2A, 2A | 3V ~ 5.5V | Buck | 550kHz | Board(s) | LM26420 |
|

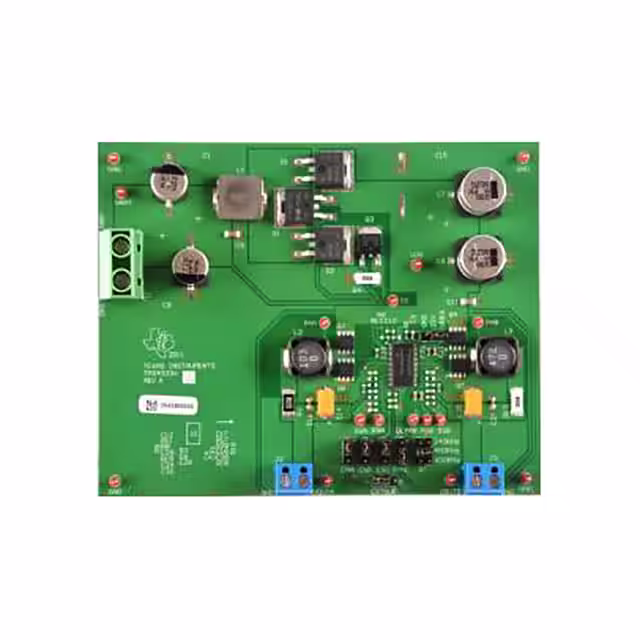

TPS43332EVMEVAL BOARD FOR TPS43332 |
4,518 | 118.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | - | 2V ~ 40V | Buck-Boost | 150kHz ~ 600kHz | Board(s) | TPS43332 |
|

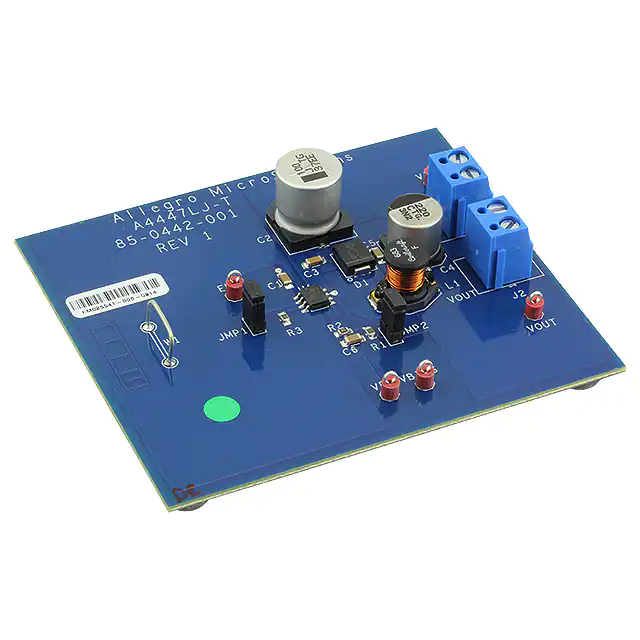

APEK4447SLJ-01-T-DKEVAL BOARD FOR A4447 |
3,448 | 125.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 24V | 2A | 8V ~ 50V | Buck | - | Board(s) | A4447 |
