DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

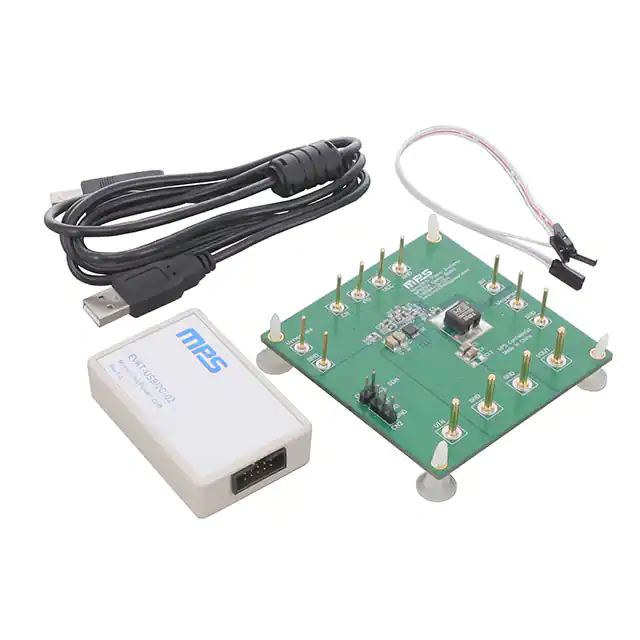

EVKT-8861EVAL BOARD FOR MP8861 |
4,486 | 95.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 2.85V ~ 18V | Buck | - | Board(s), Cable(s), Accessories | MP8861 |
|

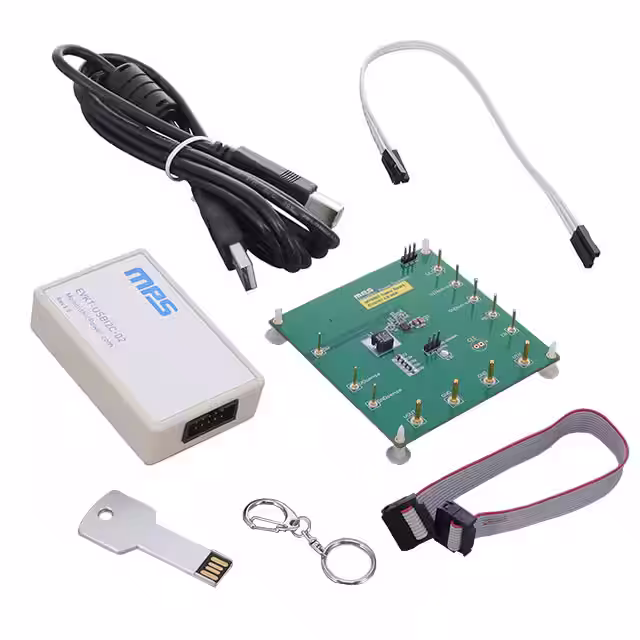

EVKT-8867EVAL BOARD FOR MP8867 |
1,127 | 95.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 8A | 4.5V ~ 21V | Buck | - | Board(s), Cable(s), Accessories | MP8867 |
|

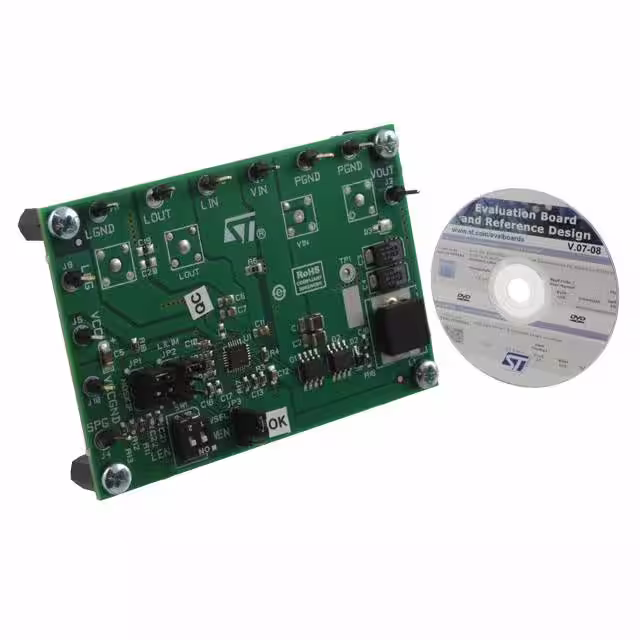

STEVAL-ISA052V1EVAL BOARD FOR PM6675 |
2,457 | 97.12 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 1.5V, 0.6V ~ 3.3V | 10A, 2A | 4.5V ~ 28V | Buck | - | Board(s) | PM6675 |
|

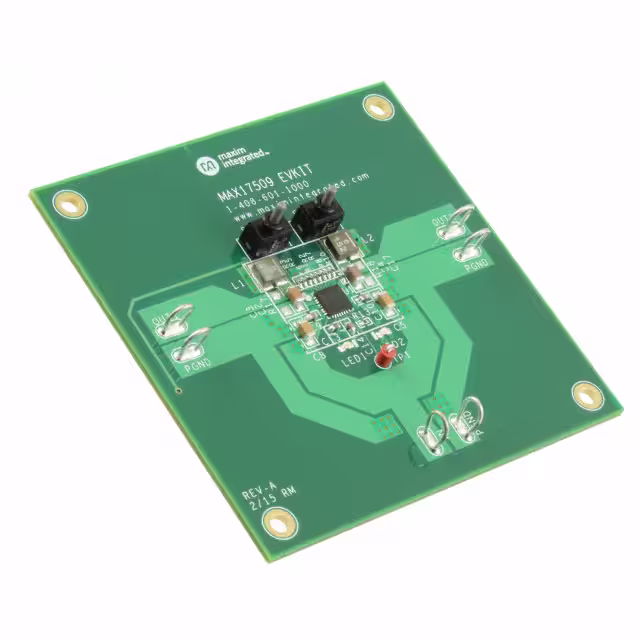

MAX17509EVKIT#EVAL BOARD FOR MAX17509 |
3,177 | 91.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 3A, 3A | 4.5V ~ 16V | Buck | 1MHz | Board(s) | MAX17509 |
|

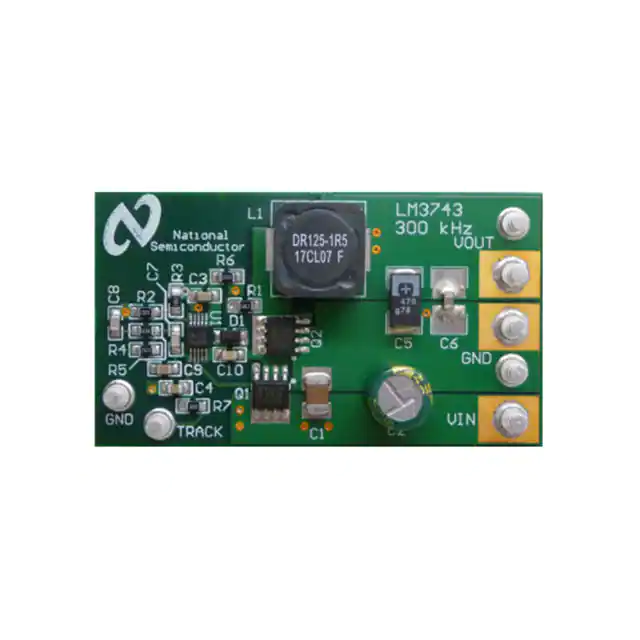

LM3743-300EVALEVAL BOARD FOR LM3743 |
2,215 | 94.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 13A | 3V ~ 5.5V | Buck | 300kHz | Board(s) | LM3743 |
|

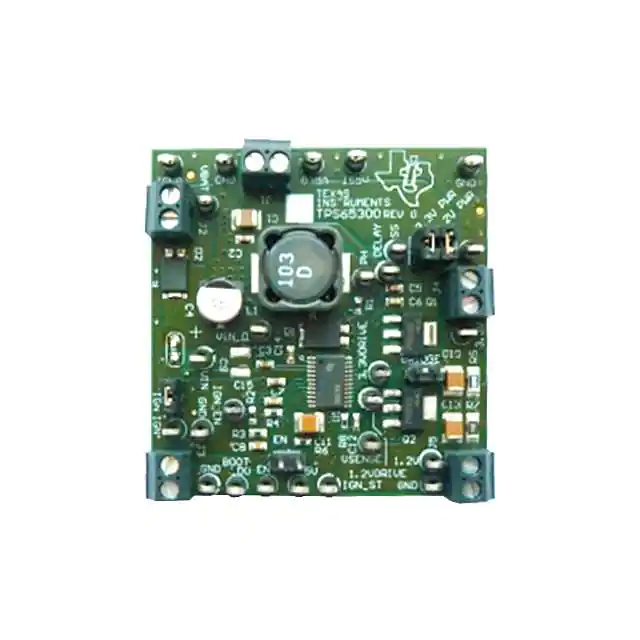

TPS65300EVMEVAL BOARD FOR TPS65300 |
1,427 | 94.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V, 5.3V | 1.2A, 300mA, 200mA, 100mA | 5.6V ~ 40V | Buck | 2.4MHz | Board(s) | TPS65300 |
|

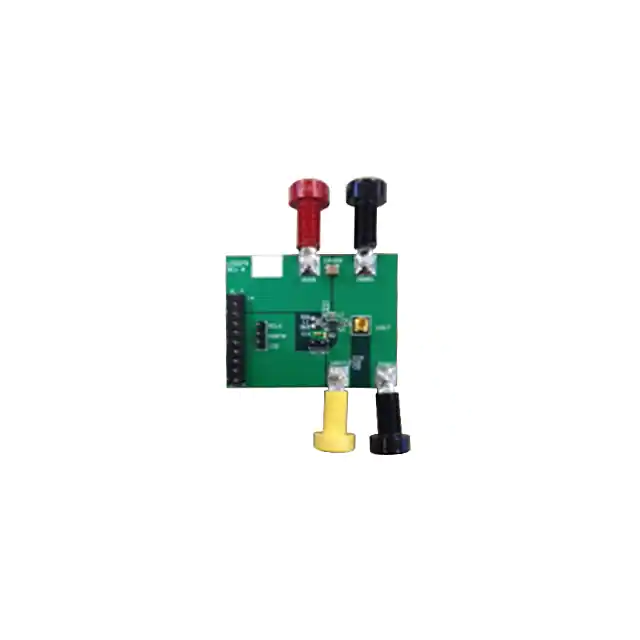

LM3279EVMEVAL BOARD FOR LM3279 |
2,026 | 94.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.4V ~ 4.2V | 1A | 2.7V ~ 5.5V | Buck-Boost | 2.4MHz | Board(s) | LM3279 |
|

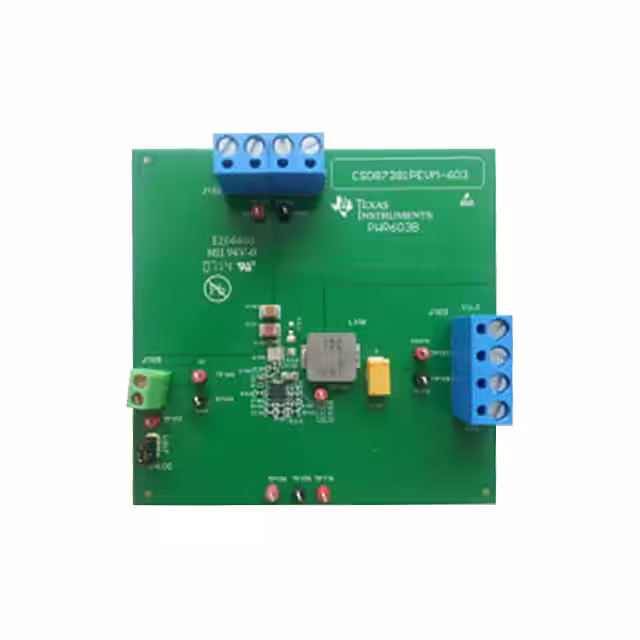

CSD87381PEVM-603EVAL BOARD CSD87381P TPS51219 |
2,280 | 94.80 |
|
Datasheet |
NexFET™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.35V | 15A | 8V ~ 20V | Buck | 300kHz | Board(s) | CSD87381P, TPS51219 |
|
LM3100EVALEVAL BOARD FOR LM3100 |
3,505 | 94.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 8V ~ 36V | Buck | 250kHz | Board(s) | LM3100 |
|
RDK-919QEVAL BOARD FOR INN3949CQ |
1,821 | 93.75 |
|
Datasheet |
InnoSwitch™3-AQ | Box | Obsolete | DC/DC Converter | 1 Isolated Output | 60 W | 24V | 2.5A | 50V ~ 1000V | Flyback | - | Board(s) | INN3949CQ |
|
IW1818-EVALEVAL BOARD FOR IW181800 |
3,487 | 100.00 |
|
- |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2A | 90 ~ 264 VAC | Flyback | 72kHz | Board(s) | iW1818-00 |
|
DC326BEVAL BOARD FOR LT1766 |
2,995 | 100.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 5.5V ~ 60V | Buck | 200kHz | Board(s) | LT1766 |
|
NDM2Z-50HT-DEMO-DEVAL BOARD FOR NDM2Z50 |
1,067 | 99.47 |
|
Datasheet |
Novum® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 165 W | 1.2V | 50A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-50 |
|
NDM2Z-25HT-DEMO-DEVAL BOARD FOR NDM2Z25 |
3,100 | 100.41 |
|
Datasheet |
Novum® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 82.5 W | 1.2V | 25A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-25 |
|
REF5BR4780BZ15W1TOBO1EVAL BOARD FOR ICE5BR4780BZ |
2,824 | 110.00 |
|
Datasheet |
CoolSET™ | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 3 Non-Isolated Outputs | 15 W | 5V, 12V, 15V | 800mA, 300mA, 150mA | 85 ~ 264 VAC | Flyback | - | Board(s) | ICE5BR4780BZ |
|
|
REF5AR2280CZ22W1TOBO1EVAL BOARD FOR ICE5AR2280CZ |
1,748 | 110.00 |
|
Datasheet |
CoolSET™ | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 3 Isolated Outputs | 22 W | 5V, 12V, 15V | 1.4A, 300mA, 150mA | 85 ~ 264 VAC | Flyback | - | Board(s) | ICE5AR2280CZ |
|

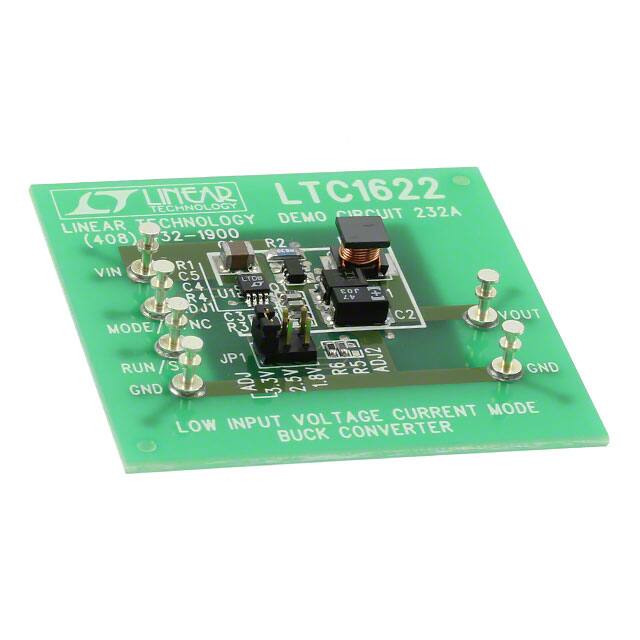

DC232AEVAL BOARD FOR LTC1622 |
3,458 | 92.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 800mA | 2V ~ 8.5V | Buck | - | Board(s) | LTC1622 |
|

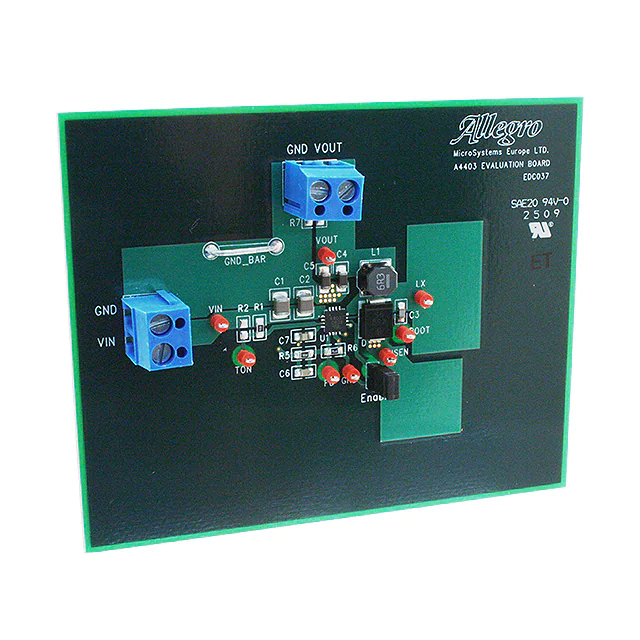

APEK4403GEU-01-T-DKEVAL BOARD FOR A4403 |
3,270 | 106.25 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 9V ~ 46V | Buck | - | Board(s) | A4403 |
|

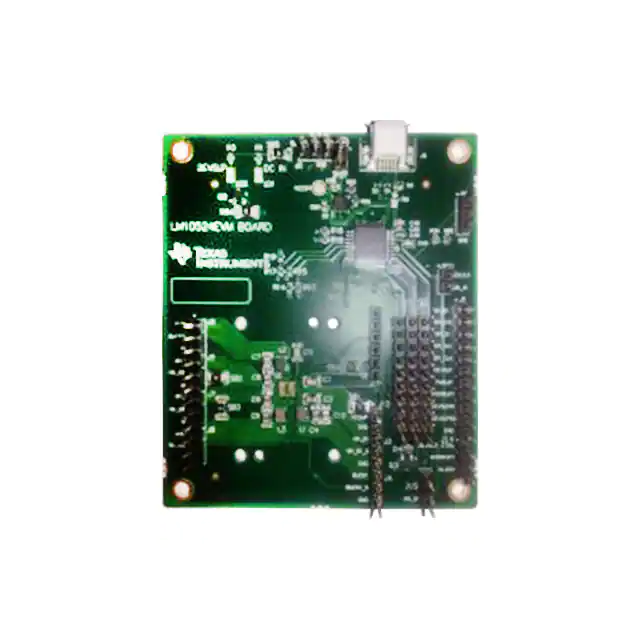

LM10524EVMEVAL BOARD FOR LM10524 |
3,491 | 101.93 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | 2.5A, 1.6A, 1A | 3V ~ 5.5V | Buck | 2MHz | Board(s), Cable(s) | LM10524 |
|

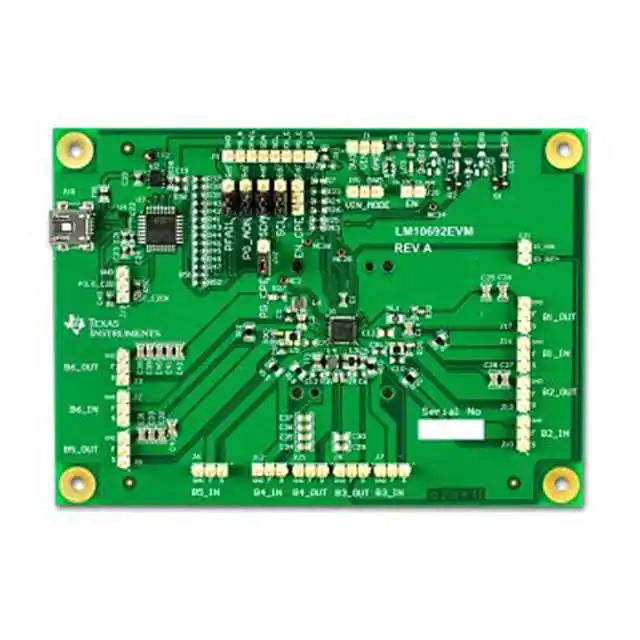

LM10692EVMEVAL BOARD FOR LM10692 |
4,172 | 101.93 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 6 Non-Isolated Outputs | - | - | 2.5A, 2.5A, 2.5A, 800mA, 200mA, 200mA | 2.5V ~ 4V | Buck | 2MHz | Board(s), Cable(s) | LM10692 |
