DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

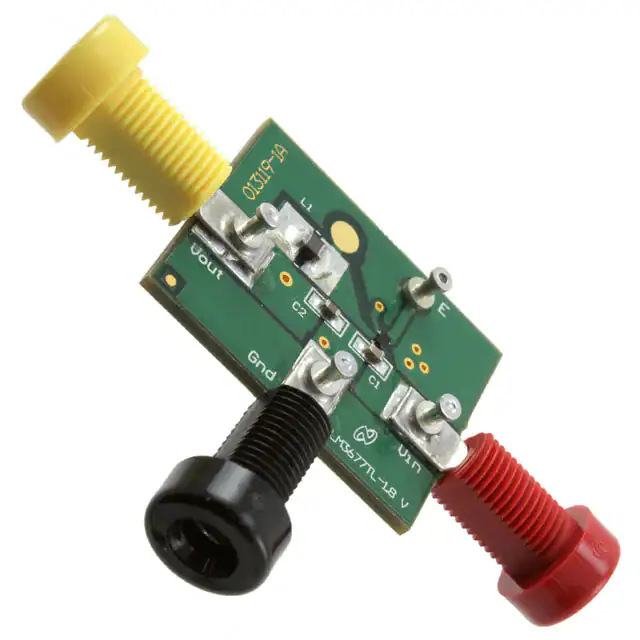

LM3677TL-1.8EVEVAL BOARD FOR LM3677 |
1,949 | 120.92 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | LM3677 |
|
LM3677LE-1.8EVEVAL BOARD FOR LM3677 |
4,481 | 120.92 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 600mA | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | LM3677 |
|
STEVAL-ISA122V1EVAL BOARD FOR VIPER27 |
4,237 | 128.75 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 11 W | 5V | 2.2A | 90 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer27 |
|
DEMOBOARDTLE73683ETOBO1EVAL BOARD FOR TLE73683E |
2,349 | 129.38 |
|
Datasheet |
OPTIREG™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | 1.3V, 2.6V, 3.3V, 5V, 5V, 5V | 800mA, 700mA, 105mA, 70mA, 50mA, 30mA | 4.5V ~ 45V | Buck | 370kHz | Board(s) | TLE7368-3E |
|
EVALQRSICE2QS03GTOBO1EVAL BOARD FOR ICE2QS03G |
2,688 | 150.00 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 36 W | 12V | 3A | 85 ~ 265 VAC | Flyback | 38kHz | Board(s) | ICE2QS03G |
|

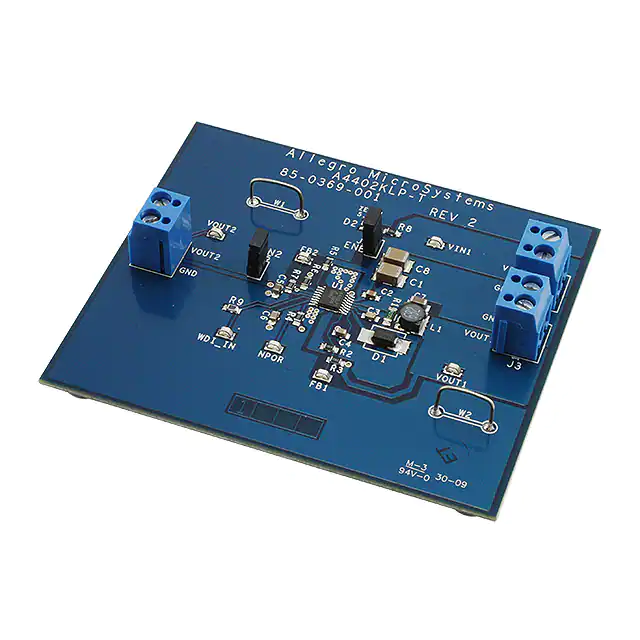

APEK4402KLP-01-T-DKEVAL BOARD FOR A4402 |
3,557 | 131.99 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | - | - | 6V ~ 50V | Buck | 2MHz | Board(s) | A4402 |
|

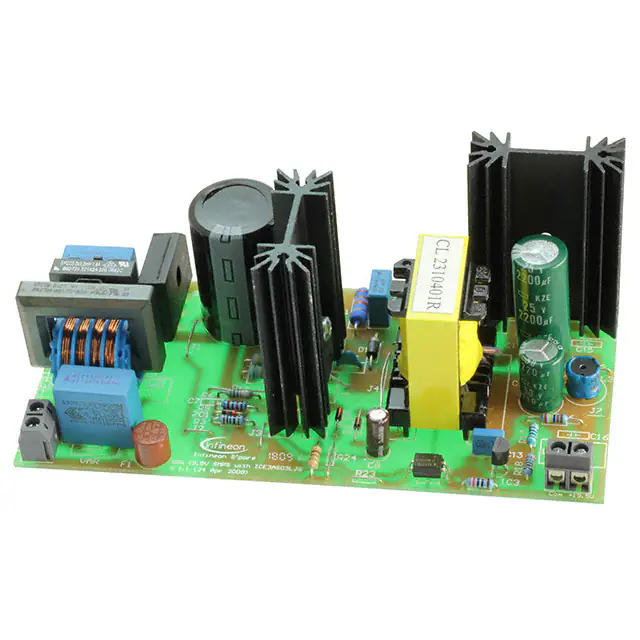

EVALSF3ICE3AS03LJGTOBO1EVAL BOARD FOR ICE3AS03LJG |
4,747 | 137.50 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19.5V | 3.34A | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE3AS03LJG |
|
EVAL3GS03LJGTOBO1EVAL BOARD FOR ICE3GS03LJG |
2,915 | 137.50 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19.5V | 3.34A | 85 ~ 265 VAC | Flyback | 130kHz | Board(s) | ICE3GS03LJG |
|

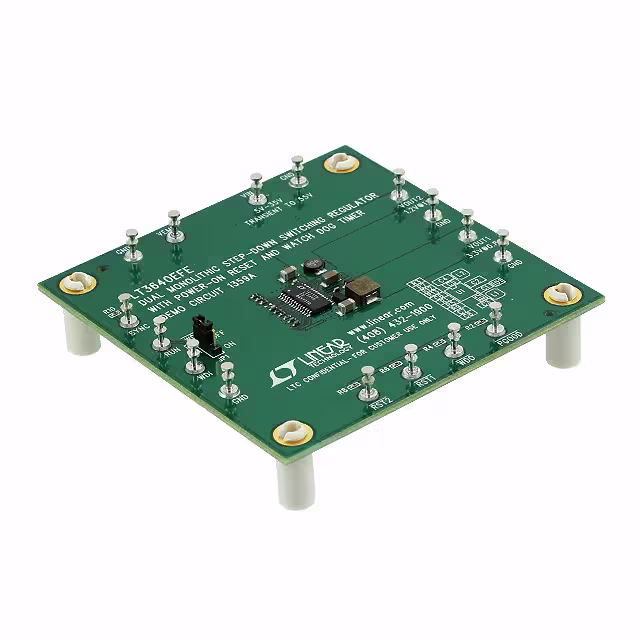

DC1359AEVAL BOARD FOR LT3640 |
2,095 | 137.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 1A, 800mA | 5V ~ 35V | Buck | 2MHz | Board(s) | LT3640 |
|
STR-NCP3235-EVKEVAL BOARD FOR NCP3235 |
1,411 | 140.54 |
|
Datasheet |
Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 4.5V ~ 23V | Buck | - | Board(s) | NCP3235 |
|
DC140A-AEVAL BOARD FOR LTC1436PLL |
3,772 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 100mA | 5.5V ~ 28V | Buck | 170kHz | Board(s) | LTC1436-PLL |
|

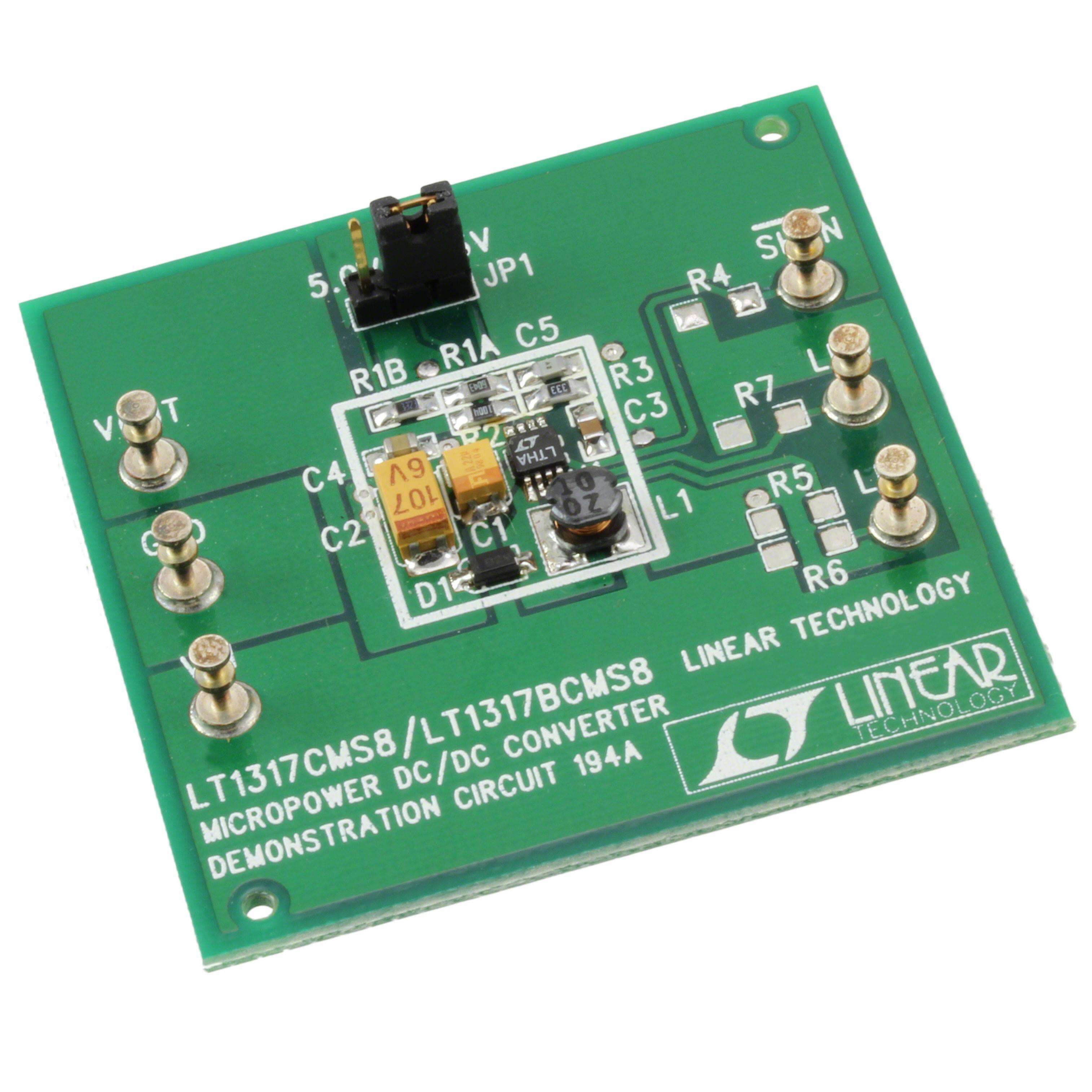

DC194A-AEVAL BOARD FOR LT1317 |
1,626 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 320mA | 1.5V ~ 5.3V | Boost | 600kHz | Board(s) | LT1317 |
|

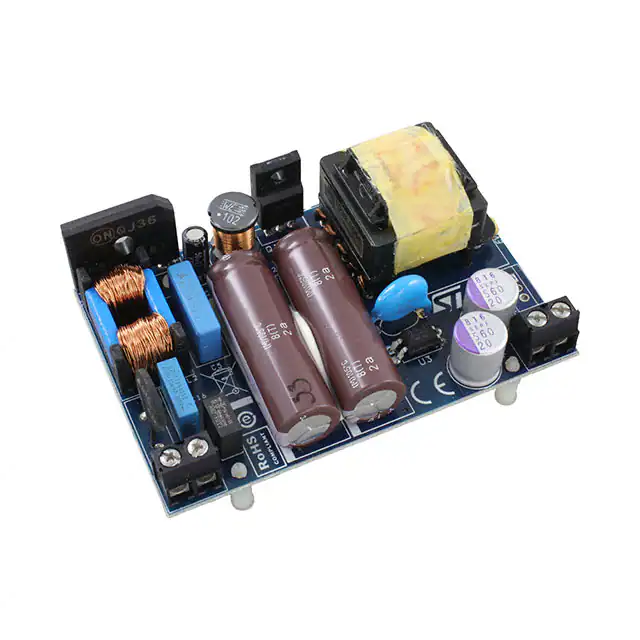

EVAL-STCH03-45WEVAL BOARD FOR STCH03 |
3,816 | 166.38 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 45 W | 12V | 3.75A | 90 ~ 265VAC | Flyback | 154kHz | Board(s) | STCH03 |
|

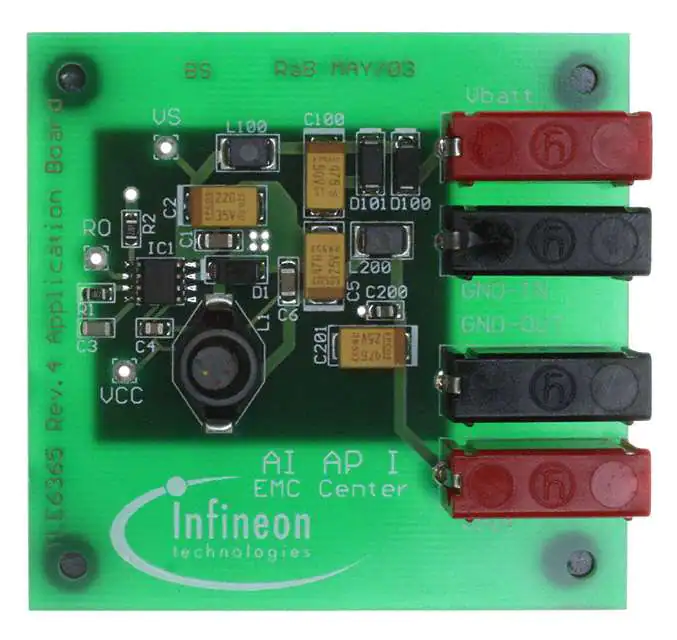

DEMOBOARD TLE 6365 GEVAL BOARD FOR TLE6365 |
3,343 | 139.42 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 5V ~ 35V | Buck | - | Board(s) | TLE6365 |
|

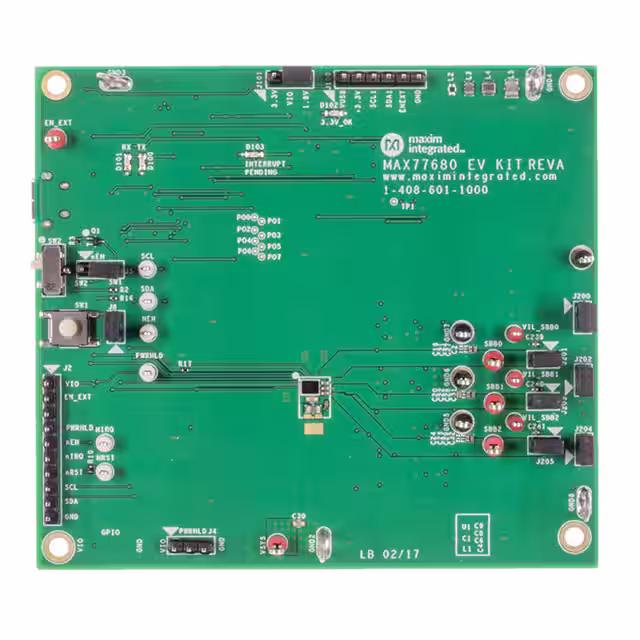

MAX77681EVKIT#EVAL BOARD FOR MAX77681 |
1,202 | 139.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77681 |
|
RTKA2108502H00000BUEVAL BOARD FOR RAA210850 |
1,564 | 150.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 4.5V ~ 12V | Buck | 421kHz | Board(s), Cable(s) | RAA210850 |
|
MAX15049EVKIT+EVAL BOARD FOR MAX15049 |
4,243 | 153.04 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 6A, 3A, 3A | 5V ~ 16V | Buck | 500kHz | Board(s) | MAX15049 |
|
DC236C-CEVAL BOARD FOR LTC1628 |
3,213 | 153.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 4A, 4A, 50mA, 25mA | 5.2V ~ 30V | Buck | 300kHz | Board(s) | LTC1628 |
|

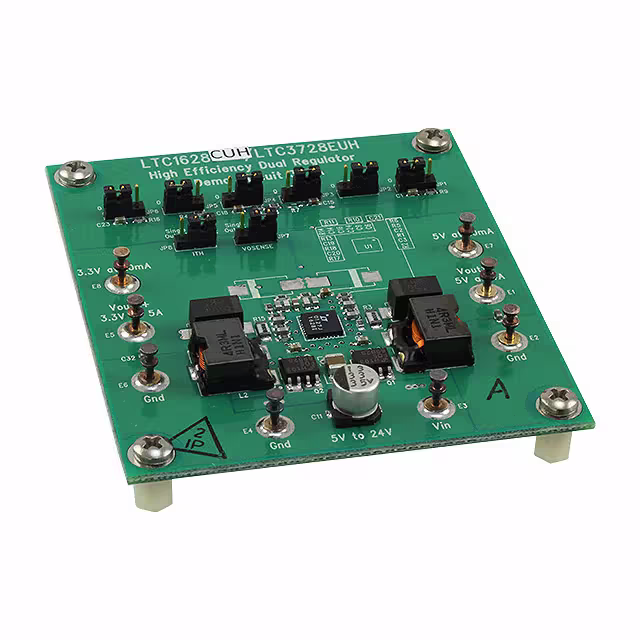

DC392A-AEVAL BOARD FOR LTC1628 |
2,375 | 153.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 4A | 5V ~ 24V | Buck | - | Board(s) | LTC1628 |
|

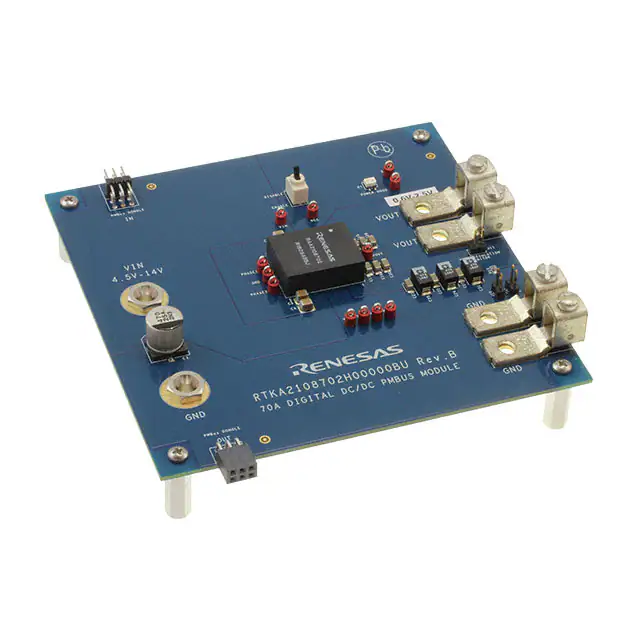

RTKA2108702H00000BUEVAL BOARD FOR RAA210870 |
1,234 | 156.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.93V | 70A | 4.5V ~ 12V | Buck | 320kHz | Board(s), Cable(s) | RAA210870 |
