DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

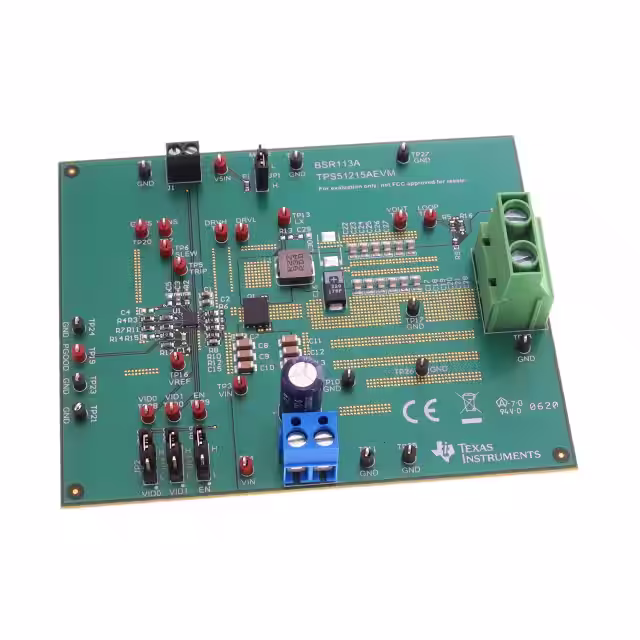

TPS51215AEVMEVAL BOARD FOR TPS51215A |
4,864 | 58.80 |
|
Datasheet |
D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0V, 1.1V, 1.65V or 1.77V | 30A | 5V ~ 24V | Buck | 600kHz | Board(s) | TPS51215A |
|

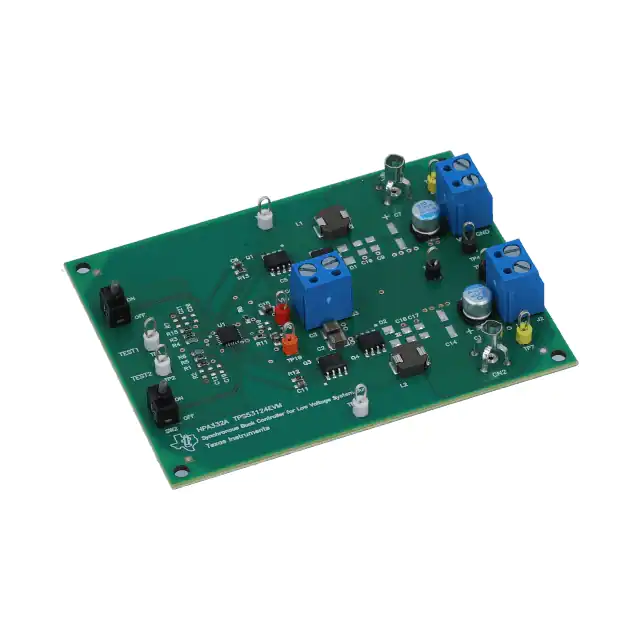

TPS53124EVMEVAL BOARD FOR TPS53124 |
1,043 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.05V, 1.8V | 4A, 4A | 5V ~ 22V | Buck | 280kHz, 360kHz | Board(s) | TPS53124 |
|

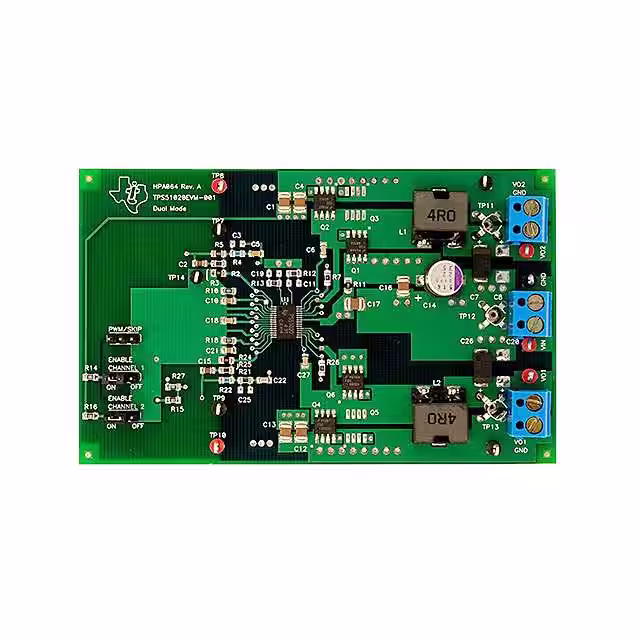

TPS51020EVM-001EVAL BOARD FOR TPS51020 |
3,632 | 58.80 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 6A, 6A | 8V ~ 20V | Buck | 300kHz | Board(s) | TPS51020 |
|

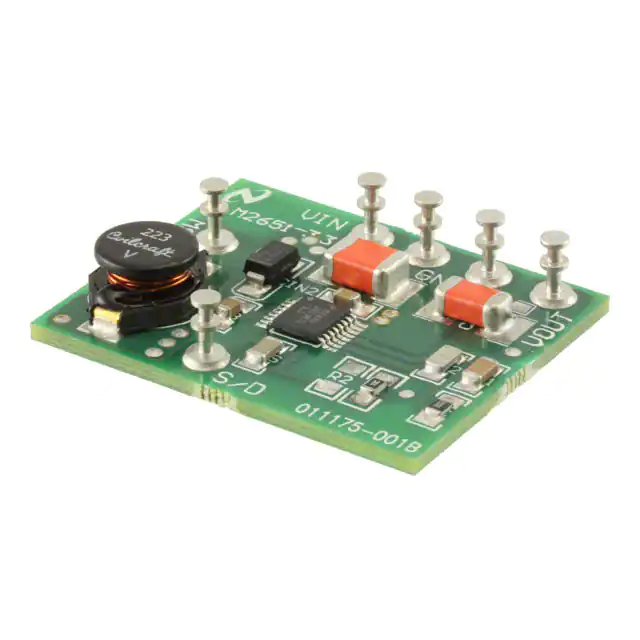

LM2651-3.3EVAL/NOPBEVAL BOARD FOR LM2651 |
4,117 | 30.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 14V | Buck | 300kHz | Board(s) | LM2651 |
|

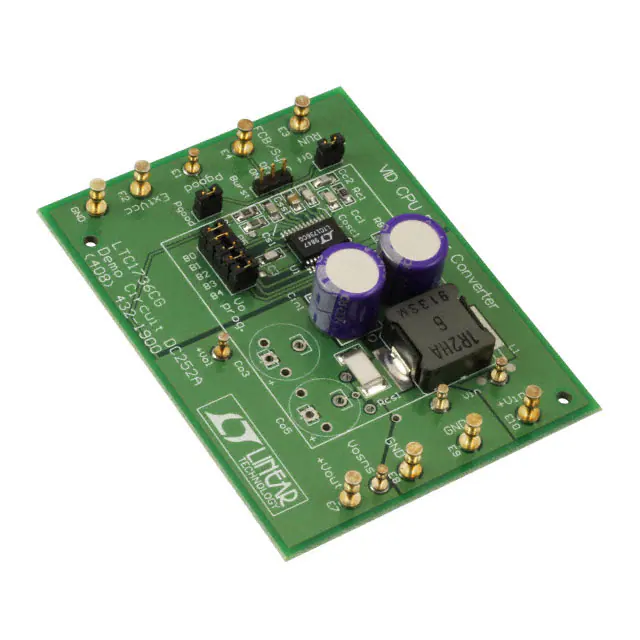

DC252AEVAL BOARD FOR LTC1736 |
4,995 | 184.58 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 2V | 12A | 5V ~ 24V | Buck | 270kHz | Board(s) | LTC1736 |
|

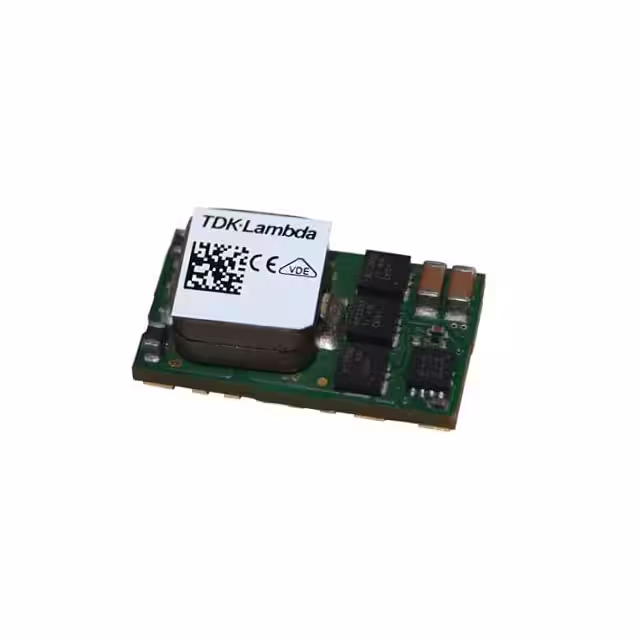

IJA35A-001-EVKIT-S1EVAL BOARD FOR IJA12035 |
2,745 | 250.00 |
|
- |
iJA | Box | Obsolete | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 3.3V | 35A | 8V ~ 14V | - | - | Board(s), Cable(s) | iJA12035 |
|

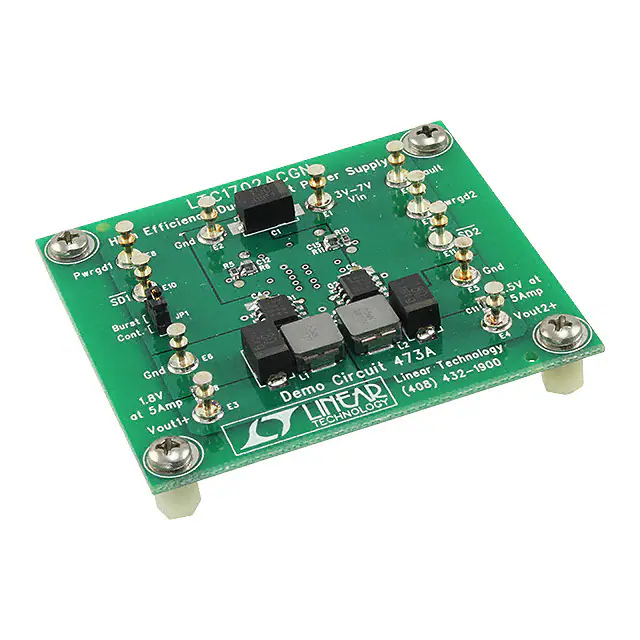

DC473AEVAL BOARD FOR LTC1702A |
2,276 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 5A, 5A | 3V ~ 7V | Buck | 550kHz | Board(s) | LTC1702A |
|

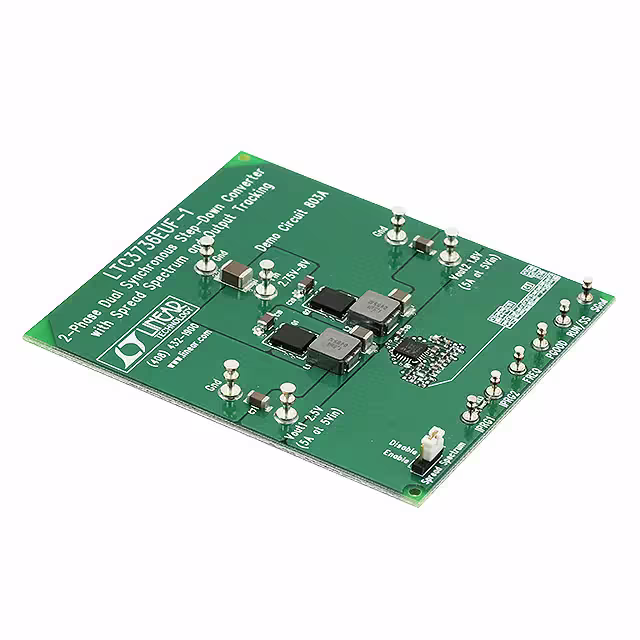

DC803AEVAL BOARD FOR LTC37361 |
3,395 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 5A, 5A | 2.75V ~ 8V | Buck | 550kHz | Board(s) | LTC3736-1 |
|

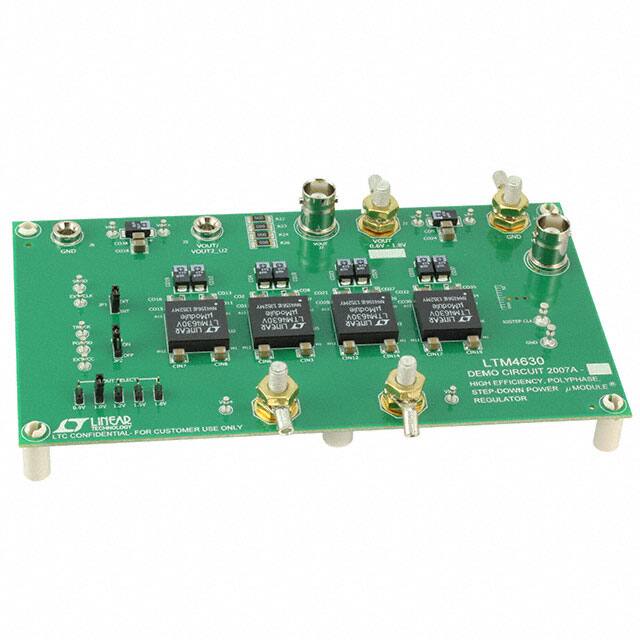

DC2007A-CEVAL BOARD FOR LTM4630 |
1,150 | 242.76 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 140A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630 |
|

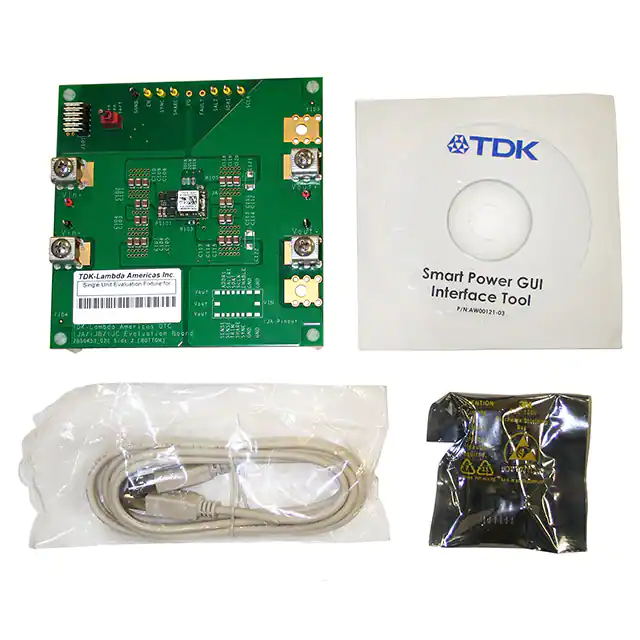

IJB60A-003-EVKIT-S1EVAL BOARD FOR IJB |
2,563 | 255.00 |
|
Datasheet |
iJB | Box | Obsolete | DC/DC Converter | - | - | - | - | - | - | - | Board(s) | iJB |
|
LP875761Q1EVMEVAL BOARD FOR LP875761Q1 |
2,188 | 238.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 16A | 3.3V, 5V | Buck | 3.4MHz | Board(s), Cable(s) | LP875761-Q1 |
|

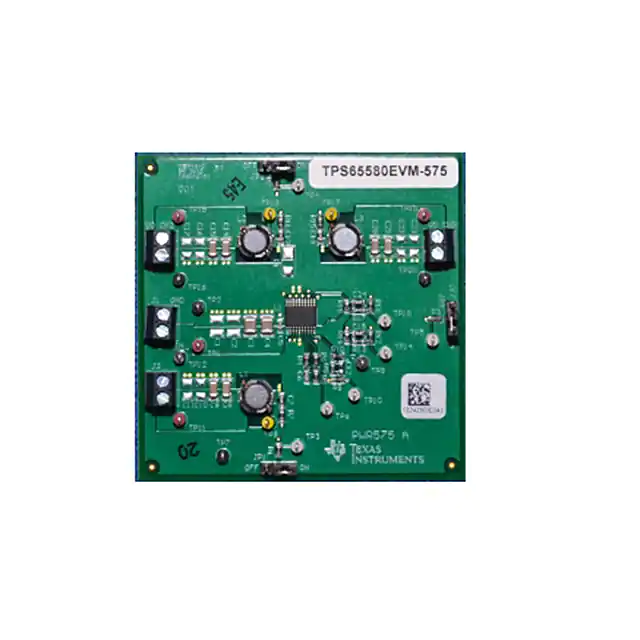

TPS65580EVM-575EVAL BOARD FOR TPS65580 |
1,829 | 30.00 |
|
Datasheet |
D-CAP2™ | Box | Obsolete | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.5V, 3.3V | 2A, 1.5A, 1.5A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS65580 |
|
LP87321Q1EVMEVAL BOARD FOR LP87322ERHDRQ1 |
4,525 | 232.83 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 2A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP87322ERHDRQ1 |
.jpg)
|

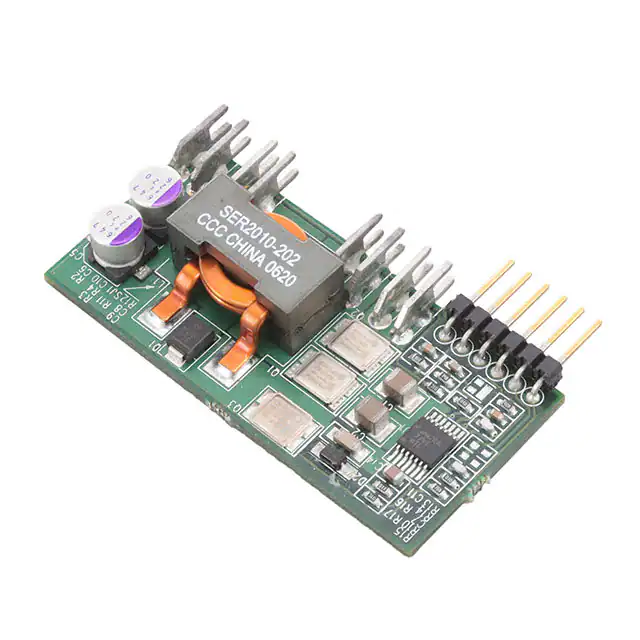

LM2745-19AEVALEVAL BOARD FOR LM2745 |
4,368 | 90.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 3.3V | 19A | 8V ~ 14V | Buck | 300kHz | Board(s) | LM2745 |
|
MAX15158AEVKIT#EVAL BOARD FOR MAX15158A |
2,810 | 238.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | - | Boost, Inverting | - | Board(s) | MAX15158A |
|

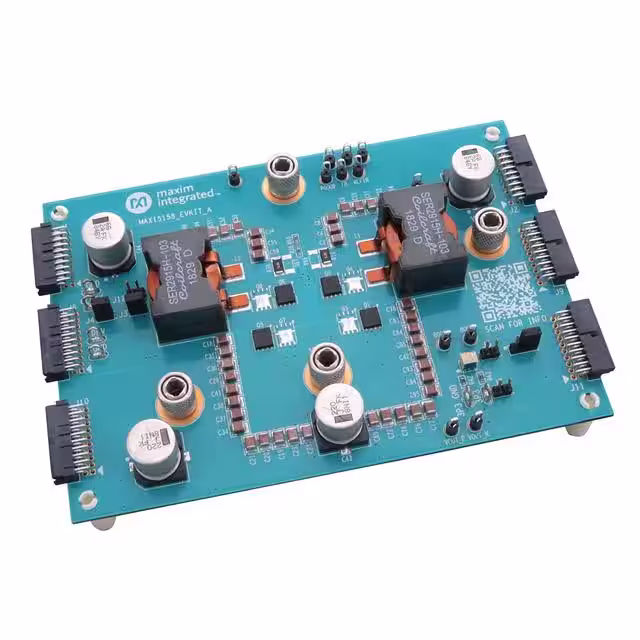

MAX15158EVKIT#EVAL BOARD FOR MAX15158 |
1,148 | 238.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | - | Boost, Inverting | - | Board(s) | MAX15158 |
|

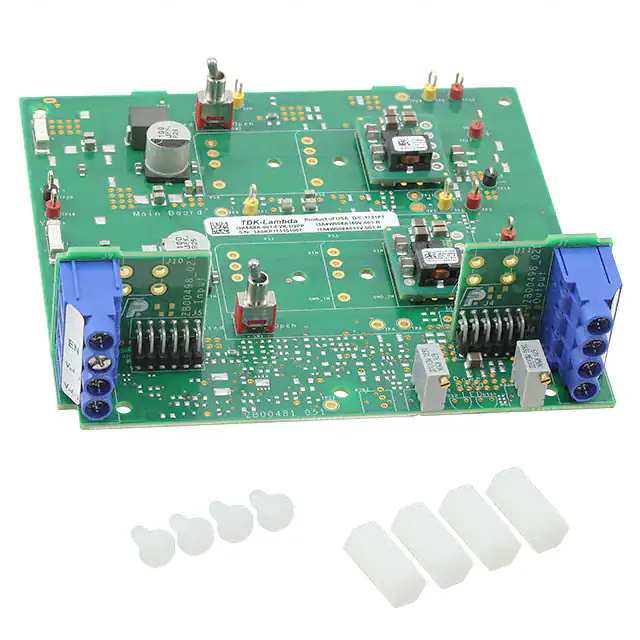

I3A5A8A-001-EVK-D2PPEVAL BOARD FOR I3A4W005A150V |
3,639 | 243.71 |
|
Datasheet |
i3A | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | 100 W | 3.3V ~ 30V | 4.5A, 8A | 9V ~ 53V | Buck | 450kHz | Board(s) | I3A4W005A150V, I3A4W008A033V |
|

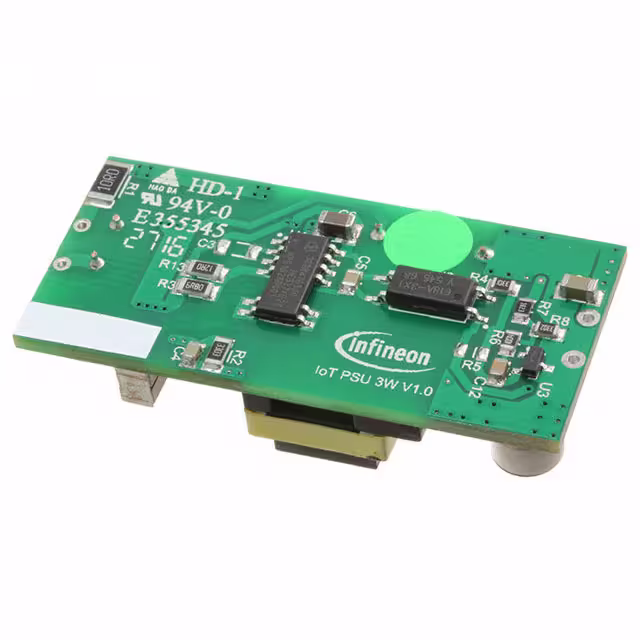

REF3WIOTCOOLSETTOBO1EVAL BOARD FOR ICE3RBR4765JG |
2,987 | 270.00 |
|
Datasheet |
CoolMOS™, CoolSET™ | Bulk | Not For New Designs | AC/DC, Secondary Side | 1 Isolated Output | 3 W | 5V | 600mA | 180 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE3RBR4765JG |
|

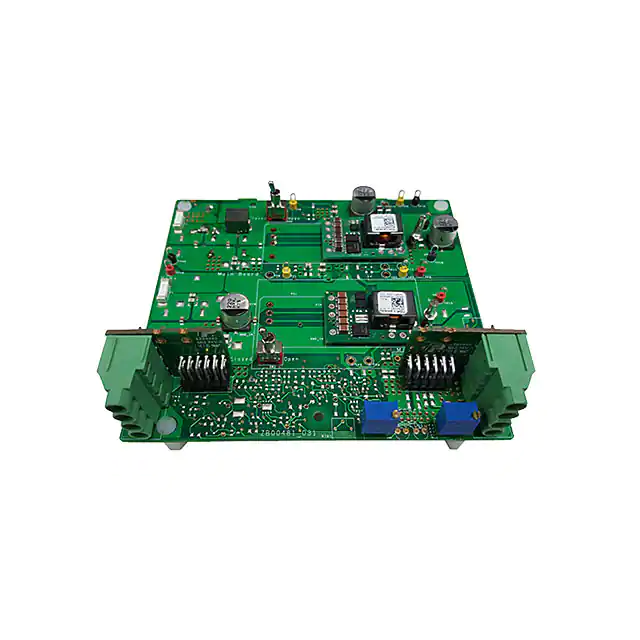

I6A14A-001-EVK-D2PNEVAL BOARD FOR I6A I6AN |
1,278 | 265.86 |
|
Datasheet |
- | Box | Obsolete | DC/DC Converter | 2 Non-Isolated Outputs | - | - | 14A, 8A | 9V ~ 40V | - | - | Board(s) | i6A, i6AN |
|
TSW2200EVMEVAL BOARD FOR TPS40055 TPS76XX |
1,751 | 298.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 6 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V, -5V, 0.8V ~ 6V | 1A, 1A, 1A, 1A, 1A, 360mA | 10V ~ 20V | Buck | - | Board(s) | TPS40055, TPS76xx, UCD90120A |
