DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

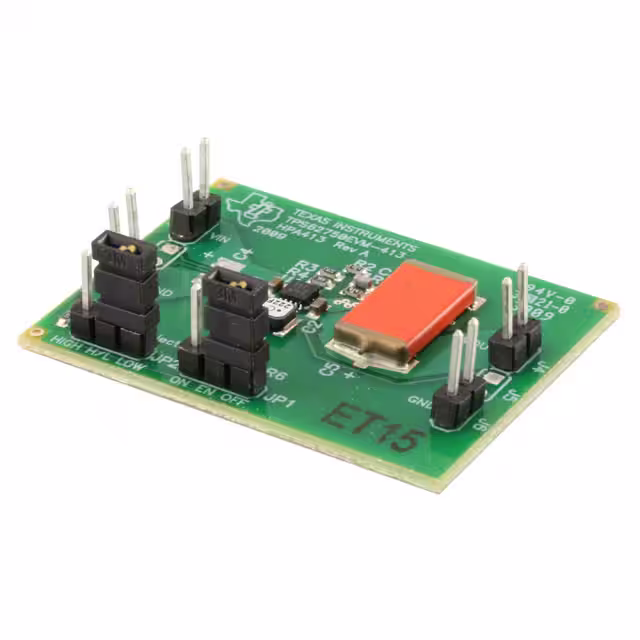

TPS62750EVM-413EVAL BOARD FOR TPS62750 |
4,032 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.6V | 2A | 3.6V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62750 |
|

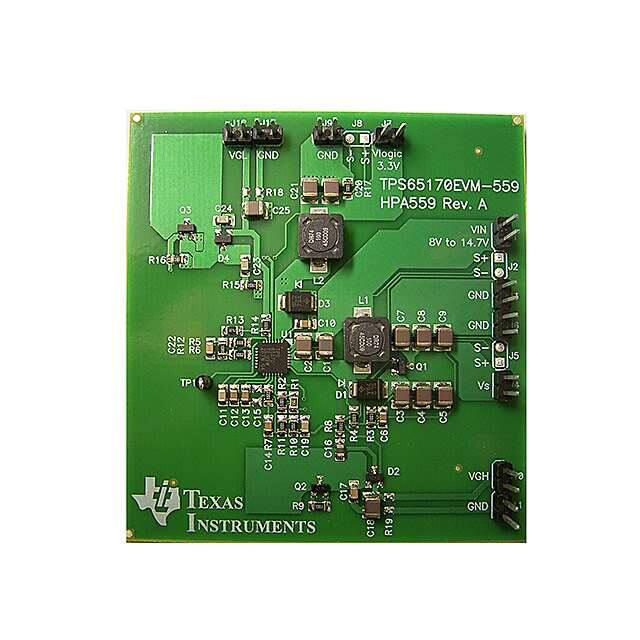

TPS65170EVM-559EVAL BOARD FOR TPS65170 |
1,445 | 58.80 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 3.3V, 15.6V, 26V, -7V | 1.7A, 1.5A, 50mA, 50mA | 8V ~ 14.7V | Buck-Boost | 750kHz | Board(s) | TPS65170 |
|

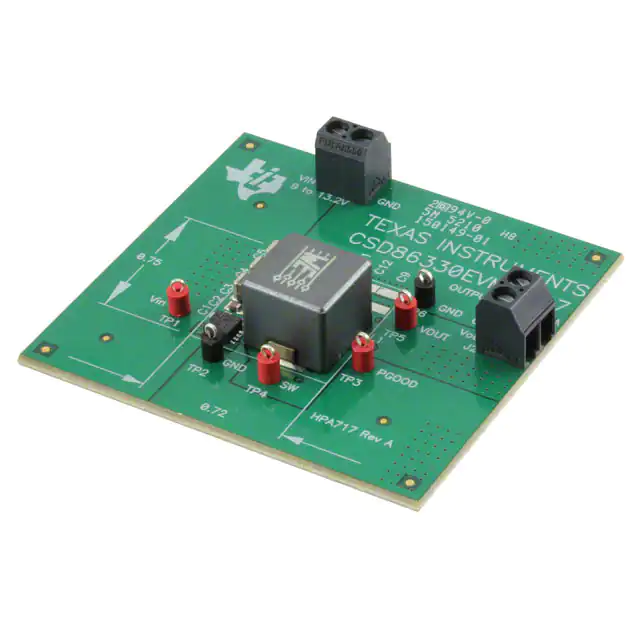

CSD86330EVM-717EVAL BOARD FOR CSD86330 TPS53219 |
2,129 | 58.80 |
|
Datasheet |
NexFET™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 5A | 9V ~ 13.2V | Buck | 500kHz | Board(s) | CSD86330, TPS53219 |
|

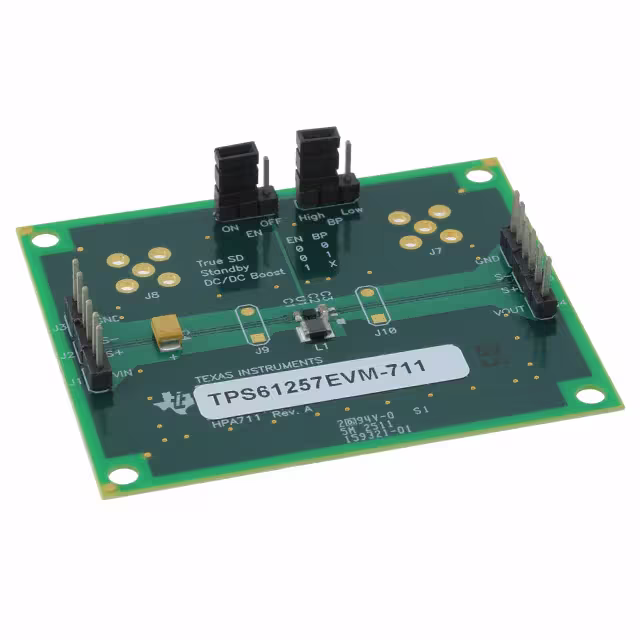

TPS61257EVM-711EVAL BOARD FOR TPS61257 |
1,311 | 57.33 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5.5V | 700mA | 2.3V ~ 5.5V | Boost | 3.5MHz | Board(s) | TPS61257 |
|

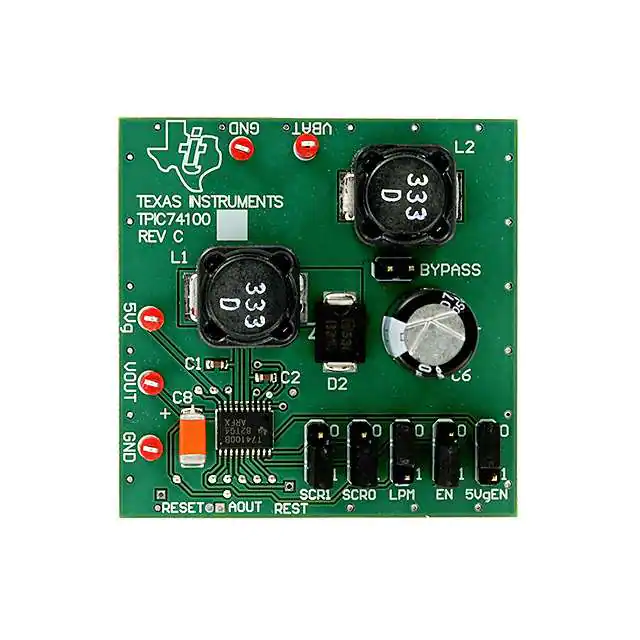

TPIC74101EVMEVAL BOARD FOR TPIC74101 |
3,167 | 57.33 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | 1.5V ~ 40V | Buck-Boost | 380kHz | Board(s) | TPIC74101 |
|

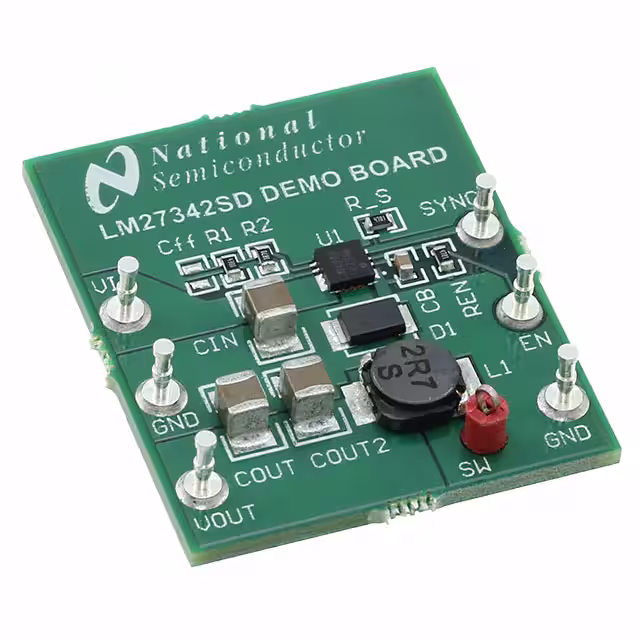

LM27342SDEVALEVAL BOARD FOR LM27342 |
2,901 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 5V ~ 20V | Buck | 2MHz | Board(s) | LM27342 |
|
LM3241TLEVAL/NOPBEVAL BOARD FOR LM3241 |
4,006 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.4V | 750mA | 2.7V ~ 5.5V | Buck | 6MHz | Board(s) | LM3241 |
|

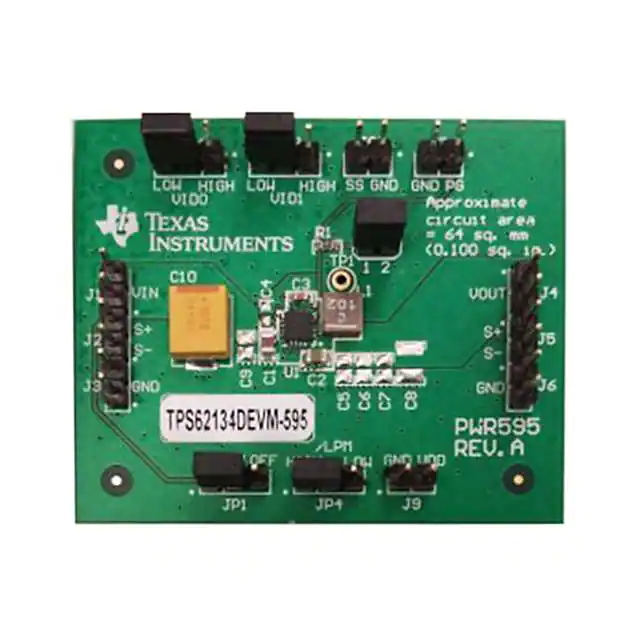

TPS62134DEVM-595EVAL BOARD FOR TPS62134D |
2,329 | 57.33 |
|
Datasheet |
DCS-Control™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V ~ 1V | 3.2A | 3V ~ 17V | Buck | - | Board(s) | TPS62134D |
|

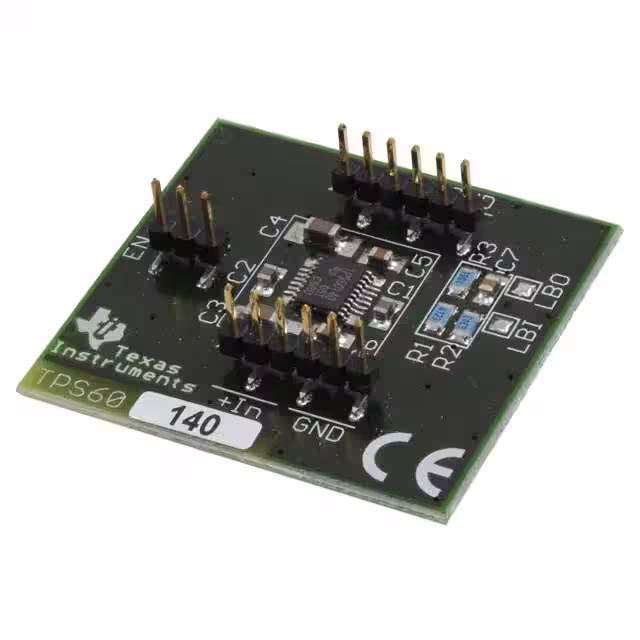

TPS60140EVM-144EVAL BOARD FOR TPS60140 |
4,669 | 58.80 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 100mA | 1.8V ~ 3.6V | Boost | - | Board(s) | TPS60140 |
|

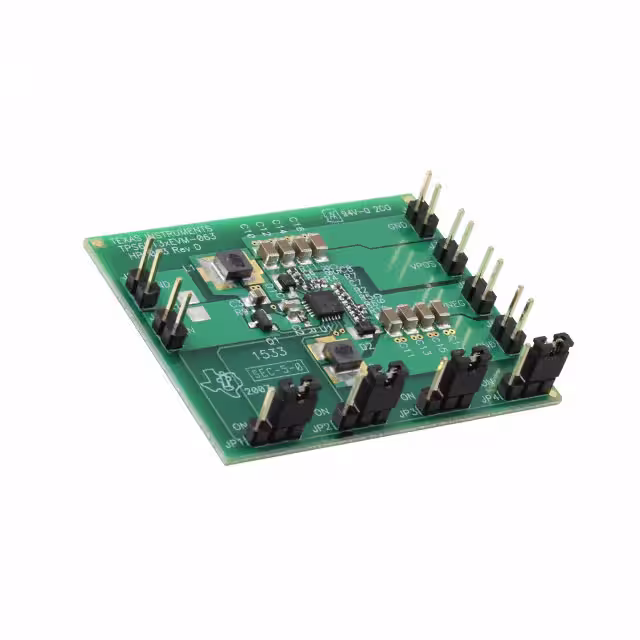

TPS65130EVM-063EVAL BOARD FOR TPS65130 |
3,120 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | 8V, -5V | 400mA, 260mA | 2.7V ~ 5.5V | Boost | 1.38MHz | Board(s) | TPS65130 |
|

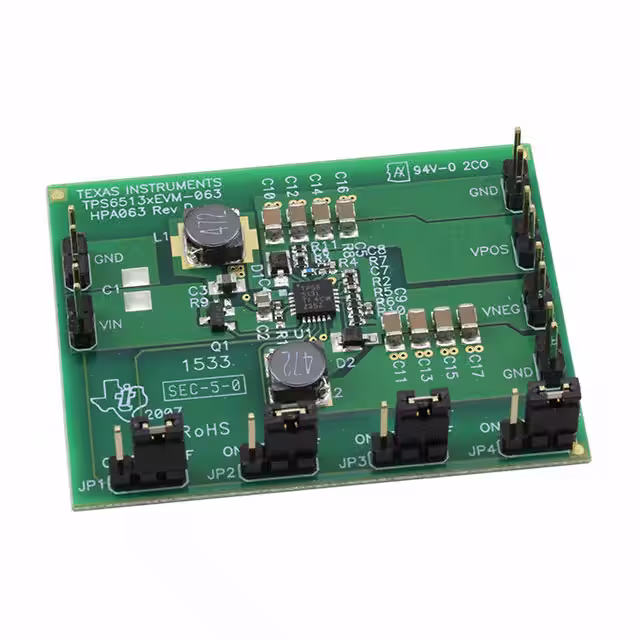

TPS65131EVM-063EVAL BOARD FOR TPS65131 |
4,592 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | 12V, -12V | 410mA, 165mA | 3V ~ 3.6V | Boost | - | Board(s) | TPS65131 |
|

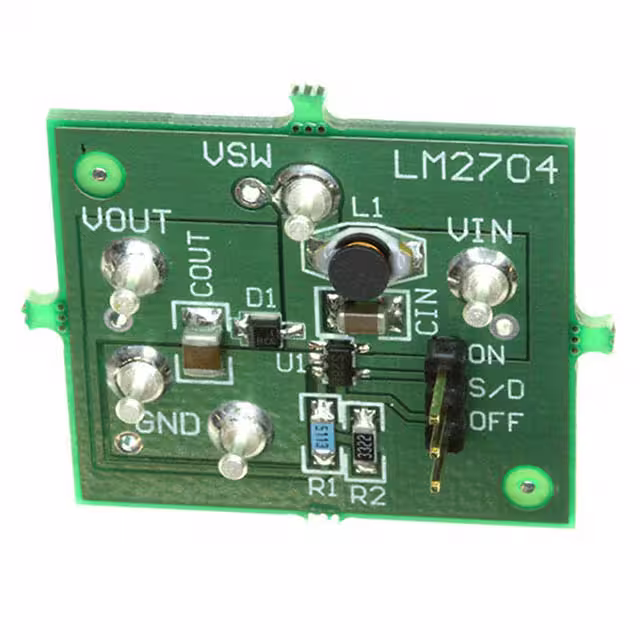

LM2704EVEVAL BOARD FOR LM2704 |
4,601 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 20V | 550mA | 2.2V ~ 7V | Boost | - | Board(s) | LM2704 |
|

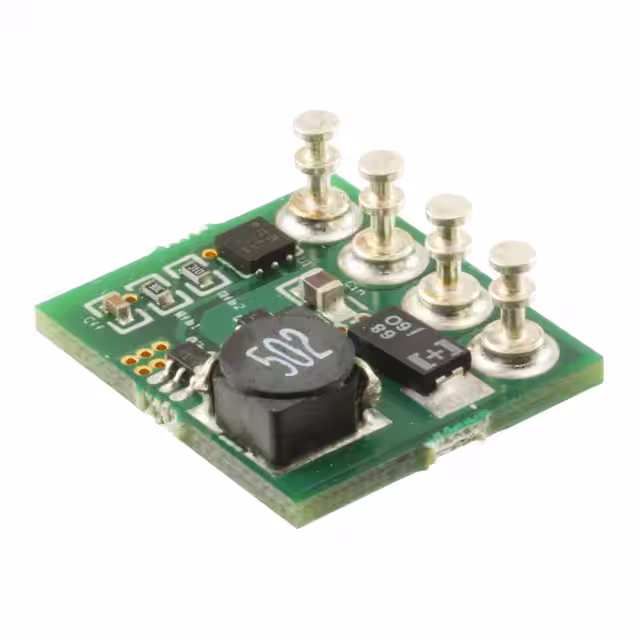

LM1771EVALEVAL BOARD FOR LM1771 |
4,229 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 2A | 2.8V ~ 5.5V | Buck | 378kHz | Board(s) | LM1771 |
|
TPS65162EVM-278EVAL BOARD FOR TPS65162 |
2,343 | 58.80 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | 13.9 W | 3.3V, 15V, 27V, -5V | 1.5A, 500mA, 50mA, 33mA | 8V ~ 14V | Buck-Boost | 750kHz | Board(s) | TPS65162 |
|

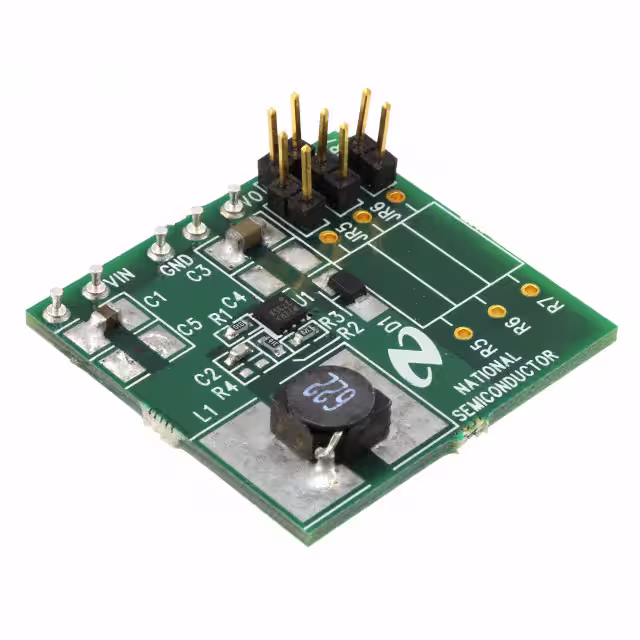

LM2735YSDEVALEVAL BOARD FOR LM2735 |
2,029 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 520kHz | Board(s) | LM2735 |
|
TPS62110EVM-346EVAL BOARD FOR TPS62110 |
2,118 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 1.5A, 500mA | 5V ~ 17V | Buck | 1MHz | Board(s) | TPS62110 |
|

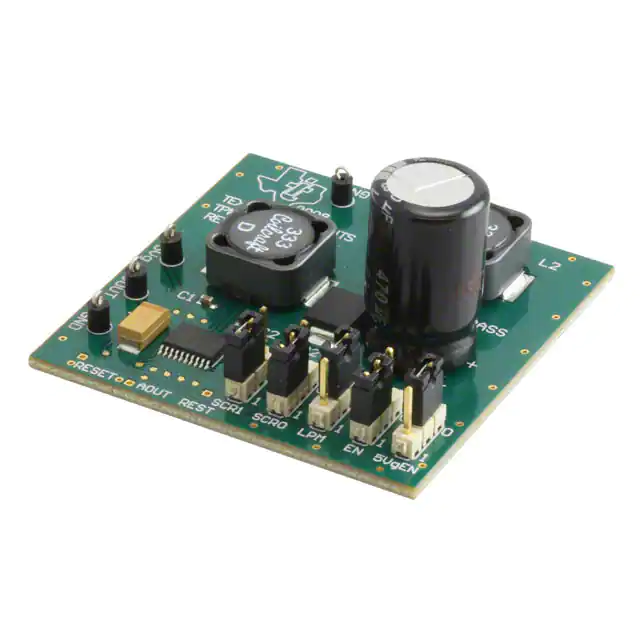

TPIC74100EVMEVAL BOARD FOR TPIC74100 |
3,501 | 57.33 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | 1.5V ~ 40V | Buck-Boost | 440kHz | Board(s) | TPIC74100 |
|

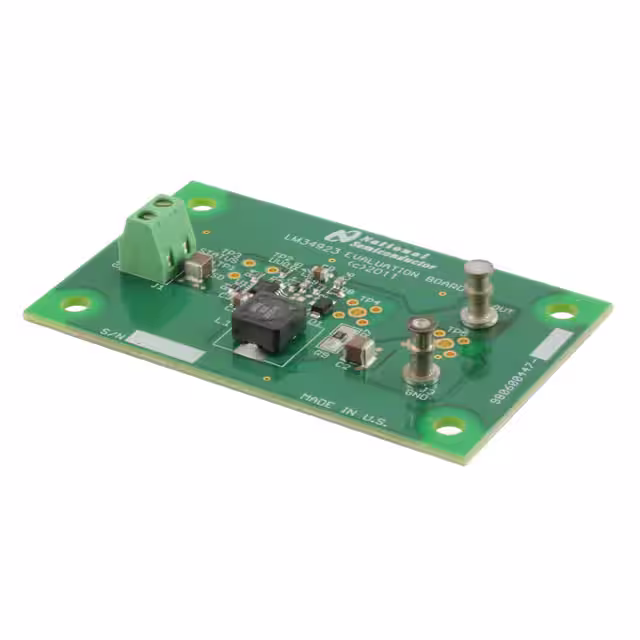

LM34923EVAL/NOPBEVAL BOARD FOR LM34923 |
2,152 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 6V ~ 75V | Buck | 200kHz | Board(s) | LM34923 |
|

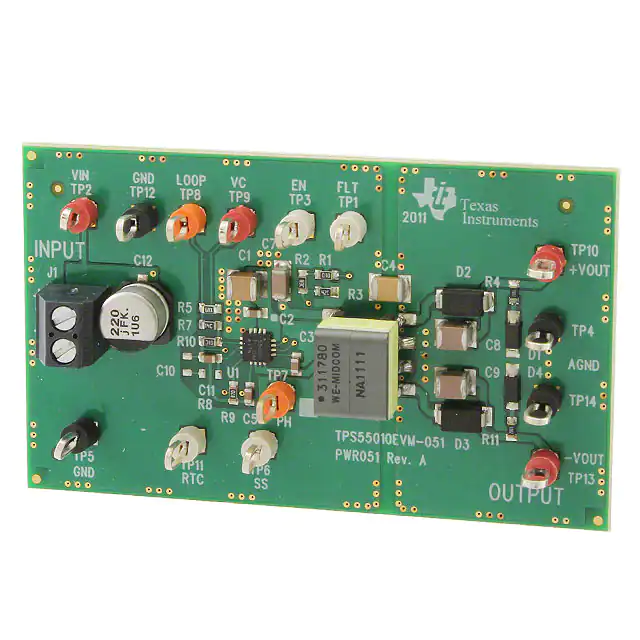

TPS55010EVM-051EVAL BOARD FOR TPS55010051 |
3,257 | 58.80 |
|
Datasheet |
Fly-buck™ | Box | Obsolete | DC/DC, Step Up or Down | 2 Isolated Outputs | - | ±14V ~ ±21V | 40mA, 40mA | 3V ~ 6V | Buck, Flyback | 400kHz | Board(s) | TPS55010-051 |
|

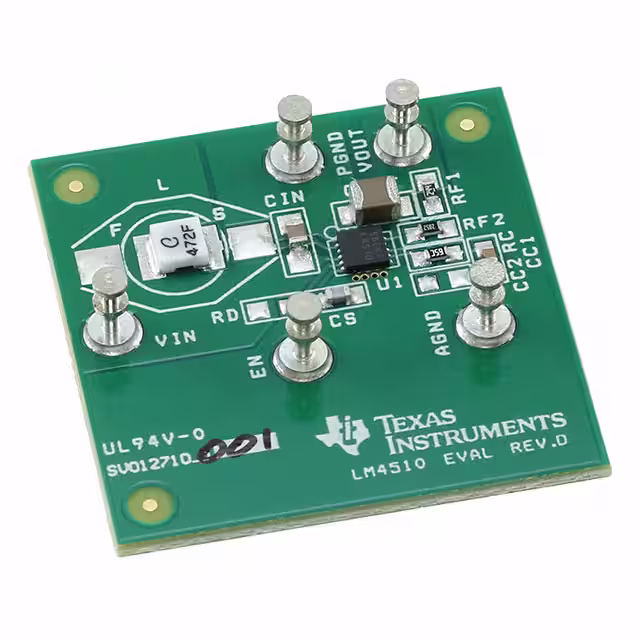

LM4510SDEV/NOPBEVAL BOARD FOR LM4510 |
4,832 | 57.33 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 120mA | 2.7V ~ 5.5V | Boost | 1MHz | Board(s) | LM4510 |
