DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6420AEVAL1ZEVAL BOARD FOR ISL6420A |
2,859 | 150.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 5.5V ~ 28V | Buck | 300kHz | Board(s) | ISL6420A |
|

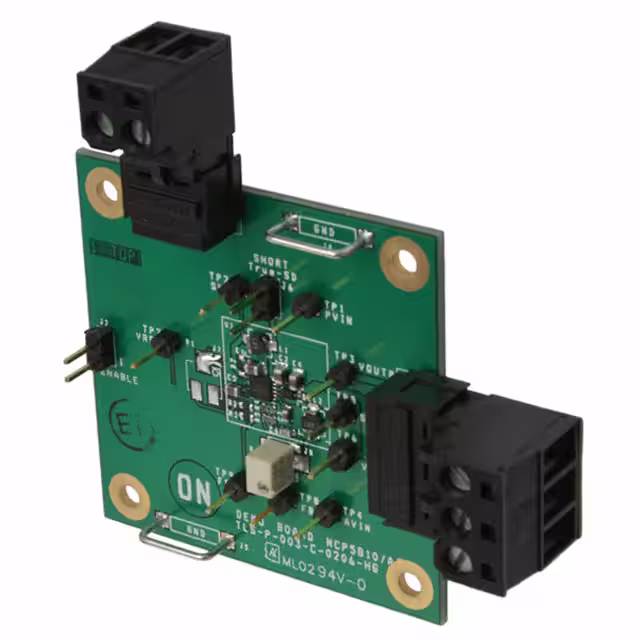

NCP5810DGEVBEVAL BOARD FOR NCP5810 |
4,415 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | 1 W | 4.6V, -5V | - | 3.7V | Inverting | 1.75MHz | Board(s) | NCP5810 |
|
EVL150W-ADP-SREVAL BOARD L6563H L6599A SRK2000 |
4,500 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Power Supply, ATX | 1 Isolated Output | 150 W | 12V | 12.5A | 90 ~ 265 VAC | Resonant | - | Board(s) | L6563H, L6599A, SRK2000 |
|

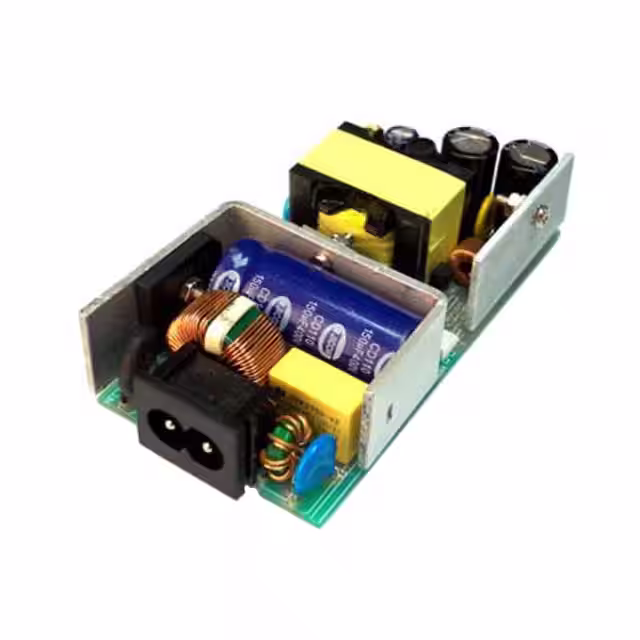

NCP1337ADAPEVBEVAL BOARD FOR NCP1337 |
4,253 | 0.00 |
|
Datasheet |
GreenPoint™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 60 W | 12V | 5A | 90 ~ 265 VAC | Flyback | 130kHz | Board(s) | NCP1337 |
|
|
ACT41000EVK1-104EVAL BOARD FOR ACT41000 |
2,768 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V ~ 22V | 4A | 24V ~ 40V | Buck | 450kHz | Board(s) | ACT41000 |
|

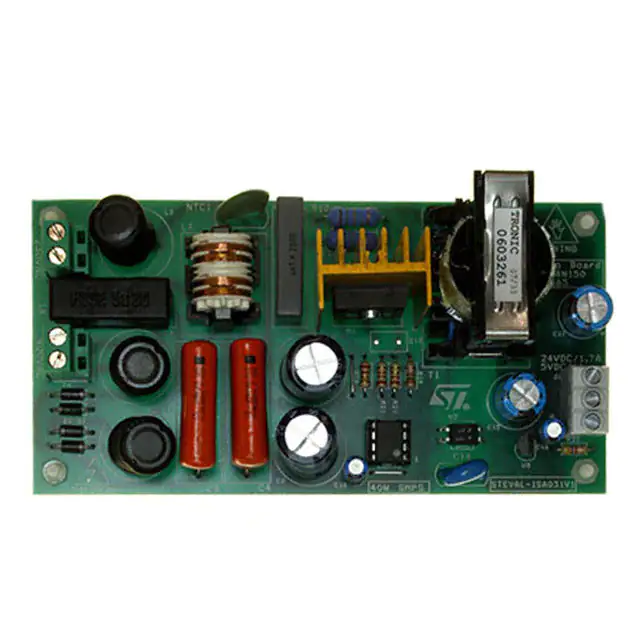

STEVAL-ISA031V1EVAL BOARD FOR L6565 STW4N150 |
4,081 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 40 W | 5V, 24V | 1.7A, 1A | 185 ~ 460 VAC | Flyback | - | Board(s) | L6565, STW4N150 |
|
|
ISL91128IIN-EVKIT1ZEVAL BOARD FOR ISL91128IINZ |
3,099 | 200.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2.4A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91128IINZ |
|
|
MIC28511-1YFL-EVEVAL BOARD FOR MIC285111 |
1,654 | 151.98 |
|
Datasheet |
HyperLight Load® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.6V ~ 60V | Buck | 300kHz | Board(s) | MIC28511-1 |
|
|
ISL81601EVAL2ZEVAL BOARD FOR ISL81601 |
2,254 | 204.41 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 5A | 32V ~ 60V | Buck-Boost | 200kHz | Board(s) | ISL81601 |
|
DC236C-AEVAL BOARD FOR LTC1628 |
4,976 | 153.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 4A, 4A, 50mA, 25mA | 5.2V ~ 30V | Buck | 300kHz | Board(s) | LTC1628 |
|
MAX20029BEVKIT#EVAL BOARD FOR MAX20029B |
1,115 | 145.39 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V ~ 4V | 3A, 3A, 1.5A, 1.5A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20029B |
|
|
MAX20014EVKIT#EVAL BOARD FOR MAX20014 |
1,648 | 145.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.25V, 1.8V, 5V | 3A, 3A, 500mA | 3V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | MAX20014 |
|
MAX20499CEVKIT#EVAL BOARD FOR MAX20499 |
3,895 | 145.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 12A, 5A | 3V ~ 5.5V | Buck | - | Board(s) | MAX20499 |
|
|
ISL81807EVAL1ZEVAL BOARD FOR ISL81807 |
1,534 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 48V | 5A, 5A | 12V ~ 36V | Boost | - | Board(s) | ISL81807 |
|
|
ISL6745EVAL1ZEVAL BOARD FOR ISL6745 |
2,985 | 156.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 8A | 36V ~ 75V | Buck | - | Board(s) | ISL6745 |
|

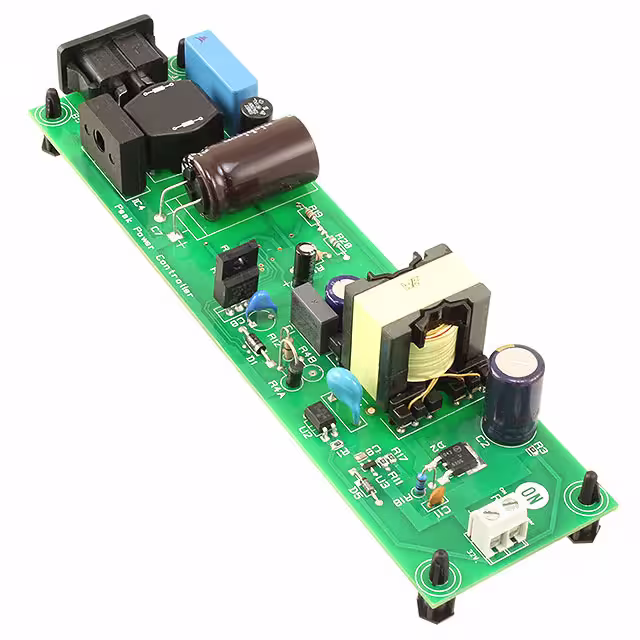

NCP1255PRNGEVBEVAL BOARD FOR NCP1255 |
1,003 | 156.25 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 32V | 800mA | - | Flyback | 65kHz | Board(s) | NCP1255 |
|
|
ISL8014EVAL2ZEVAL BOARD FOR ISL8014 |
1,323 | 156.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8014 |
|

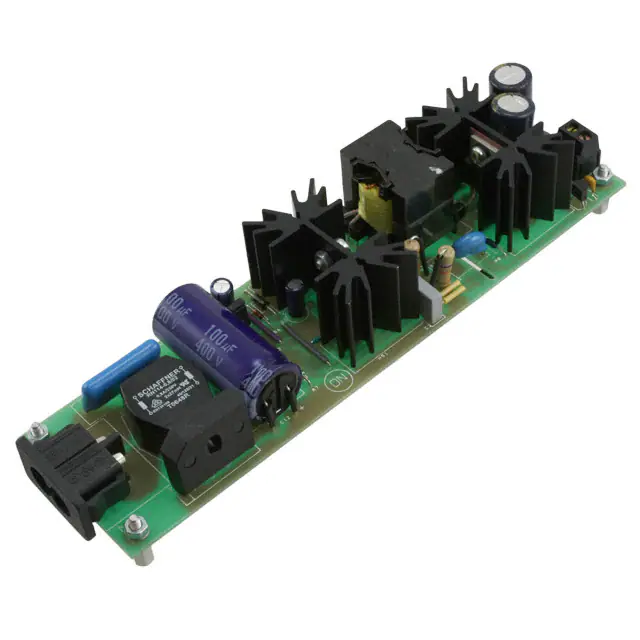

NCP1351ADAPGEVBEVAL BOARD FOR NCP1351 |
4,662 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 57 W | 19V | 3A | 90 ~ 265 VAC | Flyback | 65kHz | Board(s) | NCP1351 |
|

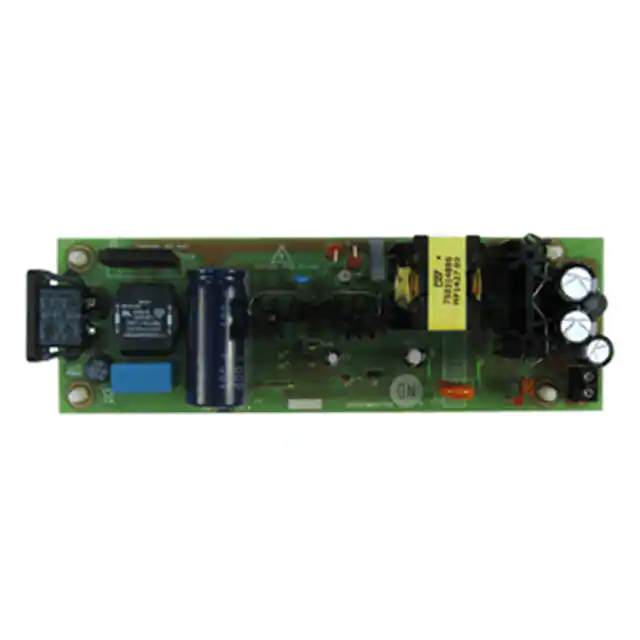

NCP1256B60WGEVBEVAL BOARD FOR NCP1256 |
2,340 | 156.25 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 3.3A | 80 ~ 265 VAC | Flyback | - | Board(s) | NCP1256 |
|

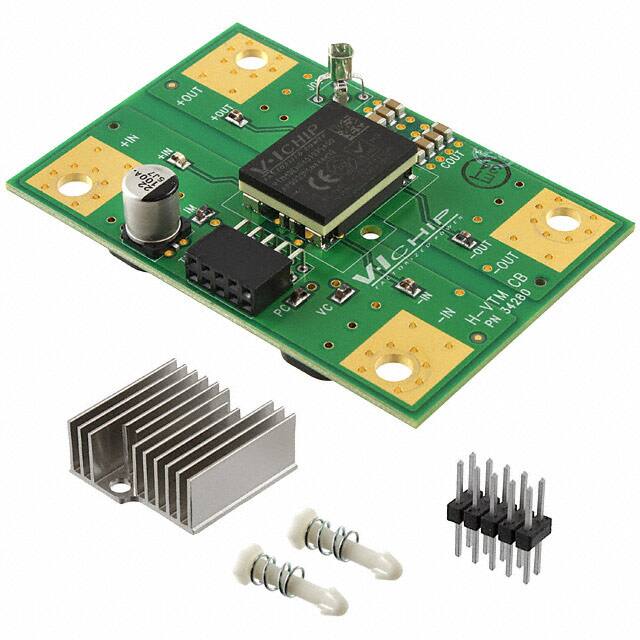

VTD48EH040T025A00EVAL BOARD FOR VTM48EH040X025A00 |
3,055 | 0.00 |
|
Datasheet |
VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.5V | 25A | 26V ~ 55V | Buck | 1.65MHz | Board(s) | VTM48EH040x025A00 |
