DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STR-PWRNCV48920-R0-GEVKEVAL BOARD FOR NCV48920 |
3,308 | 162.60 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down with LDO | 1 Non-Isolated Output | - | 5V | 600mA | 3V ~ 40V | Buck-Boost | 450kHz | Board(s) | NCV48920 |
|
|
EVAL_DJT090A0X43-SRPZ (2 MODULE)EVAL BOARD FOR DJT090 |
1,689 | 0.00 |
|
- |
DLynxII™ | Bulk | Active | DC/DC Converter | 2 Non-Isolated Outputs | 20 W | 0.5V ~ 2V | 90A | 7V ~ 14.4V | - | 100kHz | Board(s) | DJT090 |
|

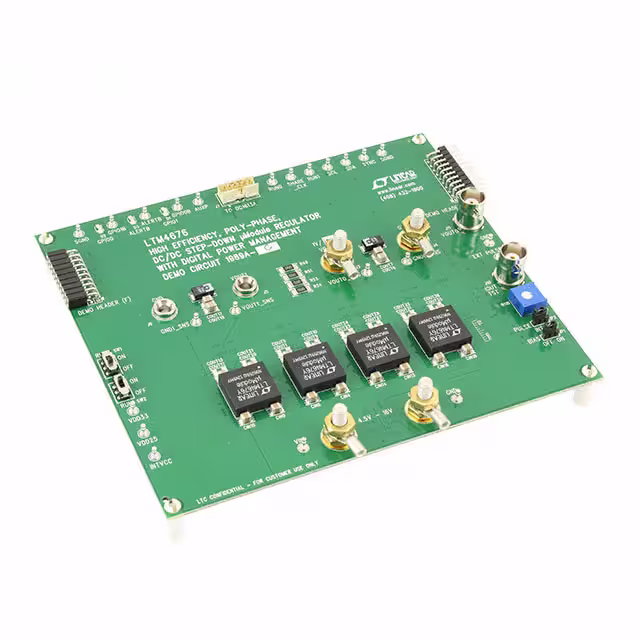

DC1989A-CEVAL BOARD FOR LTM4676 |
1,519 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4676 |
|
LM5027MH-EVAL/NOPBEVAL BOARD FOR LM5027 |
2,170 | 158.66 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 78V | Buck | 250kHz | Board(s) | LM5027 |
|

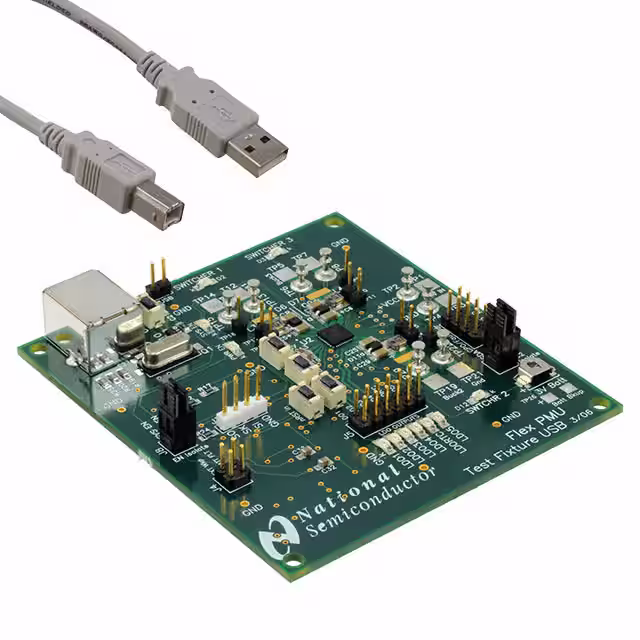

LP3972SQ-I514EV/NOPBEVAL BOARD FOR LP3972 |
4,048 | 153.41 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 9 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck | - | Board(s), Cable(s) | LP3972 |
|
|
LM2647EVALEVAL BOARD FOR LM2647 |
1,531 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 2A | 5.5V ~ 28V | Buck | - | Board(s) | LM2647 |
|

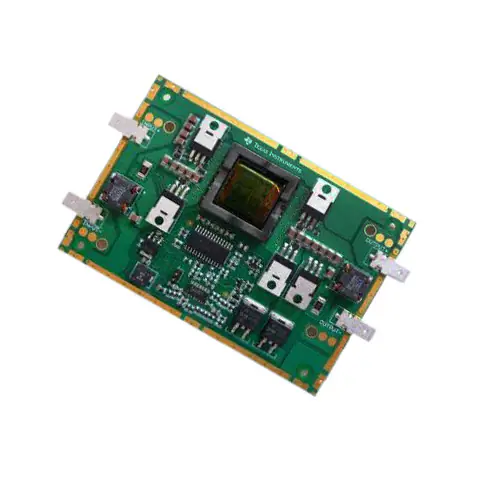

SM72445EVM/NOPBEVAL BOARD FOR SM72445 |
2,100 | 0.00 |
|
Datasheet |
SolarMagic™ | Box | Obsolete | Special Purpose, MPPT, Solar | 1 Non-Isolated Output | - | 50V | 11A | 15V ~ 40V | Buck-Boost | - | Board(s) | SM72445 |
|
|
LM5118-4-SWXEVMEVAL BOARD FOR LM5118 |
4,905 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 6V ~ 60V | Buck-Boost | 300kHz | Board(s) | LM5118 |
|

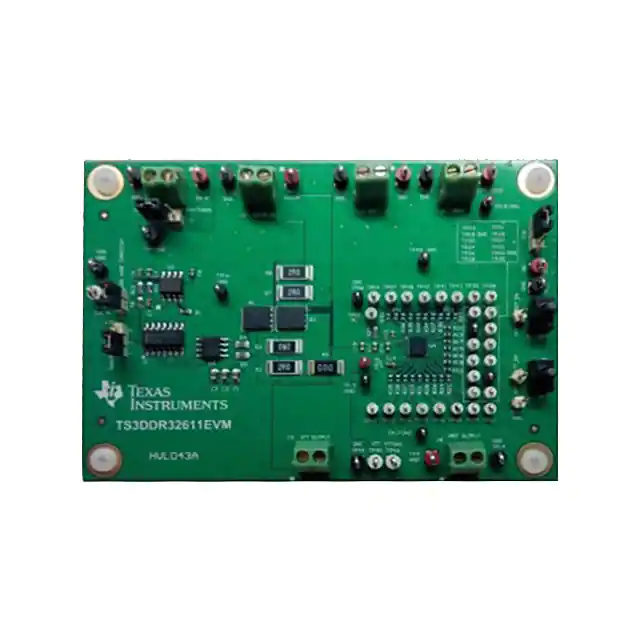

TS3DDR32611EVMEVAL BOARD FOR TS3DDR32611 |
1,226 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, DDR Memory Supply | - | - | - | - | 3V ~ 3.6V | - | - | Board(s) | TS3DDR32611 |
|

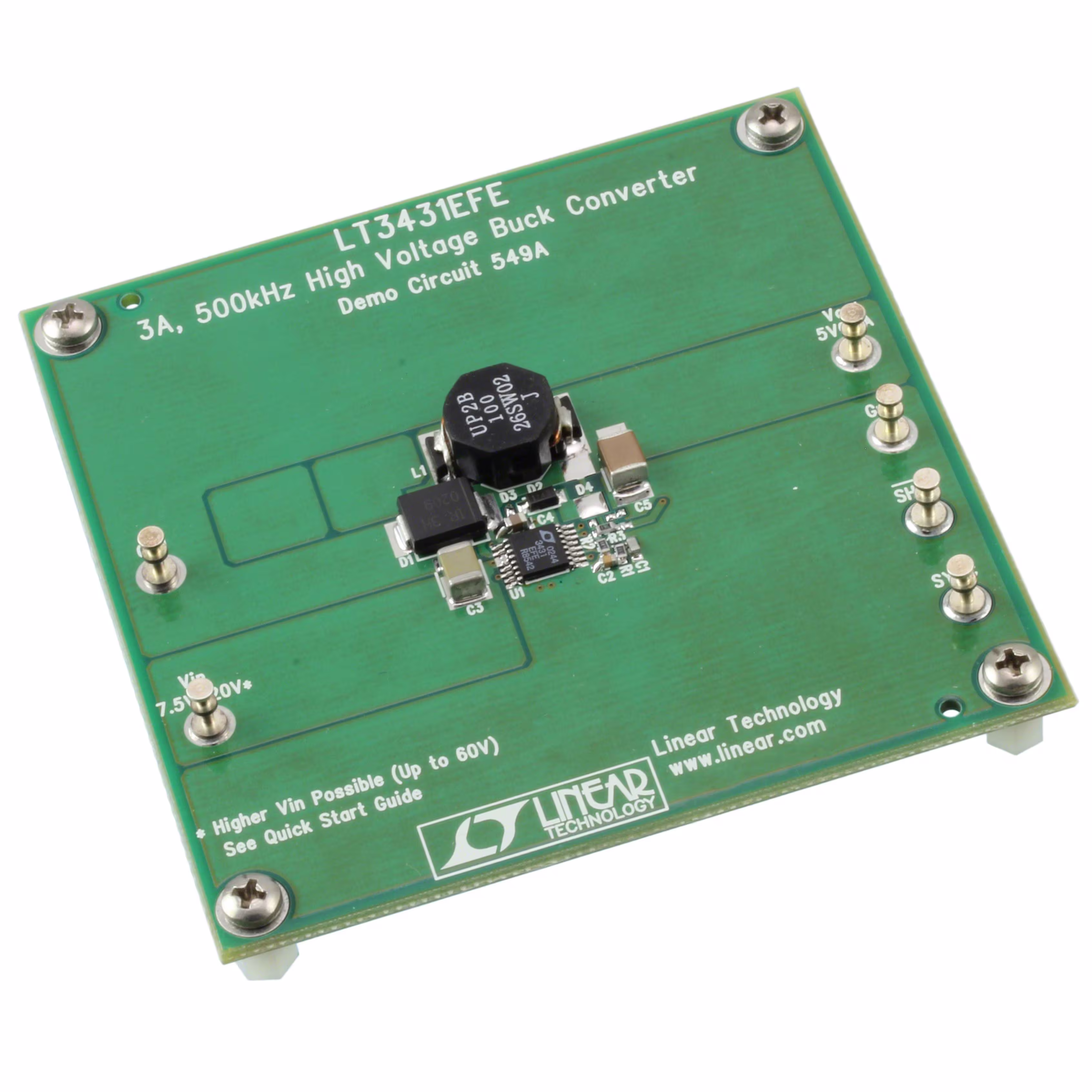

DC549AEVAL BOARD FOR LT3431 |
4,730 | 165.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 7.5V ~ 20V | Buck | 500kHz | Board(s) | LT3431 |
|
|
ISL6420AEVAL3ZEVAL BOARD FOR ISL6420A |
2,414 | 162.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 5.5V ~ 28V | Buck | 300kHz | Board(s) | ISL6420A |
|

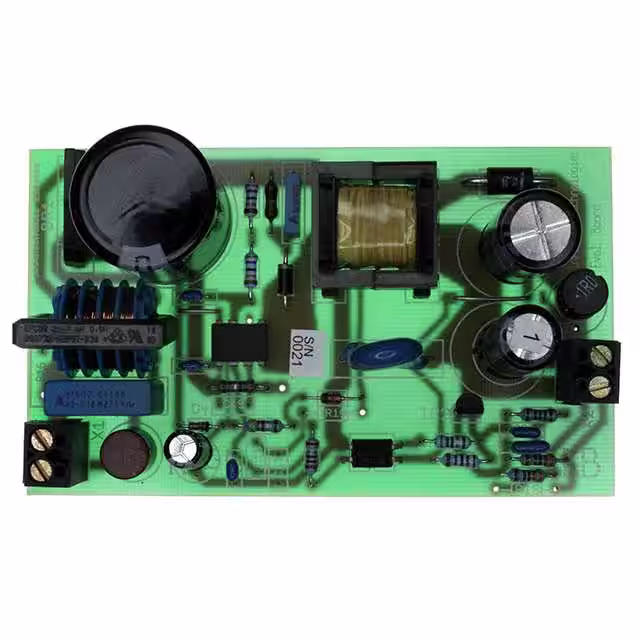

EVALSF2-ICE2A0565Z-12EVAL BOARD FOR ICE2A0565 |
3,394 | 0.00 |
|
Datasheet |
CoolSET®F2 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2A | 85 ~ 270 VAC | Flyback | 100kHz | Board(s) | ICE2A0565 |
|

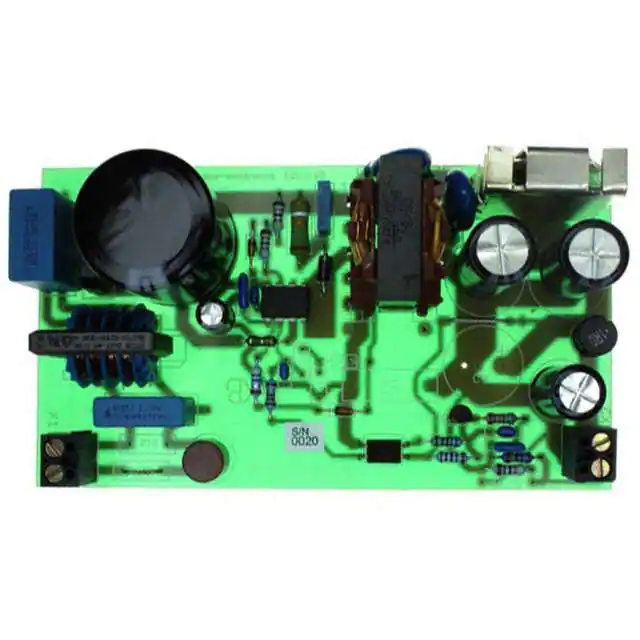

EVALSF2-ICE2A365EVAL BOARD FOR ICE2A365 |
4,728 | 0.00 |
|
Datasheet |
CoolSET®F2 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 40 W | 16V | 2.5A | 85 ~ 270 VAC | Flyback | - | Board(s) | ICE2A365 |
|
EVALSF2-ICE2B765PEVAL BOARD FOR ICE2B765 |
4,458 | 0.00 |
|
Datasheet |
CoolSET®F2 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 80 W | 24V | 3.3A | 85 ~ 270 VAC | Flyback | 67kHz | Board(s) | ICE2B765 |
|

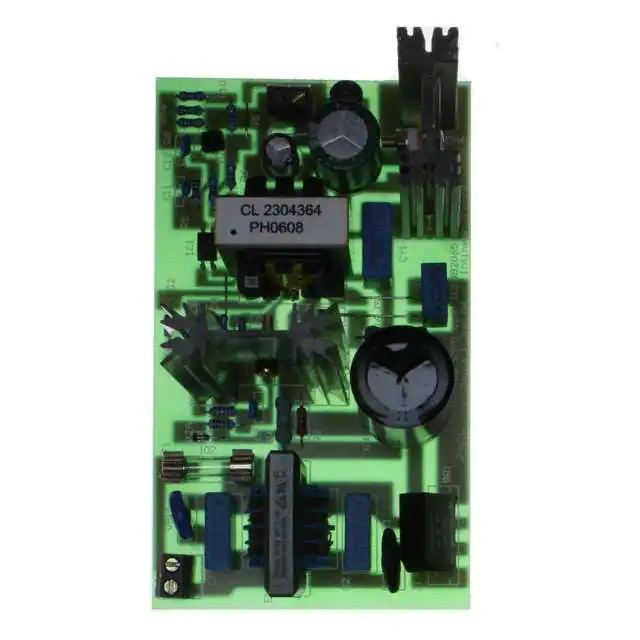

EVALSF3-ICE3B2065PEVAL BOARD FOR ICE3B2065 |
3,106 | 0.00 |
|
Datasheet |
CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 40 W | 18V | 2.22A | 85 ~ 265 VAC | Flyback | 67kHz | Board(s) | ICE3B2065 |
|

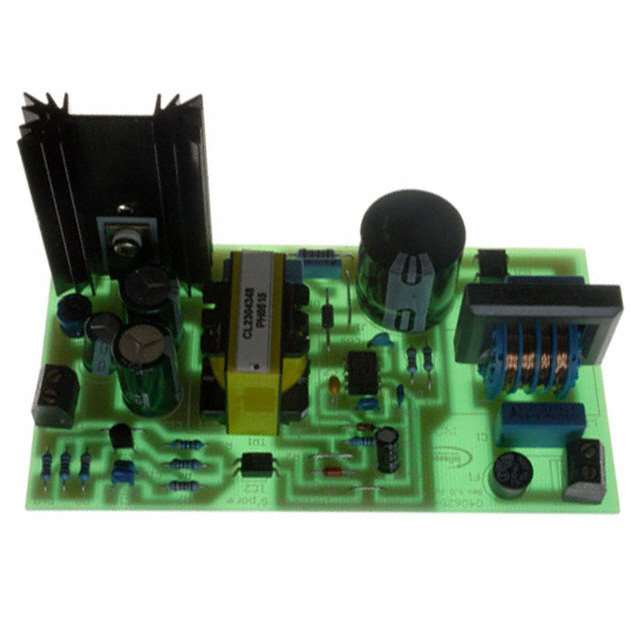

EVALSF3-ICE3B2565EVAL BOARD FOR ICE3B2565 |
1,155 | 0.00 |
|
Datasheet |
CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 30.4 W | 16V | 1.9A | 85 ~ 265 VAC | Flyback | 67kHz | Board(s) | ICE3B2565 |
|

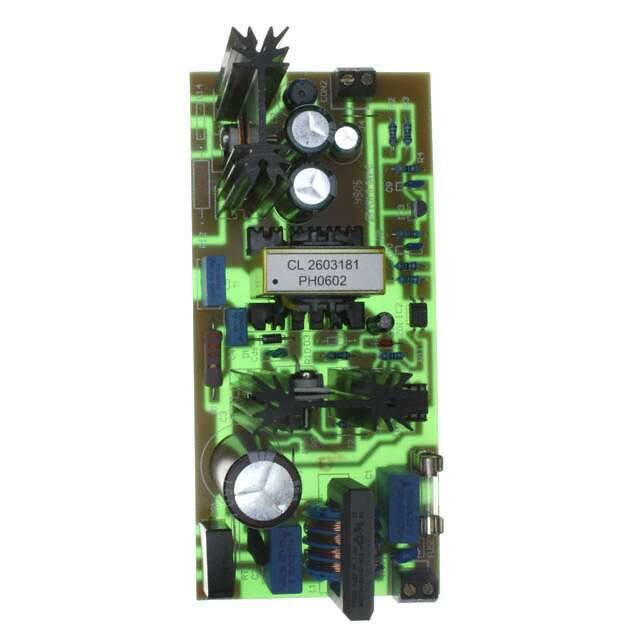

EVALSF3-ICE3DS01EVAL BOARD FOR ICE3DS01 |
3,459 | 0.00 |
|
Datasheet |
CoolMOS™, CoolSET™ | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 28 W | 5V, 12V | 2A, 1.5A | 90 ~ 270 VAC | Flyback | 110kHz | Board(s) | ICE3DS01 |
|
|
ISL8112EVAL1ZEVAL BOARD FOR ISL8112 |
4,832 | 163.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.7V ~ 5.5V | 200mA | 5.5V ~ 25V | Buck | - | Board(s) | ISL8112 |
|
|
STR-PWRNCV890430-R0-GEVKEVAL BOARD FOR NCV890430 |
4,783 | 165.40 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 600mA | 3.5V ~ 37V | Buck | 2MHz | Board(s) | NCV890430 |
|
|
MAX20011GEVKIT#EVAL BOARD FOR MAX20011G |
4,418 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.275V | 16A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20011G |
