DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1661AEVAL BOARD FOR LT3579 LT35791 |
1,376 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 3.5A | 5V ~ 10V | Boost | 1MHz | Board(s) | LT3579, LT3579-1 |
|
|
DC1122AEVAL BOARD FOR LT3681 |
2,356 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 34V | Buck | 500kHz | Board(s) | LT3681 |
|
|
DC1893AEVAL BOARD FOR LT3697 |
2,654 | 176.55 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.4A | 8V ~ 35V | Buck | 500kHz | Board(s) | LT3697 |
|

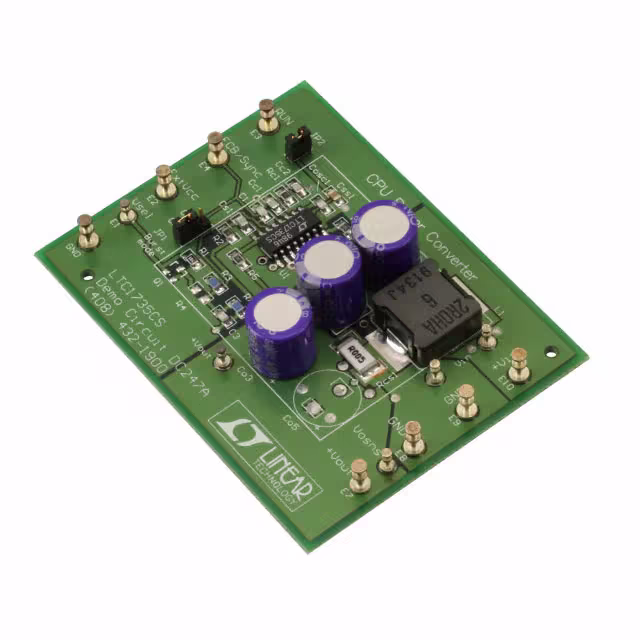

DC247AEVAL BOARD FOR LTC1735 |
1,354 | 153.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V | 9A | 4.5V ~ 26V | Buck | 270kHz | Board(s) | LTC1735 |
|
|
STR-PWRNCP6922C-R0-GEVKEVAL BOARD FOR NCP6922C |
1,202 | 175.65 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 0.6V ~ 3.3V | 800mA, 800mA, 150mA, 150mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | NCP6922C |
|
|
UCC14341EVM-069EVAL BOARD FOR UCC14341Q1 |
1,049 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Isolated Output | 1.5 W | - | - | 13.5V ~ 16.5V | - | - | Board(s) | UCC14341-Q1 |
|
|
BCD48BF240T300A00EVAL BOARD FOR BCM48BX240Y300A00 |
4,640 | 162.05 |
|
Datasheet |
VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 24V | 12A | 38V ~ 55V | Buck | 1.77MHz | Board(s) | BCM48Bx240y300A00 |
|
|
STEVAL-ISA148V1EVAL BOARD FOR L6563H L6599A |
3,054 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 90 W | 19V | 4.75A | 90 ~ 264 VAC | Resonant | 500kHz | Board(s) | L6563H, L6599A |
|
|
BCD48BF160T240A00EVAL BOARD FOR BCM48BX160Y240A00 |
4,348 | 163.01 |
|
Datasheet |
VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 16V | 15A | 38V ~ 55V | Buck | 1.65MHz | Board(s) | BCM48Bx160y240A00 |
|
|
BCD48BF120T300A00EVAL BOARD FOR BCM48BX120Y300A00 |
3,581 | 163.03 |
|
Datasheet |
VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 12V | 30A | 38V ~ 55V | Buck | 1.95MHz | Board(s) | BCM48Bx120y300A00 |
|
|
BCD48BF096T240A00EVAL BOARD FOR BCM48BX096Y240A00 |
3,858 | 163.33 |
|
Datasheet |
VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 9.6V | 25A | 38V ~ 55V | Buck | 1.55MHz | Board(s) | BCM48Bx096y240A00 |
|

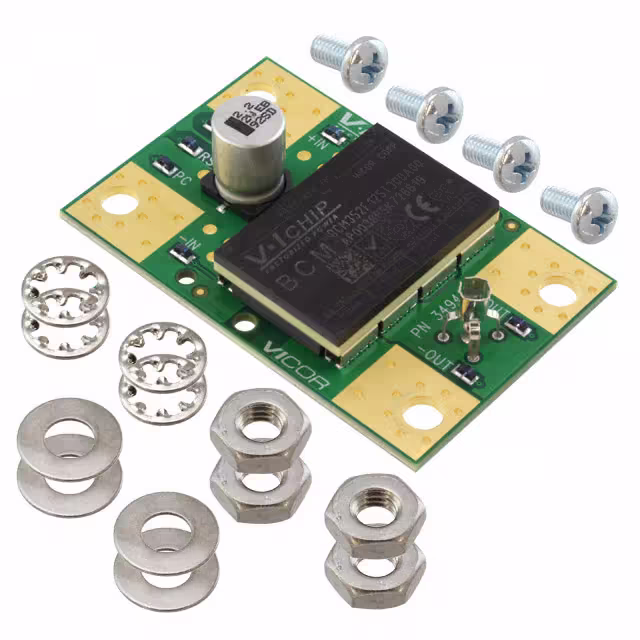

BCD352F125T300A00EVAL BOARD FOR BCM352F125T300A |
3,551 | 163.68 |
|
Datasheet |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 12.57V | 26A | 330V ~ 365V | Buck | 2.25MHz | Board(s) | BCM352F125T300A |
|

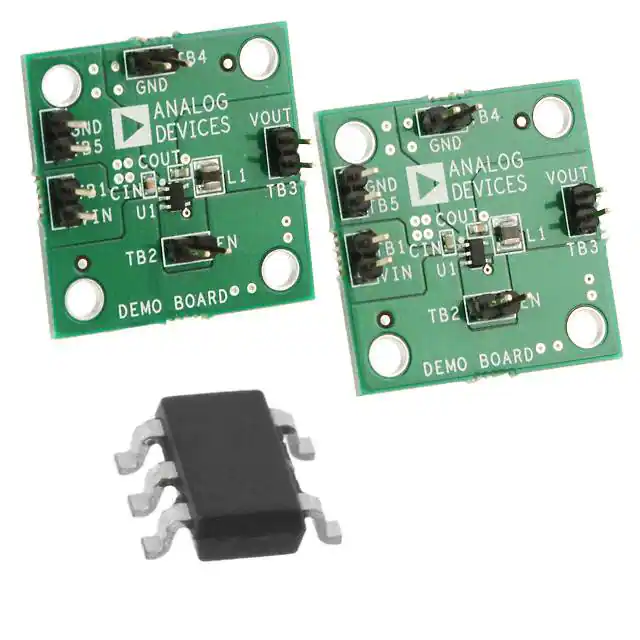

ADP2108UJZ-REDYKITEVAL BOARD FOR ADP2108 |
1,180 | 165.31 |
|
Datasheet |
RedyKit™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 3.3V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s), Accessories | ADP2108 |
|
|
BCD48BF480T300A00EVAL BOARD FOR BCM48BX480Y300A00 |
2,248 | 164.84 |
|
Datasheet |
VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 48V | 6A | 38V ~ 55V | Buck | 1.67MHz | Board(s) | BCM48Bx480y300A00 |
|
DC389A-CEVAL BOARD FOR LTC3778 |
2,699 | 183.91 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 13A | 7.5V ~ 24V | Buck | 300kHz | Board(s) | LTC3778 |
|
|
DC1170AEVAL BOARD FOR LTC38145 |
1,754 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 5A | 5V ~ 14V | Boost | 330kHz | Board(s) | LTC3814-5 |
|
|
BCD48BF320T300A00EVAL BOARD FOR BCM48BX320Y300A00 |
3,672 | 166.36 |
|
Datasheet |
VI Chip® BCM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 32V | 9A | 38V ~ 55V | Buck | 1.6MHz | Board(s) | BCM48Bx320y300A00 |
|

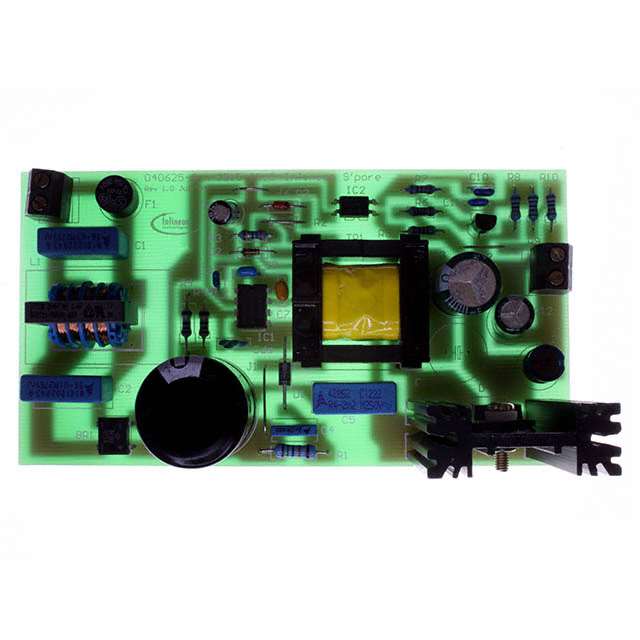

EVALSF3-ICE3B1565EVAL BOARD FOR ICE3B1565 |
4,098 | 0.00 |
|
Datasheet |
CoolSET®F3 | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 20 W | 16V | 1.25A | 85 ~ 265 VAC | Flyback | 67kHz | Board(s) | ICE3B1565 |
|

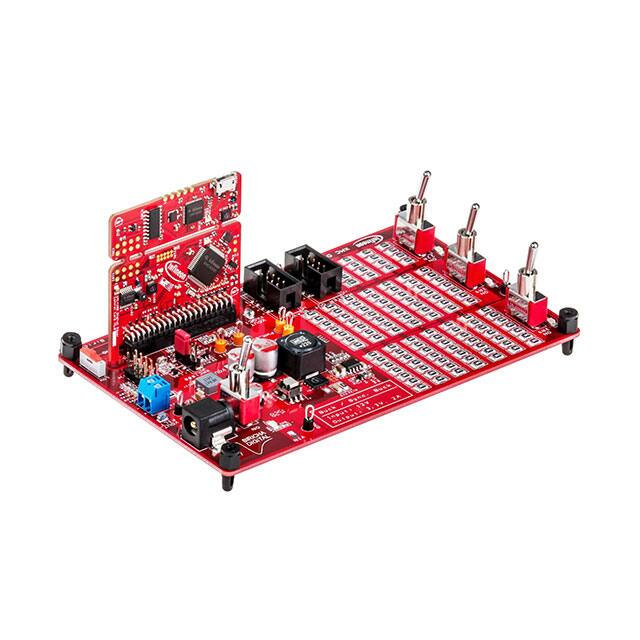

IC-744726XMC DIGITAL POWER EXPLORER |
4,475 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 12V | Buck | 2.2MHz | Board(s) | - |
|
|
ISL62386LOEVAL1ZEVAL BOARD FOR ISL62386 |
1,082 | 182.56 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 8A, 8A, 100mA, 100mA | 5.5V ~ 25V | Buck | - | Board(s) | ISL62386 |
