DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

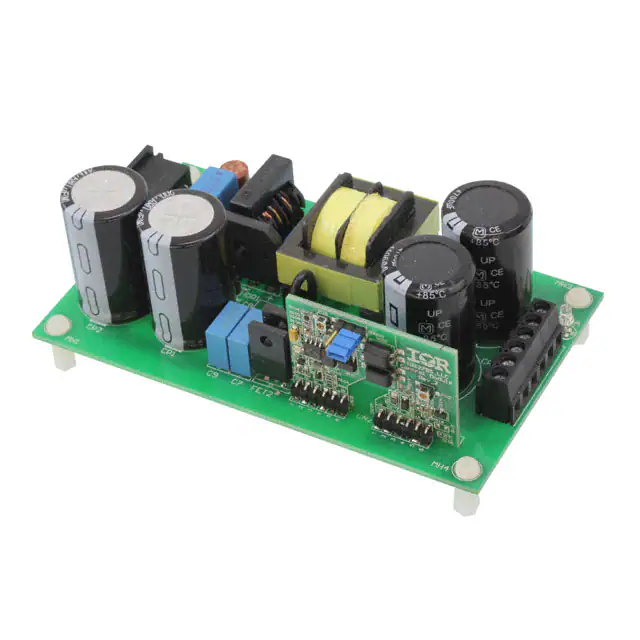

IRAUDPS3EVAL BOARD FOR IRS27952 |
2,985 | 187.50 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | AC/DC, Primary Side | 2 Non-Isolated Outputs | - | ±30V | - | 88 ~ 132 VAC, 176 ~ 264 VAC | Resonant | - | Board(s) | IRS27952 |
|
MXL7225-1-EVK-2EVAL BOARD FOR MXL72251 |
2,680 | 187.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 15V | Forward Converter | 500kHz | Board(s), Power Supply | MxL7225-1 |
|
|
MXL7225-EVK-2EVAL BOARD FOR MXL7225 |
3,444 | 187.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 15V | Forward Converter | 500kHz | Board(s), Power Supply | MxL7225 |
|
|
MXL7218-EVK-2EVAL BOARD FOR MXL7218 |
4,181 | 187.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 140A | 4.5V ~ 15V | Forward Converter | 400kHz | Board(s), Power Supply | MxL7218 |
|

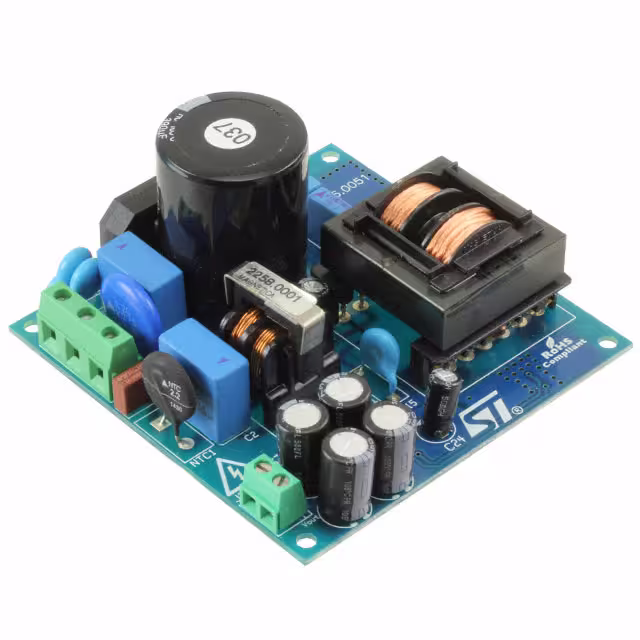

STEVAL-ISA132V1EVAL BOARD FOR L6699 STB13N60M2 |
1,573 | 187.50 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 170 W | 24V | 7A | 190 ~ 264 VAC | Flyback | - | Board(s) | L6699, STB13N60M2, STPS20M80CG |
|
|
MAX20808TEVKIT#MAX20808TEVKIT# SUPPORTS THE MAX |
2,323 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|

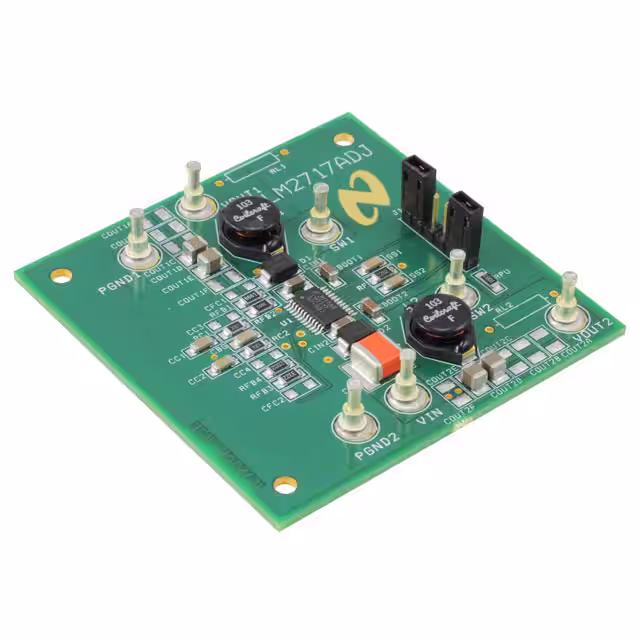

LM2717MT-ADJEVEVAL BOARD FOR LM2717 |
2,243 | 178.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 1.5A | 8V ~ 20V | Buck | - | Board(s) | LM2717 |
|

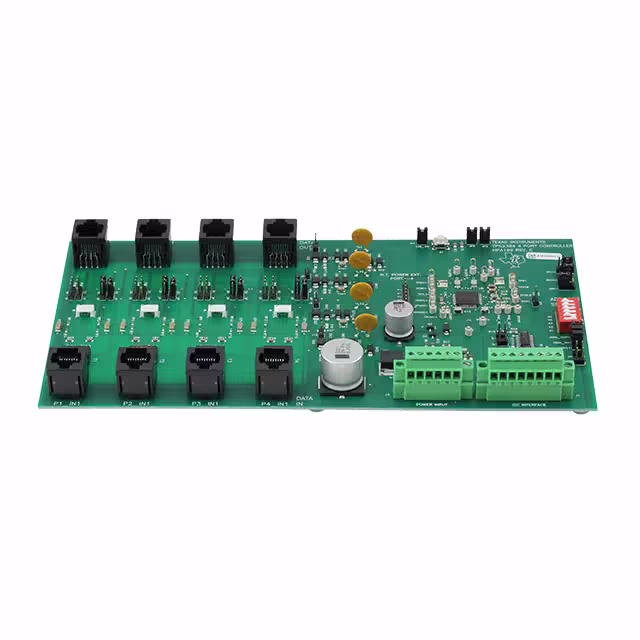

TPS2384EVMEVAL BOARD FOR TPS2384 |
1,898 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 4 Isolated Outputs | - | - | - | 44V ~ 57V | - | - | Board(s) | TPS2384 |
|
TPS40425EVM-594EVAL BOARD FOR TPS40425 |
1,521 | 178.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 20A, 20A | 7V ~ 14V | Buck | 500kHz | Board(s) | TPS40425 |
|
|
TPS54KC23EVMEVAL BOARD FOR TPS54KC23 |
4,913 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.802V | 30A | 4.5V ~ 16V | Buck | 1.4MHz | Board(s) | TPS54KC23 |
|
|
IRDC2085S-SEVAL BOARD FOR IR2085S IRF7493 |
3,002 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 200 W | 6V ~ 10V | 20A | 36V ~ 60V | Buck | 500kHz | Board(s) | IR2085S, IRF7493, IRF7832 |
|
|
IRDC2085S-DFEVAL BOARD FOR IR2085S IRF6618 |
3,272 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 200 W | 6V ~ 10V | 20A | 36V ~ 60V | Buck | 500kHz | Board(s) | IR2085S, IRF6618, IRF7493 |
|

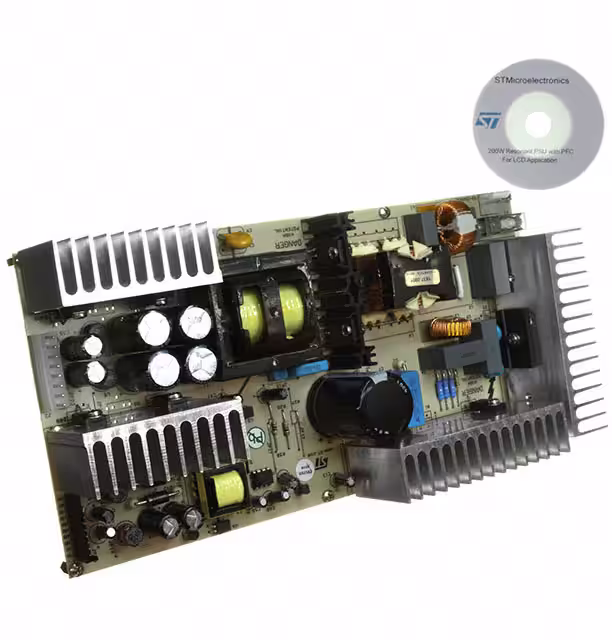

EVAL6599-200WEVAL BOARD FOR L6563 L6599 |
2,355 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 4 Isolated Outputs | 200 W | 3.3V, 5V, 12V, 24V | 6A, 5A, 1A, 700mA | 90 ~ 264 VAC | Resonant | 95kHz | Board(s) | L6563, L6599 |
|

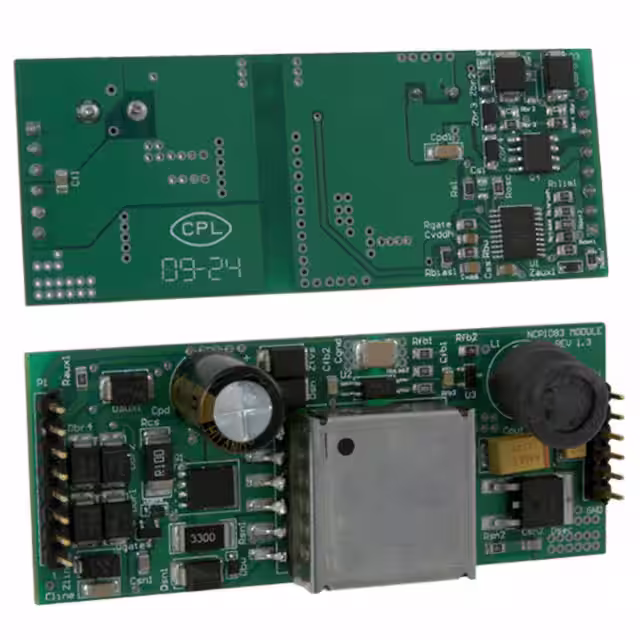

NCP1083QBCGEVBEVAL BOARD FOR NCP1083 |
4,958 | 0.00 |
|
- |
- | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | - | 12V | 2.5A | 24V ~ 57V | Buck | 250kHz | Board(s) | NCP1083 |
|

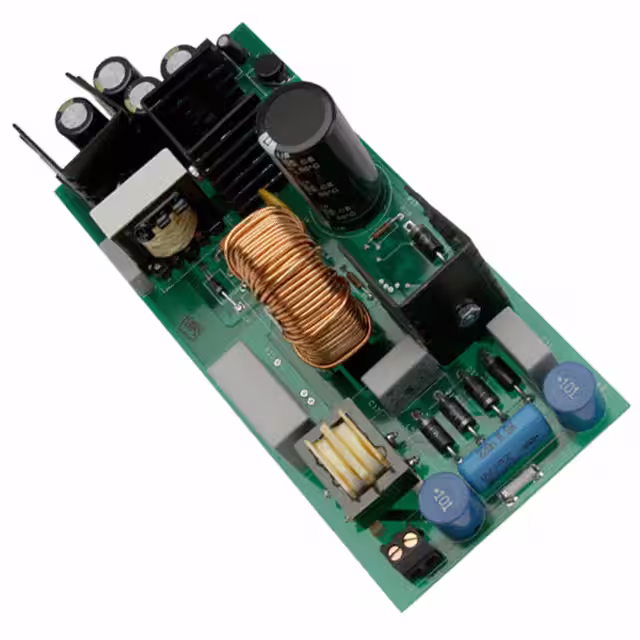

NCP1230GEVBEVAL BOARD FOR NCP1230 |
4,724 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 90 W | 18.6V | 4.74A | 85 ~ 265 VAC | Flyback | 47kHz | Board(s) | NCP1230 |
|

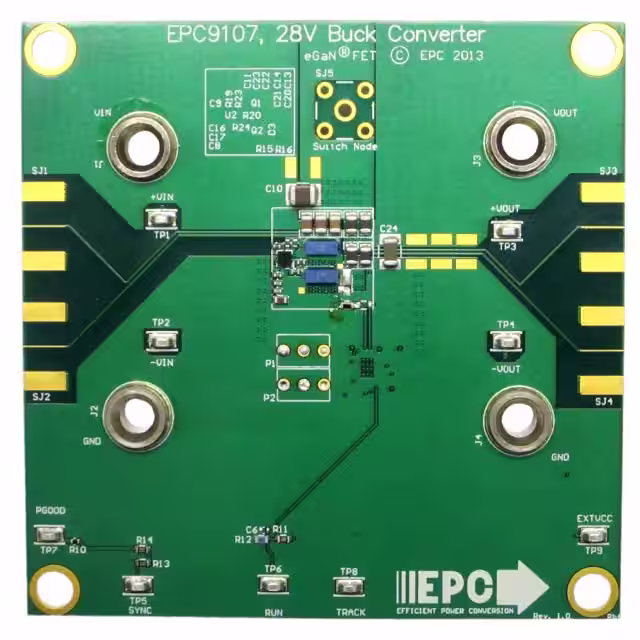

EPC9107EVAL BOARD FOR EPC2015 |
3,750 | 0.00 |
|
Datasheet |
eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 15A | 9V ~ 28V | Buck | 1MHz | Board(s) | EPC2015 |
|
|
EVAL_UJT060A0X43-SRPZ (4 MODULE)EVAL BOARD FOR UJT060 |
3,576 | 0.00 |
|
- |
MicroDLynxII™ | Bulk | Active | DC/DC Converter | 4 Non-Isolated Outputs | - | 0.5V ~ 2V | 60A | 7.5V ~ 14.4V | - | 500kHz | Board(s) | UJT060 |
|
SMPS1-01EVAL BOARD FOR IL610 IL711 |
1,632 | 187.50 |
|
Datasheet |
IsoLoop® | Bag | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 750mA | 11V ~ 14V | Buck | 130kHz | Board(s) | IL610, IL711 |
|
SMPS2-01EVAL BOARD FOR IL710 IL711 |
4,433 | 187.50 |
|
Datasheet |
IsoLoop® | Bag | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 750mA | 11V ~ 14V | Buck | 130kHz | Board(s) | IL710, IL711 |
|
|
PFH05W-001-EVK-S0EVAL BOARD FOR PFH500F |
4,268 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 500 W | 28V | 18A | 85 ~ 265 VAC | - | - | Partially Populated Board(s) | - |
