DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

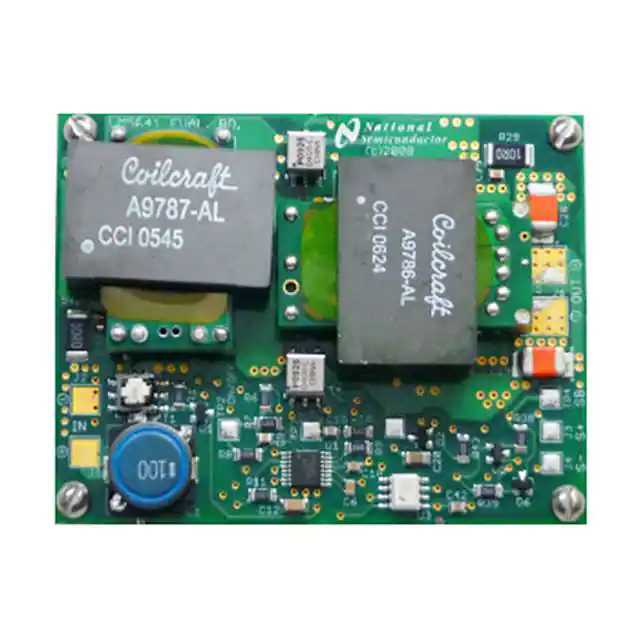

LM5041EVALEVAL BOARD FOR LM5041 |
3,040 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 50A | 35V ~ 80V | Buck | - | Board(s) | LM5041 |
|

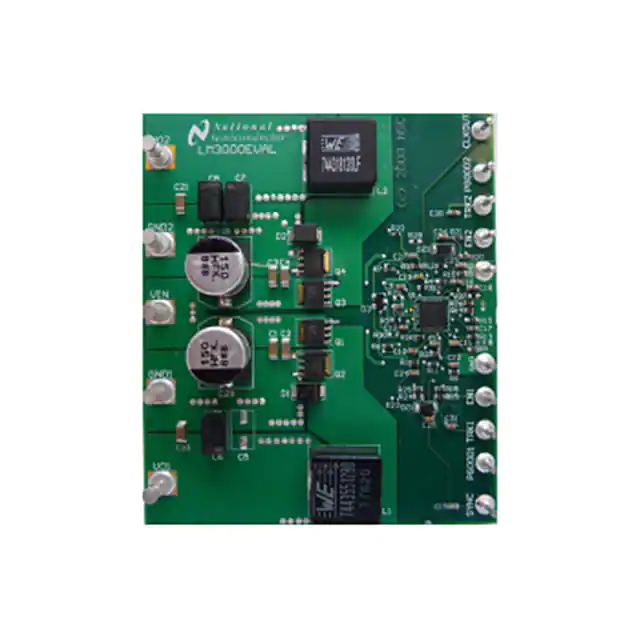

LM3000EVALEVAL BOARD FOR LM3000 |
1,399 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 15A, 8A | 6V ~ 18V | Buck | 500kHz | Board(s) | LM3000 |
|

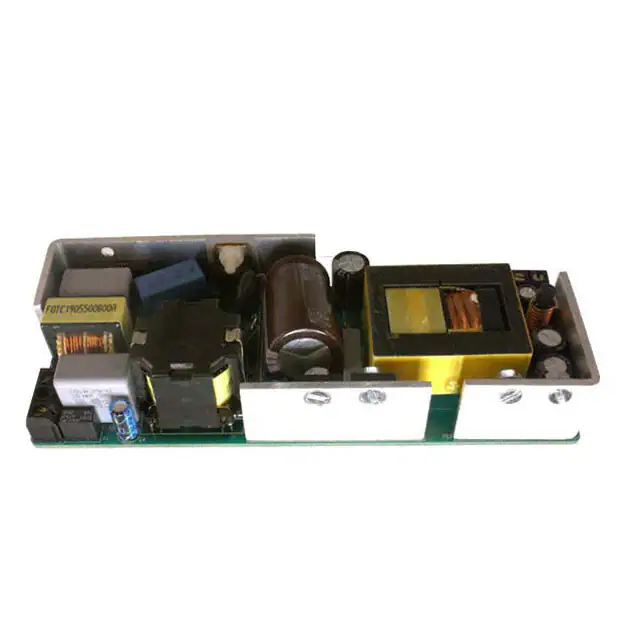

STEVAL-ISC002V1EVAL BOARD FOR L6563 L6599 |
4,874 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 90 W | 19V | 4.74A | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563, L6599 |
|
DC1092AEVAL BOARD FOR LT1933 |
2,152 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LT1933 |
|
DC697AEVAL BOARD FOR LT1943 |
3,172 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 4 Non-Isolated Outputs | - | 3.3V, 13V, 30V, -10V | 1.5A, 500mA, 50mA, 20mA | 4.5V ~ 8V | Boost, Buck | 1.2MHz | Board(s) | LT1943 |
|

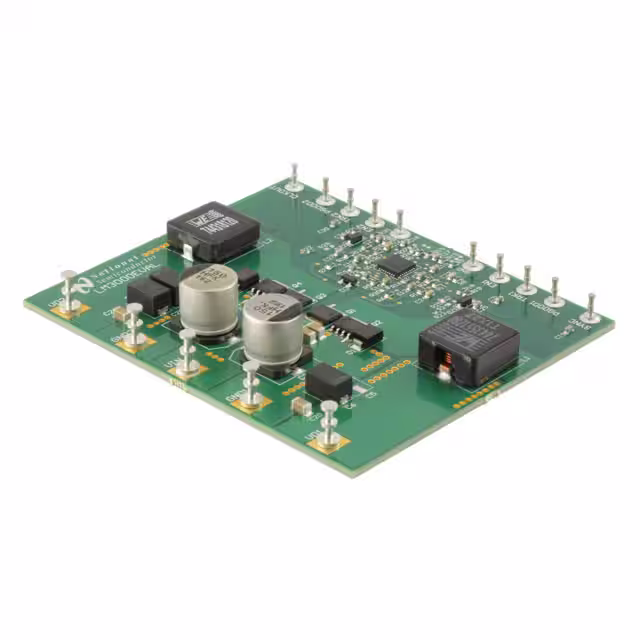

LM3000EVAL/NOPBEVAL BOARD FOR LM3000 |
4,241 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 15A, 8A | 6V ~ 18V | Buck | 500kHz | Board(s) | LM3000 |
|
ISL81401AEVAL1ZEVAL BOARD FOR ISL81401A |
2,689 | 255.51 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 8A | 6V ~ 40V | Buck-Boost | 200kHz | Board(s) | ISL81401A |
|

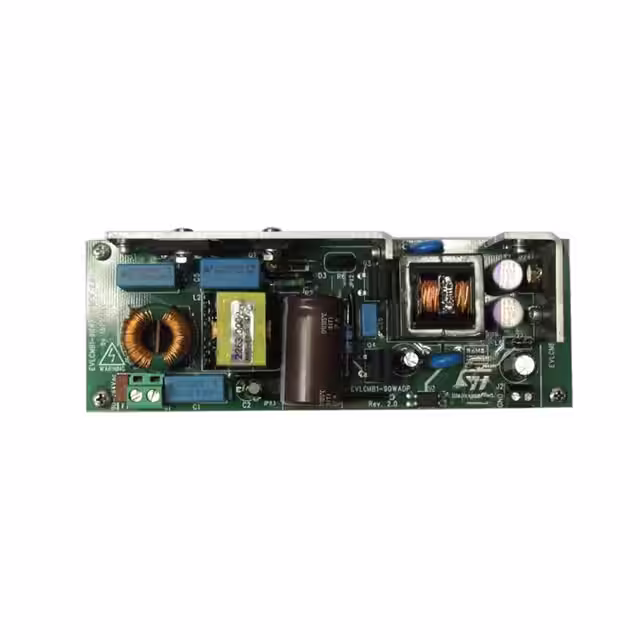

EVLCMB1-90WADPEVAL BOARD FOR STCMB1 |
3,724 | 228.77 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 90 W | 19V | 4.75A | 90 ~ 264 VAC | Resonant | 500kHz | Board(s) | STCMB1 |
|
DC1997A-BEVAL BOARD FOR LTC38382 |
1,553 | 198.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 20A, 20A | 4.5V ~ 14V | Buck | 300kHz | Board(s) | LTC3838-2 |
|
|
ISL81401EVAL1ZEVAL BOARD FOR ISL81401 |
3,594 | 263.02 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 6V ~ 40V | Buck | 200kHz | Board(s) | ISL81401 |
|

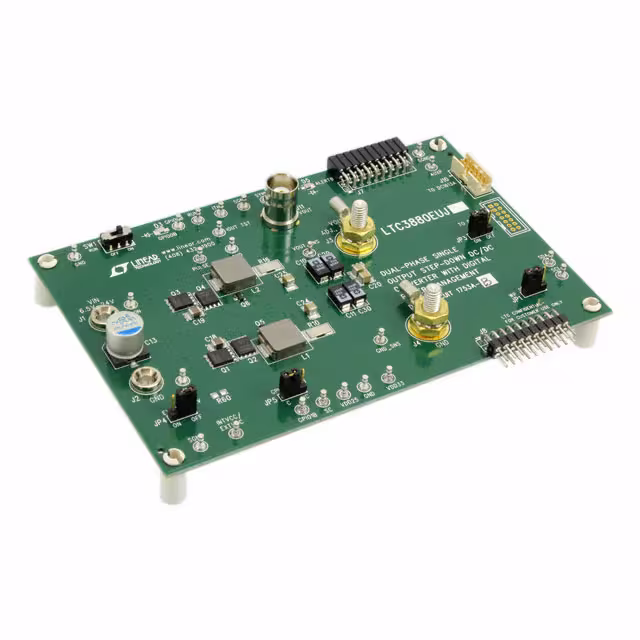

DC1753A-BEVAL BOARD FOR LTC3880 |
4,313 | 0.00 |
|
Datasheet |
PolyPhase® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 40A | 6.5V ~ 24V | Buck | 425kHz | Board(s) | LTC3880 |
|
|
ISL62386HIEVAL1ZEVAL BOARD FOR ISL62386 |
1,780 | 195.50 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.05V, 1.5V, 3.3V, 5V | 15A, 15A, 100mA, 100mA | 5.5V ~ 25V | Buck | - | Board(s) | ISL62386 |
|

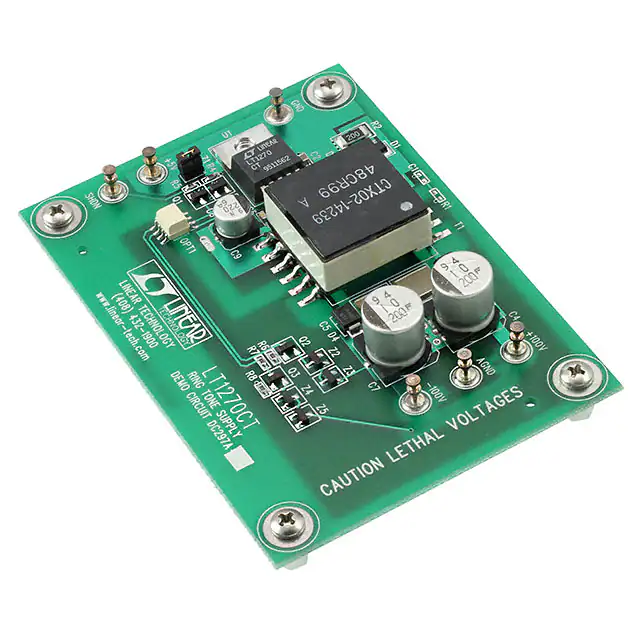

DC297AEVAL BOARD FOR LT1270 |
2,963 | 200.62 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±100V | 200mA | 5V | - | - | Board(s) | LT1270 |
|
MULTIPHSPOL-RDEVAL BOARD SI8250 SI8251 SI8252 |
4,475 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 40A | 10V ~ 15V | Buck | 391kHz | Board(s), Cable(s), Accessories | SI8250, SI8251, SI8252 |
|
|
LM5171EVM-BIDIREVAL BOARD FOR LM5171 |
4,485 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 14.5V, 50.5V | 60A | 12V, 48V | Buck-Boost | 100kHz | Board(s) | LM5171 |
|

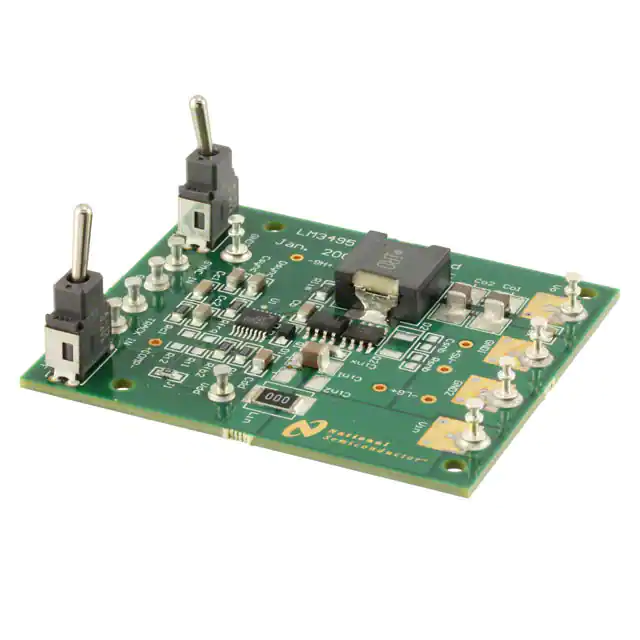

LM3495EVAL/NOPBEVAL BOARD FOR LM3495 |
3,034 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 2.9V ~ 18V | Buck | 500kHz | Board(s) | LM3495 |
|

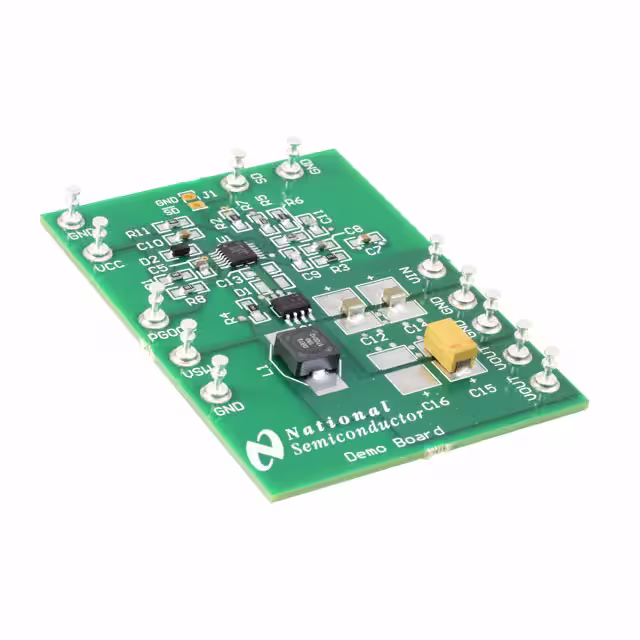

LM2743EVAL/NOPBEVAL BOARD FOR LM2743 |
3,712 | 80.96 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3.5A | 8V ~ 14V | Buck | 1MHz | Board(s) | LM2743 |
|
B048F096T24-EBEVAL BOARD FOR B048F096T24 |
4,001 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 240 W | 9.6V | 25A | 38V ~ 55V | Buck | 3.1MHz | Board(s) | B048F096T24 |
|
B048F320T30-EBEVAL BOARD FOR B048F320T30 |
1,550 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 300 W | 32V | 9.4A | 38V ~ 55V | Buck | 2.8MHz | Board(s) | B048F320T30 |
|

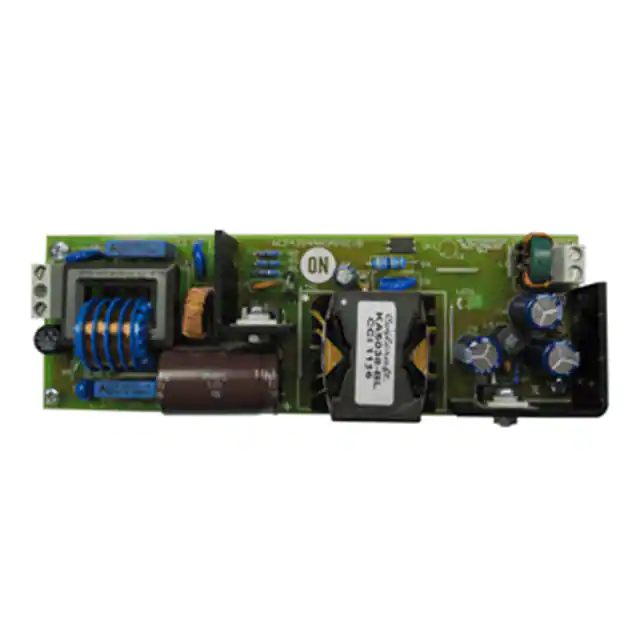

NCP4354AADAPGEVBEVAL BOARD FOR NCP4354 |
2,746 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 65 W | 19V | 3.4A | 85 ~ 265 VAC | Flyback | - | Board(s) | NCP4354 |
