DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6726EVAL1ZEVAL BOARD FOR ISL6726 |
4,084 | 202.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 40A | 36V ~ 75V | Buck | 220kHz | Board(s) | ISL6726 |
|
|
DC1234BEVAL BOARD FOR LT3782 |
3,180 | 188.32 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 8A | 10V ~ 15V | Boost | 250kHz | Board(s) | LT3782 |
|
|
MAX17498BBEVKIT#EVAL BOARD FOR MAX17498BB |
2,650 | 229.56 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 100mA | 4.5V ~ 10V | Boost | 500kHz | Board(s) | MAX17498BB |
|
|
DC2995AEVAL BOARD FOR LTC7891 |
2,709 | 208.65 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 48V | Buck | - | Board(s) | LTC7891 |
|
|
ISL6228LOEVAL3ZEVAL BOARD FOR ISL6228 |
4,598 | 210.45 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V or 1.8V, 1.8V | 8A, 8A | 3.3V ~ 25V | Buck | 270kHz, 300kHz | Board(s) | ISL6228 |
|
ARD00777EVAL BOARD FOR MIC45212 |
1,864 | 180.62 |
|
Datasheet |
Hyper Speed Control® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 28A | 5.5V ~ 26V | Buck | - | Board(s) | MIC45212 |
|
|
ISL6526AEVAL1EVAL BOARD FOR ISL6526A |
2,524 | 206.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 3.3V ~ 5V | Buck | 600kHz | Board(s) | ISL6526A |
|
|
ISL6526AEVAL2EVAL BOARD FOR ISL6526A |
2,029 | 206.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 3.3V ~ 5V | Buck | 600kHz | Board(s) | ISL6526A |
|
|
ISL6526EVAL1EVAL BOARD FOR ISL6526 |
1,574 | 206.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 5A | 3.3V ~ 5V | Buck | 300kHz | Board(s) | ISL6526 |
|
|
ISL6527EVAL1EVAL BOARD FOR ISL6527 |
4,785 | 206.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3V | 5A | 3.3V ~ 5V | Buck | 300kHz | Board(s) | ISL6527 |
|

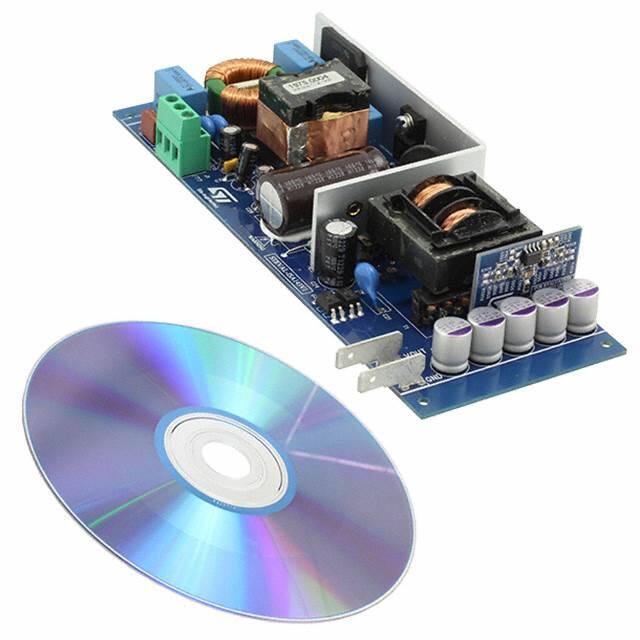

STEVAL-ISA143V1EVAL BOARD L6563H L6699 SRK2000 |
2,202 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 150 W | 12V | 12.5A | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563H, L6699, SRK2000 |
|
|
ISLUSPLUS-UC1DEMO1ZZYNQ ULTRASCALE+ POWER DEMO1 |
3,656 | 276.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 10 Non-Isolated Outputs | - | - | - | 8V ~ 13.2V | Buck | 500kHz | Board(s) | - |
|
|
DC147A-AEVAL BOARD FOR LT1339 |
2,674 | 184.58 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LT1339 |
|
|
DC147A-CEVAL BOARD FOR LT1339 |
1,404 | 184.58 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LT1339 |
|
|
DC177AEVAL BOARD FOR LT1339 |
1,998 | 184.58 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 50A | 28V | Buck | - | Board(s) | LT1339 |
|

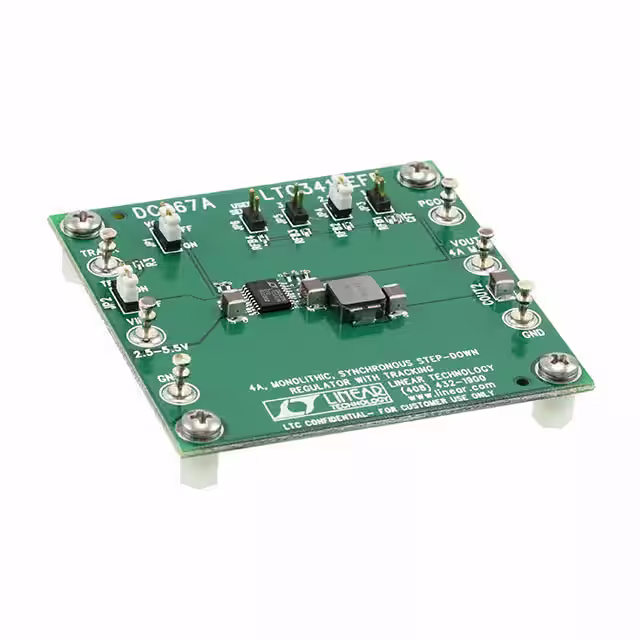

DC667AEVAL BOARD FOR LTC3416 |
4,779 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 2.5V or 3.3V | 4A | 2.25V ~ 5.5V | Buck | - | Board(s) | LTC3416 |
|

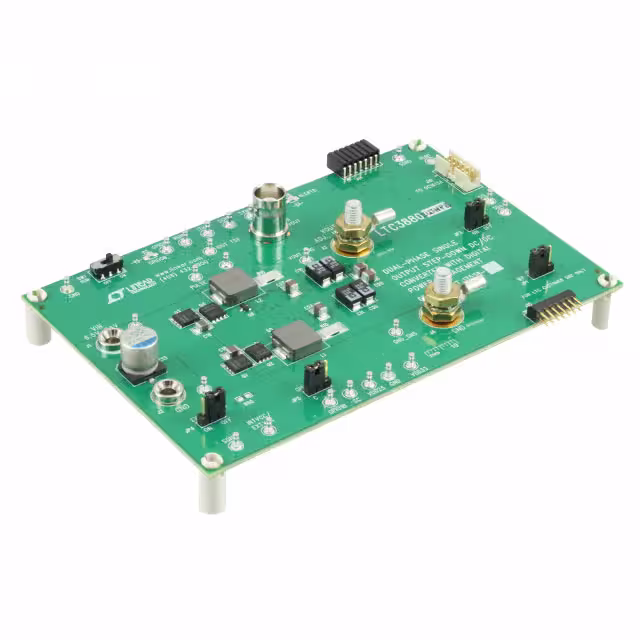

DC1753B-AEVAL BOARD FOR LTC3880 |
4,901 | 214.00 |
|
Datasheet |
PolyPhase® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 40A | 6.5V ~ 24V | Buck | 350kHz | Board(s) | LTC3880 |
|
|
DC1936AEVAL BOARD FOR LTC3882 |
1,169 | 214.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V | 30A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3882 |
|

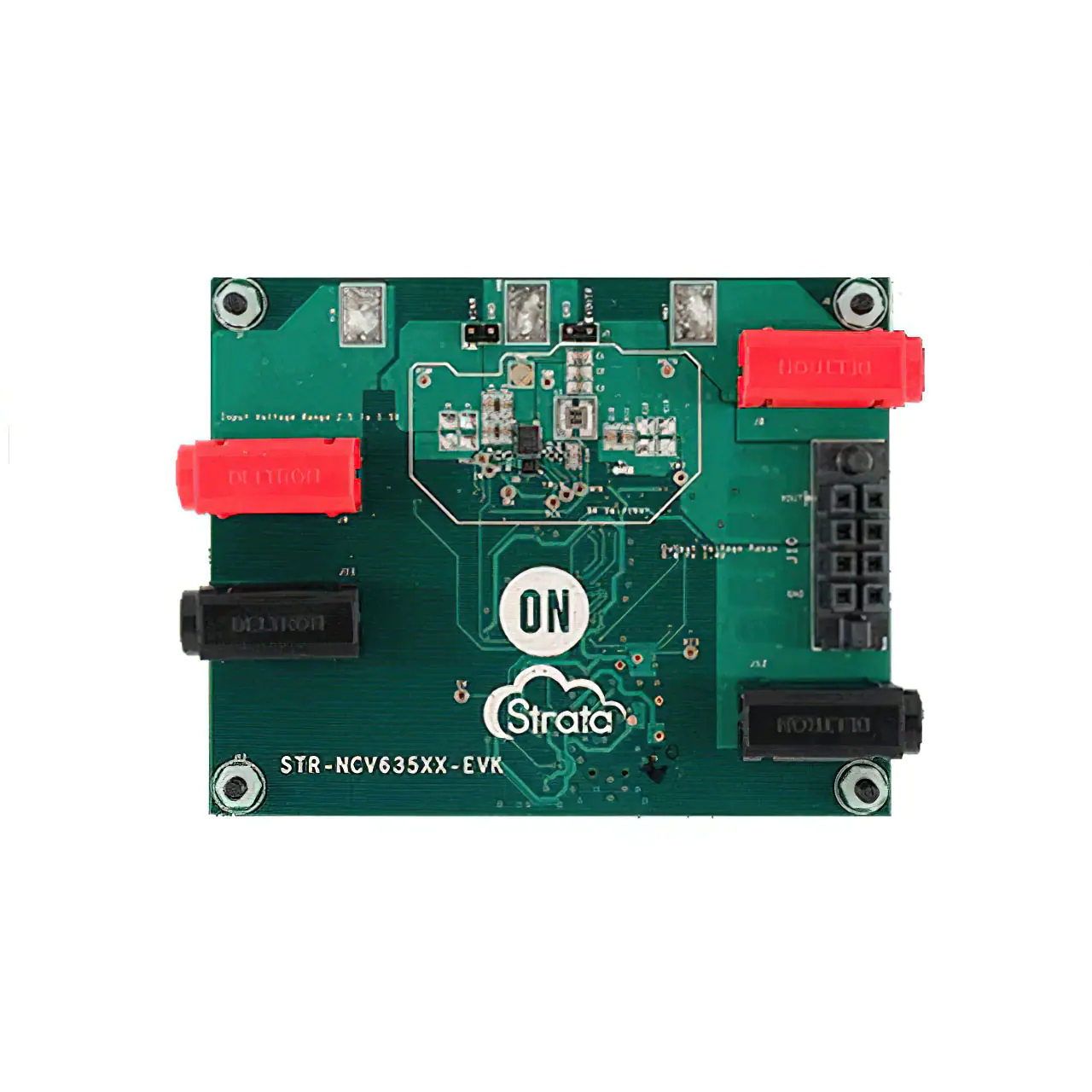

STR-NCV6357-GEVBEVAL BOARD FOR NCV6357 |
2,142 | 211.68 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.3V | 5A | 2.5V ~ 5.5V | Buck | - | Board(s) | NCV6357 |
|
|
DP83848C-POE-EKEVAL BOARD FOR DP83848C |
2,205 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 24 W | 3.3V | 7.3A | 39V ~ 57V | Flyback | 250kHz | Board(s) | DP83848C |
