DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
POEPHYTEREV-EEVAL BOARD FOR DP83848 LM5072 |
3,600 | 0.00 |
|
Datasheet |
PHYTER® | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 24 W | 3.3V | 7.3A | 39V ~ 57V | Flyback | 250kHz | Board(s) | DP83848, LM5072 |
|
|
MAX16956EVKIT#EVAL BOARD FOR MAX16956 |
2,385 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 300mA | 3.5V ~ 36V | Buck | 2.1MHz | Board(s) | MAX16956 |
|
EPC9131EVAL BOARD FOR EPC2112 |
4,125 | 0.00 |
|
Datasheet |
eGaN® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 27 W | 19V | 1.42A | 14V ~ 48V | Buck-Boost, SEPIC | 300kHz | Board(s) | EPC2112 |
|

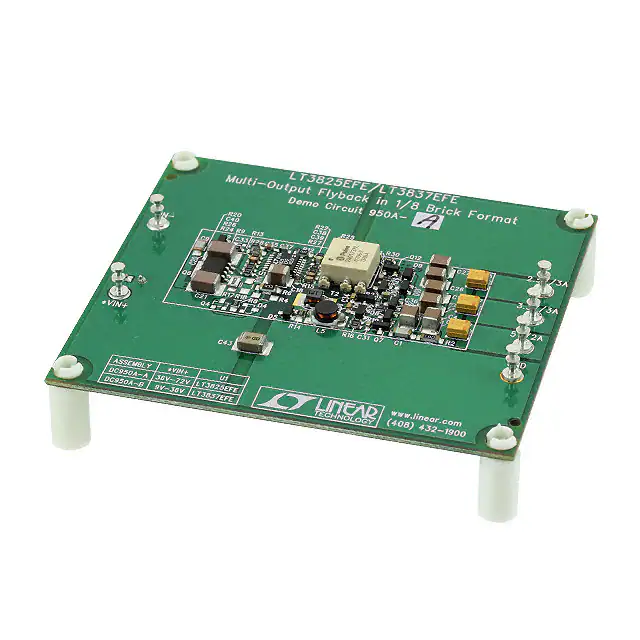

DC950A-AEVAL BOARD FOR LT3825 |
4,472 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Isolated Outputs | - | 2.5V, 3.3V, 5V | 3A, 3A, 2A | 36V ~ 72V | Flyback | - | Board(s) | LT3825 |
|
|
ISL62383HIEVAL1ZEVAL BOARD FOR ISL62383 |
4,983 | 215.62 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.05V, 1.5V, 5V | 15A, 15A, 100mA | 5.5V ~ 25V | Buck | - | Board(s) | ISL62383 |
|
|
MAX20021EVKIT#EVAL BOARD FOR MAX20021 |
2,499 | 0.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V ~ 4V | 1A | 3V ~ 5.5V | Buck | 3.2MHz | Board(s) | MAX20021 |
|

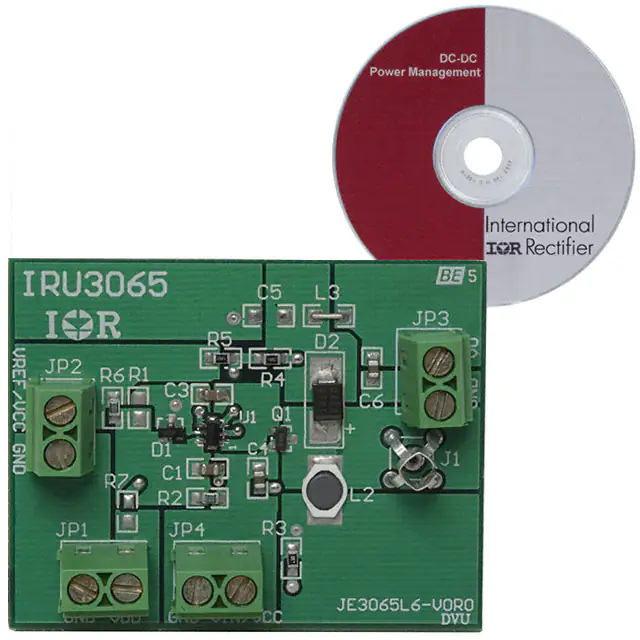

IRDC3065EVAL BOARD FOR IRU3065 |
4,549 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 200mA | 4V ~ 7V | Inverting | 1.2MHz | Board(s) | IRU3065 |
|

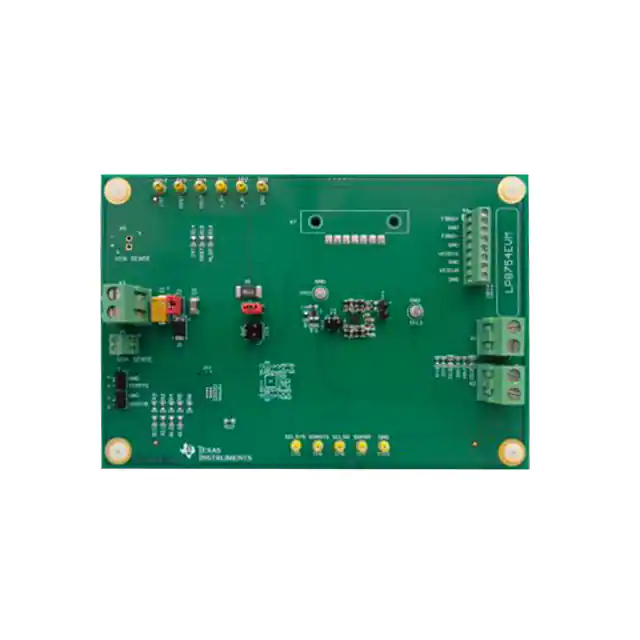

LP8754EVMEVAL BOARD FOR LP8754 |
4,460 | 204.89 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 6 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s) | LP8754 |
|

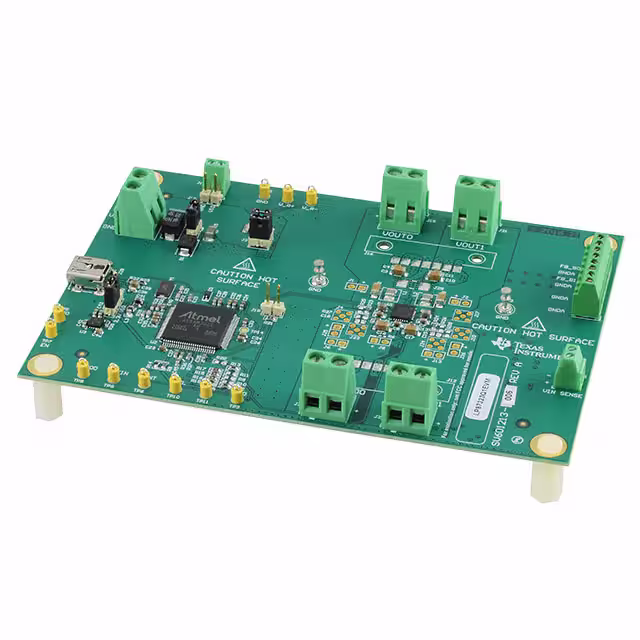

LP87323Q1EVMEVAL BOARD FOR LP873222Q1 |
2,164 | 238.80 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 0.7V ~ 3.36V | 2A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP873222-Q1 |
|

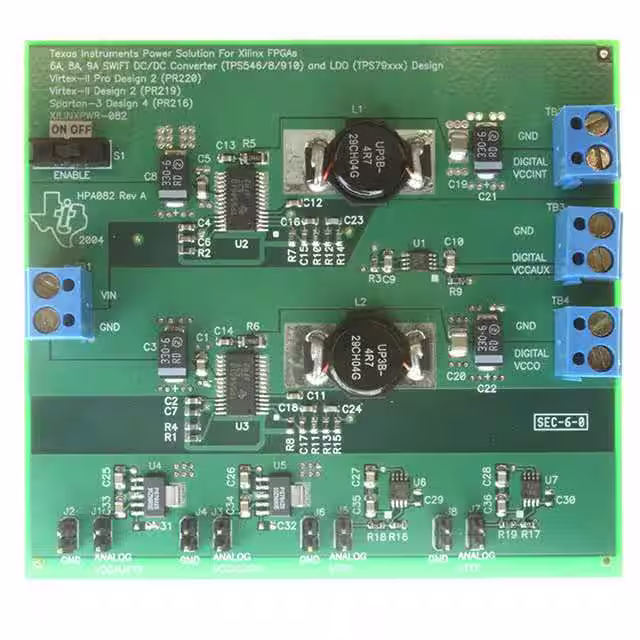

XILINXPWR-082EVAL BOARD FOR XILINX FPGAS |
2,247 | 0.00 |
|
Datasheet |
SWIFT™ | Bulk | Obsolete | DC/DC, Step Down with LDO | 7 Non-Isolated Outputs | - | 1.5V, 2.5V, 2.5V, 2.5V, 3.3V, 1.8V ~ 2.625V, 1.8V ~ 2.625V | 6A, 6A, 250mA, 60mA, 35mA, 30mA, 15mA | 5V | Buck | - | Board(s) | Xilinx FPGAs |
|
|
XILINXPWR-083EVAL BOARD FOR XILINX FPGAS |
4,588 | 0.00 |
|
Datasheet |
SWIFT™ | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 2.5V | 1.5A, 1.5A, 250mA | 5V | Buck | - | Board(s) | Xilinx FPGAs |
|
|
XILINXPWR-079EVAL BOARD FOR XILINX FPGAS |
3,198 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 2.5V | 3A, 1.5A, 250mA | 5V | Buck | - | Board(s) | Xilinx FPGAs |
|

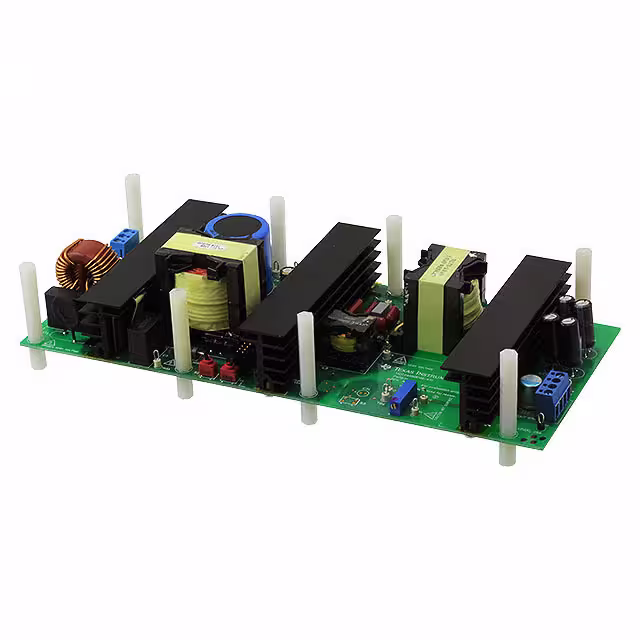

UCC29950EVM-631EVAL BOARD FOR UCC29950 |
1,230 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 300 W | 12V | 25A | 90 ~ 265 VAC | Flyback | - | Board(s) | UCC29950 |
|
|
TPSM831D31EVMEVAL BOARD FOR TPSM831D31 |
3,554 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.25V ~ 1.52V | 120A, 40A | 8V ~ 14V | Buck | - | Board(s) | TPSM831D31 |
|
|
ISL6261AEVAL2ZEVAL BOARD FOR ISL6261A |
1,082 | 217.06 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | - | - | - | - | 4.75V ~ 5.25V | Buck | - | Board(s) | ISL6261A |
|

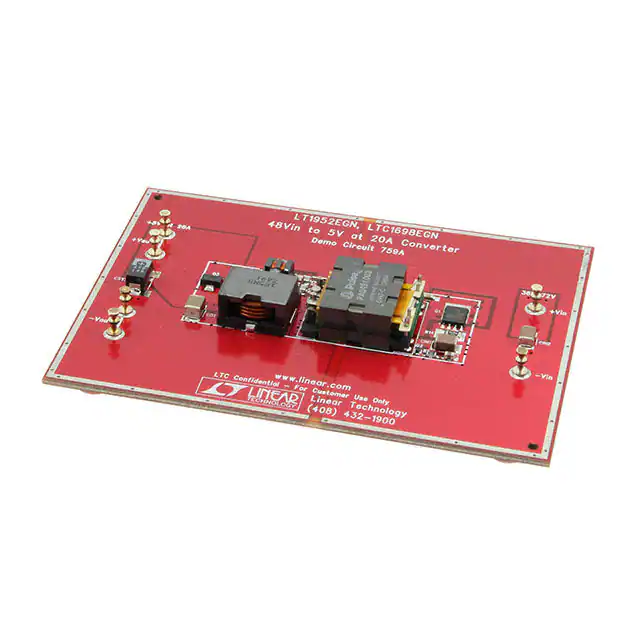

DC759AEVAL BOARD FOR LT1952 |
4,439 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 20A | 36V ~ 75V | Forward Converter | 300kHz | Board(s) | LT1952 |
|
|
DC442AEVAL BOARD FOR LT1950 |
1,749 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 3.3V | 25A | 36V ~ 72V | - | 230kHz | Board(s) | LT1950 |
|
|
DC659AEVAL BOARD FOR LTC3806 |
4,500 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Isolated Outputs | 22 W | 2.5V, 3.3V, 5V, 12V | 3A, 2A, 400mA, 400mA | 25V ~ 60V | Flyback | 250kHz | Board(s) | LTC3806 |
|
|
ADM1041-EVALEVAL BOARD FOR ADM1041 |
4,255 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | 24 W | 12V | 2A | 85 ~ 132 VAC | - | - | Board(s), Cable(s) | ADM1041 |
|
ADM1041A-EVALZEVAL BOARD FOR ADM1041A |
2,773 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | 24 W | 12V | 2A | 85 ~ 132 VAC | - | - | Board(s), Cable(s) | ADM1041A |
