DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
I6A10A-001-EVK-S1CCEVAL BOARD FOR I6A4W010A033V001R |
2,695 | 286.14 |
|
Datasheet |
i6A4W | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 250 W | 3.3V ~ 40V | 10A | 9V ~ 53V | Buck | 400kHz | Board(s) | i6A4W010A033V-001-R |
|
|
PSV-EBAD-65USB65W USB-C EVALUATION BOARD |
3,144 | 0.00 |
|
Datasheet |
PSV-EBAD | Active | AC/DC Converter | 1 Isolated Output | 65 W | 5 ~ 20V | 3.25A | 90 ~ 265 VAC | Flyback | 125kHz | Board(s) | - | |
|
|
PSV-EBAD-150-DS150W AC TO DC EVALUATION BOARD F |
2,632 | 0.00 |
|
Datasheet |
PSV-EBAD | Active | AC/DC Converter | - | 150 W | 65V ~ 380V | - | 85 ~ 265 VAC | - | 42kHz | Board(s) | - | |
|

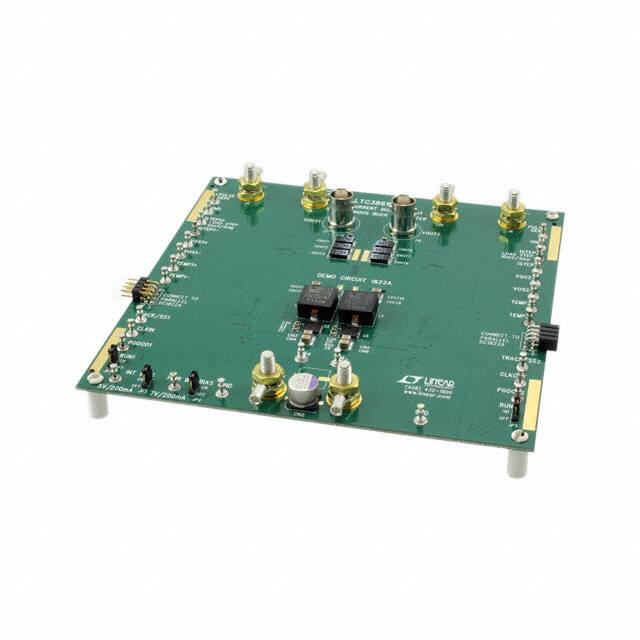

DC1822AEVAL BOARD FOR LTC3861 |
2,730 | 0.00 |
|
Datasheet |
PolyPhase® | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 25A, 25A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3861 |
|
|
DC2543AEVAL BOARD FOR LTC7820 |
4,756 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 10A | 36V ~ 60V | Buck | 200kHz | Board(s) | LTC7820 |
|
|
ISL81805EVAL1ZEVAL BOARD FOR ISL81805 |
2,590 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 5A | 9V ~ 36V | Boost | 200kHz | Board(s) | ISL81805 |
|
|
MAX16903EVKIT+EVAL BOARD FOR MAX16903 |
1,683 | 250.42 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 42V | Buck | 2.1MHz | Board(s) | MAX16903 |
|

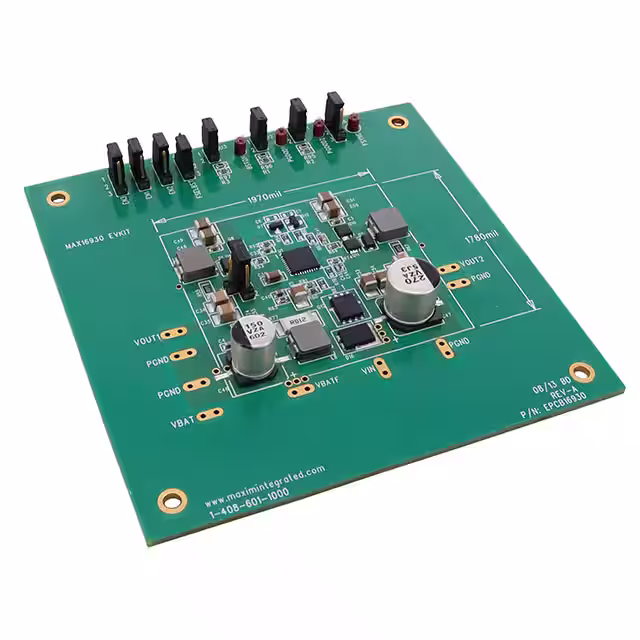

MAX16930EVKIT#EVAL BOARD FOR MAX16930 |
3,646 | 2.00 |
|
- |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 5A | 3.5V ~ 36V | Buck | - | Board(s) | MAX16930 |
|
|
ISL81805EVAL2ZEVAL BOARD FOR ISL81805 |
4,179 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 24V, 48V | 5A, 3A | 9V ~ 36V | Boost | 200kHz | Board(s) | ISL81805 |
|
|
MAX20430EVKITSYS#EVAL BOARD FOR MAX20430 |
4,958 | 0.00 |
|
- |
- | Box | Active | DC/DC Converter | 4 Non-Isolated Outputs | - | 1V, 1.2V, 3.3V, 5V | 3A, 3A, 2.5A, 500mA | 3.5V ~ 36V | - | 2.1MHz | Board(s) | MAX20430 |
|

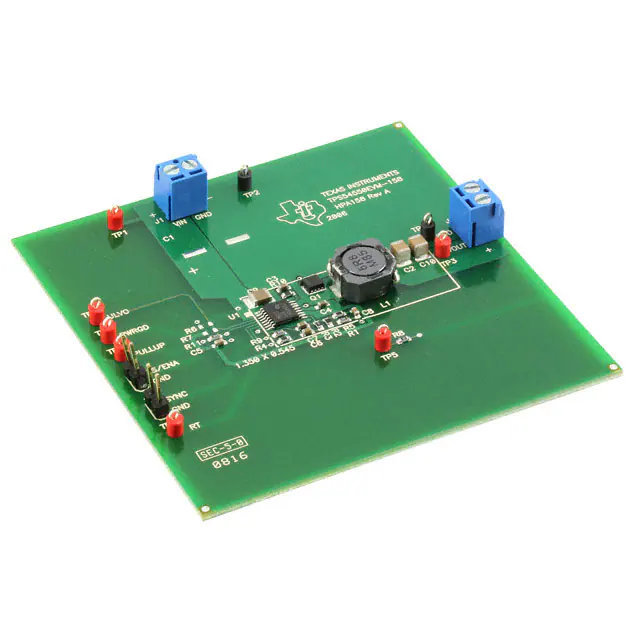

TPS54550EVM-158EVAL BOARD FOR TPS54550 |
2,956 | 12.00 |
|
Datasheet |
SWIFT™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 17V | Buck | 700kHz | Board(s) | TPS54550 |
|
LM2743-19AEVALEVAL BOARD FOR LM2743 |
4,137 | 80.96 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 3.3V | 19A | 8V ~ 14V | Buck | 300kHz | Board(s) | LM2743 |
|

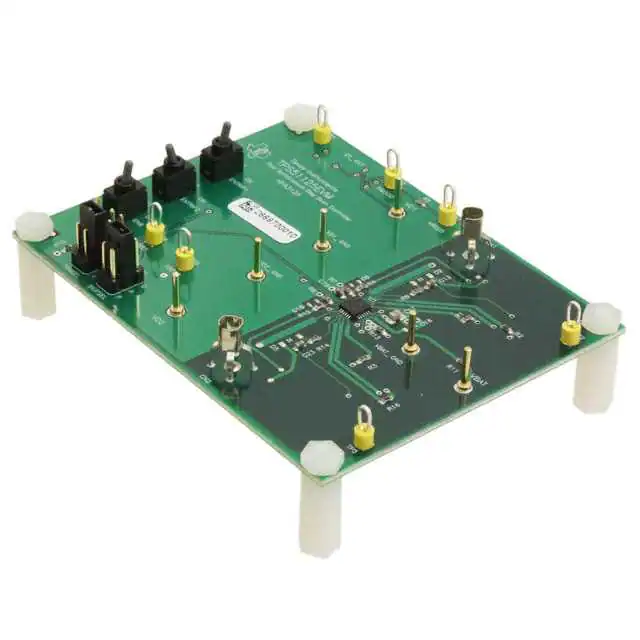

TPS51125EVMEVAL BOARD FOR TPS51125 |
2,816 | 58.80 |
|
Datasheet |
D-CAP™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 8A, 8A | 8V ~ 25V | Buck | 245kHz, 305kHz | Board(s) | TPS51125 |
|

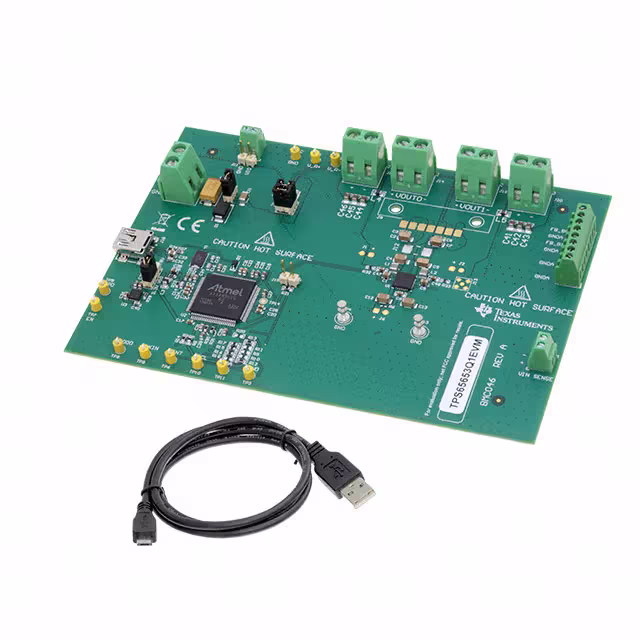

TPS65653Q1EVMEVAL BOARD FOR TPS65653Q1 |
4,671 | 238.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 2.8V ~ 5.5V | Buck | - | Board(s), Cable(s) | TPS65653-Q1 |
|
|
LM5175EVM-HDEVAL BOARD FOR LM5175 |
3,254 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 72 W | 12V | 6A | 5.5V ~ 42V | Buck-Boost | 400kHz | Board(s) | LM5175 |
|

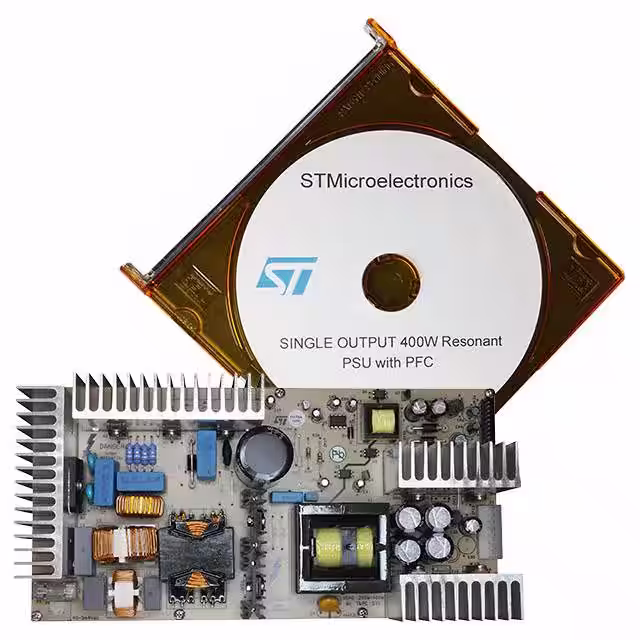

EVAL6599-400W-SEVAL BOARD FOR L6563 L6599 |
4,396 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side and PFC | 3 Isolated Outputs | 400 W | 3.3V, 5V, 200V | 2A, 1A, 700mA | 90 ~ 264 VAC | Resonant | - | Board(s) | L6563, L6599 |
|
EVAL6599-400W-TEVAL BOARD FOR L6563 L6599 |
3,219 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side and PFC | 4 Isolated Outputs | 400 W | 3.3V, 5V, 75V, 200V | 1.5A, 1A, 1A, 700mA | 90 ~ 264 VAC | Resonant | 120kHz | Board(s) | L6563, L6599 |
|
NCP1252TSFWDGEVBEVAL BOARD FOR NCP1252 |
1,909 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 12V | 10A | - | Forward Converter | - | Board(s) | NCP1252 |
|

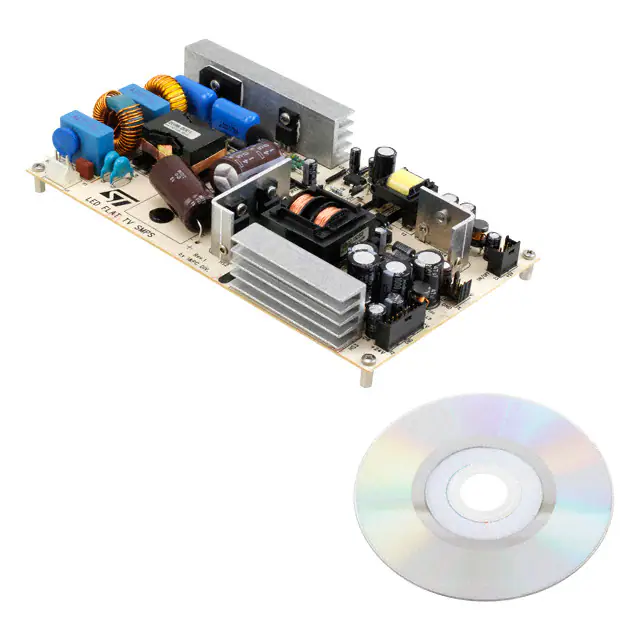

EVL185W-LEDTVEVAL BOARD L6564 L6599A VIPER27 |
2,889 | 0.00 |
|
Datasheet |
VIPER™ | Bulk | Obsolete | Power Supply with PFC | 4 Isolated Outputs | 185 W | 5V, 12V, 24V, 130V | 4A, 2A, 2A, 620mA | 90 ~ 264 VAC | - | - | Board(s) | L6564, L6599A, VIPer27 |
|

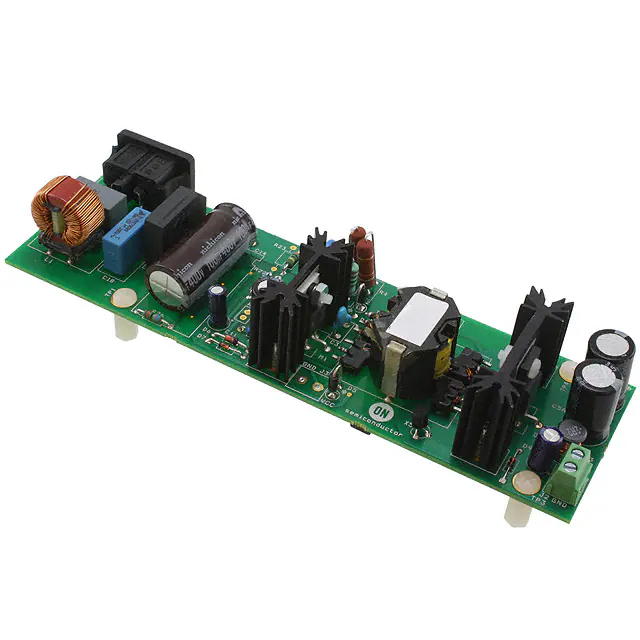

NCP1380DGEVBEVAL BOARD FOR NCP1380 |
3,719 | 1.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 4A | 85 ~ 265 VAC | Flyback | - | Board(s) | NCP1380 |
