DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2291AEVAL BOARD FOR LTC3882 |
3,063 | 294.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 140A | 7V ~ 14V | Buck | 450kHz | Board(s) | LTC3882 |
|
VTD48EH015T050A00EVAL BOARD FOR VTM48EH015X050A00 |
2,852 | 262.18 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 66 W | 1.32V | 50A | 26V ~ 55V | Buck | 1.45MHz | Board(s) | VTM48EH015x050A00 |
|
|
ISLUSPLUS-UC2DEMO1ZZYNQ ULTRASCALE+ POWER DEMO2 |
4,071 | 392.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 11 Non-Isolated Outputs | - | - | - | 8V ~ 13.2V | Buck | - | Board(s) | - |
|

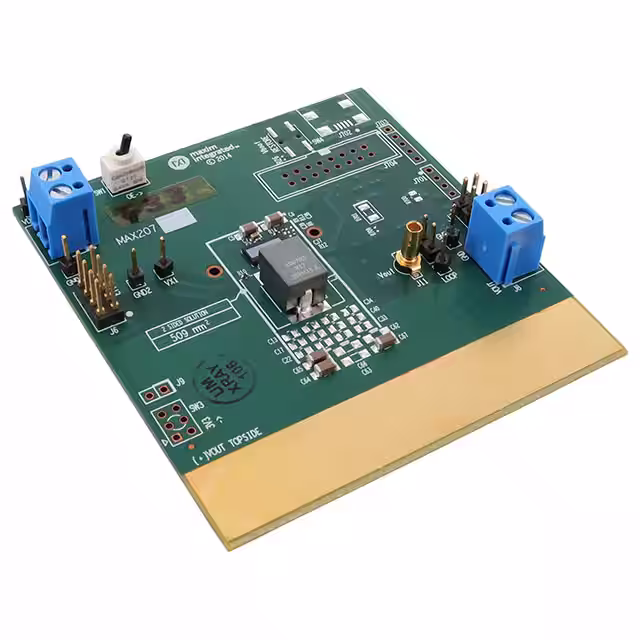

MAX20733EVKIT#EVAL BOARD FOR MAX20733 |
2,801 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 35A | 4.5V ~ 16V | Buck | 400kHz | Board(s) | MAX20733 |
|
|
SI8250DKEVAL BOARD SI8250 SI8251 SI8252 |
4,792 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 1V | 35A | 36V ~ 75V | Buck | 400kHz | Board(s), Cable(s), Power Supply, Accessories | SI8250, SI8251, SI8252 |
|
IJBEB2EVAL BOARD FOR IJB12060A007V001R |
2,560 | 0.00 |
|
Datasheet |
iJB | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 2V | 110A | 8V ~ 14V | Buck | - | Board(s), Cable(s) | iJB12060A007V-001-R |
|
|
ISL6522BEVAL1EVAL BOARD FOR ISL6522B |
1,422 | 300.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | - | - | - | - | 10.8V ~ 13.2V | Buck | - | Board(s) | ISL6522B |
|
|
ISL6539EVAL1EVAL BOARD FOR ISL6539 |
2,430 | 300.00 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | - | - | 5A, 3A | - | Buck | 300kHz | Board(s) | ISL6539 |
|
|
ISL6539EVAL2EVAL BOARD FOR ISL6539 |
2,886 | 300.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 5A, 5A | - | Buck | 300kHz | Board(s) | ISL6539 |
|

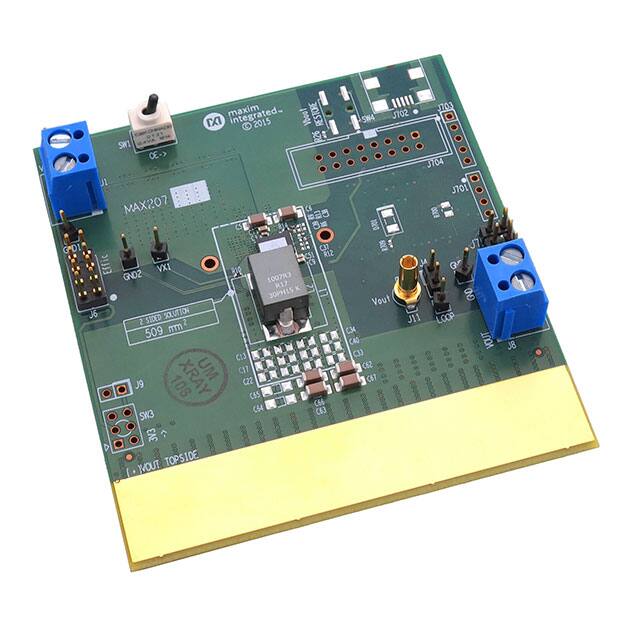

MAX20745EVKIT#EVAL BOARD FOR MAX20745 |
2,138 | 291.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 25A | 4.5V ~ 16V | Buck | 400kHz | Board(s) | MAX20745 |
|
|
MAX20730EVKIT#EVAL BOARD FOR MAX20730 |
1,034 | 291.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 25A | 4.5V ~ 16V | Buck | - | Board(s) | MAX20730 |
|
|
ISL91305-EVZEVAL BOARD FOR ISL91305 |
1,758 | 301.88 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | ISL91305 |
|

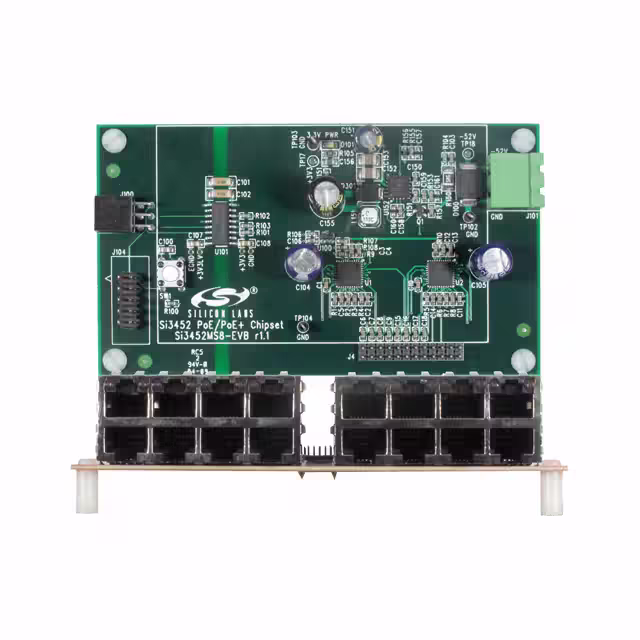

SI3452MS8-KITEVAL BOARD FOR SI3452 |
4,688 | 0.00 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | - | - | - | - | - | - | - | Board(s) | Si3452 |
|
EPC9102EVAL BOARD FOR EPC2001 |
1,167 | 0.00 |
|
Datasheet |
eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 8A | 36V ~ 60V | Buck | 375kHz | Board(s) | EPC2001 |
|
|
TEA1721ADB1061,598EVAL BOARD FOR TEA1721 |
2,773 | 300.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 2 Isolated Outputs | 5 W | 3.3V, 12V | 400mA, 400mA | 85 ~ 265 VAC | Flyback | 51kHz | Board(s) | TEA1721 |
|
|
TEA1721ADB1059,598EVAL BOARD FOR TEA1721 |
1,362 | 300.00 |
|
Datasheet |
- | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2.5 W | 12V | 200mA | 85 ~ 265 VAC | Buck | 50kHz | Board(s) | TEA1721 |
|
|
TEA1721ADB1060,598EVAL BOARD FOR TEA1721 |
1,493 | 1.00 |
|
Datasheet |
- | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2.5 W | -12V | 200mA | 85 ~ 265 VAC | Flyback | 50kHz | Board(s) | TEA1721 |
|
|
TEA1721ADB1062,598EVAL BOARD FOR TEA1721 |
2,377 | 300.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 3 Isolated Outputs | 5 W | 3.3V, 5V, 24V | 300mA, 300mA, 200mA | 85 ~ 560 VAC | Flyback | 50kHz | Board(s) | TEA1721 |
|

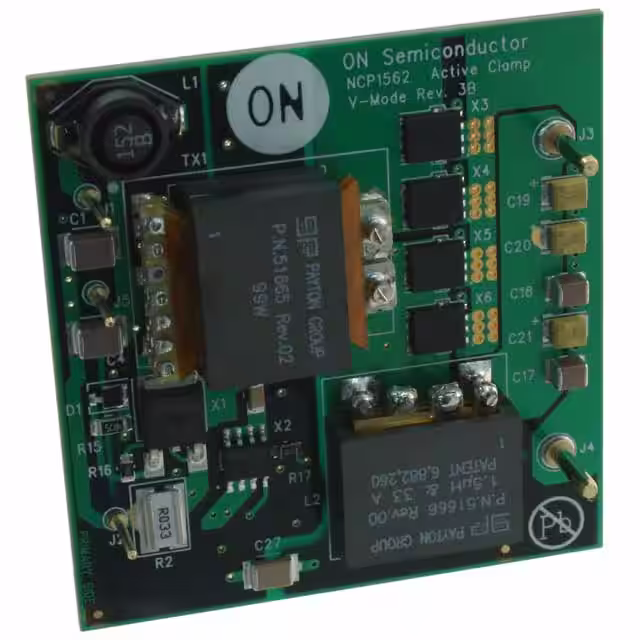

NCP1562-100WEVBGEVAL BOARD FOR NCP1562100W |
2,408 | 0.00 |
|
- |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 33V ~ 76V | Forward Converter | 350kHz | Board(s) | NCP1562-100W |
|
|
EVAL_DJT090A0X43-SRPZ (8 MODULE)EVAL BOARD FOR DJT090 |
3,910 | 0.00 |
|
- |
DLynxII™ | Bulk | Active | DC/DC Converter | 8 Non-Isolated Outputs | 20 W | 0.5V ~ 2V | 90A | 7V ~ 14.4V | - | 100kHz | Board(s) | DJT090 |
