Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMC-0508TH0510SWITCH REED SPST-NO 250MA 140V |
2,016 | 6.35 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 5 ~ 10AT | 2AT | 250mA (AC/DC) | 140 V | 175 V | 5W | 0.35 ms | 0.1 ms | Surface Mount | Axial | 0.398" (10.11mm) | 0.256" L x 0.114" W x 0.091" H (6.50mm x 2.90mm x 2.30mm) | - | -40°C ~ 125°C | - | 500mA (AC/DC) |
|
PMC-1496B2530SWITCH REED SPDT 1A 140V |
1,671 | 6.00 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPDT | 25 ~ 30AT | 6AT | 1A (AC/DC) | 140 V | 150 V | 20W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.165" (55.00mm) | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | - | -40°C ~ 130°C | - | 2A (AC/DC) |
|

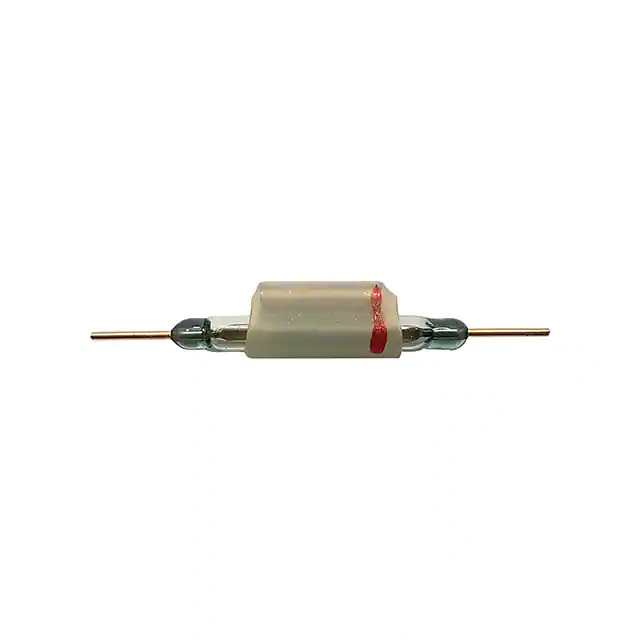

PMC-2021X/1321SWITCH REED LATCHING 500MA 150V |
3,111 | 7.42 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPST-NO, Latching | - | - | 500mA (AC/DC) | 150 V | 150 V | 30W | 1 ms | 0.4 ms | Surface Mount | Axial | 1.181" (30.00mm) | 0.100" Dia x 0.787" L (2.54mm x 20.00mm) | - | -40°C ~ 85°C | - | 1A (AC/DC) |
|
PMC-1496X/1320SWITCH REED LATCHING 700MA 100V |
1,225 | 11.38 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPST-NO, Latching | - | - | 700mA (AC/DC) | 100 V | 110 V | 15W | 2 ms | 0.02 ms | Surface Mount | Axial | 0.846" (21.50mm) | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | - | -25°C ~ 80°C | - | 1.5A (AC/DC) |
|

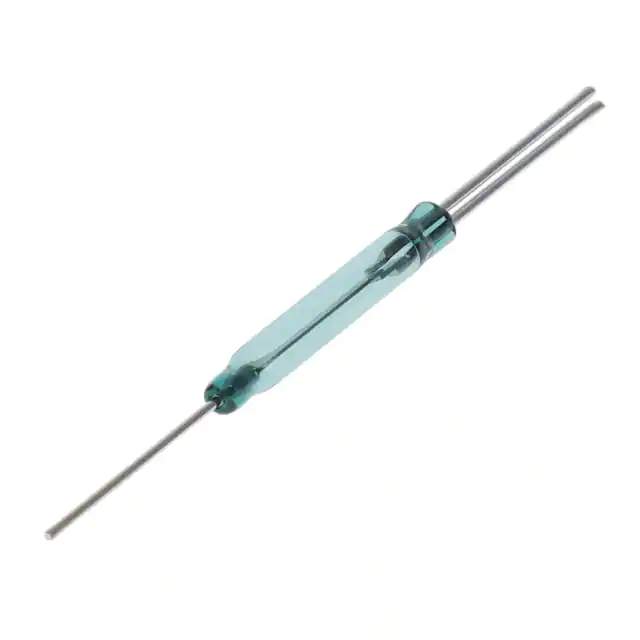

DRS-DTH-50-80SWITCH REED SPDT 350MA 350V |
3,524 | 19.32 |
|
Datasheet |
DRS-DTH | Box | Active | Glass Body Reed | SPDT | 50 ~ 80AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
FLEX-14-7-10SWITCH REED SPST-NO 350MA 140V |
796 | 1.22 |
|
Datasheet |
FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 7 ~ 10AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
|
FLEX-14-35-40SWITCH REED SPST-NO 350MA 140V |
759 | 1.22 |
|
Datasheet |
FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 35 ~ 40AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MDCG-4-37-43SWITCH REED SPST-NO 350MA 140V |
208 | 1.38 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MLRR-3-22-28SWITCH REED SPST-NO 700MA 140V |
697 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
MLRR-3-27-48SWITCH REED SPST-NO 700MA 140V |
994 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 48AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
|
MACD-14-20-25SWITCH REED SPST-NO 350MA 140V |
980 | 1.45 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
MACD-14-19-21SWITCH REED SPST-NO 350MA 140V |
968 | 1.51 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 19 ~ 21AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
MLRR-3-17-28SWITCH REED SPST-NO 700MA 140V |
651 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
|
MACD-14-10-15SWITCH REED SPST-NO 350MA 140V |
405 | 1.45 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
MDSM-4B-17-23SWITCH REED SPST-NO 350MA 140V |
971 | 1.67 |
|
Datasheet |
MDSM-4 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4B-27-33SWITCH REED SPST-NO 350MA 140V |
949 | 1.67 |
|
Datasheet |
MDSM-4 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4B-32-38SWITCH REED SPST-NO 350MA 140V |
787 | 1.67 |
|
Datasheet |
MDSM-4 | Box | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4B-22-28SWITCH REED SPST-NO 350MA 140V |
772 | 1.67 |
|
Datasheet |
MDSM-4 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4B-12-23SWITCH REED SPST-NO 350MA 140V |
688 | 1.67 |
|
Datasheet |
MDSM-4 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MDSR-10-25-30SWITCH REED SPST-NO 350MA 140V |
194 | 1.67 |
|
Datasheet |
MDSR-10 | Box | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
