Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDSR-4-22-28SWITCH REED SPST-NO 500MA |
786 | 1.44 |
|
Datasheet |
MDSR-4 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MDCG-4-22-38SWITCH REED SPST-NO 350MA 140V |
842 | 1.44 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDCG-4-17-28SWITCH REED SPST-NO 350MA 140V |
478 | 1.44 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MDSM-10B-20-25SWITCH REED SPST-NO 350MA 140V |
900 | 1.76 |
|
Datasheet |
MDSM-10 | Box | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MLRR-3-37-43SWITCH REED SPST-NO 700MA 140V |
962 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
MLRR-4-12-18SWITCH REED SPST-NO 700MA 140V |
701 | 1.67 |
|
Datasheet |
MLRR-4 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
MDSM-4B-12-18SWITCH REED SPST-NO 350MA 140V |
679 | 1.67 |
|
Datasheet |
MDSM-4 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
HA15-2-27-33SWITCH REED SPST-NO 350MA 265V |
989 | 2.22 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 27 ~ 33AT | - | 350mA (AC), 500mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.5A (DC) |
|
|
HA15-2-32-38SWITCH REED SPST-NO 350MA 265V |
985 | 2.22 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 350mA (AC), 500mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.5A (DC) |
|
|
HA15-2-12-18SWITCH REED SPST-NO 300MA 265V |
962 | 2.22 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 300mA (AC), 400mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.4A (DC) |
|
59050-1-U-00-0SWITCH REED SPST-NO 350MA 140V |
927 | 2.06 |
|
Datasheet |
59050 | Box | Active | Molded Body Reed | SPST-NO | 22 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -40°C ~ 105°C | 0.3 pF | 1.2A (DC) |
|
|
59050-1-V-00-0SWITCH REED SPST-NO 350MA 140V |
680 | 2.06 |
|
Datasheet |
59050 | Box | Active | Molded Body Reed | SPST-NO | 27 ~ 33AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -40°C ~ 105°C | 0.3 pF | 1.2A (DC) |
|
MS-108-4-3SWITCH REED SPDT 250MA 120V |
4,189 | 4.77 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPDT | 20 ~ 25AT | 5AT | 250mA (AC/DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.5A (AC/DC) |
|
|
MS-108-4-4SWITCH REED SPDT 250MA 120V |
2,765 | 4.77 |
|
Datasheet |
- | Bulk | Active | Molded Body Reed | SPDT | 25 ~ 30AT | 5AT | 250mA (AC/DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | PC Pin | 0.878" (22.30mm) | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) | 0.165" (4.20mm) | -20°C ~ 85°C | - | 1.5A (AC/DC) |
|
PMC-1496S2530SWITCH REED SPDT 1A 140V |
1,041 | 5.73 |
|
- |
- | Bulk | Active | Glass Body Reed | SPDT | 25 ~ 30AT | 6AT | 1A (AC/DC) | 140 V | 150 V | 20W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.165" (55.00mm) | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | - | -40°C ~ 130°C | - | 2A (AC/DC) |
|
DRS-DTH-45-50SWITCH REED SPDT 350MA 350V |
2,818 | 19.32 |
|
Datasheet |
DRS-DTH | Bulk | Active | Glass Body Reed | SPDT | 45 ~ 50AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
MRPR-20-32-38SWITCH REED SPST-NO 1.1A 265V |
3,212 | 3.39 |
|
Datasheet |
MRPR-20 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 1.1A (AC), 1.5A (DC) | 265 V | 250 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | - | -20°C ~ 125°C | 0.2 pF | 3A (DC) |
|
KSK-1A66/3-1520SWITCH REED SPST-NO 500MA 200V |
745 | 0.50 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|

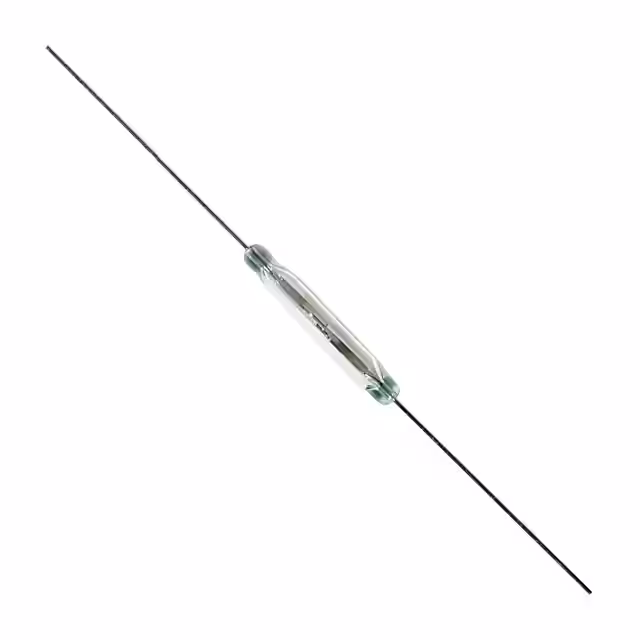

KSK-1A66/3-1015SWITCH REED SPST-NO 500MA 200V |
412 | 0.50 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
FLEX-14-30-35SWITCH REED SPST-NO 350MA 140V |
968 | 1.22 |
|
Datasheet |
FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
