Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLRR-3-12-38SWITCH REED SPST-NO 700MA 140V |
985 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 38AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
MACD-14-10-13SWITCH REED SPST-NO 350MA 140V |
863 | 1.51 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 13AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
MACD-14-17-20SWITCH REED SPST-NO 350MA 140V |
217 | 1.51 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
MLRR-4-37-43SWITCH REED SPST-NO 700MA 140V |
938 | 1.67 |
|
Datasheet |
MLRR-4 | Box | Active | Glass Body Reed | SPST-NO | 37 ~ 43AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
|
MLRR-3-12-18SWITCH REED SPST-NO 700MA 140V |
974 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
RI-07GP-1520SWITCH REED SPST-NO 500MA 140V |
325 | 0.71 |
|
Datasheet |
RI-07GP | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 5 ~ 19AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Surface Mount | Axial | 1.811" (46.00mm) | 0.531" Dia x 0.071" L (13.49mm x 1.80mm) | - | -55°C ~ 125°C | 0.3 pF | 1.75A (DC) |
|
|
RI-26GP-2025SWITCH REED SPST-NO 1A 140V |
268 | 0.93 |
|
Datasheet |
RI-26GP | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 15 ~ 18.75AT | 1A (AC/DC) | 140 V | 200 V | 15W | 0.3 ms | 0.03 ms | Surface Mount | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 1.5A (DC) |
|
RI-60GP1520SWITCH REED SPST-NO 500MA 140V |
2,476 | 0.47 |
|
Datasheet |
RI-60 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.15 ms | 0.02 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -55°C ~ 125°C | 0.25 pF | 500mA (AC/DC) |
|
59166-1-T-00-CSWITCH REED SPST-NO 350MA 140V |
969 | 1.20 |
|
Datasheet |
59166 | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.805" (20.45mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
RI-48GP-4045SWITCH REED SPST-NO 1A 250V |
2,446 | 0.68 |
|
Datasheet |
RI-48GP | Bulk | Active | Glass Body Reed | SPST-NO | 40 ~ 45AT | 33 ~ 41AT | 1A (AC/DC) | 250 V | 200 V | 70W | 0.35 ms | 0.03 ms | Through Hole | Axial | 2.157" (54.79mm) | 0.106" Dia x 0.807" L (2.70mm x 20.50mm) | - | -55°C ~ 125°C | 0.2 pF | 2.25A (DC) |
|
MDSM-4R-17-28SWITCH REED SPST-NO 350MA 140V |
4,525 | 1.67 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4R-22-28SWITCH REED SPST-NO 350MA 140V |
168 | 1.67 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
59170-1-S-00-ASWITCH REED SPST-NO 350MA 140V |
4,398 | 2.09 |
|
Datasheet |
59170 | Box | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
MG-A2-5.0-NSWITCH MAGNETIC SPST-NO 250MA |
3,709 | 7.51 |
|
Datasheet |
N | Bulk | Active | Magnasphere® Magnetic | SPST-NO | 14.45mm | 16.33mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.615" (15.62mm) | 0.244" Dia x 0.175" L (6.20mm x 4.45mm) | 0.175" (4.45mm) | -40°C ~ 150°C | 1 pF | - |
|

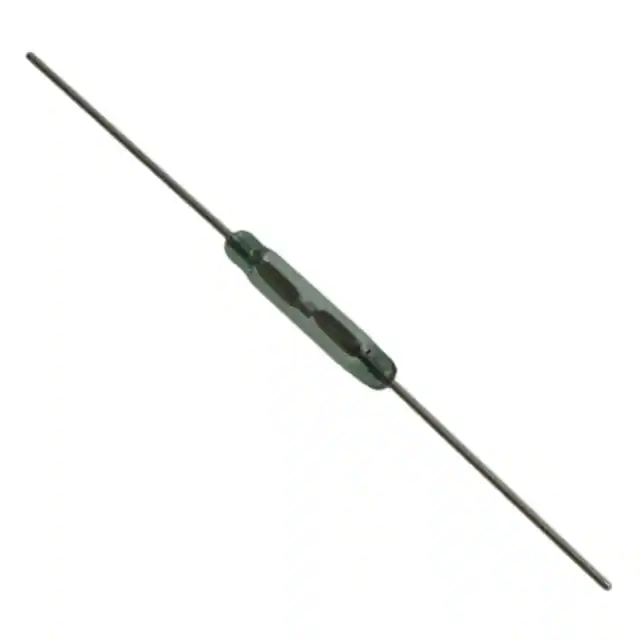

ORD 211/15-20 ATSWITCH REED SPST-NO 100MA 24V |
4,353 | 0.95 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 100mA (AC/DC) | 24 V | 24 V | 1VA | 0.3 ms | 0.05 ms | Through Hole | Axial | 1.406" (35.70mm) | 0.079" Dia x 0.394" L (2.00mm x 10.00mm) | - | - | 0.2 pF | 300mA (AC/DC) |
|

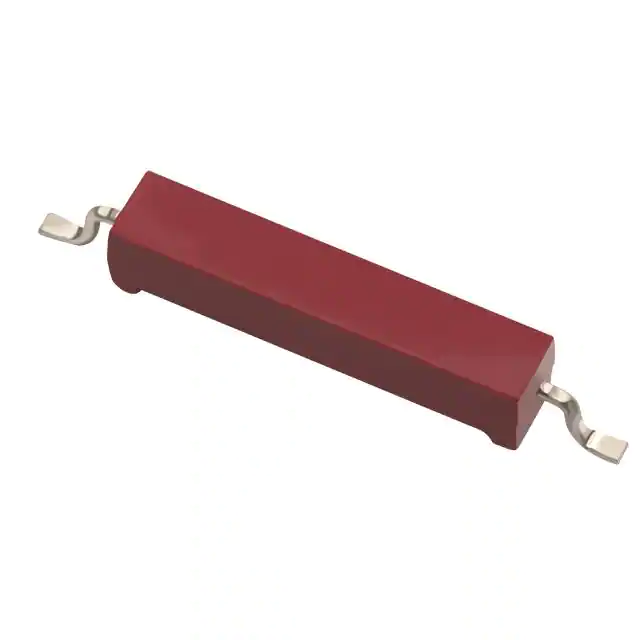

CT10-1025-G1SWITCH REED SPST-NO 500MA 140V |
1,636 | 1.31 |
|
Datasheet |
CT10 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 25AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) | 0.115" (2.92mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
MK23-46-B-2SWITCH REED SPST-NO 500MA 200V |
2,124 | 0.79 |
|
Datasheet |
MK23 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Surface Mount | Gull Wing | 0.701" (17.80mm) | 0.079" Dia x 0.472" L (2.00mm x 12.00mm) | 0.098" (2.50mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
59165-1-U-00-ASWITCH REED SPST-NO 350MA 140V |
4,713 | 1.70 |
|
Datasheet |
59165 | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|
MG-A2-5.5-TWSWITCH MAGNETIC SPST-NO 250MA |
4,192 | 7.89 |
|
Datasheet |
TW | Bulk | Active | Magnasphere® Magnetic | SPST-NO | 14.66mm | 18.11mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.613" (15.57mm) | 0.198" Dia x 0.183" L (5.03mm x 4.65mm) | 0.183" (4.65mm) | -40°C ~ 150°C | 1 pF | - |
|
MVSR-20-22-28SWITCH REED SPST-NO 350MA 265V |
1,140 | 4.30 |
|
Datasheet |
MVSR-20 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 28AT | - | 350mA (AC), 500mA (DC) | 265 V | 1000 V | 10W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.235" (56.77mm) | 0.105" Dia x 0.775" L (2.66mm x 19.69mm) | - | -75°C ~ 125°C | 0.2 pF | 1.3A (DC) |
