Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDCG-4-12-23SWITCH REED SPST-NO 350MA 140V |
1,822 | 1.38 |
|
Datasheet |
MDCG-4 | Box | Active | Glass Body Reed | SPST-NO | 12 ~ 23AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
MLRR-4-17-28SWITCH REED SPST-NO 700MA 140V |
3,536 | 1.67 |
|
Datasheet |
MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 17 ~ 28AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|
|
MLRR-4-32-38SWITCH REED SPST-NO 700MA 140V |
3,215 | 1.67 |
|
Datasheet |
MLRR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 32 ~ 38AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1A (DC) |
|

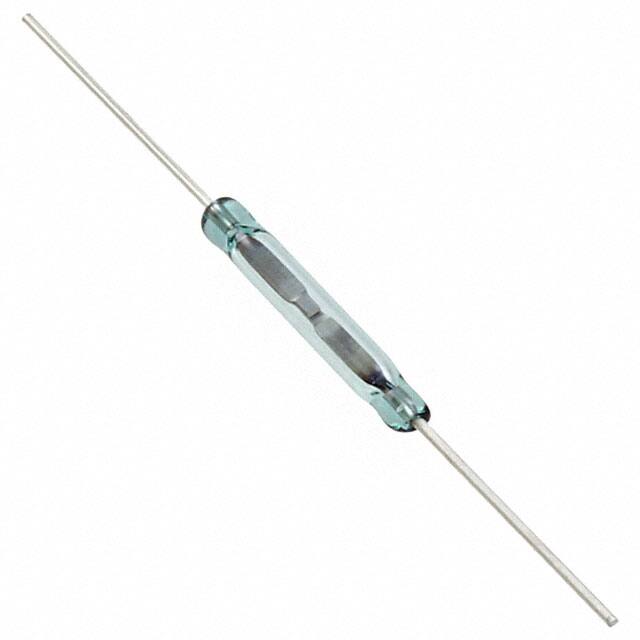

MDSR-4-22-38SWITCH REED SPST-NO 500MA |
4,467 | 1.38 |
|
Datasheet |
MDSR-4 | Bulk | Active | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
PMC-1401TS2025SWITCH REED SPST-NO 1A 140V |
4,486 | 1.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) |
|
59165-1-T-00-CSWITCH REED SPST-NO 350MA 140V |
3,692 | 1.79 |
|
Datasheet |
59165 | Bulk | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Surface Mount | Gull Wing | 0.795" (20.19mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | 0.099" (2.52mm) | -40°C ~ 105°C | 0.3 pF | 800mA (DC) |
|

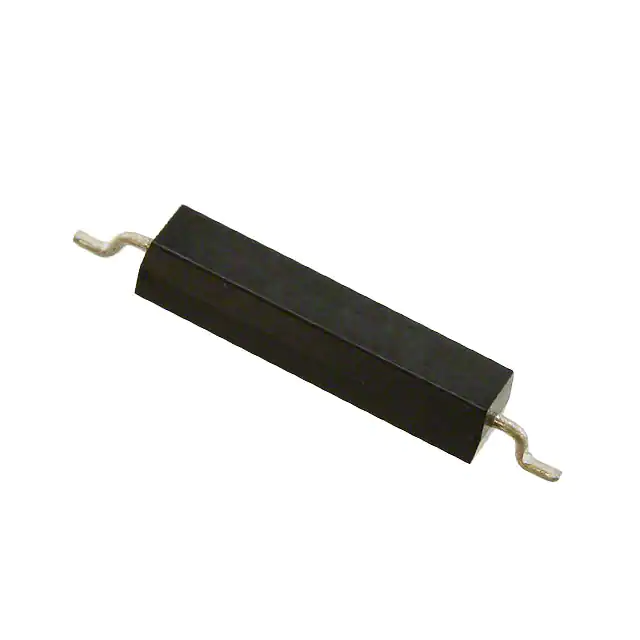

59170-1-U-00-CSWITCH REED SPST-NO 350MA 140V |
4,057 | 2.09 |
|
Datasheet |
59170 | Bulk | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 0.5 ms | Surface Mount | Gull Wing | 0.640" (16.26mm) | 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) | 0.095" (2.41mm) | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
PMC-1401T2025SWITCH REED SPST-NO 1A 140V |
4,211 | 1.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 5 ~ 20AT | 1A (AC/DC) | 140 V | 200 V | 10W | 0.4 ms | 0.5 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | 0.5 pF | 1.2A (AC/DC) |
|
MLRR-3-17-38SWITCH REED SPST-NO 700MA 140V |
1,639 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 38AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
MACD-14-10-20SWITCH REED SPST-NO 350MA 140V |
2,180 | 1.45 |
|
Datasheet |
MACD-14 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
MASM-14R-25-30SWITCH REED SPST-NO 350MA 140V |
2,243 | 1.67 |
|
Datasheet |
MASM-14 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
MDSM-10B-15-20SWITCH REED SPST-NO 350MA 140V |
1,090 | 1.76 |
|
Datasheet |
MDSM-10 | Box | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
|
MDSM-10B-10-15SWITCH REED SPST-NO 350MA 140V |
1,983 | 1.76 |
|
Datasheet |
MDSM-10 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.615" (15.62mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | 0.079" (2.00mm) | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
|
MLRR-3-7-13SWITCH REED SPST-NO 700MA 140V |
2,833 | 1.57 |
|
Datasheet |
MLRR-3 | Box | Active | Glass Body Reed | SPST-NO | 7 ~ 13AT | - | 700mA (AC), 1A (DC) | 140 V | 200 V | 20W | 0.7 ms | 0.2 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.105" Dia x 0.600" L (2.66mm x 15.24mm) | - | -40°C ~ 125°C | 0.4 pF | 1.2A (DC) |
|
PMC-2021S2530SWITCH REED SPST-NO 1.5A 250V |
3,883 | 1.72 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | 5AT | 1.5A (AC/DC) | 250 V | 200 V | 50W | 1 ms | 0.4 ms | Surface Mount | Axial | 1.126" (28.60mm) | 0.100" Dia x 0.787" L (2.54mm x 20.00mm) | - | -60°C ~ 125°C | - | 2A (AC/DC) |
|
PMC-0701TH1520SWITCH REED SPST-NO 500MA 120V |
1,784 | 2.03 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Axial | 0.492" (12.50mm) | 0.335" L x 0.110" W x 0.098" H (8.50mm x 2.80mm x 2.50mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
PMC-1496S2025SWITCH REED SPDT 1A 140V |
4,273 | 5.73 |
|
- |
- | Bulk | Active | Glass Body Reed | SPDT | 20 ~ 25AT | 6AT | 1A (AC/DC) | 140 V | 150 V | 20W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.165" (55.00mm) | 0.087" Dia x 0.571" L (2.20mm x 14.50mm) | - | -40°C ~ 130°C | - | 2A (AC/DC) |
|
MDSM-DTB-15-30SWITCH REED SPDT 180MA 120V |
1,221 | 5.10 |
|
Datasheet |
MDSM-DT | Box | Active | Glass Body Reed | SPDT | 15 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-15-30-USWITCH REED SPDT 180MA 120V |
3,010 | 5.08 |
|
Datasheet |
MDRR-DT | Bulk | Active | Glass Body Reed | SPDT | 15 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.066" (52.48mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDRR-DT-15-30-FSWITCH REED SPDT 180MA 120V |
2,164 | 5.17 |
|
Datasheet |
MDRR-DT | Box | Active | Glass Body Reed | SPDT | 15 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Through Hole | Axial | 2.034" (51.66mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | - | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
